ABMC2-3.500MHZ-3 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ABMC2-3.500MHZ-3

ABMC2-3.500MHZ-3: DescriptionParallel - Fundamental Quartz Crystal, 3.5MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, RESISTANCE WELDED, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size824KB，3 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABMC2-3.500MHZ-3 Overview

Parallel - Fundamental Quartz Crystal, 3.5MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, RESISTANCE WELDED, SMD, 2 PIN

ABMC2-3.500MHZ-3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1082482365
package instruction	ROHS COMPLIANT, HERMETIC SEALED, RESISTANCE WELDED, SMD, 2 PIN
Reach Compliance Code	compliant
Country Of Origin	Japan
YTEOL	6.25
Other features	AT-CUT CRYSTAL; BULK
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.01%
frequency tolerance	25 ppm
load capacitance	18 pF
Manufacturer's serial number	ABMC2
Installation features	SURFACE MOUNT
Nominal operating frequency	3.5 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C

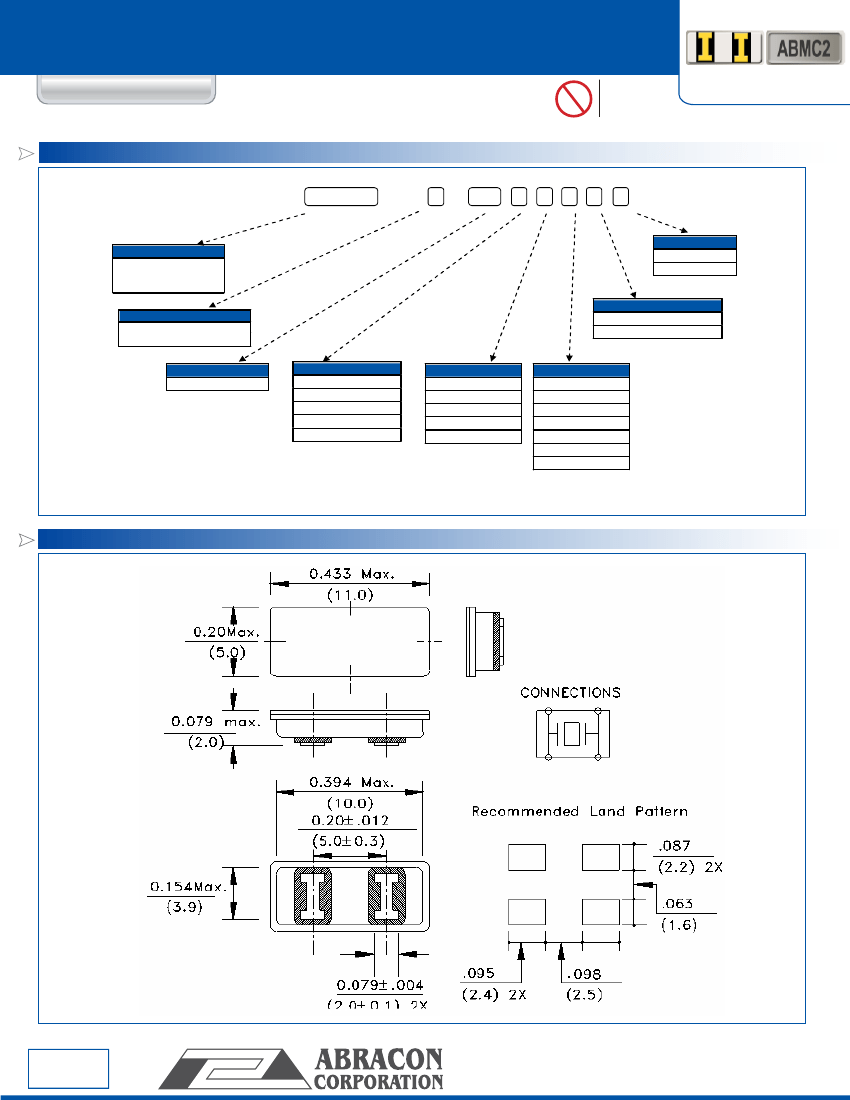

physical size	L11.0XB5.0XH2.0 (mm)/L0.433XB0.197XH0.079 (inch)
Series resistance	180 Ω
surface mount	YES

Preview

Download Datasheet

View All

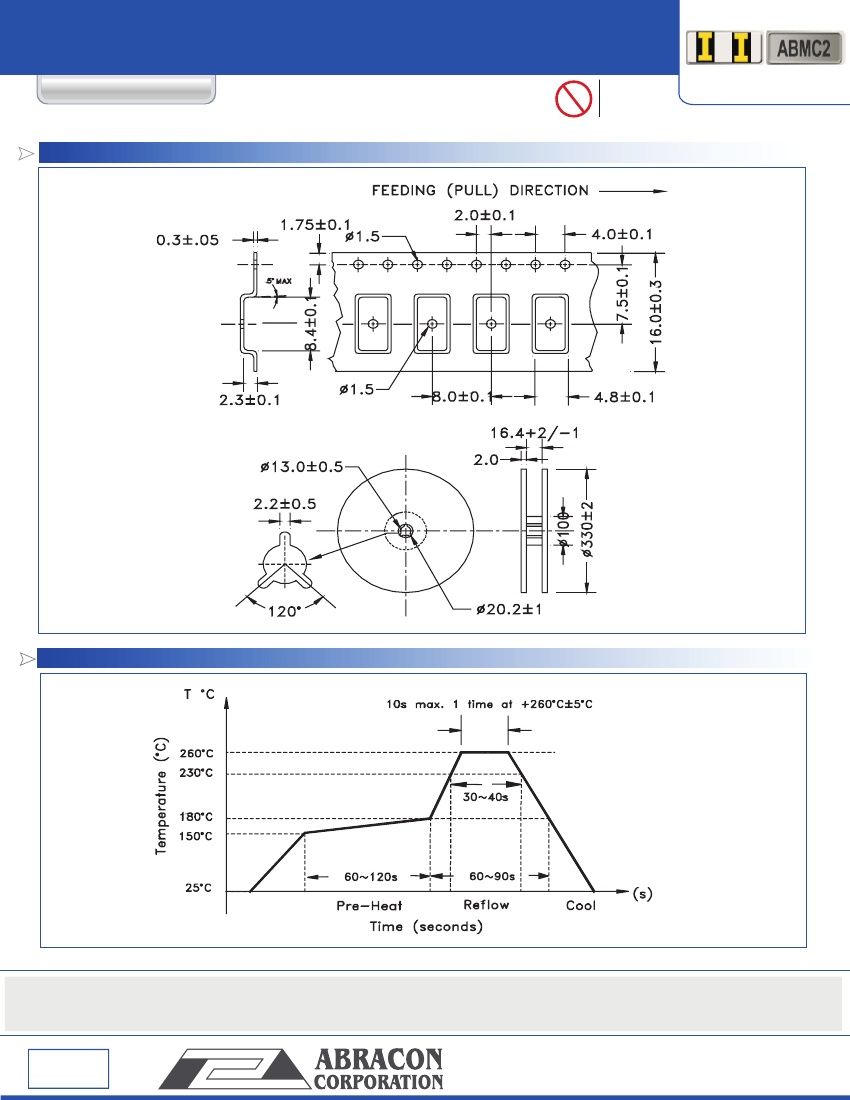

SMD MICROPROCESSOR CRYSTAL

ABMC2

FEATURES:

• 2.0 mm height

• Hermetically sealed package offers high reliability.

• AT cut offers tighter stability

• Resistance welded

• Extended temperature available

• Low frequency in SMD package

• IR Reflow capable

RoHS

Compliant

APPLICATIONS:

• PCMCIA applications

• Microprocessors

• Communication equipment, Networking,

Thin equipment

11.0 x 5.0 x 2.0 mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

ABRACON P/N:

Frequency:

Operation mode:

ABMC2 Series

3.579545 MHz to 70 MHz

AT-strip or BT-strip

3.5 MHz - 32.00 MHz (Fundamental AT-cut: Standard)

32.00 MHz - 70.00 MHz (3rd OT AT-cut: Standard)

32.00 MHz - 41.00 MHz (Fundamental AT-cut: See options)

22.00 MHz - 46.00 MHz (Fundamental BT-cut: See options)

- 10°C to + 60°C (see options)

- 40°C to + 85° C

± 50 ppm max. (see options)

± 100 ppm max. (see options)

± 100 ppm max. over - 40°C to + 85° C only for BT-cut

See Table 1

7.0pF max.

18.0pF (see option)

100 µW max.

± 5 ppm max.

500 M

Ω

min. at 100 Vdc ± 15 Vdc

ESR(Ω ) max.

Ω

180

150

120

100

Operating temperature:

Storage temperature:

Frequency tolerance:

Frequency stability over the operating

temperature (Ref to +25° C):

Equivalent series resistance (max.):

Shunt capacitance C0:

Load capacitance CL:

Drive level:

Aging (per year) @ 25° C:

Insulation resistance:

Table 1 Standard ESR

Frequency (MHz)

3.500 - 3.999 (AT cut fund.)

4.000 - 4.999 (AT cut fund.)

5.000 - 5.999 (AT cut fund.)

6.000 - 6.999 (AT cut fund.)

7.000 - 8.999 (AT cut fund.)

9.000 - 12.999 (AT cut fund.)

13.00 - 19.999 (AT cut fund.)

20.00 - 41.00 (AT cut fund.)

22.00 - 46.00 (BT cut)

32.00 - 70.00 (3rd O/T)

ABRACON IS

ISO9001:2008

CERTIFIED

Revised: 08.19.10

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
