Type 716P, Orange Drop®, Polypropylene Film/Foil Capacitors

High Performance

Features

• Copper leads.

• Extremely low dissipation factor.

• Superb high frequency response.

• Excellent stability, virtually linear

temperature coefficient.

• Various lead spacings, crimp styles

and lead lengths available.

Insulation Resistance:

400,000 M minimum at +25°C

20,000 M minimum at +85°C

2,000 M minimum at +105°C

Pulse Rise Time, dV/dt:

Specifications

Capacitance Range:

See tabulated data.

Corona Start Voltage (typical):

220 pF to 1.0 µF

Capacitance Tolerance:

See tabulated data.

Encapsulation:

±3% to ±10%

Voltage Ratings:

Conformal coating of flame retardant orange

epoxy (meets UL94V-0 specifications)

Dielectric:

100 to 2000 Volts D-C

70 to 500 Volts A-C

Operating Temperature Range:

Polypropylene film.

Construction:

-55°C to +85°C

(+105°C with proper voltage derating)

Lead Wire:

Non-inductively wound with extended

foil. Additional details on general

specifications page.

Applications:

Tinned copper.

Dissipation Factor:

See tabulated data.

Switching and high voltage power

supplies, inverters, snubbers, resonant

converters and electronic lighting ballasts.

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830

Type 716P, Orange Drop®, Polypropylene Film/Foil Capacitors

High Performance

General Specifications

The 715P and 716P series are manufactured with polypropylene film and extended foil. Polypropylene has a very

low dissipation factor, low dielectric absorption and exhibits excellent capacitance stability. These characteristics

combined with the direct connection of the lead wire to the extended foil electrode makes the 715P and 716P

series ideal for high current, high pulse applications.

The 715P series has a round profile and is available in tolerances as close as ±1%. The 716P series has a pressed

profile and, in addition, is designed with copper leads, thus adding to it's performance in high frequency, high

pulse current applications.

Other specifications are listed below and on the following pages.

Operating Temperature Range:

Humidity Testing:

The standard operating temperature range for

polypropylene film is -55°C to +85°C. The

715P and 716P may be operated up to +105°C

provided the DC working voltage is reduced

by 50%.

For specific derating of the AC voltage when

operating above +85°C please contact our

design engineering department.

Units subjected to 95% relative humidity for 72

hours with no voltage applied at +75°C. After 4

hours of drying minimum product of insulation

resistance and capacitance shall be 50,000 megohm-

microfarads.

DC Voltage Life Test:

The maximum operating temperature for 715P

and 716P polypropylene film capacitors is

+ 105°C.

Dielectric Withstanding Voltage:

Minimum of 500 hours at +85°C at 150% of rated

voltage. After test, capacitance shall not have

changed by more than 3%, insulation resistance shall

not have decreased by more than 25% and dissipation

factor shall not have changed by more than 0.03%.

Measurements made at 1 KHz.

AC Voltage Life Test:

Units rated below 800 VDC shall withstand

a DC potential of 250% of rated voltage applied

between terminals for not more than 5 seconds;

units rated 800 VDC and above shall withstand

200% of rated voltage.

Construction:

Units rated 100 through 600 VDC are single

section designs constructed of plain polypropylene

film with extended foil. Units rated 800 VDC

and above are series-section designs with extended

foil and incorporate a floating common of

metallized polypropylene. All units are non-

inductively wound.

Temperature Coefficient:

Minimum of 500 hours at +85°C at 60 Hz. AC test

voltage applied at 110% of AC rating. After test,

capacitance shall not have changed by more than 3%,

insulation resistance shall not have decreased by

more than 25%, and dissipation factor shall not have

changed by more than 0.03%. Measurements made

at 1 KHz.

Additional notes on Life Testing:

CDE performs standard 500 hour accelerated life tests,

both DC and line frequency AC, to monitor process

control over our wide range of products.

The typical temperature coefficient is -180 ppm/°C

over the temperature range of -55°C to +85°C.

We also perform longer term life testing, typically 2000

hours, during development of most products. In

addition we do accelerated life testing at 10-250 KHz

for our High Performance AC products. For additional

life test information please contact us.

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830

Type 7 16 P, Orange Drop® Polypropylene Film/Foil Capacitors

High Performance

Ordering/Part Number Information

715P

222

(XXXX)

A suffix may be added by

the factory to denote special

construction.

Lead Length

1 = 0.187 (4.7) ±0.030 (0.8)

2 = 0.250 (6.4) ±0.030 (0.8)

3 = 1.250 (32.0) Minimum

(Other lead lengths available)

Terminal

A = Straight Lead (1.25 Min. lead length)

B,F = Hairpin Crimp

C = Captive Crimp

D,G,H = Hockey Stick Crimp

Case Code

See Standard Sizes/Ratings Table

D-C Voltage Rating

Expressed in Hundreds of Volts

Capacitance Tolerance 9 = ±10%; 5 = ±5%; 3 = ±3%; 2 = ±2%; 1 = ±1%

Capacitance

Expressed in Picofarads. The first two digits are the significant figures,

the third is the number of zeros following. (i.e. 222 = 2200 pF = .0022 µF)

CDE Type Number

Identifies the basic capacitor design.

715P Round profile, 716P Pressed profile

Terminal C has a fixed lead length of 0.156 (4.0) ±0.020 (0.5), therefore it is not necessary to indicate the lead

length digit when ordering. Available for "L" case code parts only

Please note;

While it is not possible to list every capacitance value, tolerance, or design/size variation available,

our flexibility in design and manufacturing gives us the ability to quickly, and cost effectively, provide

you with the capacitor you require. Please contact us today with your specific needs!

Dimensions in inches, metric (mm) in parenthesis.

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830

Type 7 16 P, Orange Drop, Polypropylene Film/Foil Capacitors

High Performance

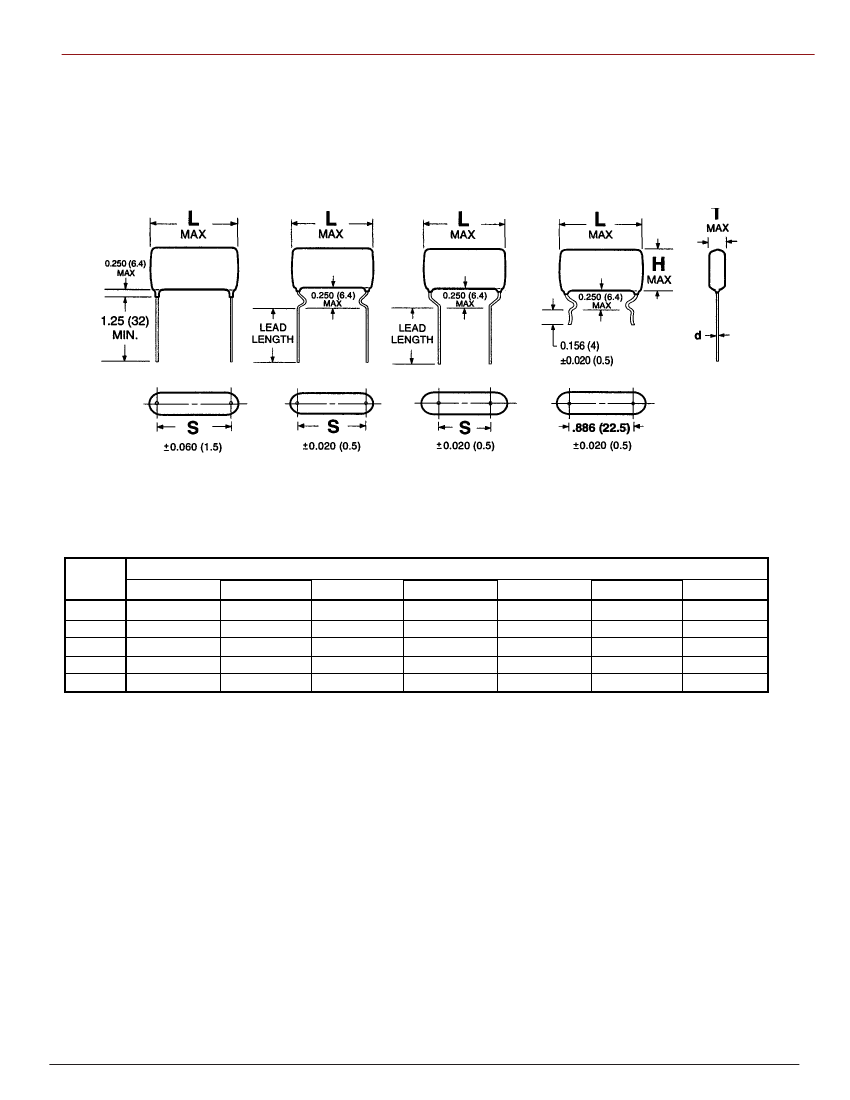

Standard Lead Styles

TERMINAL A

TERMINAL B,F

TERMINAL D,G,H

TERMINAL C

Standard Lead Spacings

CASE

CODE

inches (metric, mm in parentheses)

Term. A

Term. B

Term. D

Term. C *

Term. F

Term. G

Term. H

0.394 (10)

0.500 (12.7)

0.688 (17.5)

1.031 (26.2)

1.406 (35.7)

0.500

0.688

0.969

1.344

0.394 (10)

(12.7)

(17.5)

(24.6)

(34.1)

---

0.375 (9.5)

---

0.375 (9.5)

0.719 (18.3)

0.886 (22.5)

---

1.094 (27.8)

0.295 (7.5)

0.394 (10)

0.590 (15)

0.886 (22.5)

---

0.197 (5)

0.295 (7.5)

0.394 (10)

---

0.590 (15)

---

1.083 (27.5)

* Terminal C is designed for printed circuit boards requiring a lead spacing of 0.886 (22.5) with board hole sizes of 0.044 (1.1)

to 0.048 (1.2) in diameter. Available for "L" case code parts only. Please consult us if you have a specific requirement.

Standard Marking Format

Sample Marking

on unit

CDE716P600V

222J 9810

CDE

716P

600V

222J

9810

Description

CDE Electronics identification

Type number

D-C Voltage rating, Volts

Capacitance and tolerance code

Weekly date code

(i.e. 10th week of 1998)

Tolerance codes

per EIA Standards

±3%

±5%

±10%

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830

Type 7 16 P, Orange Drop, Polypropylene Film/Foil Capacitors

High Performance

Type 716P Standard Sizes/Ratings

Value

Part

Number

L max

µF

.0082

.009

.01

.012

.015

.018

.022

.025

.027

.033

.039

.047

.05

.056

.062

.068

.075

.082

.09

.12

.15

.18

.20

.22

.25

.27

.30

.33

T max

.23

.24

.23

.25

.26

(5.8)

(6.1)

(5.8)

(6.4)

(6.6)

H max

.36 (9.1)

.37 (9.4)

.38 (9.7)

.37 (9.4)

.39 (9.9)

.42 (10.7)

.032

(0.8)

Value

Part

Number

L max

µF

.18

.22

.27

.33

.39

.47

.56

.68

.82

1.0

T max

.39 (9.9)

.43 (10.9)

.47 (11.9)

.51 (13.0)

.56 (14.2)

.61 (15.5)

H max

.67 (17.0)

.71 (18.0)

.75 (19.1)

.86 (21.8)

.90 (22.9)

.95 (24.1)

1.00 (25.4)

.040

(1.0)

100 VDC / 70 VAC*

716P82291N

716P90291N

716P10391N

716P12391N

716P15391N

716P18391N

716P22391N

716P25391N

716P27391N

716P33391N

716P39391N

716P47391N

716P50391J

716P56391J

716P62391J

716P68391J

716P75391J

716P82391J

716P90391J

716P10491J

716P12491K

716P15491K

716P18491K

716P20491K

716P22491K

716P25491K

716P27491K

716P30491L

716P33491L

716P10392J

716P12392J

716P15392J

716P18392J

716P22392J

716P27392J

716P33392J

716P39392J

716P47392J

716P56392K

716P68392K

716P82392K

716P10492K

716P12492K

716P15492K

.57

(14.5)

200 VDC / 155 VAC*

716P18492L

716P22492L

716P27492L

716P33492L

716P39492L

716P47492L

716P56492L

1.25 (31.8)

.57 (14.5)

.70 (17.8)

.90 (22.9)

1.25 (31.8)

.70 (17.8)

.90 (22.9)

.90 (22.9

.90 (22.9)

.28 (7.1)

.29 (7 4)

.27 (6.9)

.29 (7 4)

.31 (7.9)

.34 (8.6)

.28 (7 1)

.29 (7 4)

.31 (7.9)

.32 (8.1)

.33 (8.4)

.35 (8.9)

.36 (9.1)

.38 (9.7)

.33 (8.4)

.37 (9.4)

.40 (10.2)

.42 (10.7)

.44 (11.2)

.47 (11.9)

.49 (12.4)

.44 (11.2)

.45 (11.4)

.50 (12.7)

.53 (13.5)

.55 (14.0)

.58 (14.7)

.52 (13.2)

.53 (13.5)

.54 (13.7)

.56 (14.2)

.57 (14.5)

.59 (15.0)

.60 (15.2)

.62 (15.7)

.57 (14.5)

.61 (15.5)

.64 (16.3)

.66 (16.8)

.68 (17.3)

.71 (18.0)

.73 (18.5)

.032 (0.8)

.032 (0:8)

.032 (0.8)

.032

(0.8)

716P68492M 1.65 (41.9)

716P82492M 1.65 (41.9)

716P10592M 1.65 (41.9)

716P10294J

716P12294J

716P15294J

716P18294J

716P22294J

716P27294J

716P33294J

.70 (17.8)

.56 (14.2) .94 (23.9)

.040 (1.0)

.61 (15.5) 1.00 (25.4)

.040 (1.0)

.68 (17.3) 1.07 (27.2)

.040 (1.0)

.25 (6.4)

.22 (5.6)

.24 (6.1)

.25 (6.4)

.26 (6.6)

.24 (6.1)

.25 (6.4)

.24 (6.1)

.25 (6.4)

.27 (6.9)

.29 (7.4)

.31 (7.9)

.28 (7.1)

.30 (7.6)

.31 (7.9)

.33 (8.4)

.36 (9.1)

.39 (9.9)

.40 (10.2)

.43 (10.9)

.38 (9.7)

.42 (10.7)

.45 (11.4)

.46 (11.7)

.50 (12.7)

.57 (14.5)

.63 (16.0)

400 VDC / 200 VAC*

.001

.0012

.0015

.0018

.0022

.0027

.0033

.47 (11.9)

.44 (11.2)

.45 (11.4)

.46 (11.7)

.48 (12.2)

.45 (11.4)

.36 (9.1)

.37 (9.4)

.44 (11.2)

.45 (11.4)

.46 (11.7)

.48 (12.2)

.50 (12.7)

.032

.040

(0.8)

(1.0)

.032 (0.8)

.0039

.0047

.0056

.0068

.0082

.01

.012

.015

.018

.022

.027

.033

.039

.047

.056

.068

.082

.12

.15

.18

.22

.27

.33

.39

.47

716P39294J .70 (17.8)

716P47294J .70 (17.8)

716P56294J .70 (17.8)

716P68294J .70 (17.8)

716P82294J .70 (17.8)

716P10394J .70 (17.8)

716P12394J .70 (17.8)

716P15394J .70 (17.8)

716P18394K

716P22394K

716P27394K

716P33394K

716P39394K

716P47394K

716P56394K

716P68394K

716P82394L

716P10494L

716P12494L

716P15494L

716P18494L

716P22494L

716P27494L

.90 (22.9)

1.25 (31.8)

.41 (10.4) .65 (16.5)

.040 (1.0)

.42 (10.7) .67 (17.0)

.040 (1.0)

.25 (6.4)

.27 (6.9)

.26 (6.6)

.25 (6.4)

.27 (6.9)

.29 (7 4)

.32 (8.1)

.34 (8.6)

.30 (7.6)

.33 (8.4)

.36 (9.1)

.39 (9.9)

.40 (10.2)

.45 (11.4)

.37 (9.4)

.39 (9.9)

.45 (11.4)

.46 (11.7)

.032 (0.8)

200 VDC / 155 VAC*

.01

.012

.015

.018

.022

.027

.033

.039

.047

.056

.068

.082

.12

.15

.47 (11.9)

.49 (12.4)

.55 (14.0)

.57 (14.5)

.60 (15.2)

.62 (15.7)

.68 (17.3)

.72 (18.3)

.67 (17.0)

.70 (17.8)

.73 (18.5)

.84 (21.3)

.89 (22.6)

.95 (24.1)

1.01 (25.7)

.48 (12.2)

.51 (13.0)

.56 (14.2)

.58 (14.7)

.55 (14.0)

.57 (14.5)

.60 (15.2)

.63 (16.0)

.69 (17.5)

.73 (18.5)

716P33494M 1.65 (41.9)

716P39494M 1.65 (41.9)

716P47494M 1.65 (41.9)

.57 (14.5) .96 (24.4)

.040 (1.0)

.62 (15.7) 1.01 (25.7)

.040 (1.0)

.68 (17.3) 1.07 (27.2)

.040 (1.0)

* Please refer to performance curves for RMS Voltage vs. Frequency characteristics.

To complete part number for proper tolerance, terminal style and lead length please refer to Ordering/Part Number Information page.

Type 716P capacitors are available through the CDE Distribution Network on special order.

Dimensions in inches, metric (mm) in parenthesis.

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Snowflake BY-180A refrigerator circuit

Aerospace brand BCD-177 refrigerator circuit

HW8502 cordless phone mobile phone charging circuit

Telephone automatic light circuit

Computer motherboard circuit diagram 815 1_29

【FR4133 Gadget】i2c temperature sensor: This chip I applied for from Ti has been gathering dust for almost a year. I thought that since FR4133 has no companion, I would like to show it off to play with it. The temperature sensor of IIC inte...; ljj3166 Microcontroller MCU

If you keep worrying about stm32: can not find arm device, I will kill you!: When you are happily debugging a program or are struggling with it, one of the most frustrating reasons is that it was able to download and debug just now, but now it suddenly pops up a dialog box: ca...; 雨夏 MCU

Learning R7F0C80212 board, you need to bring an emulator to do a project ~ This makes people have fun: Learning R7F0C80212 board, I have to use emulator to do a project. It makes me not happy to play:Sad: Now I can't download RFP, I searched the official website but couldn't find it. I downloaded 2.01 ...; kejoy Renesas Electronics MCUs

Do you like blogging???: I discovered my blog by accident. Since the ranking has soared so fast, do you all like blogging? ? ? I would like to know more. Thank you! ! !...; gaoxiao Talking

kernel make zImage compilation failed: [table=98%] [tr][td]主机平台： UBUNTU14.04 硬件平台：IMX6-EK200 编译器:gcc-linaro-arm-linux-gnueabihf-4.9-2014.09_linux.tar.xz[color=#333333]/bin/sh: 1: lzop: not found[/color] [color=#333333]make[2]: *** [arch/ar...; 明远智睿Lan Industrial Control Electronics

Powerful IE file extractor, very easy to use: [img]http://bbs.mydigit.cn/attachment/Mon_0904/65_17469_f0b89306b638e2c.jpg[/img] We who often surf the Internet must have watched videos and listened to songs, but we did not actively download them. ...; jyl Analog electronics

PIC18F46J50: 8-bit wireless development solution [Image]

Microchip's PIC18F46J50 is a low-power, high-performance 8-bit USB microcontroller (MCU) using nanoWatt XLP technology. The current in deep sleep mode can be as low as 13nA, the operating voltage i...[Details]
Design and implementation of a handheld bus fare collection and information statistics device

At present, the traffic congestion in cities is quite serious. According to relevant news reports: In China, the traffic congestion has expanded from megacities such as Beijing, Shanghai, and Guang...[Details]
Drives two low quiescent current LEDs from only one microprocessor pin

Two simple circuits are implemented to drive two LEDs from a battery powered microprocessor. This design is based on a circuit that uses three resistors and a microprocessor I/O pin as an input h...[Details]
Microcalorimetric measurement system using thermocouple and 2182A nanovoltmeter

Microcalorimetry is used to determine energy relationships. Microcalorimetry techniques are often required when performing calorimetric experiments with small sample sizes or slow heating rat...[Details]
Assemble LED lighting by yourself

Among the uses of electrical energy, lighting accounts for a considerable proportion. Compared with the earlier ordinary incandescent lamps, the fluorescent lamps and energy-saving lamps we commonl...[Details]
Movpower4500 Performance Analysis

Movpower is a portable power bank. It can charge most mobile phones and digital products, such as digital cameras, PDAs, and mobile phones such as Apple, iPod, Blackberry, Motorola, Samsung, Nokia,...[Details]
The core of computer power stability - capacitor

The power supply is the core component of a computer. Although it is not of high value, all computer components rely on the switching power adapter to provide energy, so the stability of a power su...[Details]
Successful Application of RS485 Bus in TV Monitoring System

In the TV monitoring system, in order to complete the collection of information from various information points (video, audio, alarm signal) and the control of various front-end devices (PTZ, lens,...[Details]
9 Coding Habits of Successful Software Developers

Some people think: as long as the program runs well, it doesn't matter how the original program is written. But this is absolutely not the case. Software is not completed in one go, and it is neces...[Details]
EMC Confidential

1. Electromagnetic compatibility design Electromagnetic compatibility refers to the ability of electronic equipment to work in a coordinated and effective manner in various electromagnetic env...[Details]
Design of digital intelligent charger

Modern communication equipment, portable electronic products, laptops, electric vehicles, small satellites, etc. generally use batteries as power sources and are widely used. However, the batteries...[Details]
How to solve the anti-interference problem of PLC control system

1. Overview With the development of science and technology, PLC is increasingly used in industrial control. The reliability of PLC control systems directly affects the safe production and economic o...[Details]
Infineon ICL8001G 9W Offline LED Lighting Solution

Infineon's ICL8001G adopts a single-stage flyback and PFC controller with quasi-resonant operation mode, with a power factor greater than 98%, LED driver efficiency up to 90%, an operating voltage up ...[Details]
A practical UPS power supply circuit diagram and circuit working principle

UPS is an uninterruptible power supply (UPS). This device can ensure that after a power outage in the computer system, users can continue to work for a period of time and save files urgently, witho...[Details]
Network monitoring is becoming a reality: analysis of various stream processing technologies

In the field of video surveillance, video compression encoding formats have evolved from M-JPEG, H.263, MPEG4 to H.264. Currently, H.264 is the mainstream compression algorithm. Its biggest advantage ...[Details]

Shortcut: S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components
