MCP-10-GD30-MER datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MCP-10-GD30-MER

Preview

MCP-10-GD30-MER: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Locking, Plug; CategoryThe connector The connector; File Size105KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

MCP-10-GD30-MER Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Locking, Plug

MCP-10-GD30-MER Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304491618
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
ECCN code	EAR99
YTEOL	7.2
Other features	ROHS COMPLIANT
body width	0.335 inch
subject depth	0.547 inch
body length	1.45 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	500 Cycles
IEC compliance	NO
Insulation resistance	3000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	10

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

SPECIFICATIONS

Current rating:

Contact material:

Contact resistance:

Insulator material:

Insulation resistance:

Withstanding:

Operating temperature:

1 amp

Brass

30 milliohms max.

PBT with glass fill, UL94V-0

3,000 megohms min.

500VAC for 1 min.

-40°C to+105°C

B

C

D

E

Pos.

A

10

36.84

14

41.90

16

44.40

20

49.30

24

54.64

26

57.24

30

62.32

34

66.98

40

75.02

50

87.38

60 100.52

64 105.64

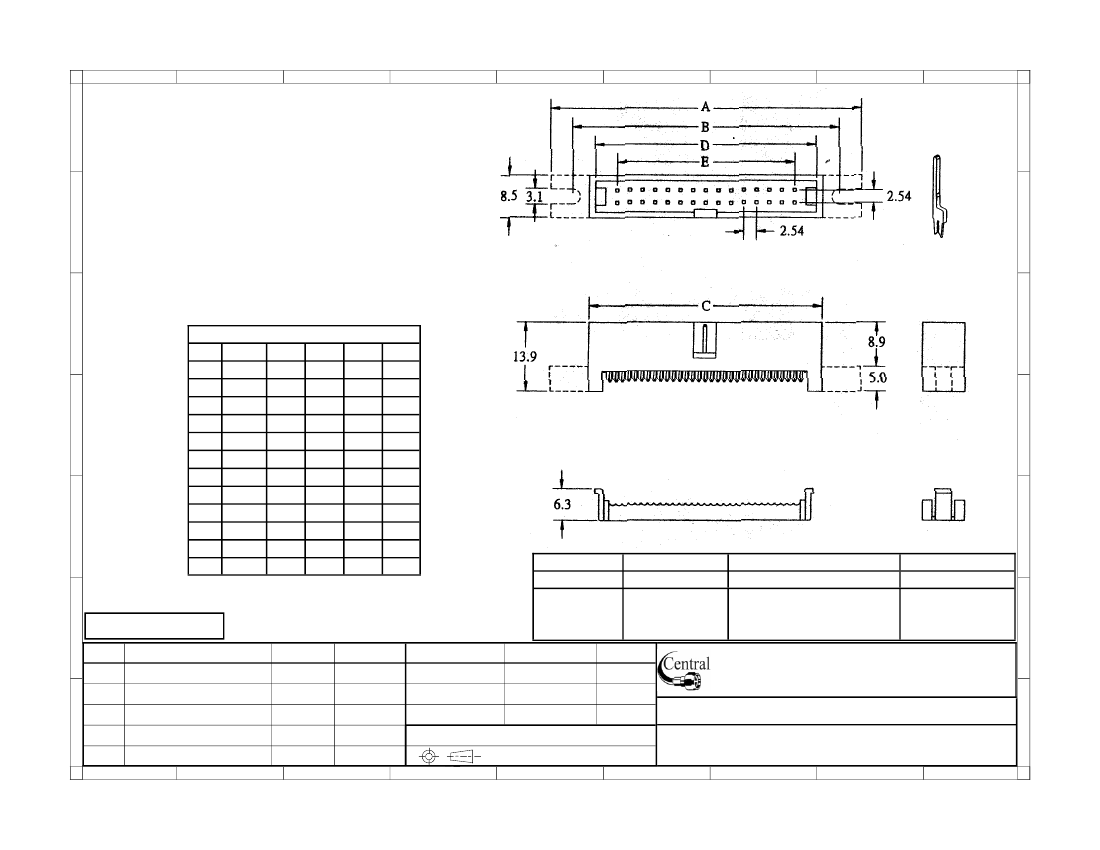

Dimensions

B

C

25.52 21.24

30.58 26.30

33.20 29.86

38.40 33.82

43.34 39.12

45.92 41.60

51.04 46.70

55.70 51.58

63.70 59.50

76.10 71.94

89.24 84.94

94.32 90.00

C

D

18.10

23.24

25.78

30.86

35.94

38.50

43.62

48.60

56.36

69.90

81.88

86.90

E

10.16

15.24

17.78

22.86

27.94

30.48

35.56

40.64

48.26

60.96

73.66

78.74

D

E

F

RoHS compliant

Rev.

Description

Date

Approved

Series

Contacts

MCP

xx

IDC box header 10, 14, 16, 20, 24, TN=Tin

26, 30, 34, 40, 50, SG=Duplex

60, 64

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

08/10/99

08/10/99 Part No.:

Plating

Options

XX

GDXX=Gold flash MER=Mounting ears

XX=Flash if blank;

10, 15, 30µ” gold

F

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

G

MCP-XX-XX-XX

7

8

9

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

Description: IDC male cable plug, .100” pitch

G

1

2

3

4
