5962-9221806M2X datasheet, PDF

5962-9221806M2X: DescriptionBus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC20, LCC-20; Categorylogic logic; File Size168KB，8 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric View All

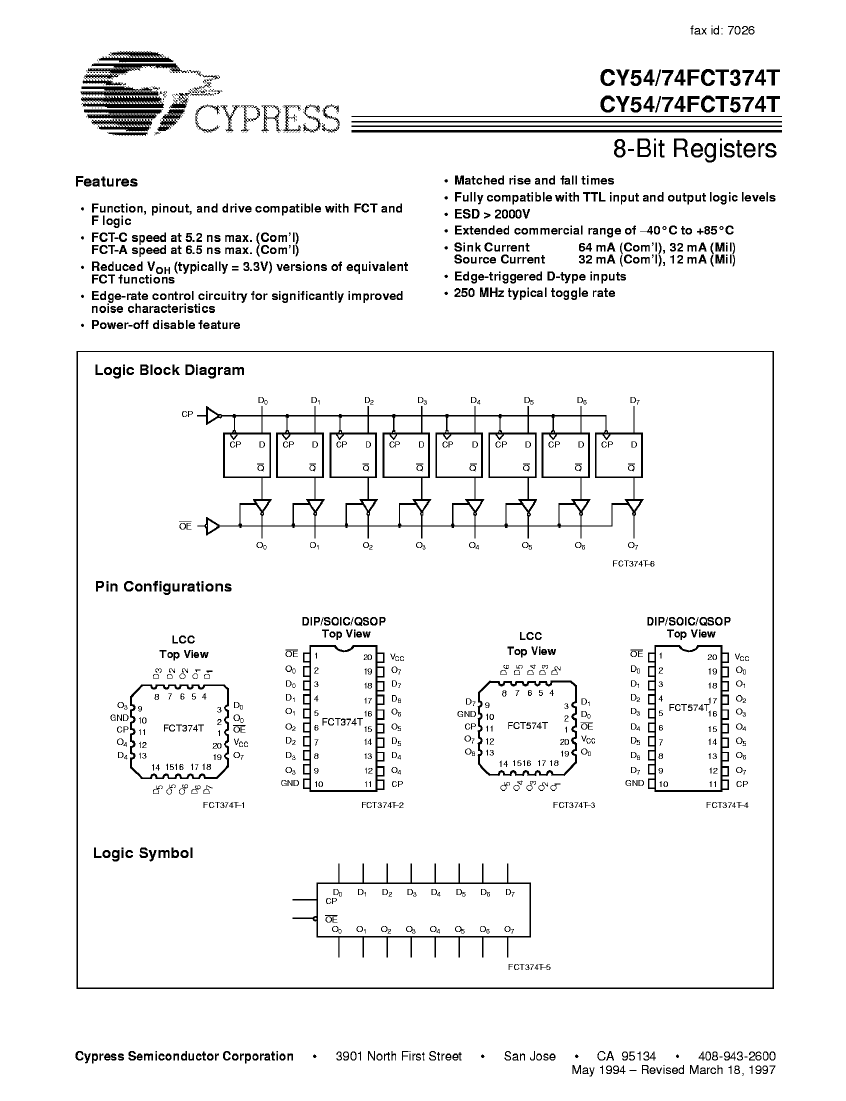

5962-9221806M2X Overview

Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC20, LCC-20

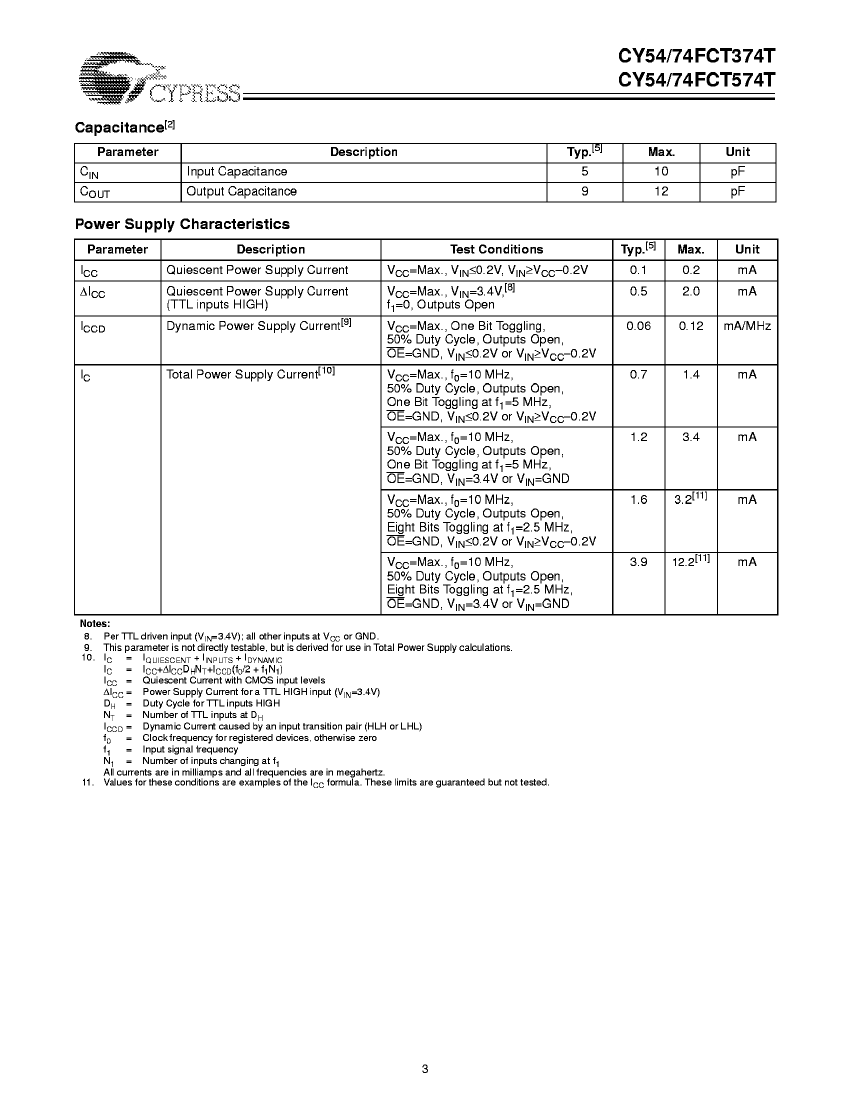

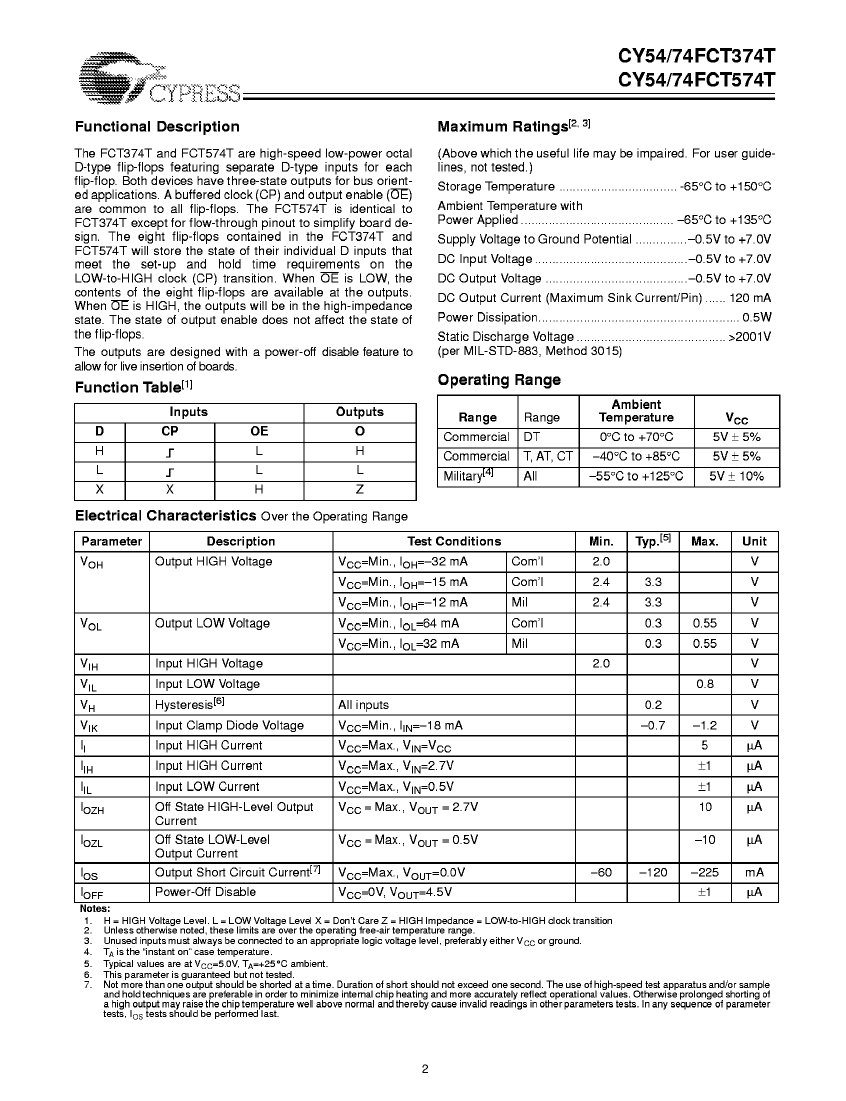

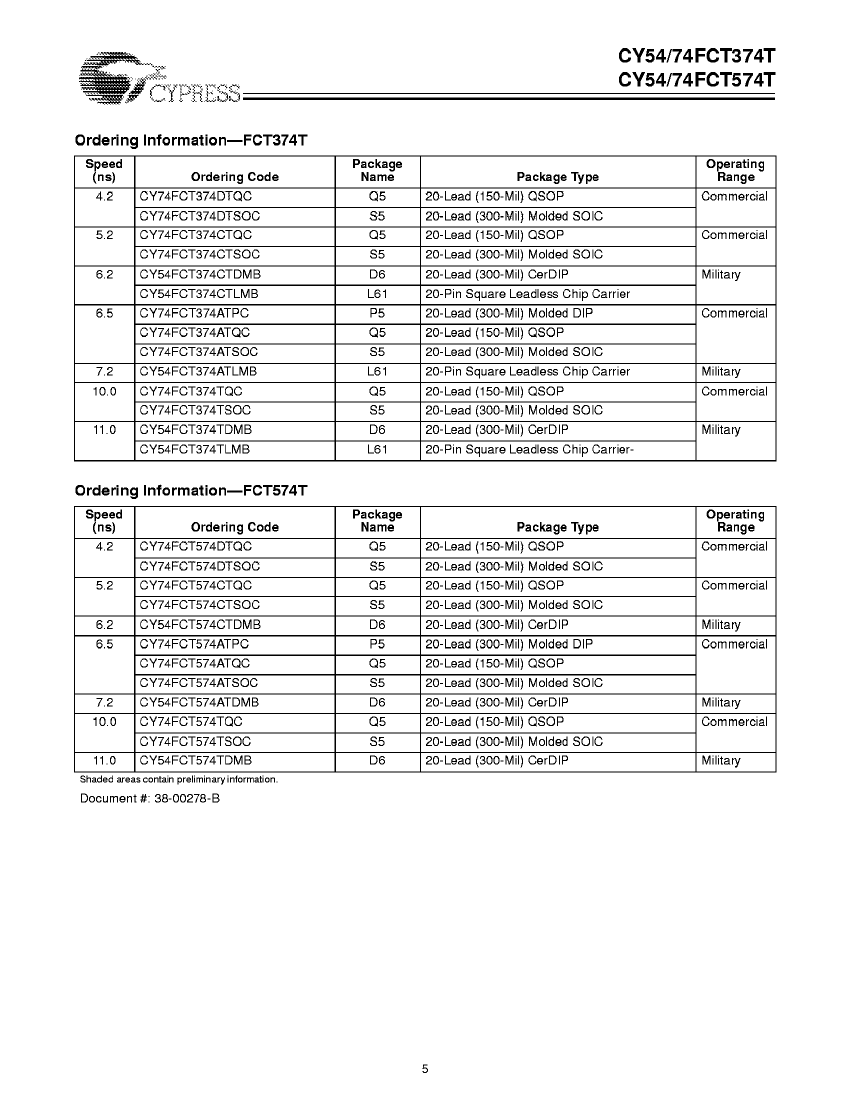

Parameter Name	Attribute value
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	20
Reach Compliance Code	unknown
series	FCT
JESD-30 code	S-CQCC-N20
length	8.89 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER

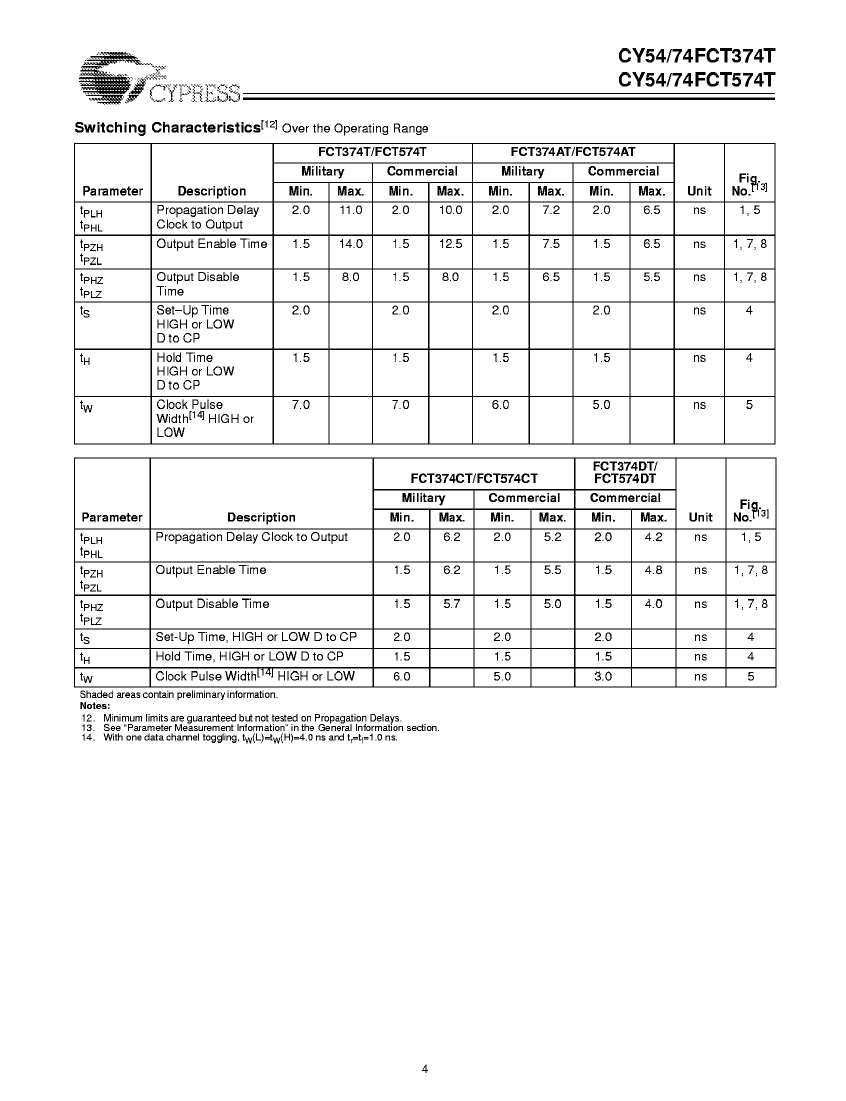

propagation delay (tpd)	6.2 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	1.905 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.89 mm
Base Number Matches	1
