5962-8750301FA datasheet, PDF - EEWORLD Datasheet

5962-8750301FA: Description10H SERIES, QUAD 1-INPUT OR/NOR GATE, CDFP16, CERAMIC, FP-16; Categorylogic logic; File Size106KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

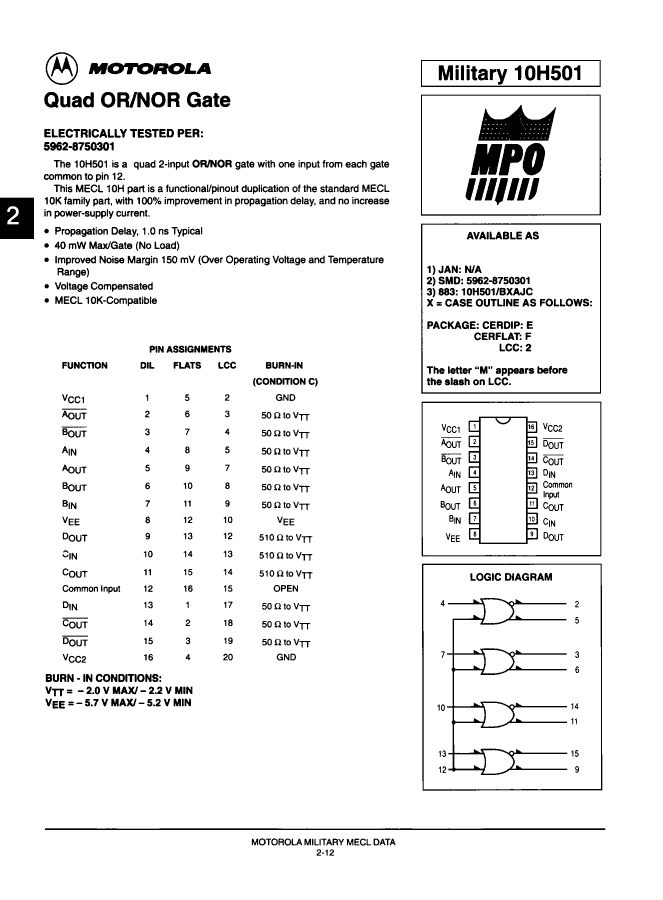

5962-8750301FA Overview

10H SERIES, QUAD 1-INPUT OR/NOR GATE, CDFP16, CERAMIC, FP-16

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	DFP
package instruction	DFP,
Contacts	16
Reach Compliance Code	unknown
Other features	STROBED OUTPUTS
series	10H
JESD-30 code	R-GDFP-F16
JESD-609 code	e0
length	9.65 mm
Logic integrated circuit type	OR/NOR GATE
Number of functions	4
Number of entries	1
Number of terminals	16

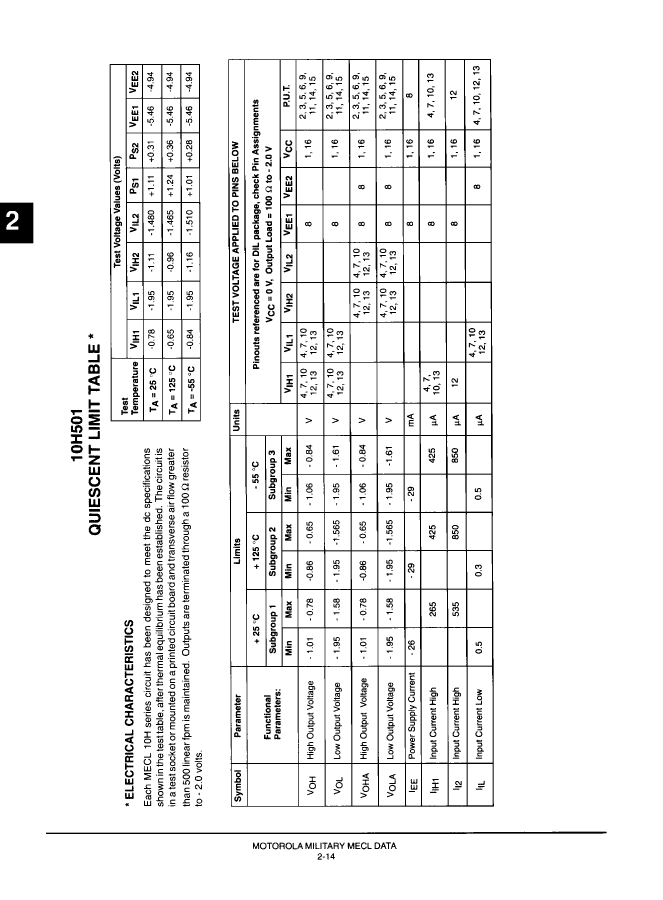

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-EMITTER
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK

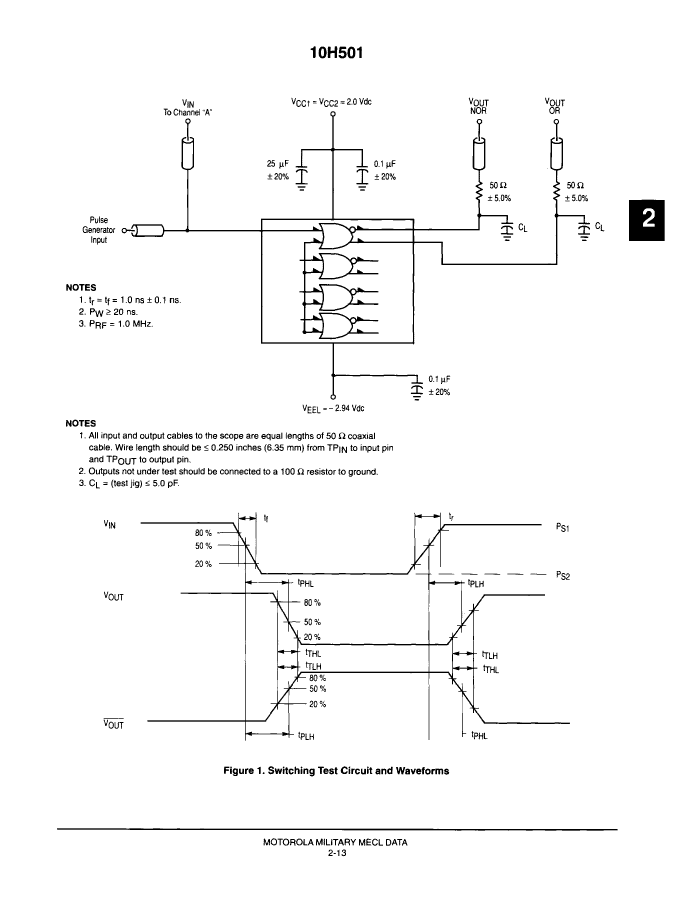

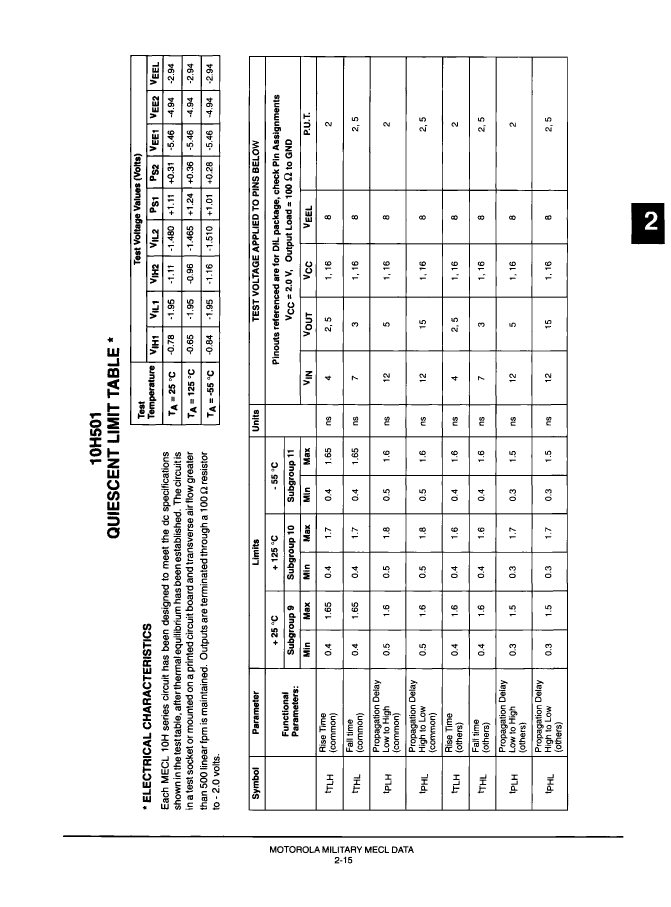

propagation delay (tpd)	1.7 ns
Certification status	Not Qualified
Maximum seat height	2.15 mm
surface mount	YES
technology	ECL
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	6.415 mm
Base Number Matches	1

	5962-8750301FA
Description	10H SERIES, QUAD 1-INPUT OR/NOR GATE, CDFP16, CERAMIC, FP-16
Maker	NXP
Parts packaging code	DFP
package instruction	DFP,
Contacts	16
Reach Compliance Code	unknown
Other features	STROBED OUTPUTS
series	10H
JESD-30 code	R-GDFP-F16
JESD-609 code	e0
length	9.65 mm
Logic integrated circuit type	OR/NOR GATE
Number of functions	4
Number of entries	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-EMITTER
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	1.7 ns
Certification status	Not Qualified
Maximum seat height	2.15 mm
surface mount	YES
technology	ECL
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	6.415 mm
Base Number Matches	1
