48D5.100CD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 48D5.100CD

48D5.100CD: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 1W; CategoryPower/power management The power supply circuit; File Size106KB，4 Pages; ManufacturerCalex Mfg Co Inc.

Download Datasheet Parametric Compare View All

48D5.100CD Overview

DC-DC Regulated Power Supply Module, 2 Output, 1W

48D5.100CD Parametric

Parameter Name	Attribute value
Maker	Calex Mfg Co Inc.
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	60 V
Minimum input voltage	30 V
Nominal input voltage	49 V
JESD-30 code	R-XDIP-P10
Maximum load regulation	1%
Number of functions	1
Output times	2
Number of terminals	10
Maximum output voltage	5.5 V
Minimum output voltage	5 V
Nominal output voltage	5.2 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	1 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

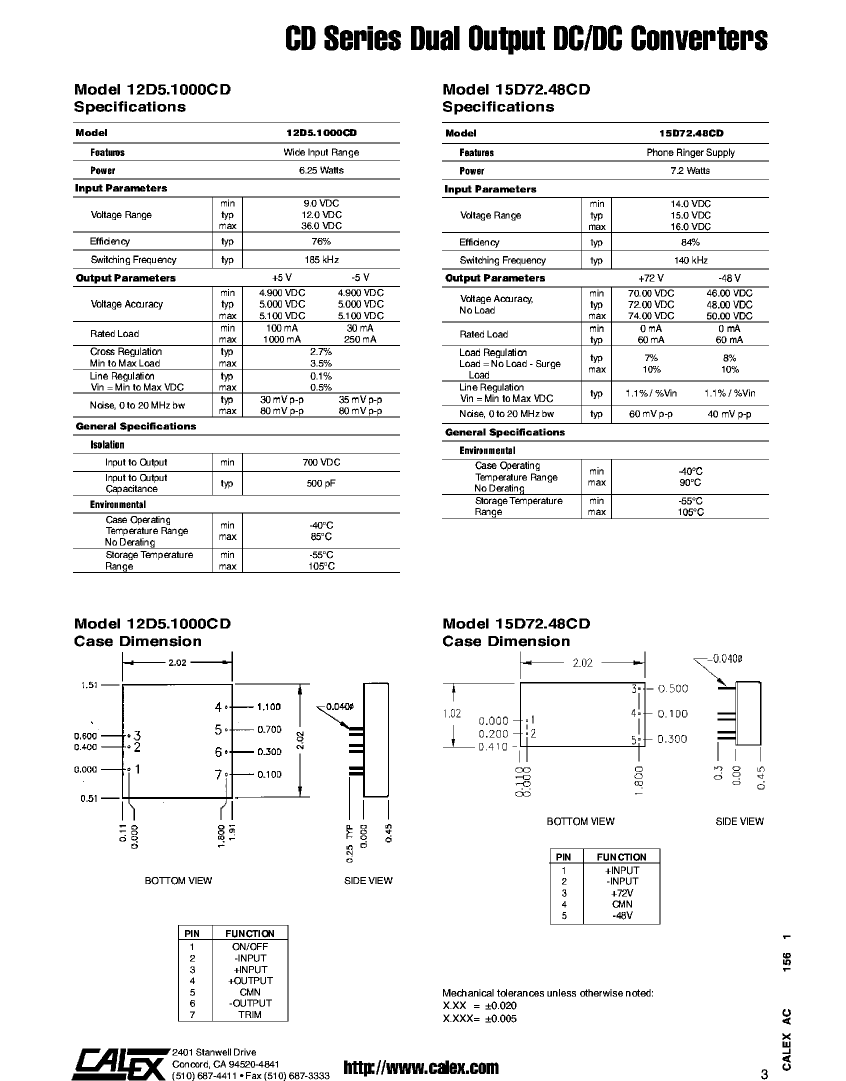

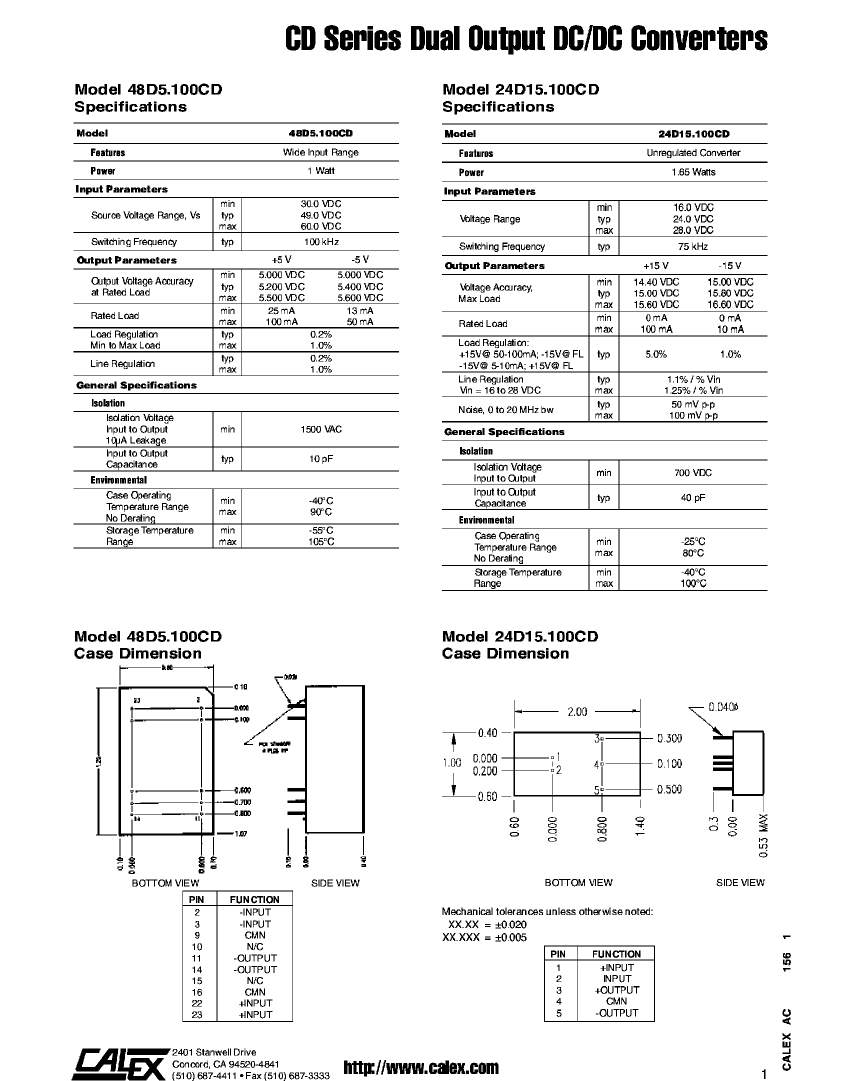

Preview

Download Datasheet

View All

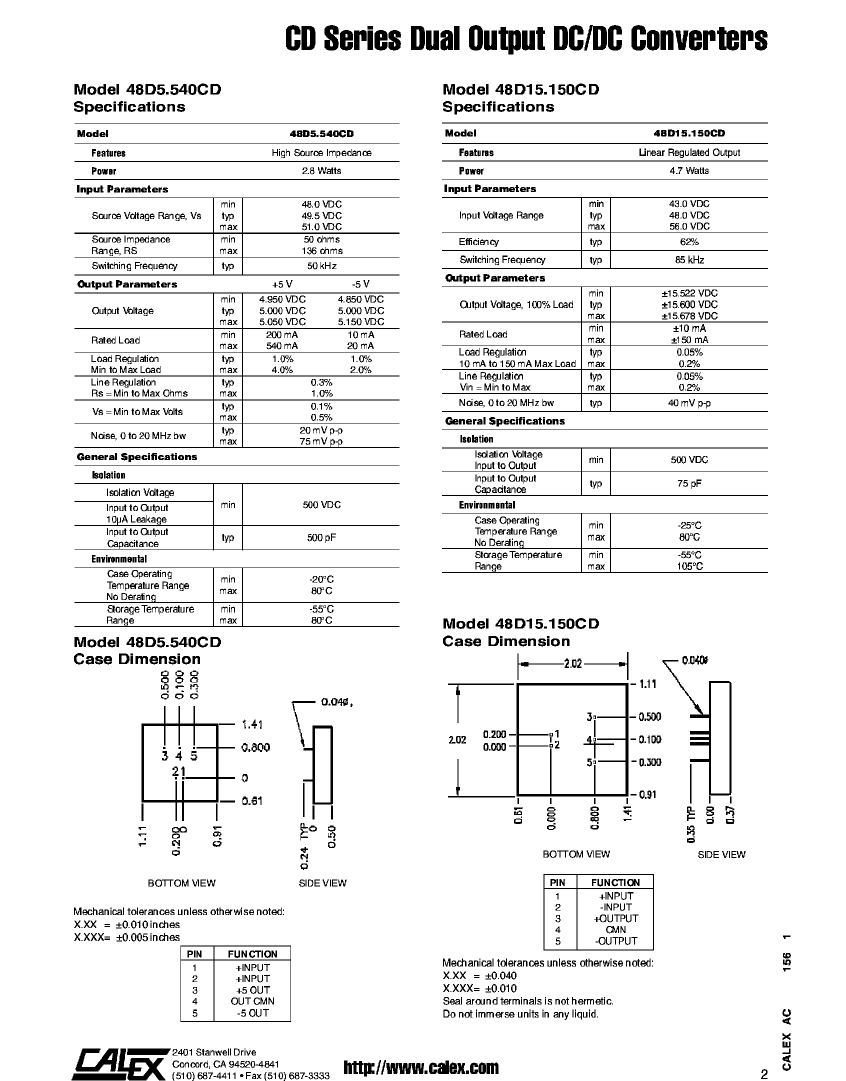

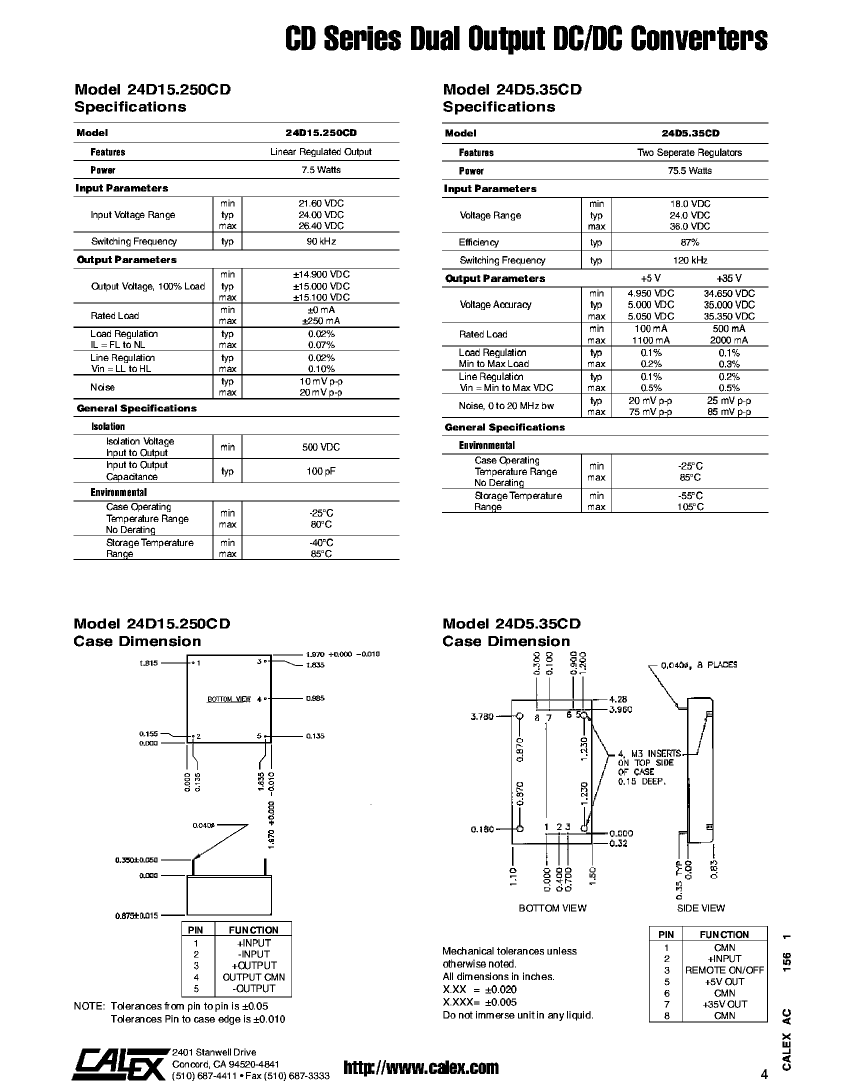

48D5.100CD Related Products

	48D5.100CD	24D15.250CD	24D5.35CD	48D5.540CD	48D15.150CD
Description	DC-DC Regulated Power Supply Module, 2 Output, 1W	DC-DC Regulated Power Supply Module, 2 Output, 7.5W	DC-DC Regulated Power Supply Module, 2 Output, 75.5W	DC-DC Regulated Power Supply Module, 2 Output, 2.8W	DC-DC Regulated Power Supply Module, 2 Output, 4.7W
Reach Compliance Code	compliant	compli	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	60 V	26.4 V	36 V	51 V	56 V
Minimum input voltage	30 V	21.6 V	18 V	48 V	43 V
Nominal input voltage	49 V	24 V	24 V	49.5 V	48 V
JESD-30 code	R-XDIP-P10	S-XDIP-P5	R-XDIP-P7	S-XDIP-P5	S-XDIP-P5
Maximum load regulation	1%	0.07%	0.3%	4%	0.2%
Number of functions	1	1	1	1	1
Output times	2	2	2	2	2
Number of terminals	10	5	7	5	5
Maximum output voltage	5.5 V	15.1 V	35.35 V	5.05 V	15.678 V
Minimum output voltage	5 V	14.9 V	34.65 V	4.95 V	15.522 V
Nominal output voltage	5.2 V	15 V	35 V	5 V	15.6 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum total power output	1 W	7.5 W	75.5 W	2.8 W	4.7 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO
Base Number Matches	1	1	1	1	1
