BD091-60-A-0450-L-D datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BD091-60-A-0450-L-D

Preview

BD091-60-A-0450-L-D: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size162KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD091-60-A-0450-L-D Overview

Board Connector, 60 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle,

BD091-60-A-0450-L-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	313649437
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
YTEOL	9.15
body width	0.122 inch
subject depth	0.352 inch
body length	1.514 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e4
Manufacturer's serial number	BD091
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.079 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	60

Preview

Download Datasheet

View All

H

1.27

0. 6

5

1.27

G

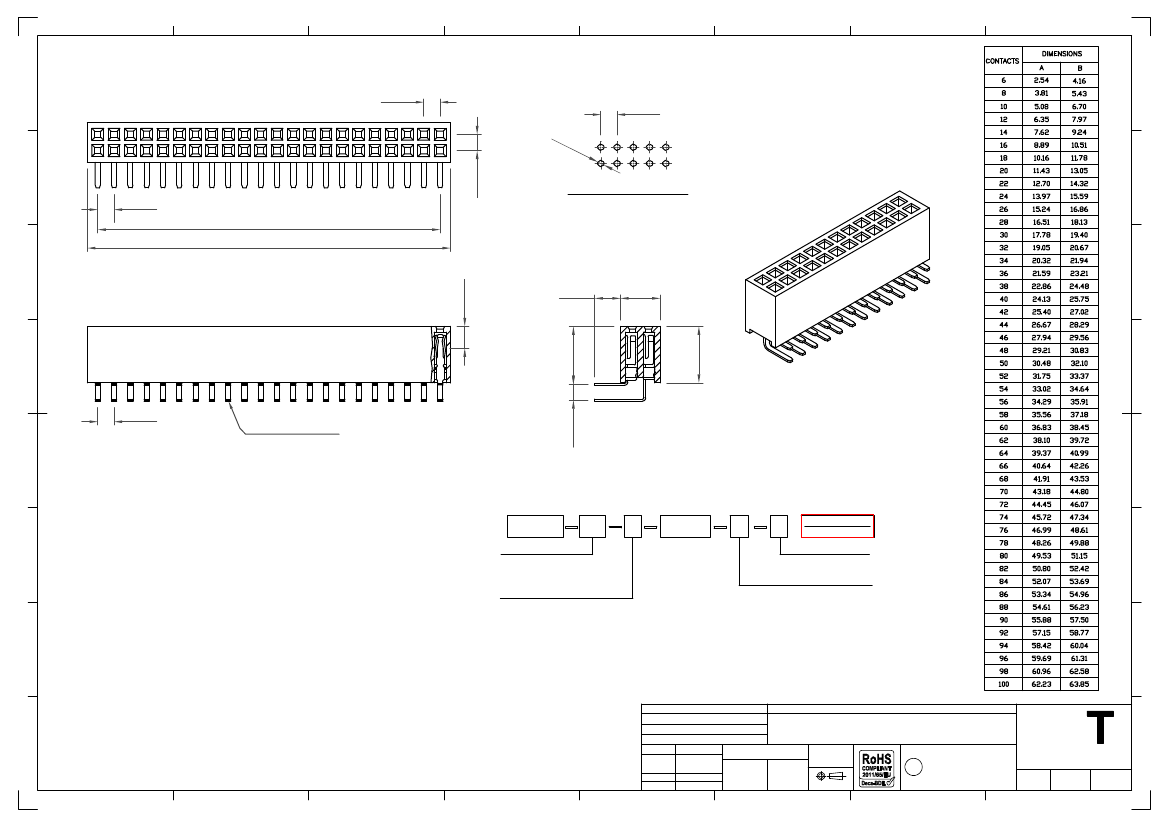

Recommended PCB Layout

(Tolerance:±0.05mm)

1.27

A±0.20

B±0.35

F

Min. Insertion Depth

1.70

2.00

3.10

4.475

E

1.27

D

Ordering Grid

1.27

Pin 0.42 x 0.15

BD091

C

XX

X

4.40

0450

L

D

Request Samples

and Quotation

Specifications

规格

:

Current Rating

电流额定值

: 1 amp

Insulator Resistance

绝缘电阻值

: 1000 MΩ min.

Dielectric Withstanding

耐电压

: AC 300 V

Contact Resistance

接触电阻值:

20 mΩ max.

Operating Temperature

工½温度

: -40°C to +105°C

Contact Material

端子物料

: Copper Alloy

Insulator Material

绝缘½物料

: Polyester

聚酯

, LCP, UL 94V-0

Soldering Process

可焊性

: LCP -

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 250°C for 5-10 sec

Manual Solder

人工焊接

: 350°C for 3-5 sec

Mates with

配套之母座

(subject to pin length

在端子长度适合的条件下

):

BD030

BD035

BD038

BD040

BD095

No. of Contacts

06 to 100

00 = 100

Contact Plating

A = Gold Flash All Over

(Standard)

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Packing Options

D = Tube

Insulator Material

L = LCP

B

Part Number

Product Description

BD091

Drawing Date

A

21st April 2008

By

Detail

Revision

Date

AJO

Various

Updates

F1

18/06/15

Length

1.27mm Pitch Socket, Dual Row,

Through Hole, Horizontal

Tolerances

(Except as Noted)

Angle

1

2

3

4

5

X.° ± 5°

X. ± 0.30

X.X° ± 3°

X.X ± 0.20

X.XX ± 0.15 X.XX° ± 2°

X.XXX ± 0.10 X.XXX° ± 1°

Units:

Metric (mm)

C

7

3rd Angle Projection

This drawing is confidential and

copyright of Global Connector

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

GC

Drawn By

ASE

www.gct.co

Not to

Scale

Sheet No.

1/1

6

8
