Dot Graphic VFD Module
q
q
q
q
q
q
q

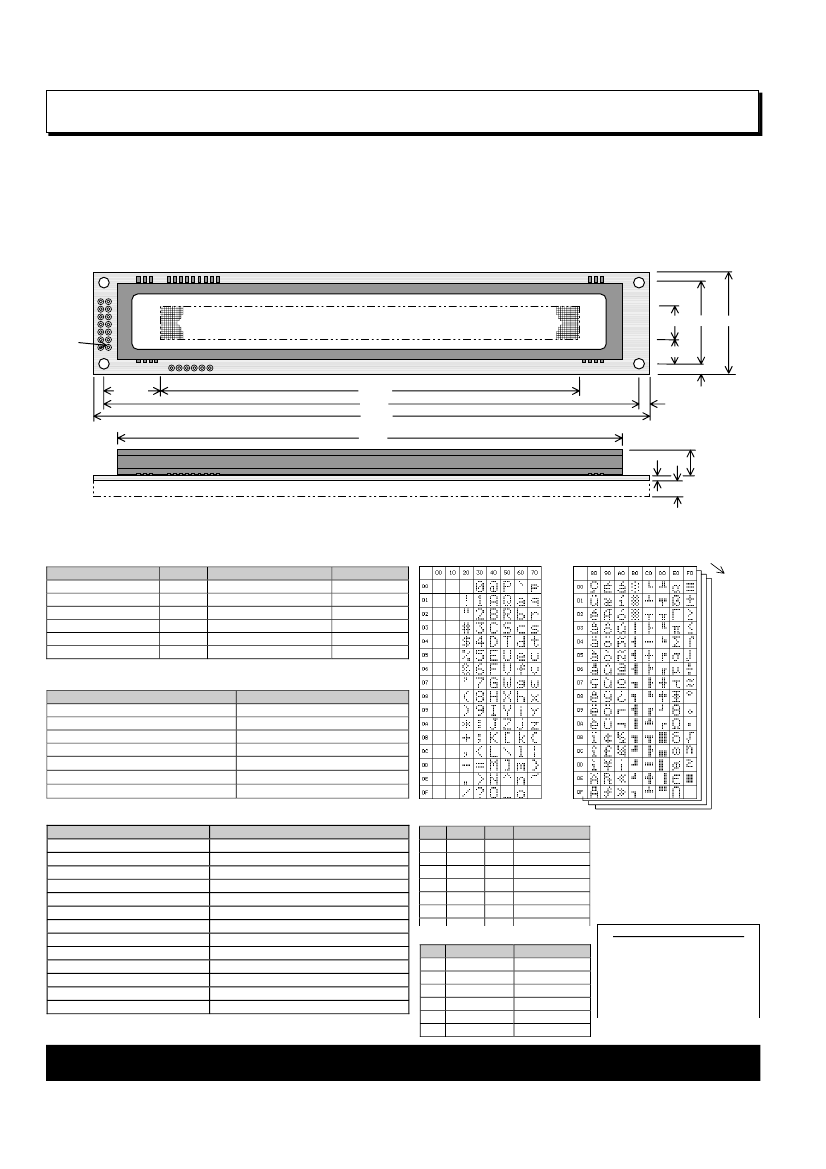

GU280x16G-7002
The module includes the Vacuum Fluorescent Display glass, VF
drivers and micro-controller ICs with refresh RAM, character
generator and interface logic. The high speed 8 bit parallel
interface is 5V TTL/CMOS compatible suitable for connection to
a host CPU bus. The asynchronous serial interface accepts
baud rates up to 115,200 with none parity. The module is ready
to receive ASCII characters without initialization commands.
280x16 Dot Graphic
Single 5V Supply
High Brightness Blue Green Display
Operating Temp -40°C to +85°C
11 Multi Sized Fonts
High Speed 8 Bit Parallel Interface
Async. & Sync. Serial Interface
CN1
Pin 1
Pin 1
18.475
CN2
137.05
175.0
182.0
165.0
11.0 26.5 33.5
7.75
3.5
3.5
1.6
8.6 max
5.0 max
Dimensions in mm & subject to tolerances. Mounting holes 3.5mm dia.
ELECTRICAL SPECIFICATION
Parameter
Symbol
Power Supply Voltage VCC
Power Supply Current ICC
Logic High Input
VIH
Logic Low Input
VIL
Logic High Output
VOH
Logic Low Output
VOL
COMMON FONT
Value
5.0VDC +/- 5%
290mADC typ.
0.8VDC min. Vcc max.
0VDC min. 0.2VDC max.
3.8VDC min. Vcc max.
0VDC min. 0.6VDC max.
Condition
GND=0V
VCC=5V
VCC=5V
VCC=5V
IOH = -1.5mA
IOL =1.6mA
INTERNATIONAL FONTS
(n=0)
(n=19)
The power on rise time should be less than 100ms. Inrush current at power on can be 2 x ICC.
OPTICAL and ENVIRONMENTAL SPECIFICATIONS
Parameter
Value
Display Area (XxY mm)
137.05 x 11.00
Dot Size/Pitch (XxY mm)
0.34 x 0.5 / 0.49 x 0.7
Luminance
500 cd/m
2
Typ.
Colour of Illumination
Blue-Green (Filter for colours)
Operating Temperature
-40°C to +85°C
Storage Temperature
-40°C to +85°C
Operating Humidity (non condensing) 20 to 80% RH @ 25°C
SOFTWARE COMMANDS
– Popular codes, more included
Command
Code
Write Character to Display
20H-FFH
BS, HT, LF, CR, Display Clear
08H, 09H, 0AH, 0DH, 0CH
Initialize Display
1BH 40H
Specify International Font
1BH 52H n
Vertical Scroll Mode
1FH 02H
Horizontal Scroll Mode
1FH 03H
Cursor Set
1FH 24H xL xH yL yH
Scroll Display Action
1FH 28H 61H 10H wL wH cL cH s
Display Blank
1FH 28H 61H 11H p t1 t2 c
Screen Saver
1FH 28H 61H 40H p
Bit Image Display Group
1FH 28H 66H 11H xL xH
Font Magnified Display
1FH 28H 67H 40H x y
Brightness Level Setting
1FH 58H n
The module defaults to 5x7 font, cursor top left at power on.
PARALLEL INTERFACE – CN1
Pin Sig
Pin
Sig
1
GND
8
D1
2
VCC
9
D2
3
NC*
10
D3
4
RS
11
D4
5
/WR
12
D5
6
/RD
13
D6
7
D0
14
D7(PBUSY)
SERIAL INTERFACE – CN2
(J2)
Pin Async. Sig
Syn. Sig
1
VCC (5V)
VCC (5V)
2
SIN
SIN
3
GND
GND
4
SBUSY
SBUSY
5
NC
SCK
6
/RESET
/RESET
*Pin 3 can be changed to
/RESET or PBUSY terminal by
selection of Jumper JRB.
RS is not used.
Full specification available on
request.
CONTACT
Noritake Sales Office Tel Nos
Nagoya Japan: +81 (0)52-561-9867
Canada: +1-416-291-2946
Chicago USA: +1-847-439-9020
Munchen (D): +49 (0)89-3214-290
Itron UK: +44 (0)1493 601144
Rest Europe: +49 (0)61-0520-9220
www.noritake-itron.com
Subject to change without notice.
IUK Doc Ref:04175 Iss:1 26Nov02
