DUP-1810-101R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> DUP-1810-101R

DUP-1810-101R: DescriptionGeneral Purpose Inductor, 100uH, 10%, 1 Element, SMD, CHIP; CategoryPassive components inductor; File Size95KB，1 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric View All

DUP-1810-101R Overview

General Purpose Inductor, 100uH, 10%, 1 Element, SMD, CHIP

DUP-1810-101R Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Wurth Elektronik
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	2.5 Ω
Nominal inductance(L)	100 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	DUP-1810
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Minimum quality factor (at nominal inductance)	40
Maximum rated current	0.16 A
self resonant frequency	6.8 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	FLAT
Test frequency	1 MHz
Tolerance	10%
Base Number Matches	1

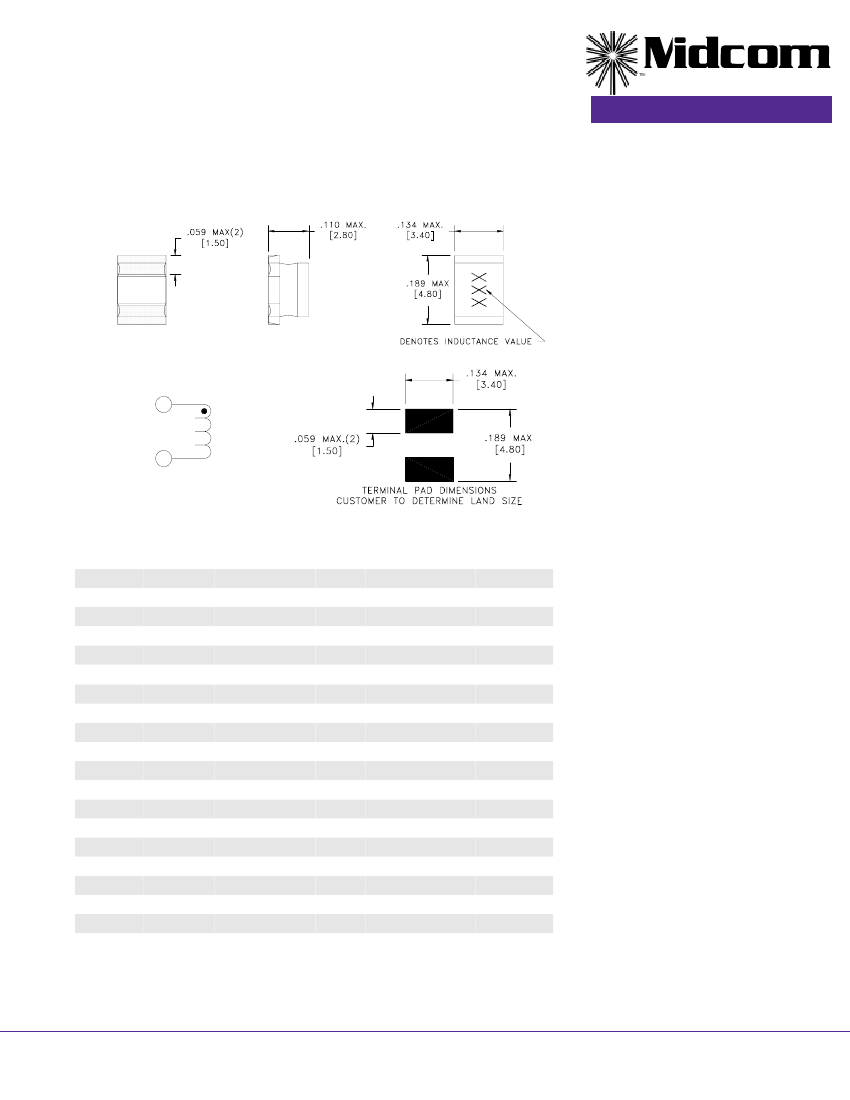

Preview

Download Datasheet

View All

TransformingMagnetics

SwitchmodePower

Low Profile Surface Mount Drum Core

Power Inductors: DUP-1810 Series

Features

Economical, reliable SMD inductors

Inductance range:1 uH to 1500 uH

Excellent current rating in a low-profile

package

High energy storage and low resistance

Designed for pick and place operations

Compatible with solder reflow processes

to 240°C

Applications

Inductors for DC/DC conversion circuits in

notebook computer, peripheral, process

control, factory automation and test

industries

Environmental Specifications

Storage temperature range:

-50°C to +125°C

Packaging

Parts are packaged in tape and reel for

pick and place

Part Number

DUP-1810-1R0R

DUP-1810-2R2R

DUP-1810-3R3R

DUP-1810-4R7R

DUP-1810-6R8R

DUP-1810-100R

DUP-1810-150R

DUP-1810-220R

DUP-1810-330R

DUP-1810-470R

DUP-1810-680R

DUP-1810-101R

DUP-1810-221R

DUP-1810-331R

DUP-1810-471R

DUP-1810-681R

DUP-1810-102R

DUP-1810-122R

DUP-1810-152R

(Note 1)

Inductance

2.2

3.3

4.7

6.8

100

220

330

470

680

1000

1200

1500

Inductance

DCR

Tolerance Test Freq.

(ohms max)

+/-%

1MHz

1kHz

0.20

0.30

0.35

0.40

0.50

0.56

0.73

0.94

1.20

1.50

1.90

2.5

5.4

8.2

11.8

17.0

25.0

30.0

37.0

(Note 2)

(mADC)

500

450

400

360

320

270

220

180

160

110

SRF

(MHz)

120

8.4

6.8

4.5

3.6

2.7

2.5

2.0

1.8

1.6

NOTES:

1 Inductance value at 100mV. Drive level may vary based on test instrument capability.

2 DC Current rating.

3/29/06

Details subject to change. Contact your Midcom sales representative for additional information. Dimensions: in/mm. All tolerances are ± .010/0,25 and electrical specifications are @ 25°C unless otherwise specified.

Midcom, Inc. USA

121 Airport Drive - PO Box 1330

Watertown, SD 57201

T: 605.886.4385 ~ F: 605.886.4486

www.midcom-inc.com ~ email:sales@midcom-inc.com

Midcom, Inc. China

10/F Spectrum Tower 53 Hung to Road

Kwun Tong, Kowloon, HK

T: 852.2320.4221 ~ F: 852.2352.3272

www.midcom.com.cn ~ email:sye@midcom-inc.com
