DBR-1-3-50-P-X1 datasheet, PDF

DBR-1-3-50-P-X1: DescriptionD Type Connector, 50 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size94KB，2 Pages; ManufacturerSouth Sea Terminal Co., Ltd.

Download Datasheet Parametric View All

DBR-1-3-50-P-X1 Overview

D Type Connector, 50 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

Parameter Name	Attribute value
Objectid	1166536852
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.494 inch
subject depth	0.5 inch
body length	2.634 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	JACKSCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	50

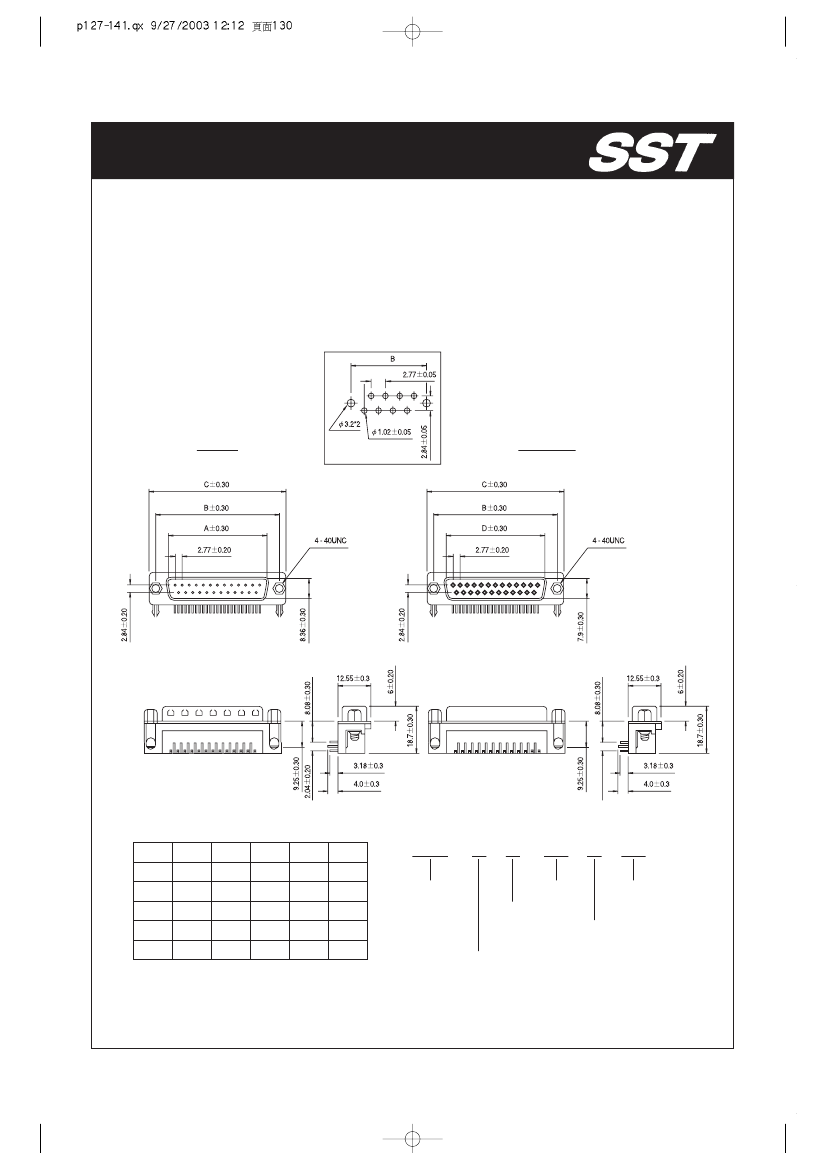

DBR CONNECTOR SYSTEM

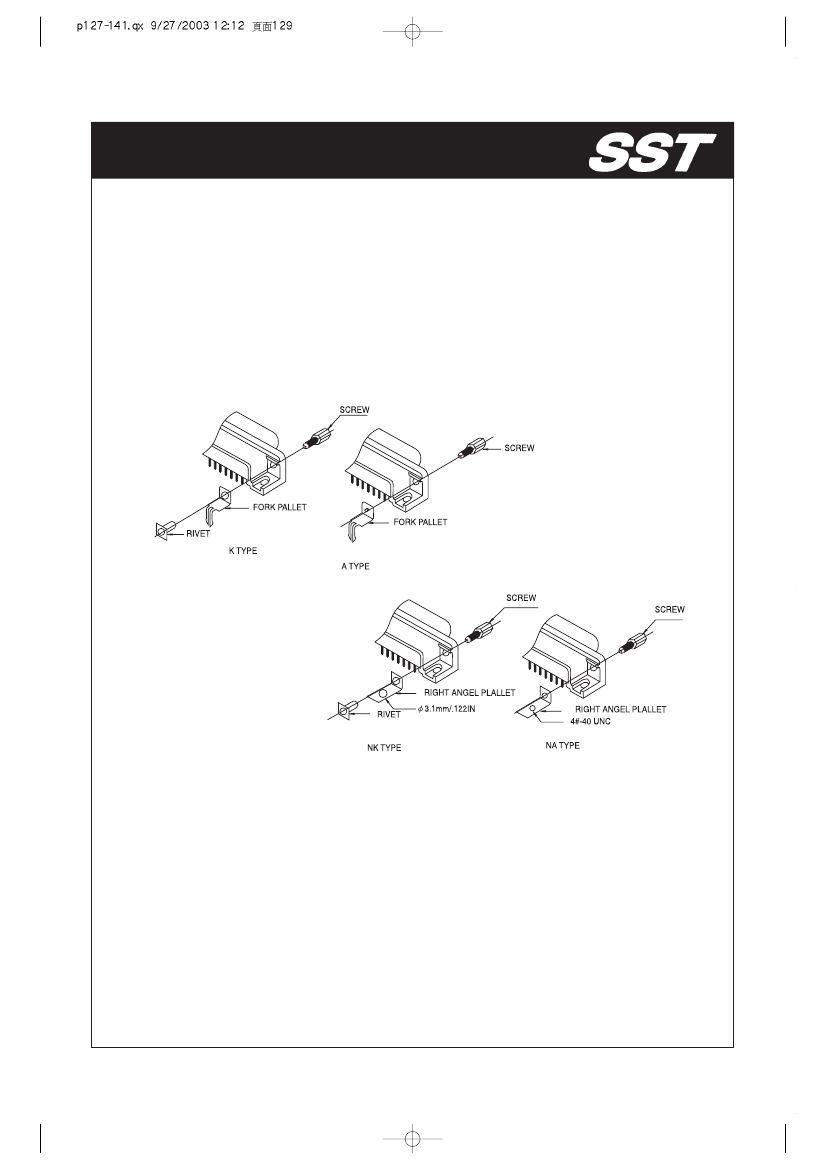

Mounting Option (R/A type)

CURRENT RATING : 5A

WITHSTANDING VOLTAGE : 1000VAC(1 MIN)

INSULATION RESISTANCE : 1000 MEGOHMS MIN.

CONTACT RESISTANCE : 30 MILLIOHMS MAX

OPERATION TEMPERATURE : -40ºC TO+85ºC

CONTACT: BRASS, SELECTIVE GOLD OR

ALL GOLD

INSULATOR. PBT & 30% G.F.

SHELL: STELL, TIN PLATED

AK : A TYPE, WITH JACK SCREW & BOARD LOCKS

KK : K TYPE, WITH 4-40 INSERT & BOARD LOCKS

NA : NA TYPE, WITH JACK SCREW & GROUND STRAPS

NK : NK TYPE, WITH 4-40 INSERT & GROUND STRAPS

129
