40Z4361

Description
Datacom Transformer, 10 BASE-T; ETHERNET Application(s), 1CT:1CT; 1:1
CategoryPower management    transformer
File Size52KB，1 Pages
ManufacturerVitec Electronics Corporation
Download Datasheet Parametric View All

40Z4361 Overview

Datacom Transformer, 10 BASE-T; ETHERNET Application(s), 1CT:1CT; 1:1

40Z4361 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
application10 BASE-T; ETHERNET
high5.72 mm
Insulation voltage1500 V
length28.45 mm
Manufacturer's serial number40Z
Installation featuresSURFACE MOUNT
Number of functions4
physical size28.45mm X 12.19mm X 5.72mm
Primary inductance100 µH
surface mountYES
Transformer typeDATACOM TRANSFORMER
Turns ratio (Np:Ns)1CT:1CT; 1:1
width12.19 mm
Base Number Matches1

Preview

Download Datasheet

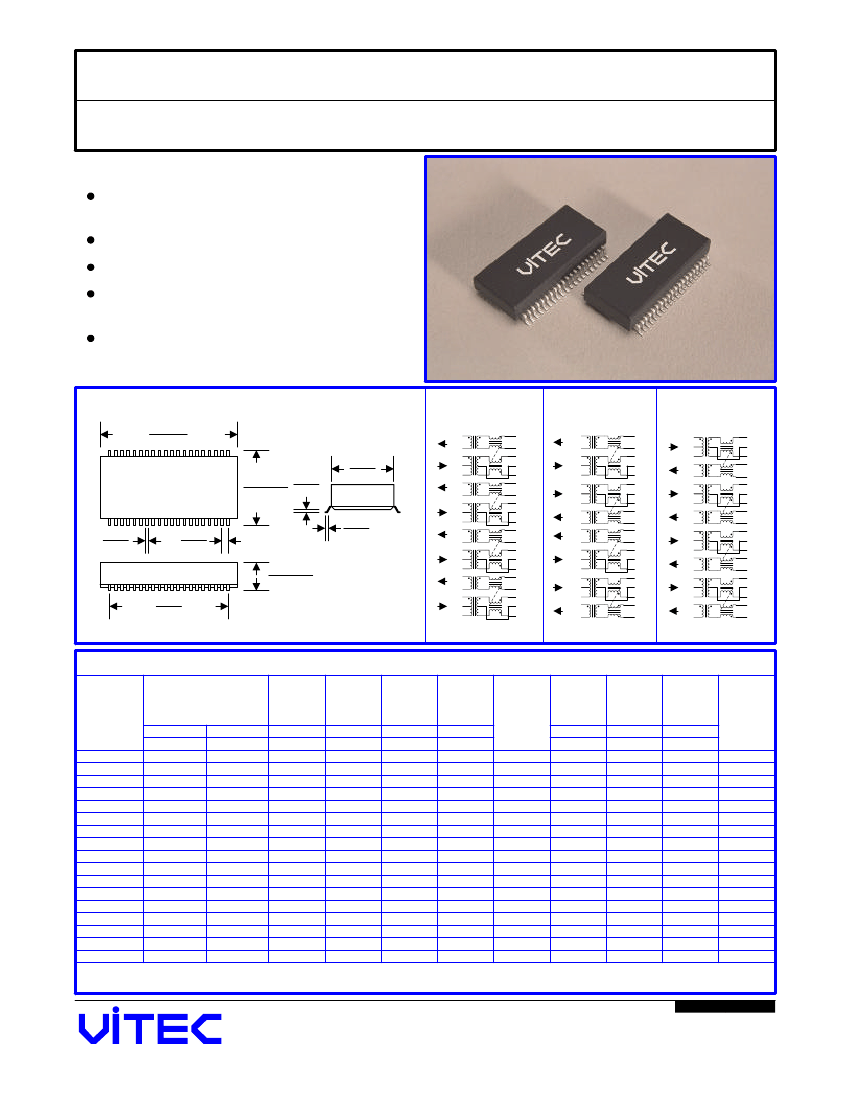

TYPE 40Z - SMD TRANSFORMER MODULES
Quad Port 10Base-T
FEATURES
Designed for Multi-port repeater and Switched
Ethernet applications.
Designed to meet requirements of IEEE 802.3.
Product matched to most IC manufacturer.
40 Pin low profile SMD package for Pick and Place
manufacturing.
Common footprints & pinouts with multiple filtering
options for customized EMI performance.
PACKAGE
1.250
Max
31.75
Max
SCHEMATIC A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
SCHEMATIC B
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
SCHEMATIC C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
VITEC
40Z43xx
0.018
0.46
0.050
1.27
0.640
Max
0.006
16.26
Max
0.15
0.490
12.45
PRIMARY
PRIMARY
0.015
0.38
0.235
Max
5.97
Max
0.950
24.13
Drawing NOT to Scale. Dimensions Inches/mm +/- 0.005/0.127 Unless noted.
ELECTRICAL CHARACTERISTICS @ 25
o
C
Part
Number
40Z4350
40Z4351
40Z4360
40Z4361
40Z4362
40Z4363
40Z4364
40Z4365
40Z4366
40Z4367
40Z4368
40Z4370
40Z4371
40Z4372
40Z4390
40Z4391
40Z4392
Notes: .
.
T-600.4
06/02
Turns
Ratio
XMT
+/- 3%
RCV
+/- 3%
Xmt/Rcv
L
P
uH
MIN
Pri/Sec
C
C
pF
MAX
Xmt/Rcv
Pri
uH
MAX
Xmt/Rcv
Pri DCR
Ohms
MAX
CMC
Dielectric Insulation
Optional
Inductance
Test
Resistance
CMR
Choke
uH
Vrms
MOhm
MIN
MIN
MIN
PRIMARY
Schem.
1CT:1
1CT:1CT
1CT:1.41CT
1CT:1CT
1CT:2CT
1CT:1.41CT
1CT:1CT
1CT:2CT
1CT:1.41CT
1CT:1CT
1CT:2CT
1CT:1.41CT
1CT:1CT
1CT:2CT
1CT:1.41CT
1CT:1
1CT:2
1:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
100/100
100/100
140/140
100/100
50/200
140/140
100/100
50/200
140/140
100/100
50/200
140/140
100/100
50/200
140/140
100/100
50/200
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
0.30/0.30
0.30/0.30
0.40/0.40
0.30/0.30
0.30/0.30
0.40/0.40
0.30/0.30
0.30/0.30
0.40/0.40
0.30/0.30
0.30/0.30
0.40/0.40
0.30/0.30
0.30/0.30
0.40/0.40
0.30/0.30
0.30/0.30
0.30/0.30
0.30/0.30
0.40/0.40
0.30/0.30
0.35/0.50
0.40/0.40
0.30/0.30
0.35/0.50
0.40/0.40
0.30/0.30
0.35/0.50
0.40/0.40
0.30/0.30
0.35/0.50
0.40/0.40
0.30/0.30
0.35/0.50
N/A
Xmt
Xmt/Rcv
Xmt/Rcv
Xmt/Rcv
Xmt/Rcv
Xmt/Rcv
Xmt/Rcv
Xmt/Rcv
Xmt/Rcv
Xmt/Rcv
Xmt
Xmt
Xmt
N/A
N/A
N/A
--
36
36
36
36
36
36
36
36
36
36
36
36
36
--
--
--
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
A
A
C
C
C
A
A
A
B
B
B
C
C
C
C
C
C
--
Vitec Electronics Corporation
www.VitecCorp.com
