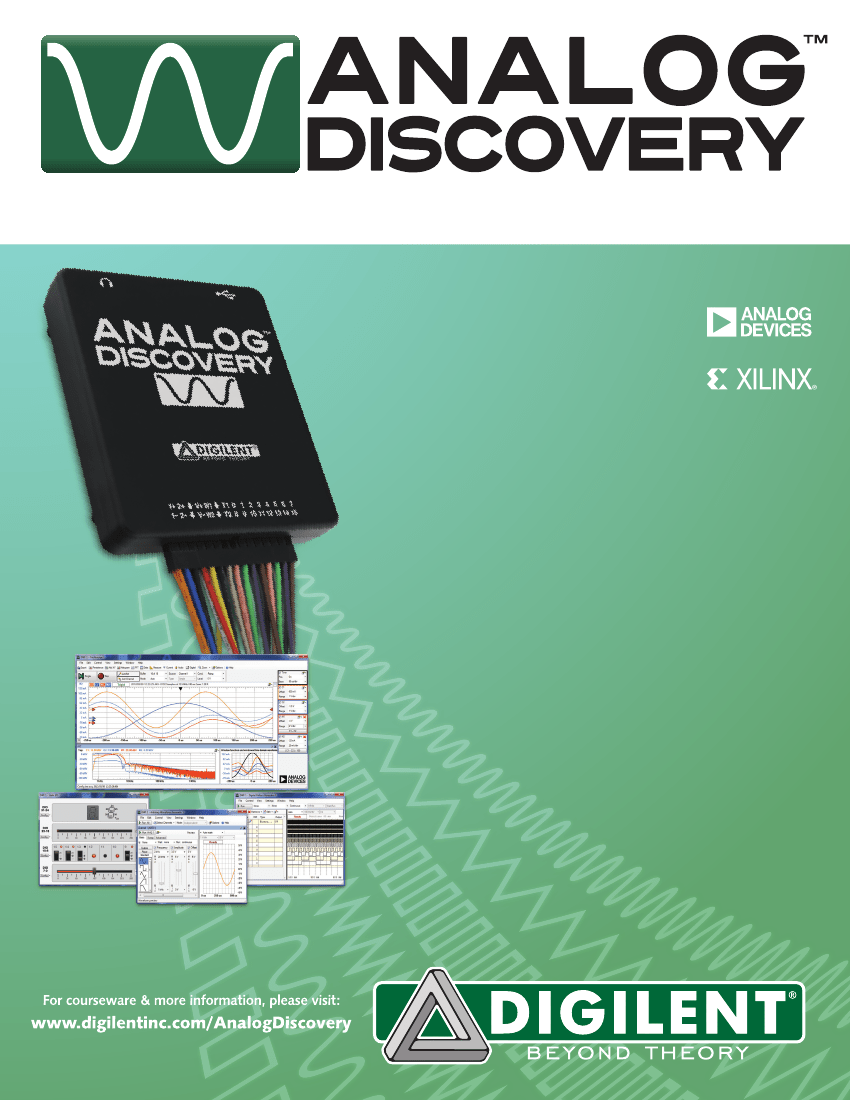

Portable Analog Circuit Design Kit
Turn your PC into a powerful circuit learning
platform that can measure, visualize, analyze,
record and control mixed signal circuits! The
Analog Discovery is small enough to fit in your
pocket and costs less than a textbook, but it is
powerful enough to replace a stack of lab
equipment. Powered by a Hi-Speed USB port and
the free WaveForms software, the Analog
Discovery lets you build and test analog and digital
circuits outside of the lab.
Designed in cooperation with:
Dual Channel Oscilloscope
• Fully differential inputs, up to 100 MSPS, 14-bit ADC,
up to 16KSa/channel memory
• 1MΩ/24pF inputs,
±20V
Max
• Real-time FFTs, X-Y plots, complex math and measurements on all channels
• 5 MHz analog signal bandwidth
Dual channel Function Generator
• Single-ended outputs, up to 100 MSPS, 14-bit D/A,
up to 16KSa/channel memory
• Arbitrary and pre-defined waves up to
±5V
• Sweeps, envelopes, AM and FM modulation
• Bode plot feature using standard, Nyquist & Nichols coordinates
• Can drive 50Ω
Digital I/O
• 16 signals, 100MSPS, 4KSa/channel memory
• Any signal can be input (logic analyzer) or output (pattern generator
or virtual I/O)
• Supports cross-triggers with scope channels
Power Supplies
• Two fixed
±5V
50mA
,
Powered by WaveForms™
