5961-01-513-4150 datasheet, PDF

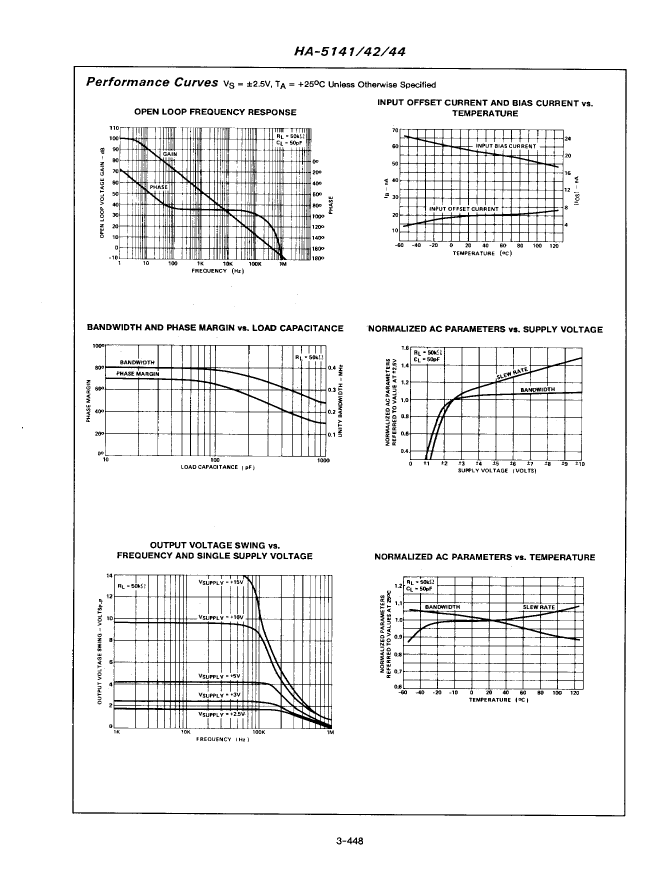

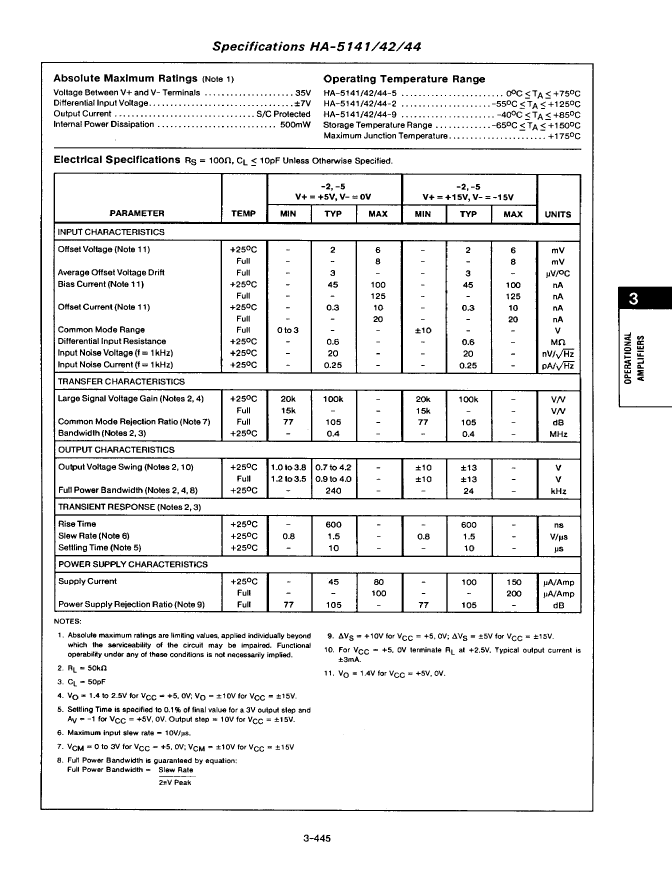

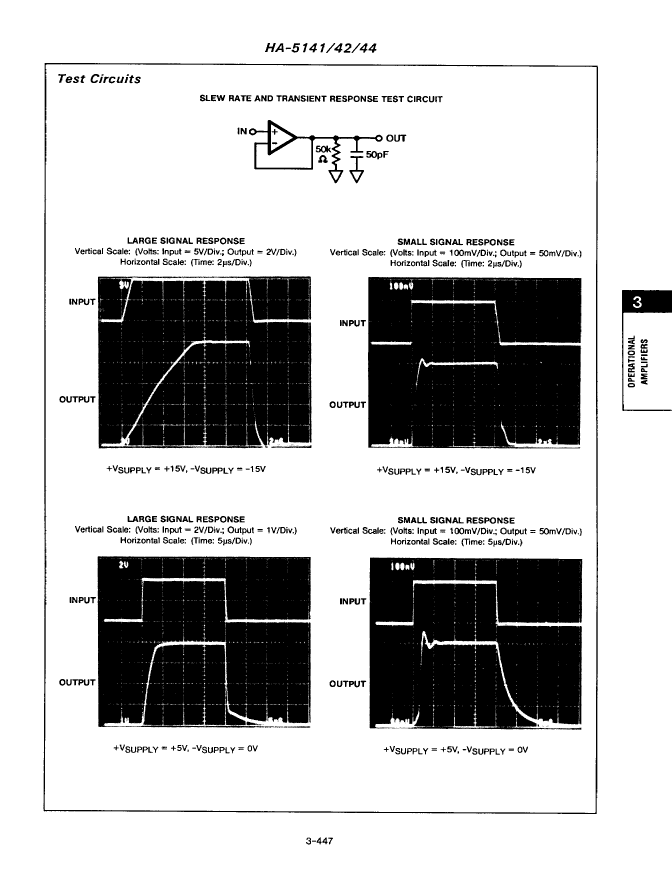

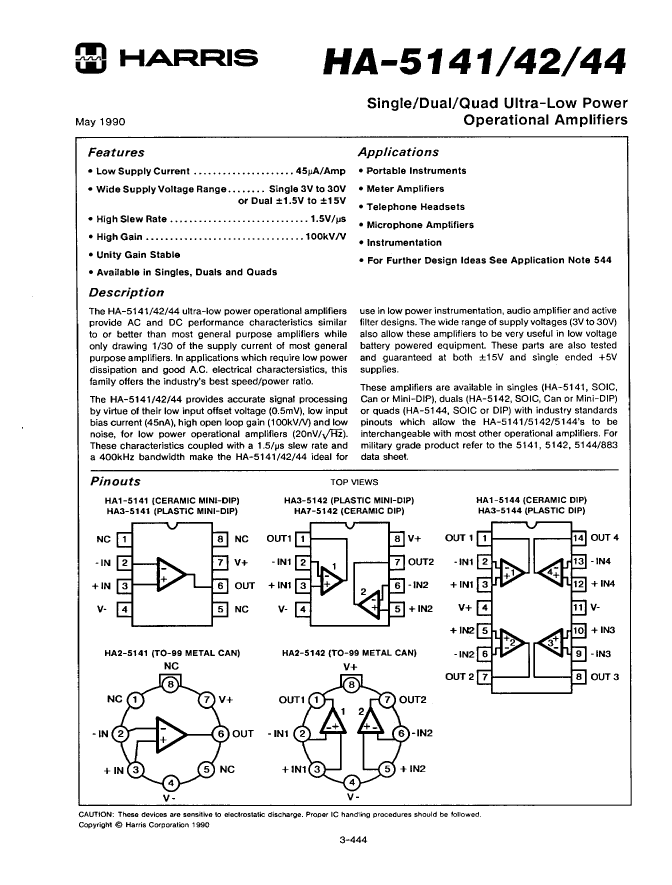

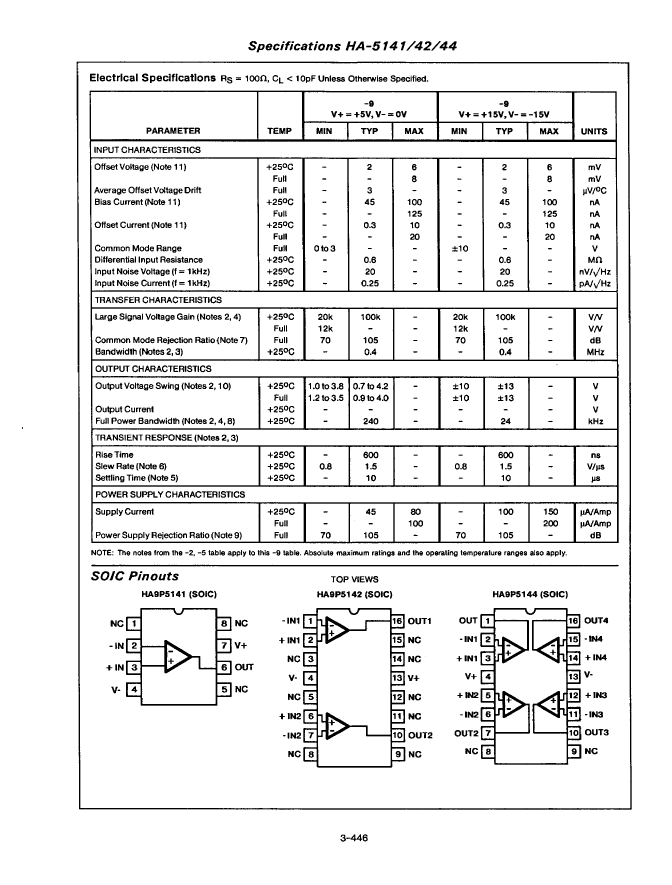

5961-01-513-4150: DescriptionIC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,CERAMIC; CategoryAnalog mixed-signal IC Amplifier circuit; File Size688KB，12 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric View All

5961-01-513-4150 Overview

IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,CERAMIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1164768836
Parts packaging code	DIP
Contacts	8
Reach Compliance Code	not_compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.1 µA
frequency compensation	YES
Maximum input offset voltage	8000 µV
JESD-30 code	R-XDIP-T8
low-bias	NO
low-dissonance	NO
micropower	YES
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power	NO
power supply	5/+-15 V
Programmable power	NO
Certification status	Not Qualified
minimum slew rate	0.8 V/us
Maximum slew rate	0.15 mA
Supply voltage upper limit	17.5 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Minimum voltage gain	15000
broadband	NO
