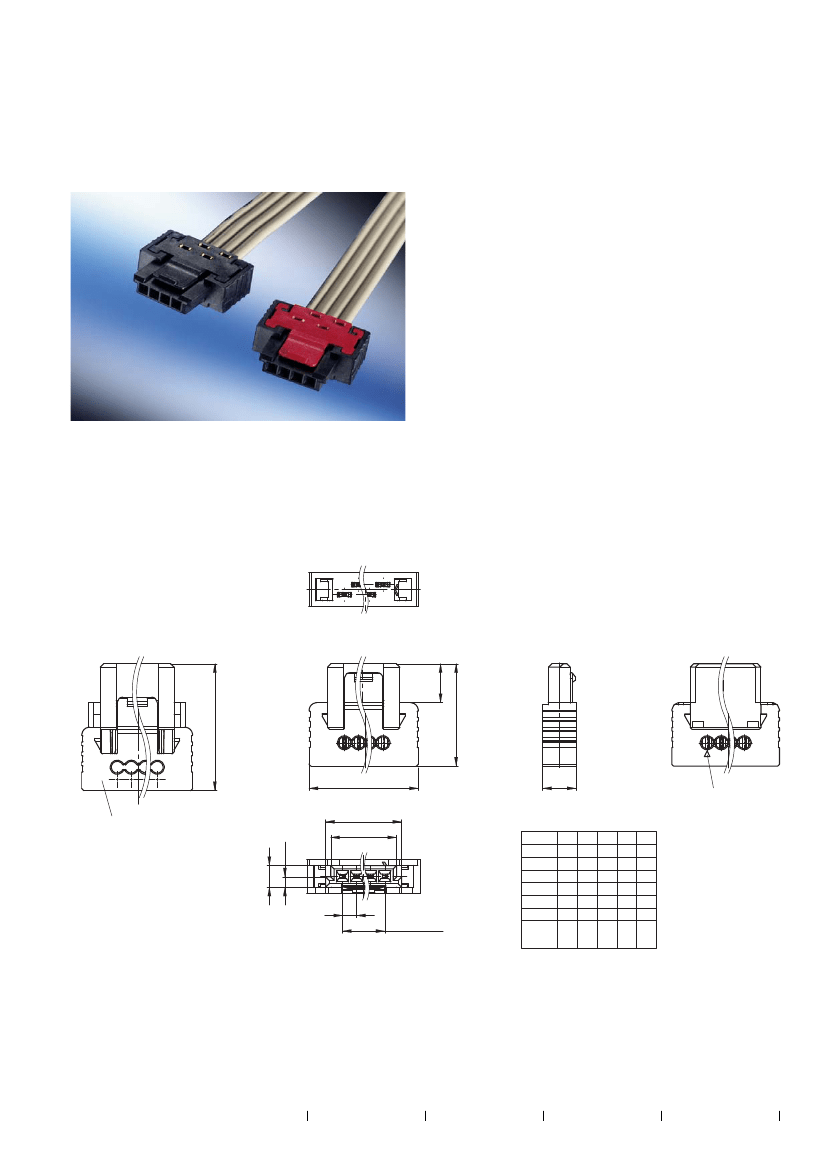

1.27 mm SRC

Single Row Connector - MiniBridge™ Cable System

Cable Assemblies

Standard cable assemblies are available from ERNI. Thanks

to the versatile options of our female connectors, the widest

range of applications can be realized. The female connectors

are available with different types of locking latches for normal

vibration/shock loads (black model) as well as applications

involving heavy vibration/shock loads (red model).

The robust version (red) is only unlockable with a sharp item,

e.g. tip of pen. The IDC terminal is designed for AWG-24 or

AWG-26 conductors (solid or stranded). Partial loading is

also possible using single wire. Cable outlet is 90° or 180°.

Dimensional Drawing

Female Connector Cable Outlet 90°

mit aufgestzter Drahtführung

(Anlieferungszustand)

(Drahtführung verpresst)

with wire guide mounted

(state at time of supply)

Flachbandkabelführung: schwarz

(wire guide pressed on)

3,5

9,2

11,4

Kontaktbezeichnung

contact marking

wire guide: black

0,92

1,27

x 1,27

Pohlzahl

No. of

contacts

7,62 4,39 3,38

8,89 5,65 4,65

10,16 6,92 5,92

12,70 9,46 8,46

15,24 12,00 11,00

17,78 13,54 14,45

1,27

2,54

3,81

6,35

8,89

11,43

13,97

1,94

20,32 16,08 16,99 11

All dimensions in mm.

Catalog E 074560

11/08

Edition 4

www.erni.com
