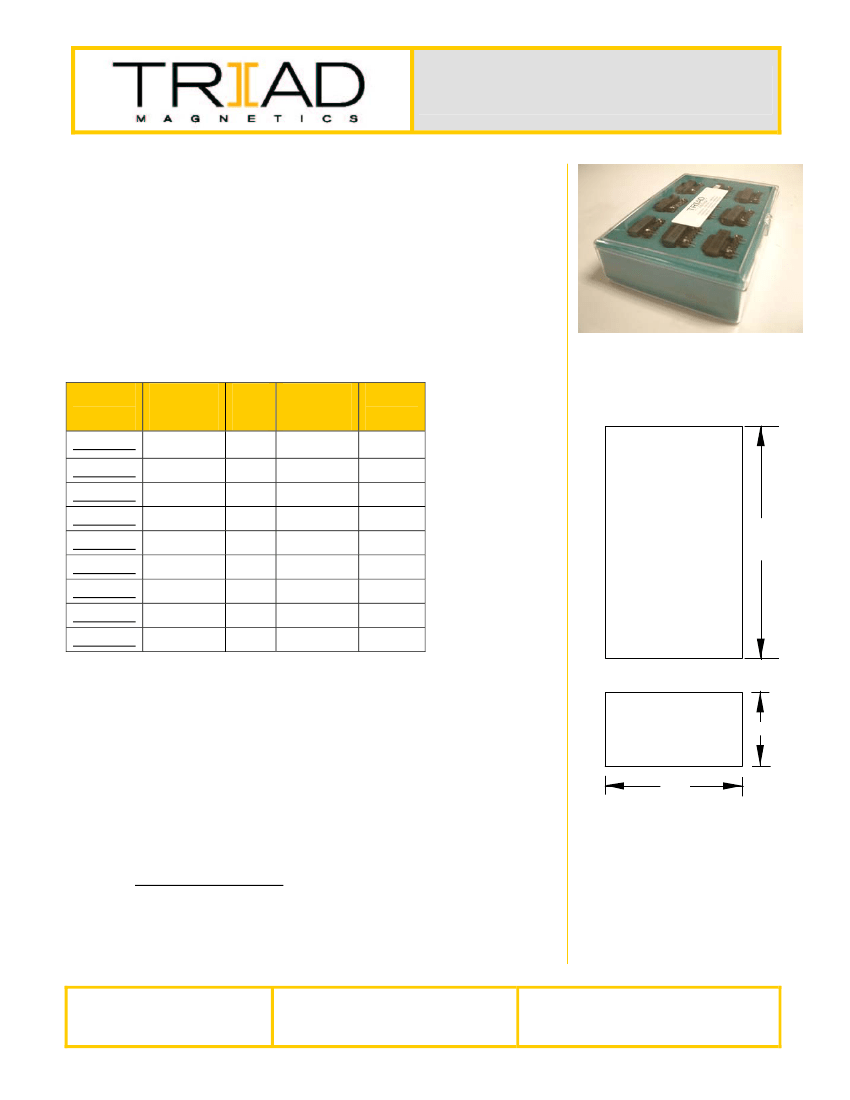

CME375K

Description:

This kit contains representative samples of our high frequency Common Mode

Inductors. They are useful for a variety of developmental needs including circuit

simulation, circuit testing, prototyping and agency evaluations. All items in this kit

meet specifications listed in the catalog section referring to the product. This kit is

housed in an easy to see, easy to store clear polycarbonate box with a convenient

snap closing hinged lid.

Electrical Specifications (@25C):

Part

No.

CME375-1

CME375-2

CME375-3

CME375-4

CME375-5

CME375-6

CME375-7

CME375-8

CME375-9

Inductance

mH min.

4.4

6.9

10.9

17.8

28.6

43.6

70.3

111.6

176.1

Amps

R.M.S

5.5

4.4

3.5

2.7

2.2

1.75

1.38

1.10

.870

Max. DC

Resistance

.049

Ω

.077

Ω

.122

Ω

.196

Ω

.316

Ω

.489

Ω

.785

Ω

.240

Ω

1.98

Ω

Min.

Leakage

45.0µH

70.0µH

125.0µH

180.0µH

300.0µH

440.0µH

720.0µH

1.10mH

1.8mH

Dimensions:

Height

= 2.0”

Width

= 5.5”

Length

= 7.25”

Weight

= 1.5 Lbs.

For more detailed specifications on individual parts, click on the part number or

visit us at: www.TriadMagnetics.com

RoHS Compliance:

As of manufacturing date February 2005, all standard products meet the

requirements of 2011/65/EU, known as the RoHS initiative.

* Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics’

website for the most current version.

Web: www.TriadMagnetics.com

Phone 951-277-0757

Fax 951-277-2757

460 Harley Knox Blvd.

Perris, California 92571

Publish Date: December 4, 2013
