**** Only 40/60% is available for certain frequencies. Please contact Abracon when ordering.

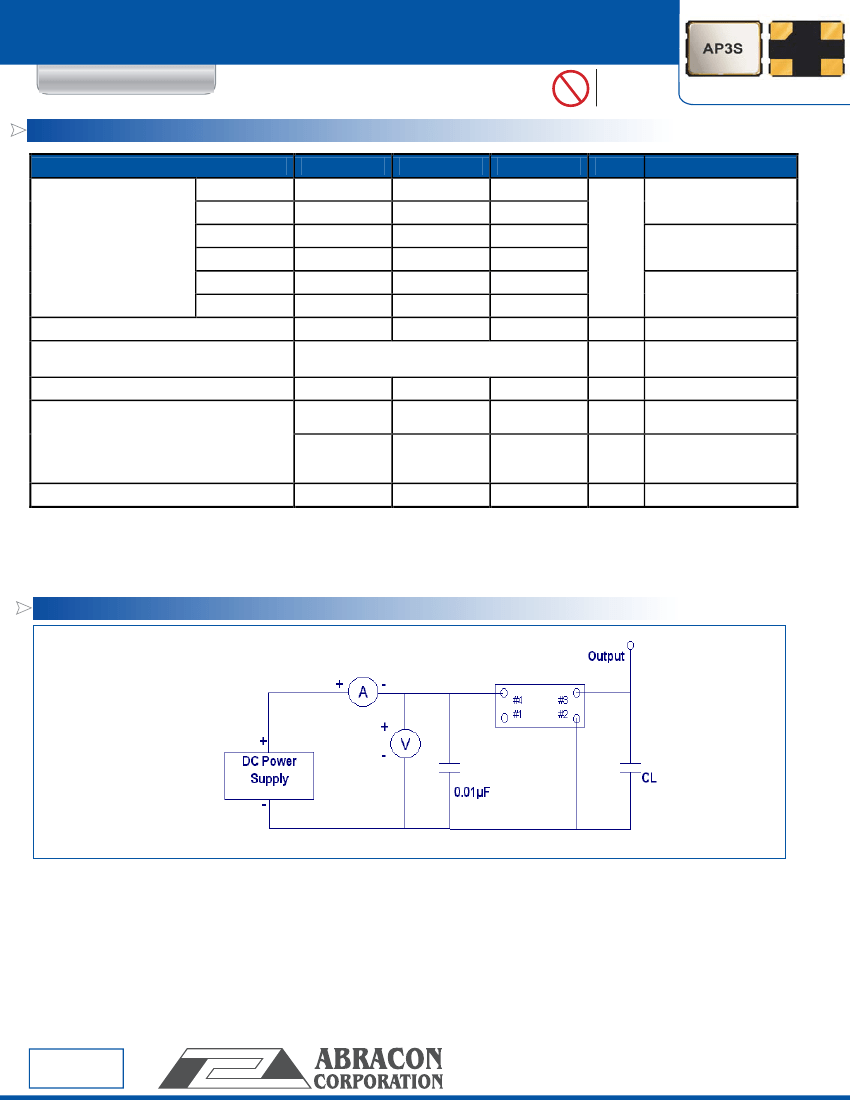

TEST CIRCUIT:
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CE RTIFIED
Revised: 09.16.11
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
SMD CMOS PROGRAMMABLE CRYSTAL OSCILLATOR
AP3S

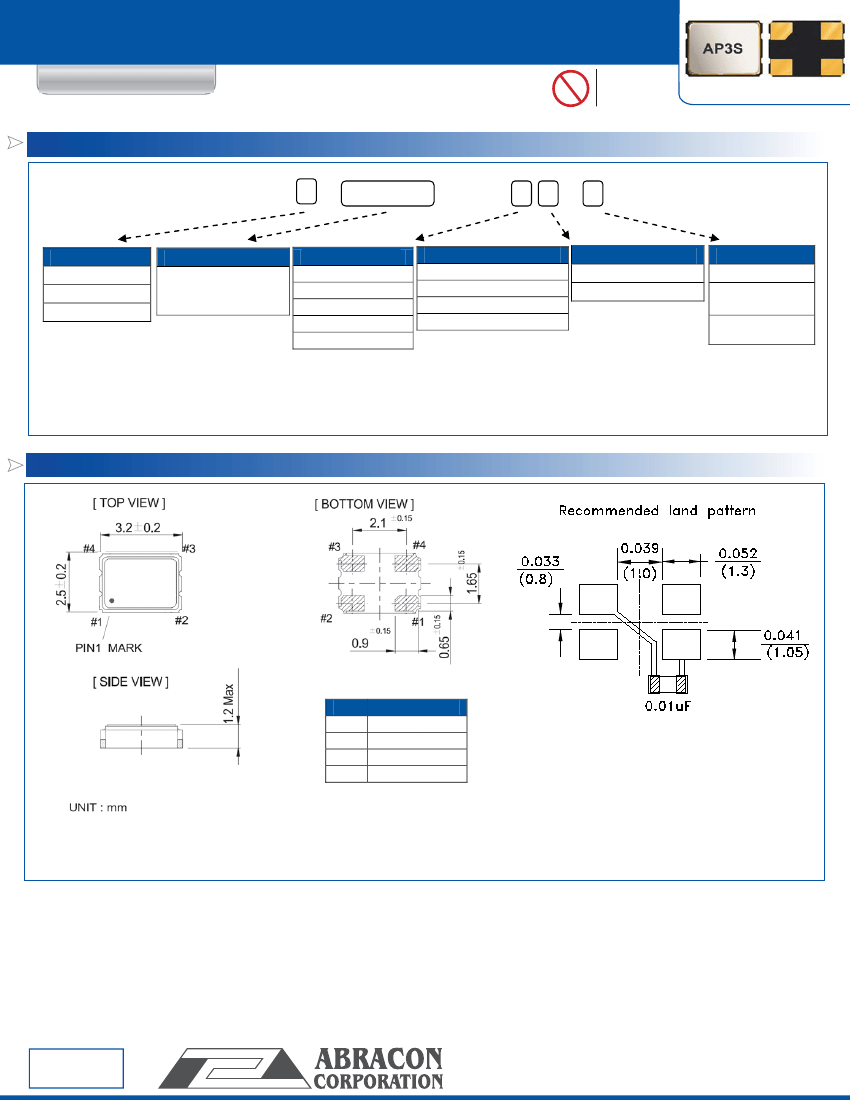

OPTIONS & PART IDENTIFICATION:
Pb
RoHS
Compliant
3.2 x 2.5 x 1.2mm
| | | | | | | | | | | | |
| |
AP3S
Supply Voltage
*Blank: 3.3V
1: 2.5V
2: 1.8V
Frequency in MHz
Please specify the
frequency in MHz.
e.g. 14.31818MHz
-
Operating Temp.
I: 0°C ~ +50°C
E: -20°C ~ +70°C
F: -30°C ~ +70°C
N: -30°C ~ +85°C
L: -40°C ~ +85°C
MHz -
Overall Freq. Stability
J(****): ±20ppm
R: ±25ppm
K: ±30ppm
C: ±50ppm
-
Tri-state pin
**Blank: OE
***B: Power Down
Packaging
Blank: Bulk
T: Tape & Reel
(1k/reel)
T3: Tape & Reel
(3k/reel)
* 3.3V is standard
** OE: Tri-state the output buffer
*** PDB: Tri-state the output buffer and shut off the oscillator, <10µA when PDB enabled.
**** Available for -10 to +60
°C,
I, or E temp options only. Contact ABRACON for EJ or LR options. (Availability limited)
OUTLINE DRAWING:
Pin
1
2
3
4
Function
Tri-State
GND/Case
Output
Vdd
Note: Recommend using an approximately 0.01uF
bypass capacitor between PIN 2 and 4.
Dimensions: inches (mm)
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CE RTIFIED
Revised: 09.16.11
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
SMD CMOS PROGRAMMABLE CRYSTAL OSCILLATOR
AP3S

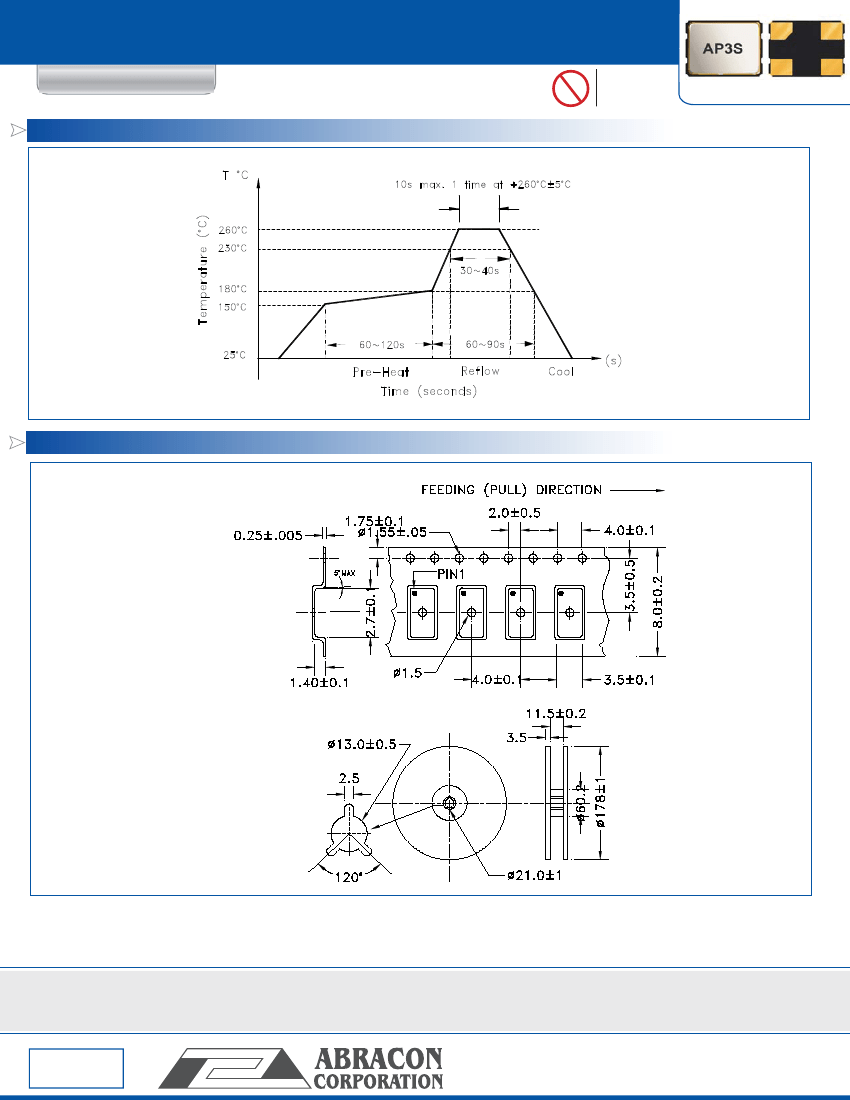

REFLOW PROFILE
Pb
RoHS
Compliant
3.2 x 2.5 x 1.2mm
| | | | | | | | | | | | |
| |
TAPE & REEL:
T= Tape and reel (1,000pcs/reel)
T3= Tape and reel (3,000pcs/reel)
Dimensions: mm
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applica-
tions. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where
component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and
authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CE RTIFIED
Revised: 09.16.11
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
