BSSHC-113-D-460-10-G-805 datasheet, PDF

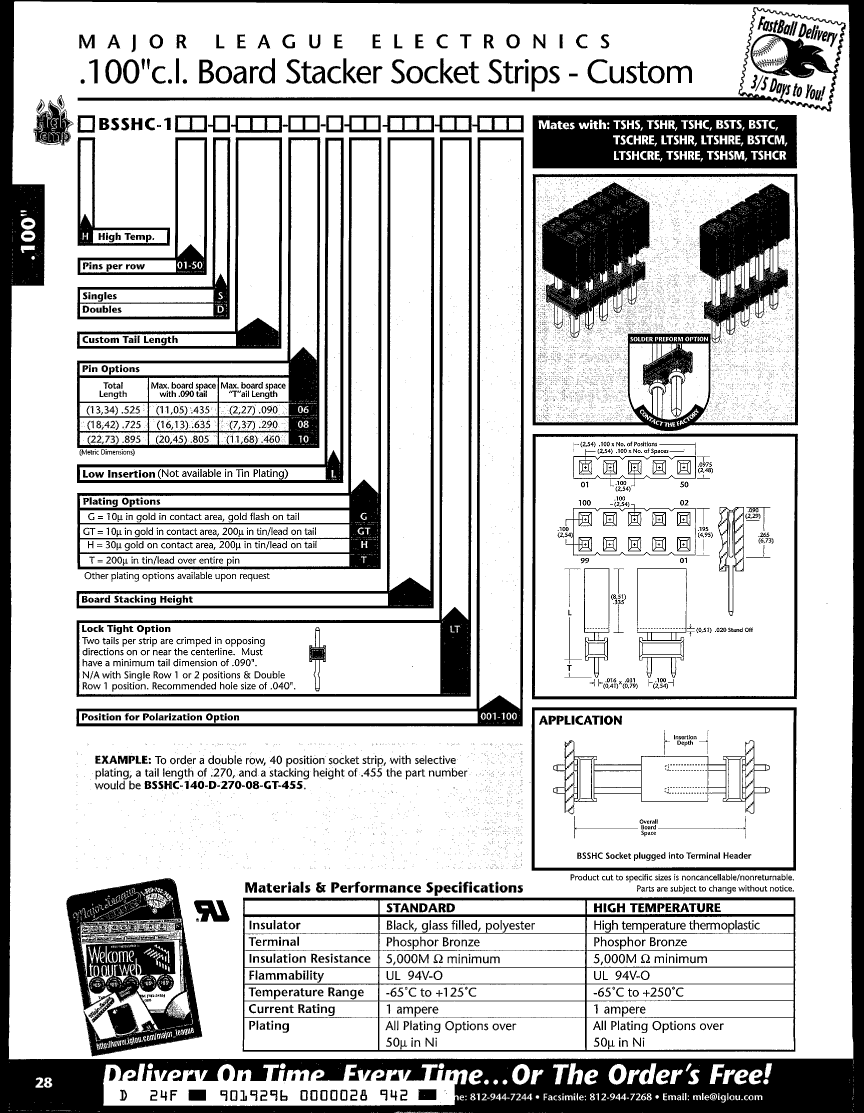

BSSHC-113-D-460-10-G-805: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size152KB，1 Pages; ManufacturerMajor League Electronics; Websitehttp://www.mlelectronics.com/

Download Datasheet Parametric View All

BSSHC-113-D-460-10-G-805 Overview

Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Black Insulator, Plug

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Major League Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	WITH PCB STAND OFF
body width	0.195 inch
subject depth	0.895 inch
body length	1.3 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
Manufacturer's serial number	BSSHC
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.46 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	26
Base Number Matches	1
