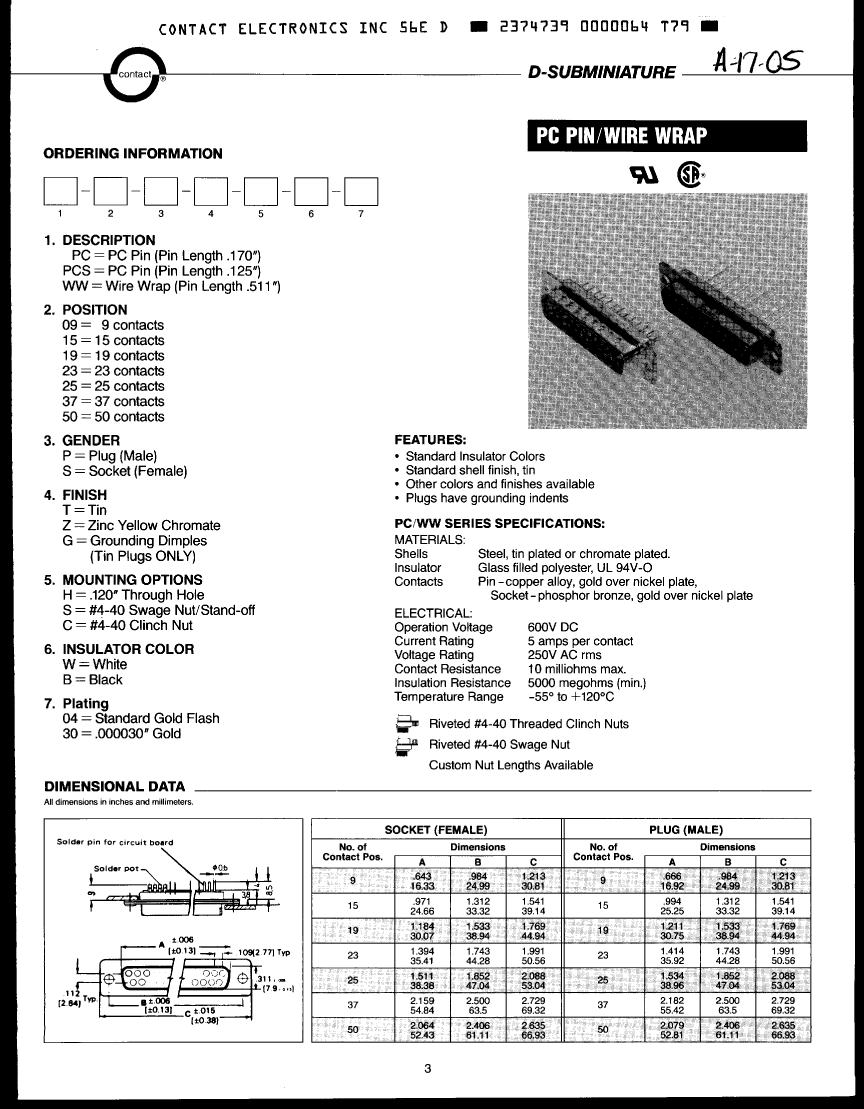

PCS-37-P-G-H-W-04 datasheet, PDF

PCS-37-P-G-H-W-04: DescriptionD Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle; CategoryThe connector The connector; File Size140KB，1 Pages; ManufacturerLapp Group; Environmental Compliance

Download Datasheet Parametric View All

PCS-37-P-G-H-W-04 Overview

D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1166868343
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6
body length	2.729 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	250VAC V
empty shell	NO
Filter function	NO
Insulation resistance	5000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	HOLE .112-.124
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	120 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	37
UL Flammability Code	94V-0
