M2S050-FG484Y datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> M2S050-FG484Y

M2S050-FG484Y: DescriptionField Programmable Gate Array, 48672-Cell, CMOS, PBGA484; CategoryProgrammable logic devices Programmable logic; File Size7MB，156 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric View All

M2S050-FG484Y Overview

Field Programmable Gate Array, 48672-Cell, CMOS, PBGA484

M2S050-FG484Y Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	4016542976
Reach Compliance Code	unknown
YTEOL	9.2
JESD-30 code	S-PBGA-B484
length	23 mm
Number of entries	267
Number of logical units	48672
Output times	267
Number of terminals	484
Maximum operating temperature	85 °C
Minimum operating temperature
Package body material	PLASTIC
encapsulated code	BGA
Encapsulate equivalent code	BGA484,22X22,40
Package shape	SQUARE
Package form	GRID ARRAY
power supply	1.2 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Maximum supply voltage	1.26 V
Minimum supply voltage	1.14 V
Nominal supply voltage	1.2 V
surface mount	YES
technology	CMOS
Terminal form	BALL
Terminal pitch	1 mm
Terminal location	BOTTOM
width	23 mm

Preview

Download Datasheet

View All

Revision 0

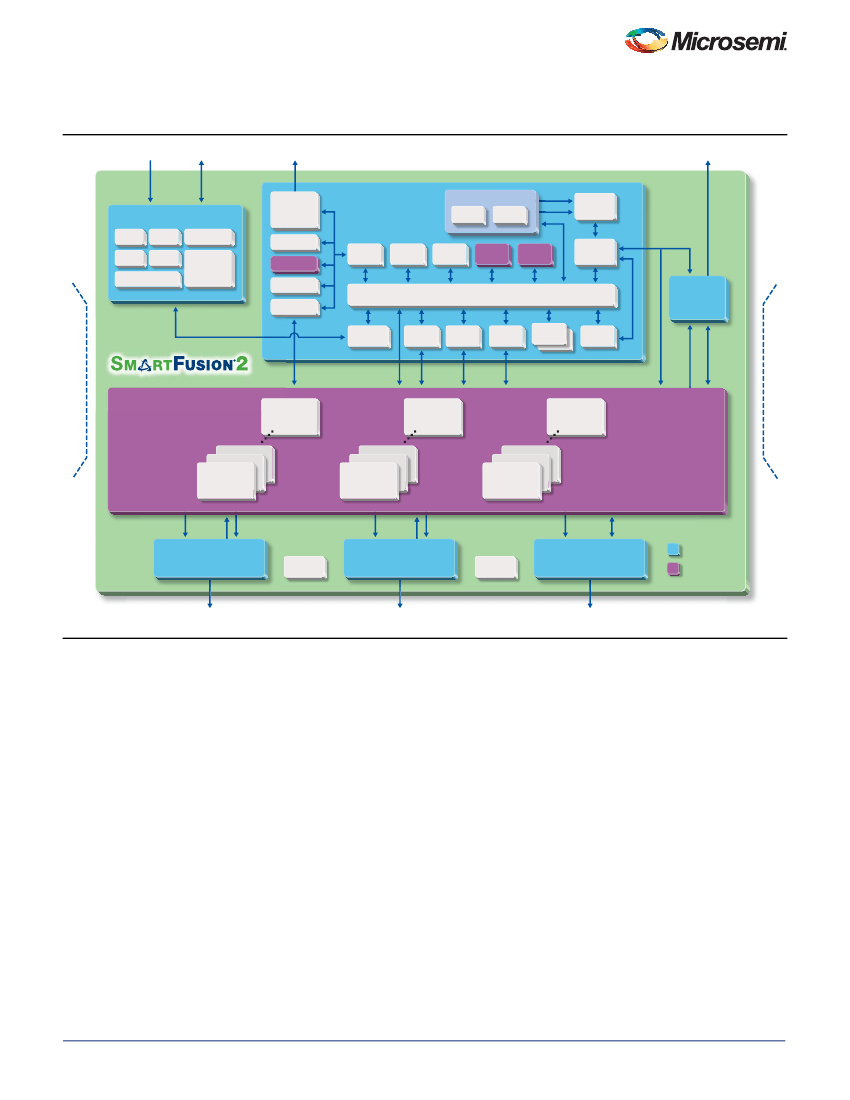

SmartFusion2 System-on-Chip FPGAs

Microsemi’s SmartFusion

2 SoC FPGAs integrate fourth generation flash-based FPGA fabric, an ARM

Cortex™-M3 processor,

and high performance communications interfaces on a single chip. The SmartFusion2 family is the industry’s lowest power, most

reliable and highest security programmable logic solution. This next generation SmartFusion2 architecture offers up to 3.6X gate

count implemented with 4-input look-up table (LUT) fabric with carry chains, giving 2X performance, and includes multiple embedded

memory options and math blocks for digital signal processing (DSP). The 166 MHz ARM Cortex-M3 processor is enhanced with an

embedded trace macrocell (ETM), memory protection unit (MPU), 8 Kbyte instruction cache, and additional peripherals including

controller area network (CAN), Gigabit Ethernet, and high speed universal serial bus (USB). High speed serial interfaces include

peripheral component interconnect express (PCIe), 10 Gbps attachment unit interface (XAUI) / XGMII extended sublayer (XGXS) +

native serialization/deserialization (SERDES) communication, while double data rate 2 (DDR2)/DDR3 memory controllers provide

high speed memory interfaces.

SmartFusion2 Family

Reliability

•

Single Event Upset (SEU) Immune

–

Zero FIT FPGA Configuration Cells

•

Single Error Correct Double Error Detect (SECDED)

Protection on the Following:

–

•

Ethernet Buffers

CAN Message Buffers

Cortex-M3

(eSRAMs)

USB Buffers

PCIe Buffer

DDR Memory Controllers with Optional SECDED

Modes

•

Embedded

Scratch

Pad

Memory

–

Enhanced Anti-Tamper Features

Zeroization

Non-Deterministic Random Bit Generator (NRBG)

User Cryptographic Services (AES-256, SHA-256,

Elliptical Curve Cryptographic (ECC) Engine)

User Physically Unclonable Function (PUF) Key

Enrollment and Regeneration

CRI Pass-Through DPA Patent Portfolio License

Hardware Firewalls Protecting

Subsystem (MSS) Memories

Microcontroller

Data Security Features (available on premium devices)

Low Power

Low Static and Dynamic Power

–

•

Flash*Freeze Mode for Fabric

< 1 mW in Flash*Freeze Mode

10 mW in Standby Mode

For the M2S050 Device:

Buffers Implemented with SEU Resistant Latches on the

Following:

–

DDR Bridges (MSS, MDDR, FDDR)

Instruction Cache

MMUART FIFOs

SPI FIFOs

Based on 65 nm Nonvolatile Flash Process

Efficient 4-Input LUTs with Carry Chains for High

Performance and Low Power

Up to 236 Blocks of Dual-Port 18 Kbit SRAM (Large

SRAM) with 400 MHz Synchronous Performance (x18,

x9, x4, x2, x1)

Up to 240 Blocks of Three-Port 1 Kbit SRAM with 2

Read Ports and 1 Write Port (micro SRAM)

High Performance DSP Signal Processing

–

Up to 240 Fast Math Blocks with 18 x 18 Signed

Multiplication, 17 x 17 Unsigned Multiplication and

44-Bit Accumulator

•

NVM Integrity Check at Power-Up and On-Demand

No External Configuration Memory Required—Instant-

On, Retains Configuration When Powered Off

Design Security Features (available on all devices)

–

Intellectual Property (IP) Protection via Unique

Security Features and Use Models New to the PLD

Industry

Encrypted User Key and Bitstream Loading,

Enabling Programming in Less-Trusted Locations

Supply-Chain Assurance Device Certificate

High-Performance FPGA

Security

•

–

October 2012
