Amphenol
Data Interconnects
USB
Materials
Housing
Platting on housing
Insulator
Contacts
– Phosphor Bronze (P/B)
– Tin/Lead over Ni
– 94V-0 thermoplastic
– P/B with 50µ” Ni
– 1A
– 30VAC/rms 60Hz

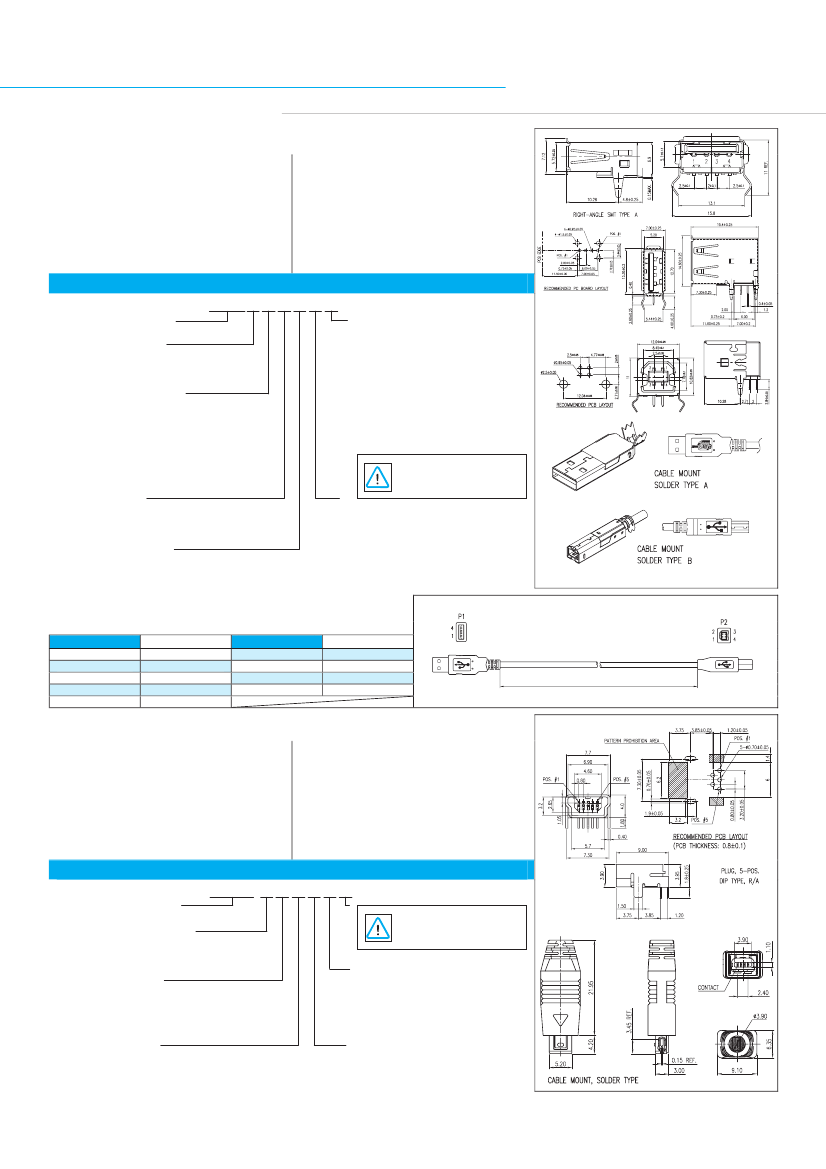

GSB Series Universal Serial Bus Connectors
Temperature
-40 to 85ºC
Durability
1500 cycles
Electrical
Current
Voltage
Features
Full metal shell for ESD shielding
Interface speeds of 12Mbs
Part Number System:
GSB X X X X X X
USB Connector
SERIES TYPE
1: Type A
2: Type B
MOUNTING STYLE
1: DIP Straight
2: DIP R/A Horizontal
4: SMT R/A Horizontal
5: Cable Mount Solder Contact
6: Cable Mount Crimp Contact
9: DIP R/A Vertical
STRUCTURE
1: Standard (Single Port)
2: Stacked (R/A DIP only)
CONTACT FINISH
1: Gold Flash
2: 30µ” Gold
FACTORY CODE
A: With Amphenol logo
H: High Temperature
FRS: With rear/front shell spring
RS: With rear Shell
P: For PC99 system
01: Cable Mount shell Crimp
size 6x6.8mm
02: Cable Mount shell Crimp
size 7x9mm
C: Cutted Boardlocks
Suffix may be added to Part Number.
This Suffix is for Internal use mainly.
Additional Suffix ‘EU’ or ‘LF’ may be
added for RoHS compliant product.
Right-Angle Vertical
Type A
Right Angle PCB Type B
COLOUR OF INSULATION
0: White
1: Black
2: Beige
Dimensions in mm
GSB Series
USB Cable Assemblies
Type A to Type B cable assemblies
Part Number:
Length
Part Number:
GSB70 97019
GSB70 97020
GSB70 97021
GSB70 97022
GSB70 97023
1000mm
1500mm
2000mm
2500mm
3000mm
GSB70 97024
GSB70 97025
GSB70 97026
GSB70 97027
Length
3500mm
4000mm
4500mm
5000mm
A
Mini USB
Mini Universal Serial Bus
Materials
Housing
Platting on housing
Insulator
Contacts
– Phosphor Bronze (P/B)
– Tin/Lead over Ni
– 94V-0 thermoplastic
– P/B with 50µ” Ni
– 0.5A
– 30VAC/rms 60Hz
Temperature
-40 to 85ºC
Durability
1500 cycles
Electrical
Current
Voltage
Features
Full metal shell for ESD shielding
Interface speeds of 12Mbs
Part Number System:
GMSB X X X X X X
Mini USB Connector
NUMBER OF POSITIONS
04: 4 Postions
05: 5 Positions
MOUNTING STYLE
2: DIP Right Angle
3: SMT Right Angle
4: Cable Mount Solder Type
CONTACT FINISH
0: Gold Flash
1: 15 µ” Gold
2: 30µ” Gold
AMTA
Suffix may be added to Part Number.
This Suffix is for Internal use mainly.
Additional Suffix ‘EU’ or ‘LF’ may be
added for RoHS compliant product.
PACKING OPTION
0: Tube
1: Tape & Reel (SMT only)
2: PE Bag
3: Tray
COLOUR OF INSULATION
0: White
1: Black (Standard)
2: Beige
Dimensions in mm
H-10
