MKT 1813
Vishay BCcomponents
Metallized Polyester Film Capacitor
MKT Axial Type
FEATURES
Ød
Supplied loose in box, taped on ammopack or reel
RoHS compliant
40.0 ± 5.0
L
Max.
40.0 ± 5.0
D
Max.
ENCAPSULATION
Plastic-wrapped,
retardant
epoxy
resin
sealed,
flame
Dimensions in mm
LEAD DIAMETER
d (mm)
0.6
0.7
0.8
1.0
D (mm)
≤
5.0
> 5.0
≤
7.0
> 7.0 < 16.5
≥
16.5
CLIMATIC TESTING CLASS ACC. TO IEC 60068-1
55/100/56
CAPACITANCE RANGE (E12 SERIES)
470 pF to 22 µF
MAIN APPLICATIONS
Blocking, bypassing, filtering, timing, coupling and
decoupling, interference suppression in low voltage
applications
CAPACITANCE TOLERANCE
± 20 %, ± 10 %, ± 5 %
LEADS
REFERENCE STANDARDS
IEC 60384-2
Tinned wire
MAXIMUM APPLICATION TEMPERATURE
MARKING
C-value; tolerance; rated voltage; manufacturer’s type; code
for dielectric material; manufacturer location; manufacturer’s
logo; year and week
100 °C
PULL TEST ON LEADS
Minimum
20 N in direction of leads according to
IEC 60068-2-21
DIELECTRIC
Polyester film
BENT TEST ON LEADS
2 bends trough 90° combined with 10 N tensile strength
ELECTRODES
Metallized
RELIABILITY
Operational life > 300 000 h (40 °C/0.5 U
R
)
Failure Rate < 2 FIT (40 °C/0.5 U
R
)
CONSTRUCTION
Mono and internal series construction
DETAIL SPECIFICATION
RATED (DC) VOLTAGE
63 V, 100 V, 250 V, 400 V, 630 V, 1000 V
For more detailed data and test requirements contact:
dc-film@vishay.com
RATED (AC) VOLTAGE
40 V, 63 V, 160 V, 200 V, 220 V
www.vishay.com
1
For technical questions, contact: dc-film@vishay.com
Document Number: 26013
Revision: 06-Oct-08
MKT 1813
Metallized Polyester Film Capacitor
MKT Axial Type
COMPOSITION OF CATALOG NUMBER
Vishay BCcomponents
MULTIPLIER
(nF)
0.1
1
10
100
2
3
4
5
CAPACITANCE
(numerically)
Example:
468 = 680 nF
MKT 1813
TYPE
X
XX
25
X
X
TOLERANCE
SPECIAL LETTER FOR TAPED
Bulk
R
G
Reel
Ammopack
Un = 06 = 63 V
Un = 01 = 100 V
Un = 25 = 250 V
Un = 40 = 400 V
Un = 63 = 630 V
Un = 10 = 1000 V
4
5
6
±5%
± 10 %
± 20 %
Note
For detailed tape specifications refer to “Packaging Information” www.vishay.com/docs?28139 or end of catalog
SPECIFIC REFERENCE DATA
DESCRIPTION
Tangent of loss angle:
C = 0.1 µF
0.1 µF
≤
C = 1.0 µF
C
≥
1.0 µF
Capacitor length
(mm)
11
14
19
26.5
31.5
41.5
63 Vdc
12
11
7
4
3
2
100 Vdc
18
13
8
5
4
3
at 1 kHz
= 80 x 10
-4
= 80 x 10
-4
= 100 x 10
-4
Maximum pulse rise time (dU/dt)
R
[V/µs]
250 Vdc
32
22
13
8
6
5
400 Vdc
56
37
21
13
10
7
VALUE
at 10 kHz
= 150 x 10
-4
= 150 x 10
-4
-
630 Vdc
84
66
33
19
15
10
> 15 000 MΩ
> 30 000 MΩ
> 5000 s
> 10 000 s
> 30 000 MΩ
1.6 x U
Rdc
, 1 min
100 °C
at 100 kHz
= 250 x 10
-4
-
-
1000 Vdc
-
175
65
34
25
17
If the maximum pulse voltage is less than the rated voltage higher dU/dt values can be permitted.
R between leads, for C
≤
0.33 µF and U
R
≤
100 V
R between leads, for C
≤
0.33 µF and U
R
> 100 V
RC between leads, for C > 0.33 µF and U
R
≤
100 V
RC between leads, for C > 0.33 µF and U
R
> 100 V
R between leads and case,100 V; (Foil Method)
Withstanding (DC) voltage (cut off current 10 mA); rise time 100 V/s
Maximum application temperature
Document Number: 26013
Revision: 06-Oct-08
For technical questions, contact: dc-film@vishay.com
www.vishay.com
2
MKT 1813
Vishay BCcomponents
Metallized Polyester Film Capacitor
MKT Axial Type
VOLTAGE
CODE 01
100 Vdc/
63 Vac
D
-
-
-
-
-
-
-
-
-
-
-
-
-
5.0
5.0
-
5.5
6.0
-
6.0
-
6.5
-
7.0
-
8.5
8.0
8.0
9.5
9.5
11.5
-
12.0
-
14.0
16.5
13.5
20.5
-
(2)
CAPACITANCE
CAPACITANCE
CODE
VOLTAGE
CODE 06
63 Vdc/
40 Vac
D
L
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
11.0
11.0
-
14.0
-
14.0
-
19.0
-
19.0
19.0
-
26.5
19.0
19.0
-
31.5
31.5
-
31.5
41.5
26.5
(2)
VOLTAGE
CODE 25
250 Vdc/
160 Vac
D
-
-
-
-
-
-
-
-
-
5.0
5.0
5.0
6.0
6.0
6.0
-
7.0
7.0
-
8.0
-
9.0
-
8.5
9.0
10.0
11.0
-
13.0
-
15.5
14.0
15.5
14.5
17.5
21.0
-
-
-
L
-
-
-
-
-
-
-
-
-
11.0
11.0
11.0
14.0
14.0
14.0
-
14.0
19.0
-
19.0
-
19.0
-
26.5
19.0
(2)
26.5
31.5
-
31.5
-
31.5
26.5
(2)
VOLTAGE
CODE 40
400 Vdc/
200 Vac
D
-
-
-
-
-
-
-
5.0
5.0
6.0
6.0
6.0
7.0
8.0
7.0
-
8.5
8.0
8.0
9.5
9.5
11.0
-
11.5
-
13.5
14.0
13.0
16.5
-
-
-
-
-
-
-
-
-
-
L
-
-
-
-
-
-
-
11.0
11.0
14.0
14.0
14.0
14.0
14.0
19.0
-
19.0
26.5
19.0
(2)
26.5
19.0
(2)
26.5
-
31.5
-
31.5
41.5
31.5
(2)
41.5
-
-
-
-
-
-
-
-
-
-
VOLTAGE
CODE 63
(1)
630 Vdc/
220 Vac
D
5.0
5.0
5.0
5.0
5.0
5.0
5.0
6.0
6.0
6.5
7.5
6.5
7.5
8.5
10.5
9.5
10.0
11.5
-
13.5
-
14.5
14.0
14.5
-
16.5
-
-
-
-
-
-
-
-
-
-
-
-
-
L
11.0
11.0
11.0
11.0
11.0
11.0
11.0
14.0
14.0
14.0
14.0
19.0
19.0
19.0
19.0
19.0
(2)
VOLTAGE
CODE 10
(1)
1000 Vdc/
220 Vac
D
-
-
5.5
6.0
6.0
7.0
6.0
6.0
6.5
7.5
9.0
10.5
12.0
11.0
13.0
-
13.5
16.0
-
16.0
-
19.0
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
L
-
-
14.0
14.0
14.0
14.0
19.0
19.0
19.0
19.0
19.0
19.0
19.0
26.5
26.5
-
31.5
31.5
-
41.5
-
41.5
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
L
-
-
-
-
-
-
-
-
-
-
-
-
-
11.0
11.0
-
11.0
14.0
-
19.0
-
19.0
-
19.0
-
19.0
26.5
19.0
(2)
26.5
19.0
-
31.5
-
31.5
31.5
31.5
(2)
31.5
-
(2)
470 PF
680 PF
1000 PF
1500 PF
2200 PF
3300 PF
4700 PF
6800 PF
0.01 µF
0.015 µF
0.022 µF
0.033 µF
0.047 µF
0.068 µF
0.1 µF
0.15 µF
0.22 µF
0.33 µF
0.47 µF
0.68 µF
1.0 µF
1.5 µF
2.2 µF
3.3 µF
4.7 µF
6.8 µF
10.0 µF
15.0 µF
22.0 µF
147
168
210
215
222
233
247
268
310
315
322
333
347
368
410
415
422
433
447
468
510
515
522
533
547
568
610
615
622
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
5.0
5.0
-
6.0
-
7.0
-
6.5
-
7.5
8.5
-
8.5
7.5
10.0
8.5
11.5
-
12.0
14.5
-
18.0
17.5
26.5
26.5
-
26.5
-
31.5
26.5
(2)
41.5
-
41.5
-
-
-
-
-
-
-
-
-
-
-
-
-
26.5
26.5
41.5
31.5
(2)
41.5
41.5
-
-
-
Notes
• Pitch = L + 3.5
(1)
Not suitable for mains applications
(2)
For the smaller size please add “-M” at the end of the type designation (e.g. MKT 1813-510/255-M)
www.vishay.com
3
For technical questions, contact: dc-film@vishay.com
Document Number: 26013
Revision: 06-Oct-08
MKT 1813
Metallized Polyester Film Capacitor
MKT Axial Type
RECOMMENDED PACKAGING
PACKAGING CODE
G
R
-
TYPE OF PACKAGING
AMMO
REEL
BULK
REEL DIAMETER (mm)
-
350
-
ORDERING CODE EXAMPLES
MKT 1813-422-014-G
MKT 1813-422-014-R
MKT 1813-422-014
x
x
x
Vishay BCcomponents
Note
• Attention: Capacitors with L > 31.5 mm only as bulk available
EXAMPLE OF ORDERING CODE
TYPE
CAPACITANCE CODE
VOLTAGE CODE
06
TOLERANCE CODE
(1)
5
PACKAGING CODE
G
MKT 1813
410
Note
(1)
Tolerance Codes: 4
= 5 % (J);
5
= 10 % (K);
6
= 20 % (M)
MOUNTING
Normal Use
The capacitors are designed for mounting on printed-circuit boards. The capacitors packed in bandoliers are designed for
mounting in printed-circuit boards by means of automatic insertion machines.
For detailed tape specifications refer to Packaging information: www.vishay.com/docs/28139/packinfo.pdf or end of catalogue.
Specific Method of Mounting to Withstand Vibration and Shock
In order to withstand vibration and shock tests, it must be ensured that the capacitor body is in good contact with the printed-circuit
board:
•
For L
≤
19 mm capacitors shall be mechanically fixed by the leads
•
For larger pitches the capacitors shall be mounted in the same way and the body clamped
•
The maximum diameter and length of the capacitors are specified in the dimensions table
•
Eccentricity as shown in the drawing below
Space Requirements On Printed-Circuit Board
The maximum length and width of film capacitors is shown in the drawing:
•
Eccentricity as in drawing. The maximum eccentricity is smaller than or equal to the lead diameter of the product concerned.
•
Product height with seating plane as given by “IEC 60717” as reference: h
max.
≤
h + 0.4 mm or h
max.
≤
h' + 0.4 mm
1 mm
Storage Temperature
•
Storage temperature: T
stg
= - 25 °C to + 40 °C with RH maximum 80 % without condensation
Ratings and Characteristics Reference Conditions
Unless otherwise specified, all electrical values apply to an ambient temperature of 23 ± 1 °C, an atmospheric pressure of 86 kPa
to 106 kPa and a relative humidity of 50 ± 2 %.
For reference testing, a conditioning period shall be applied over 96 ± 4 h by heating the products in a circulating air oven at the
rated temperature and a relative humidity not exceeding 20 %.
Document Number: 26013
Revision: 06-Oct-08
For technical questions, contact: dc-film@vishay.com
www.vishay.com
4
MKT 1813
Vishay BCcomponents

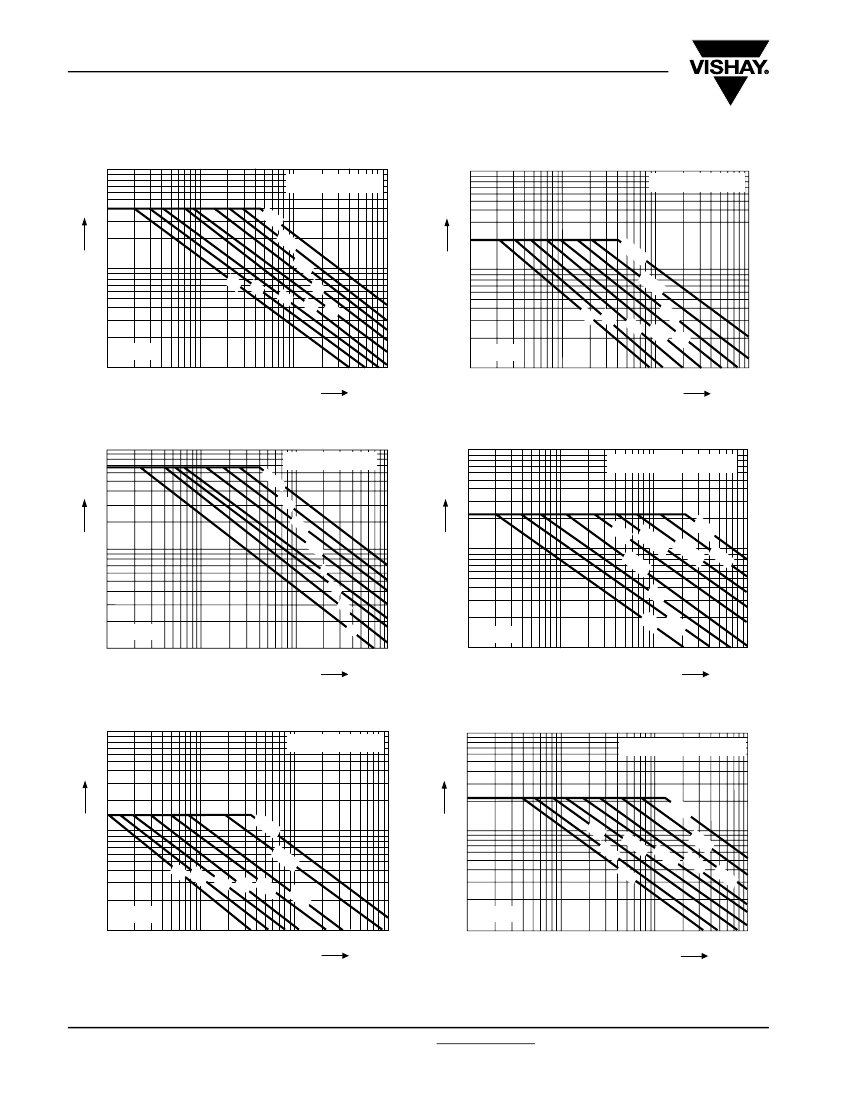

CHARACTERISTICS
