82714013 Overview

motor brushed DC gear 1.4W 24v

Preview

Download Datasheet

View All

02/11/2015

www.crouzet.com

0.5 Nm ovoid 1.4 and 3.2 Watts 1.4 W Part number made to order

Gearbox 0.5 Nm

Motor power max. 3.2 W

Class A EMC interference suppression (radiated)

Compatible with 6 V, 9 V or 12 V battery power supply

Optional class B interference suppression

Optional 1, 5, 12 or 48 pulses/rev encoder

Part numbers

Type

82714013

1.4 W

Type

827140

Voltage

24 V

Output speed (rpm)

Ratios (i)

250/3

Specifications

General characteristics

Motor

Gearbox

Maximum permitted torque from gearmotor under

continuous conditions for 1 million turns (Nm)

Axial load static (daN)

Radial load static (daN)

Max. output power (W)

Nominal output (W)

Gearbox case temperature rise (°C)

Weight (g)

82710002

810210

0,5

1,4

120

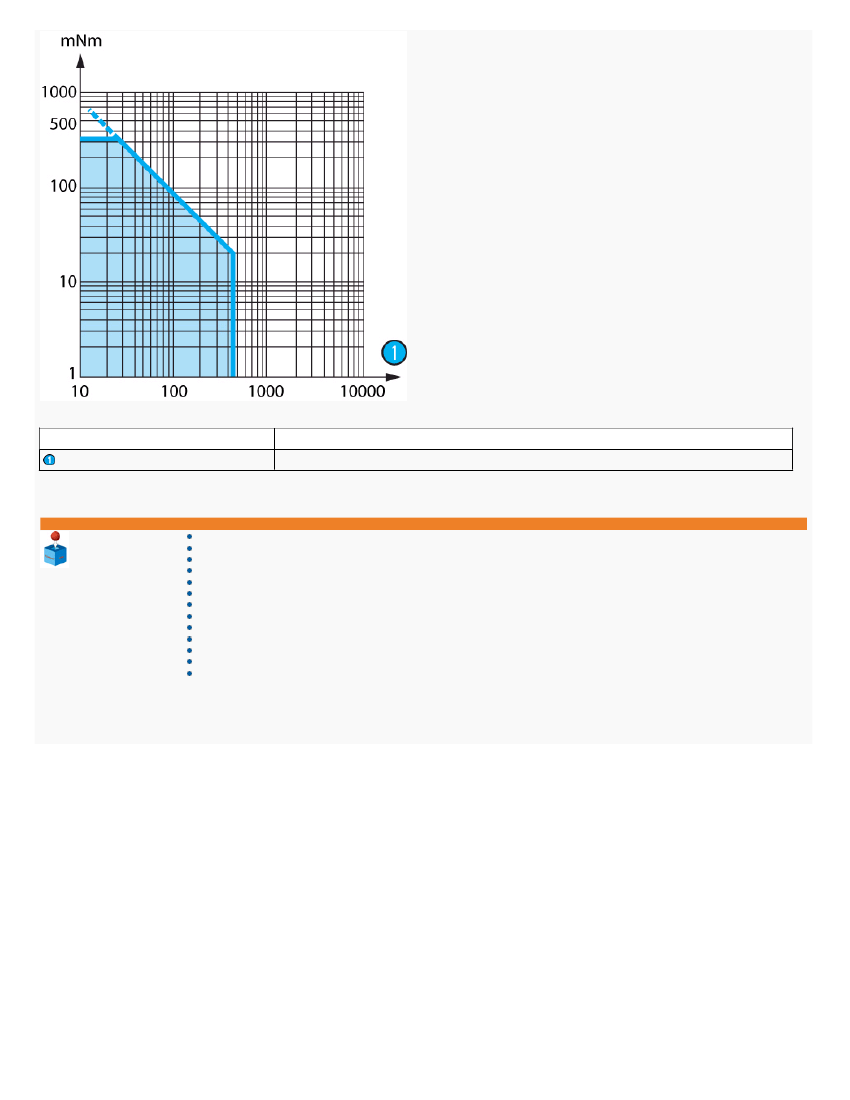

Made to order products, available on request

For more than 1000 pieces

48 pulses/rev encoder

Class B filter

Case N°2 (for other fixing points see diagram)

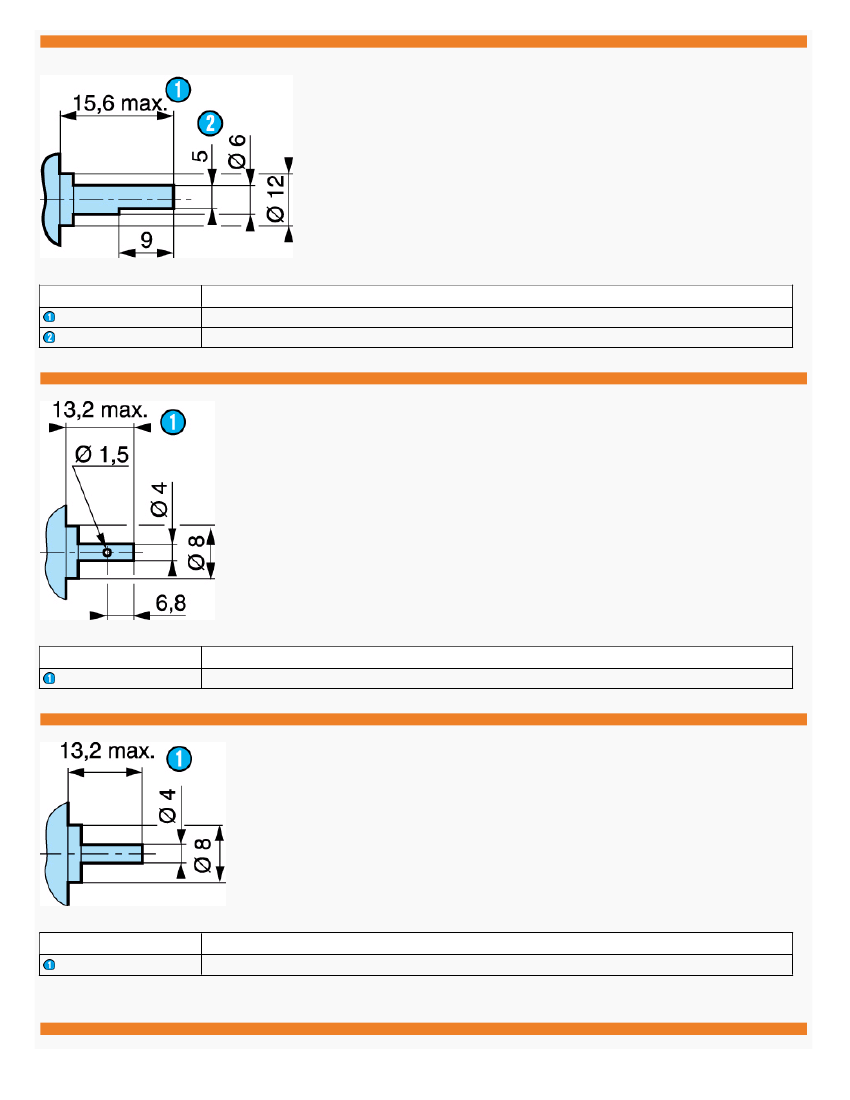

Gearbox shaft

Bearings for heavy radial loads

Connections

Reinforced gears

For other types please consult Crouzet

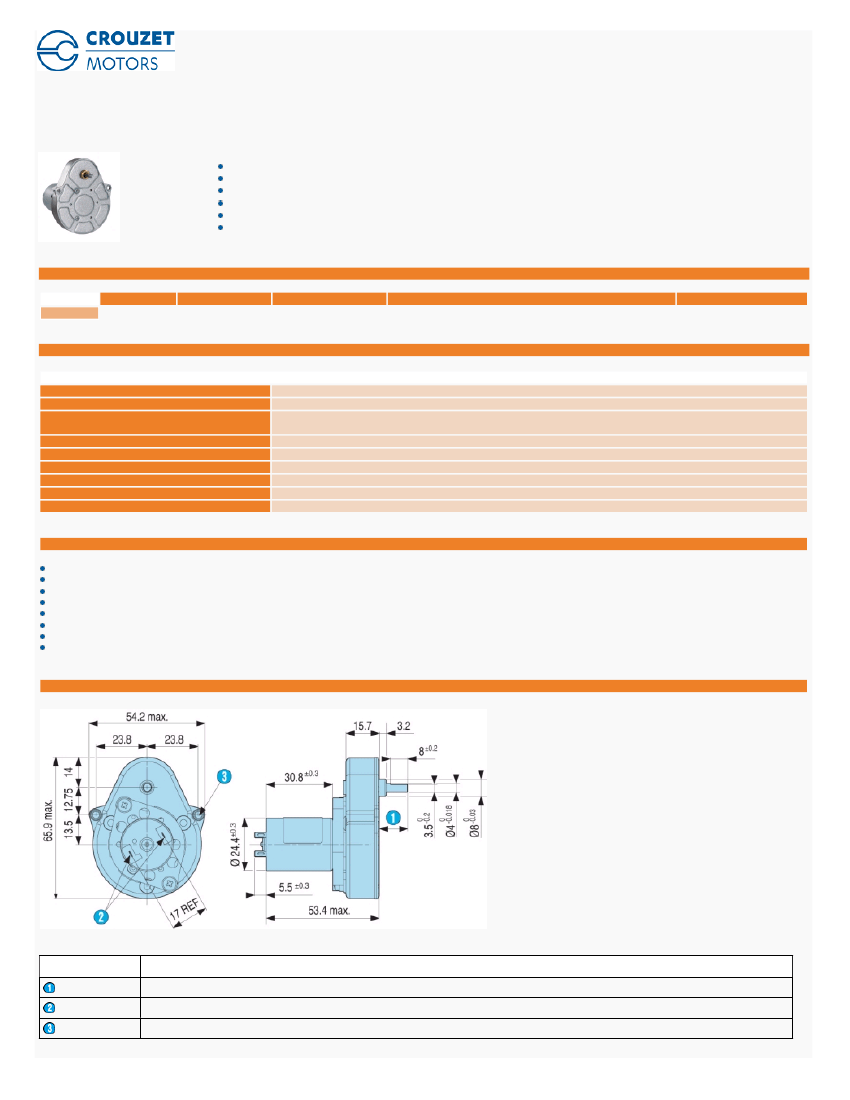

Dimensions (mm)

827140

Legend

13.2 mm max. shaft pushed-in

2 solder tags 2.8 x 0.5 mm

2 fixing holes Ø 3.2 mm

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
