Finisar
Features:
•
Low Optical Insertion
Loss
•
Cost-effective CWDM
technology
•
Mux/Demux eight
wavelengths
•
SC or LC connectors
for interfacing
•
Reliable passive WDM
optical technology
•
Ring or point-to-point
applications
•
Low-profile modular
design
●
Compliance with
RoHS
The Finisar MUX/DEMUX-8 optibox module is a passive optical multiplexer/
demultiplexer designed for metro access applications that represents the state of the
art in fiber optics design. The MUX/DEMUX-8 optibox module multiplexes and
demultiplexes eight CWDM wavelength channels from a two-fiber circuit. Finisar's
design allows the creation of cost-effective unidirectional network traffic rings or
point-to-point links.
Multiplexed wavelengths are interfaced to any of Finisar's CWDM transceivers on
the equipment side. A grid of eight CWDM wavelengths is available from Finisar.
The Finisar MUX/DEMUX optibox module delivers dramatic cost savings to network
equipment manufacturers, enabling them to develop metro access systems that are
lower in cost, easier to provision and simpler to operate.

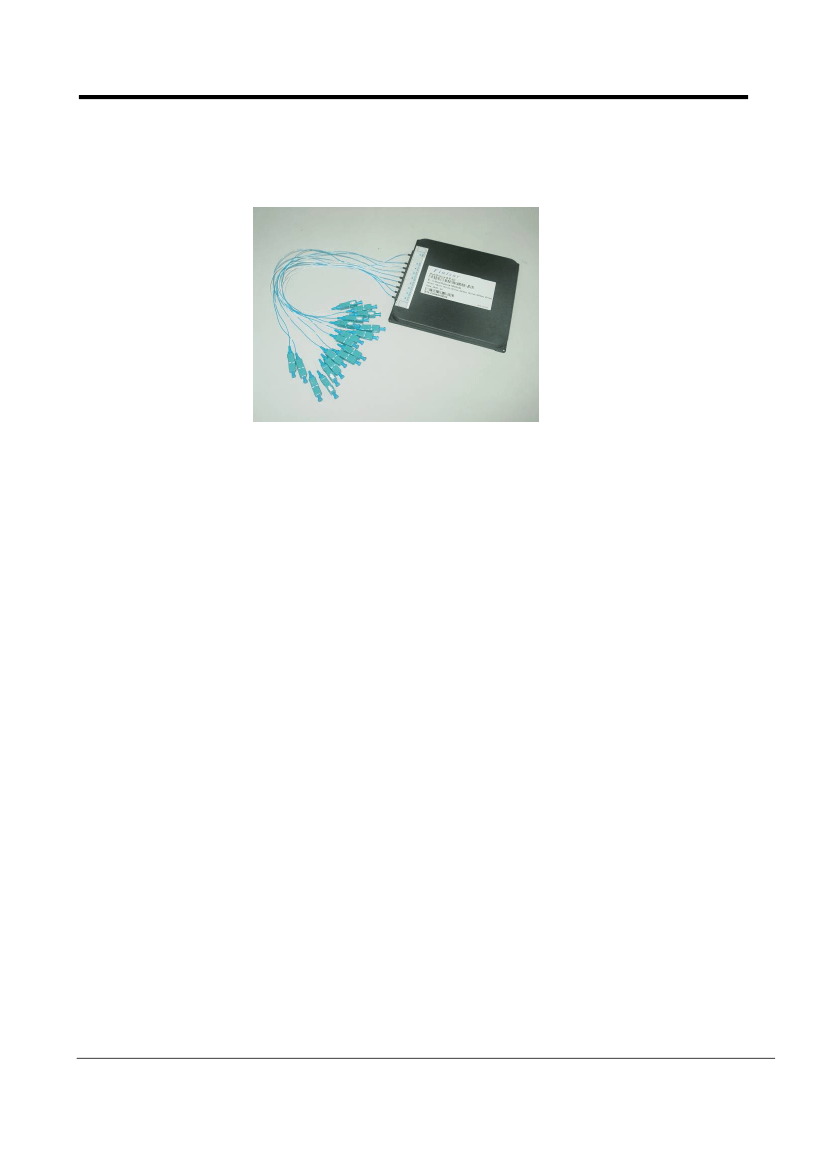

CWDM MUX/DEMUX-8
Optibox™ Module
MUX/DEMUX-8 Optibox Module
Specifications
Mechanical
Dimensions:
6.25" x 6.5" x 0.5",
158mm x 165mm x 13mm
Connectors:
• SC or LC connectors
Optical
Center wavelengths:
MUX/DEMUX-8 Optibox
• 1471 nm
• 1491 nm
• 1511 nm
• 1531 nm
• 1551 nm
• 1571 nm
• 1591 nm
• 1611 nm
Directivity:
≥
55 dB
Return Loss:
≥
45 dB
Passband Ripple:
≤
0.5dB
PDL
:
≤
0.15dB
PMD:
≤
0.2 ps
Environmental:
•Operating 0 to 70
o
C,
•Relative humidity:
10 to 85%,
non-condensing
•Storage - 40 to 85
o
C
Finisar Shanghai Inc.
No. 66 Huiqing Rd., East Zhangjiang Hi-Tech Park, Shanghai,
China 201201
Main: +86-21-38559200 Fax: +86-21-68919894
Website:
www.finisar.com
Finisar Corporation
1308 Moffett Park Drive, Sunnyvale, CA 94089-1133, USA
Main: (408) 548-1000 Fax: (408)543-0083
Email:
sales@finisar.com
Website:
www.finisar.com
Jan. 09 Rev. C
Finisar
MUX/DEMUX-8 Optibox Module Parameter Specifications
Passband
+/- 6.5nm
Note:
Connector loss included.
Max Insertion Loss (dB)
Mux
Demux
2.80
2.80
Min Isolation (dB)
Mux
Demux
30
50
Dimensions
(Unit: inch)
.118
1.378
MUX/DEMUX-8
6.000
6.220
12.0-14.0
6.280
6.500
0.500
*All measurements are in inches
Ordering Information
Part Number Description
M/DF-8-LC
Eight Wavelength MUX/DEMUX Optibox Module with LC connectors, 1471nm to 1611nm.
M/DF-8-SC
Eight Wavelength MUX/DEMUX Optibox Module with SC connectors, 1471nm to 1611nm.
