403 Series SPDT Failsafe

SMA, PC Mount

C M A

Commercial

Military

Avionics

Space

RF Characteristics

Frequency

GHz

0-1

1-4

4-8

8-12

12-18

*18-26.5

VSWR

(max)

1.10

1.15

1.20

1.30

1.35

1.50

Isolation

dB (min)

Ins. Loss

dB (max)

0.10

0.15

0.20

0.30

0.35

0.50

403 Series SPDT Failsafe, SMA

* “K” option only. Ex: 403K-2208

Note: Typical performance dependent on selected options

Mechanical

Specifications

Operating Voltage:

(across temperature range)

12 Vdc (11-14 Vdc)

28 Vdc (24-32 Vdc)

Coil Current (max @ nom.Vdc & 20°C):

12 Vdc 195 mA

28 Vdc 95 mA

Switching Time:

15 mS maximum

Operating Temperature:

-25ºC to +65ºC (Standard)

-55ºC to +85ºC (Extended “T” Option)

Mechanical Life, Cycles:

1,000,000 minimum

Vibration, Operating:

10 G RMS, 20-2000 Hz

Mechanical Shock, Non-Operating:

50 G, 1/2 Sine, 11 mS

Nominal Weight:

1.5 oz., (42g.)

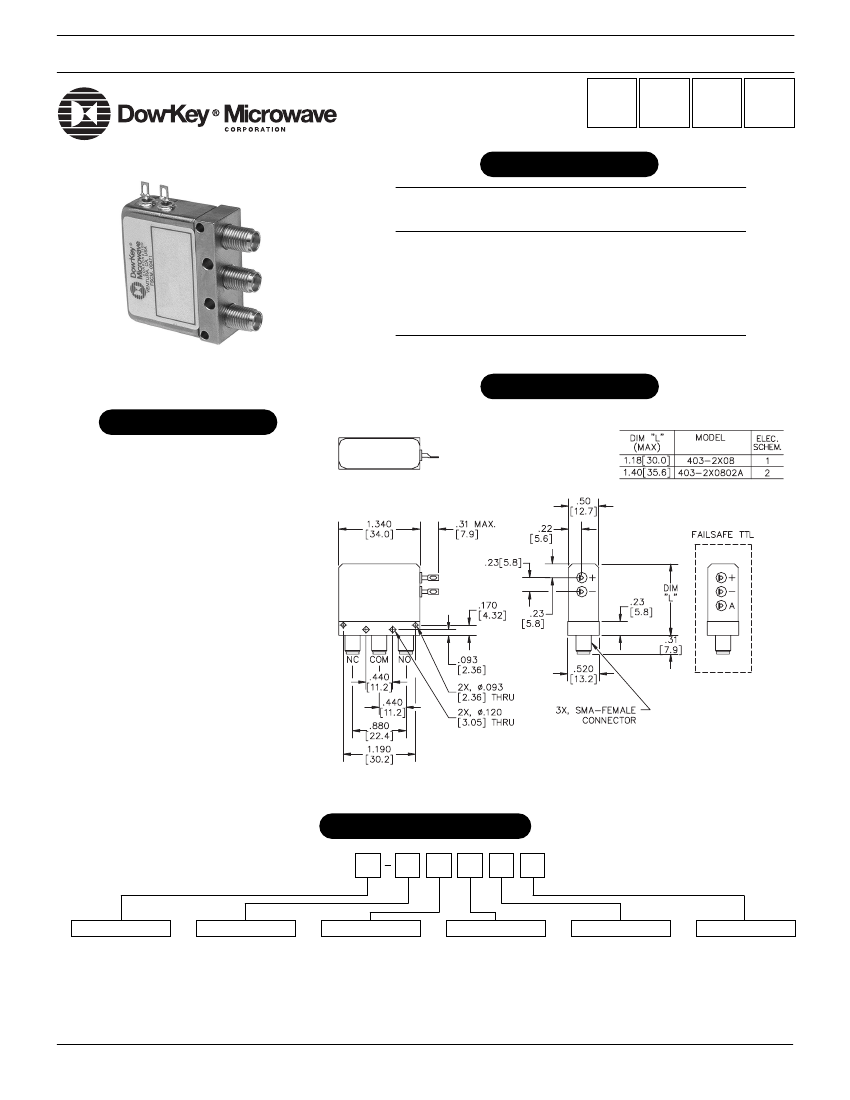

403-2X08 Shown

Part Number Selection

403

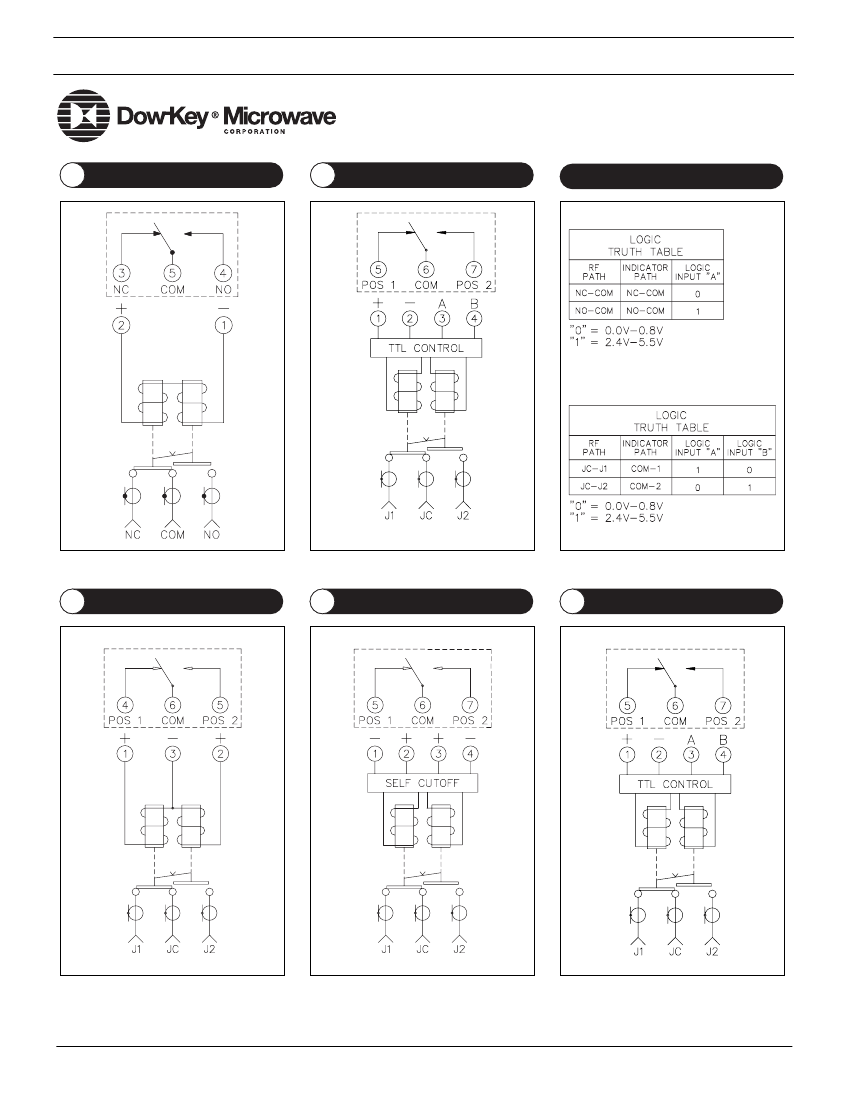

For Electrical Schematic

see page # 1-5

Special Options

Actuator

Coil Voltage

Connectors

Indicators

Circuit Options

High Power

Immersion Seal

26.5 GHz

Epoxy Seal

-55°C to + 85°C

= Failsafe

= Failsafe with

Suppression Diode

= 12Vdc

= 28Vdc

= 20Vdc

= 24Vdc

= 15Vdc

= SMA Female

= Pins, PC Board Mount

= No Indicators

= TTL High

ISO 9001 Certified

www.dowkey.com
