430-10-211-00-240000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 430-10-211-00-240000

430-10-211-00-240000: DescriptionBoard Connector, 22 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size398KB，2 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

430-10-211-00-240000 Overview

Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

430-10-211-00-240000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	GOLD (10) OVER NICKEL (150)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	430
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	22
Base Number Matches	1

Preview

Download Datasheet

View All

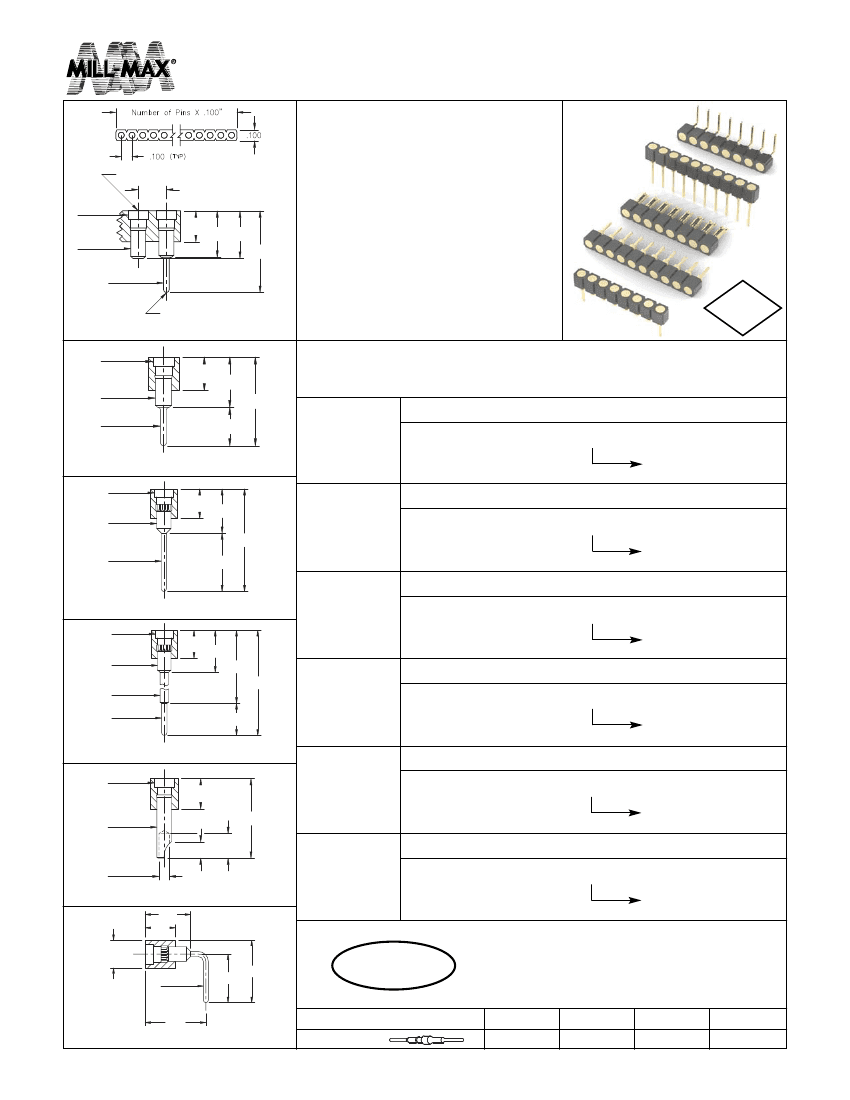

SPRING-LOADED CONNECTORS

Series 319, 330, 399

.100” Grid Target Connectors for Spring-Loaded Assemblies

Single Row

•

Series 319, 330 and 399 single row strips

may be cut to any length.

•

Spring Target connectors present a large

flat surface for making tangent connections

to our standard .042” dia spring pin

plungers. The target connectors provide

an excellent gold plated conductive path

back to the board mounted spring pin

connector.

•

Target connectors use MM #1938, #1940,

#1941, #1942 and #3024 pins. See page

185 for details.

MM #1942-0 Alignment Pins (2x)

MM #1941-0 Target Connector Pins

.100

.070 DIA.

.110

.053 DIA.

.165

.169

.290

.020 DIA.

Fig. 1

.070 DIA.

.110

.053 DIA.

.165

.290

.125

•

Insulators are high temp. thermoplastic.

2002/95/EC

RoHS

Ordering Information

Series 319...041

SMT w/ Alignment Pins

319-10-1_ _-30-041000

Specify # of pins

03-64

.020 DIA.

Fig. 1

Fig. 2

.072

DIA.

.110

.053

DIA.

.165

.382

.018 DIA.

.217

Fig. 2

Series 319...001

Standard Solder Tails

319-10-1_ _-00-001000

Specify # of pins

01-64

Fig. 3

.072

DIA.

.110

.053

DIA.

.165

.441

.567

Fig. 3

Series 319...002

Long Solder Tails

319-10-1_ _-00-002000

Specify # of pins

01-64

.034

DIA.

.020

DIA.

Fig. 4

.126

Series 319...005

Elevated Solder Tails

319-10-1_ _-00-005000

Specify # of pins

01-64

Fig. 4

.072

DIA.

.110

.290

Fig. 5

.090

Series 330...240

Solder Cups

330-10-1_ _-00-240000

Specify # of pins

01-64

.053

DIA.

.060

.038

DIA.

HOLE

Fig. 5

.165

.110

Fig. 6

Series 399...008

Right Angle Solder Tails

399-10-1_ _-10-008000

Specify # of pins

01-64

.100

.176

.226

.018

DIA.

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

.220

PLATING CODE

μ”

Fig. 6

Pin Plating

w w w. m i l l - m a x . c o m



516-922-6000
