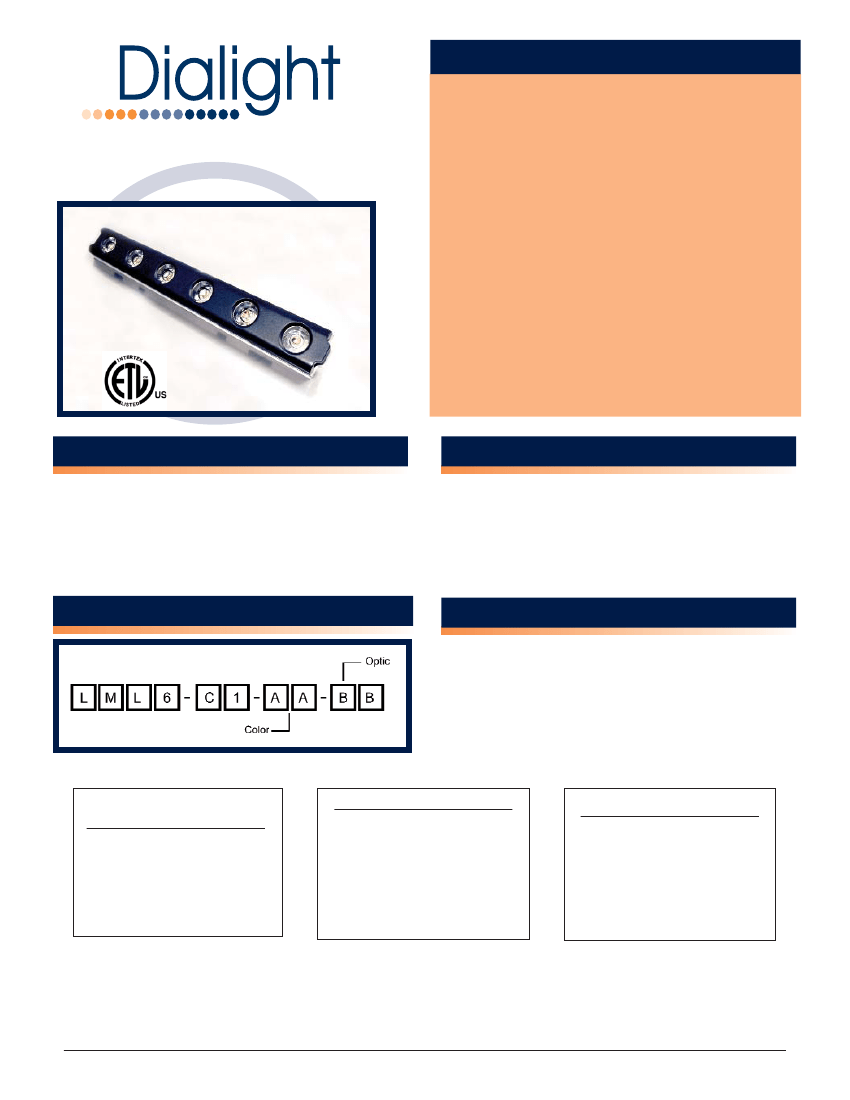

FEATURES / BENEFITS
p
Fully modular linear arrays of ultra high
brightness LEDs
LINEAR MODULES
PWM SERIES
p
Utilizes the latest 100+ lumen LUXEON
®
Rebel™
LEDs for cool white, 100+ lumen for neutral white
& 50+ lumen for warm white
p
Choice of colour temperatures & optical patterns
p
>70% lumen maintenance @ 60,000 hours at
max acceptable ambient temperature
p
ETL recognized
RECOGNIZED COMPONENT
p
Lifesaver® thermal protection
p
Primary heatsinking included
OPERATING CONDITIONS
p
Operating ambient temperature -30ºC to +55ºC (@350mA)
p
Requires constant current driver
p
Compatible drivers include Dialight Lumidrives PWD60-35-70
Runs 3-8 modules @ 350mA, 2-4 modules @700mA
p
Additional heatsinking required when driven @ 700mA
APPLICATION
p
Linear lighting
p
Accent lighting
p
Flood lighting
p
Street & area lighting
p
General illumination
ORDERING INFORMATION
MATERIALS / FINISH
p
Six premium flux LUXEON Rebel LEDs per module
p
Annodized cast aluminum heatsink
p
Polycarbonate cover
p
Dialight-Lumidrives optics (OPC 11 Series)
p
Modular quick connect cables
p
Module to module connector cable included
Typical Colour
(AA) Temperature
CW
= 5000K - 6350K
NW
= 3800K - 4100K
WW
= 2850K - 3250K
Optic (BB)
SP
= 5 degree spot
MD
= 8 degree med.
WD
= 20 degree wide
OV
= 5X25 degree oval
FR
= 7 degree frosted spot
Connectors (sold seperately)
LML6-CON-CAB
=
Entry cable, driver to 1st module
LML6-TER-CAB
=
End plug (required)
* Cables use 0.5mm
2
AWG12 wires
www.dialight.com

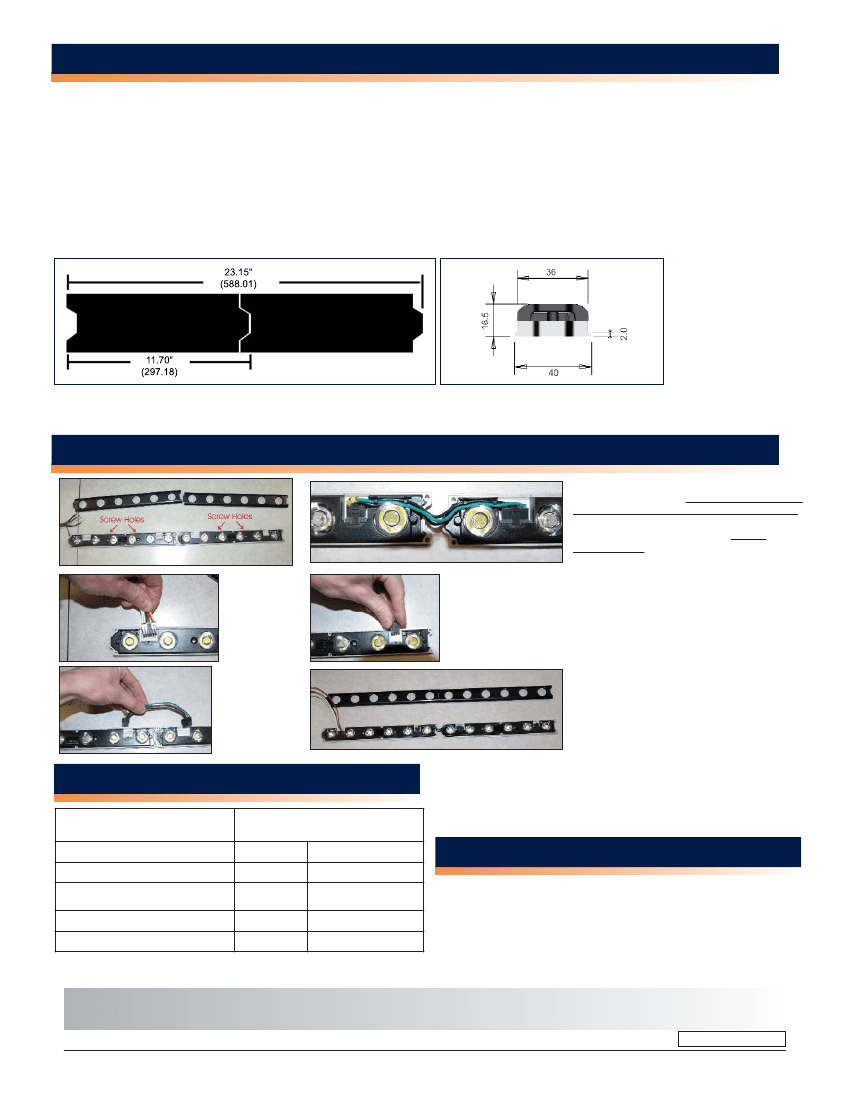

MECHANICAL DIMENSIONS
11.7” x 1.498” x 0.585”
(297.18mm x 38.05mm x 14.86mm)
Mounting hole spacing = 3.22” (81.8mm)
Max screw size #8
Total length for “Z” units connected end to end =
(Z x 11.7) - ((Z-1) x 0.25) (inches)
(Z x 297.2) - ((Z-1) x 6.35) (mm)
Side View
Top View
Example: 2 units total length = 23.15” (588.01)
Dimensions in mm
ASSEMBLY INFORMATION
1) Position ‘tab’ end of first powerwhite module
by input wires/driver. (Do
not connect power
to entry cable before completing steps 2-6)
2) Remove cover from module (Do
not
remove mask).
Modules may be screwed
down onto surface by inserting two M6 or 8/32
flathead screws through screw holes.
3) Insert 6 pin prong from LML6-CON-CAB
entry cable into 6 prong receptacle near tab
end of first module.
4) Insert 4 pin prong from connector cable into
‘notch’ end of module, insert 6 pin prong from
connector cable into ‘tab’ end of next module
(repeat for each additional module).
5) Connector cable wires can be routed
through interior of modules by placing them
into interior wire holders.
INPUT WIRE CHART
Colour wire on
A50-LML6-CON-CAB entry cable
White 1
White 2
Red
Black
Green
To.
Thermistor
Thermistor
Driver +
Driver -
Ground
or
Connect to
on PWD60-35-70
Wire 5
Wire 6
Wire 2 350mA
Wires 1 & 2 700mA
Wire 3
Green / Yellow Stripe
6) Insert LML6-TER-CAB 4-pin terminal prong
into ‘notch’ end of last module in run
(required).
7) Replace covers and connect power to
LM60-CON-CAB
PHOTOMETRIC DATA
TBD
IES 32 files available, consult factory
Dialight reserves the right to make changes at any time in order to supply the best product possible.
The most current version of this document will always be available at:
www.dialight.com/Assets\Brochures_And_Catalogs\Illumination\MDEXLUMPWM.pdf
MDEXLUMPWM_B
www.dialight.com
2
