DVTR28512T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> DVTR28512T

DVTR28512T: DescriptionDC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid, SEAM SEAL PACKAGE-10; CategoryPower/power management The power supply circuit; File Size337KB，7 Pages; ManufacturerVPT Inc

Download Datasheet Parametric Compare View All

DVTR28512T Overview

DC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid, SEAM SEAL PACKAGE-10

DVTR28512T Parametric

Parameter Name	Attribute value
Maker	VPT Inc
Parts packaging code	MODULE
package instruction	,
Contacts	10
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	+/-12 V ADDITIONAL OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	50 V
Minimum input voltage	15 V
Nominal input voltage	28 V
JESD-30 code	R-XDMA-P10
Number of functions	1
Output times	3
Number of terminals	10
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output voltage	5.15 V
Minimum output voltage	4.85 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Filter level	MIL-PRF-38534
Maximum seat height	10.54 mm
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	30 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

DVTR2800T Series

VPT Inc.

2801 Commerce Street

Blacksburg, VA 24060

Sales Info: (425) 337-2482 FAX: (603) 297-1160

WEB: http://www.vpt-inc.com

E-mail: mbosmann@worldnet.att.net

Description

Features

•

Very low output noise

High Reliability

Wide input voltage range : 15 to 50 Volts /

MIL-STD-704

Up to 30 Watts output power

Patented, fault tolerant feedback circuit

NO optoisolator

Undervoltage Lockout

Standard Pinout

High input transient voltage : 80 Volts for 1 Sec

MIL-STD-704A

Radiation hardened version available

Precision solder sealed hermetic package

High power density, >28 W/in

Custom Versions Available

Environmental Screening Available

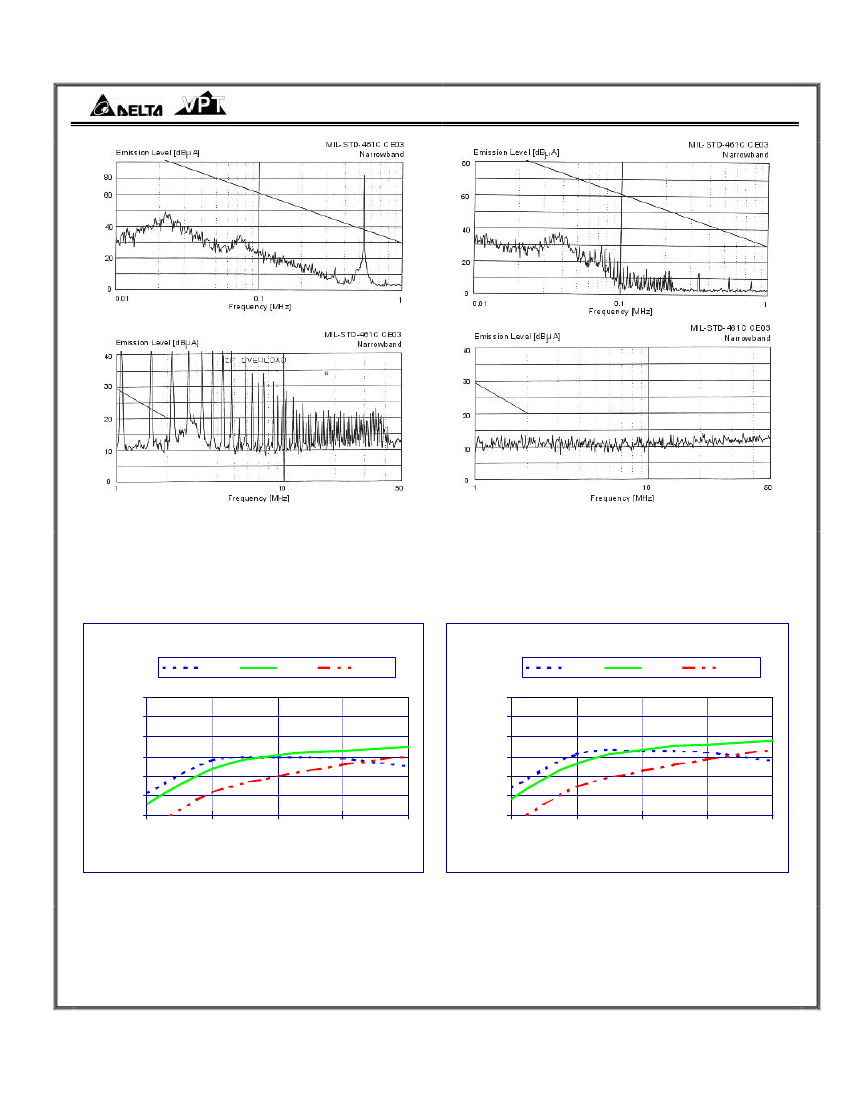

Meets MIL-STD-461C and MIL-STD-461D EMC

requirements when used with a DVMC28 EMI filter

The DVTR series of hybrid DC to DC converters is able

to operate at the full military (-55

°C

to +125

°C)

temperature range with no power derating. Unique to

the DVTR series is a PATENTED magnetic feedback

circuit that is fault tolerant and had no adverse affects

when exposed to radiation. Operating at a nominal fixed

frequency of 450kHz the regulated, isolated units utilize

well controlled undervoltage lock out circuitry to

eliminate slow start-up problems.

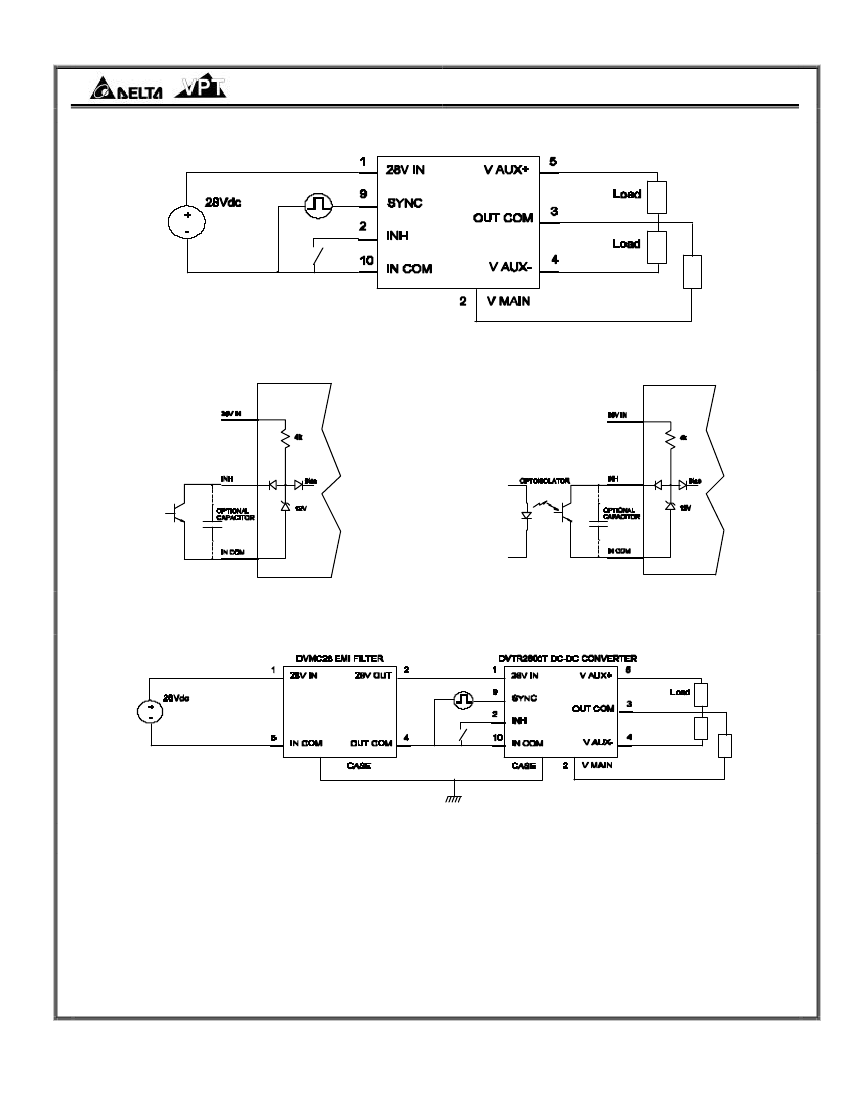

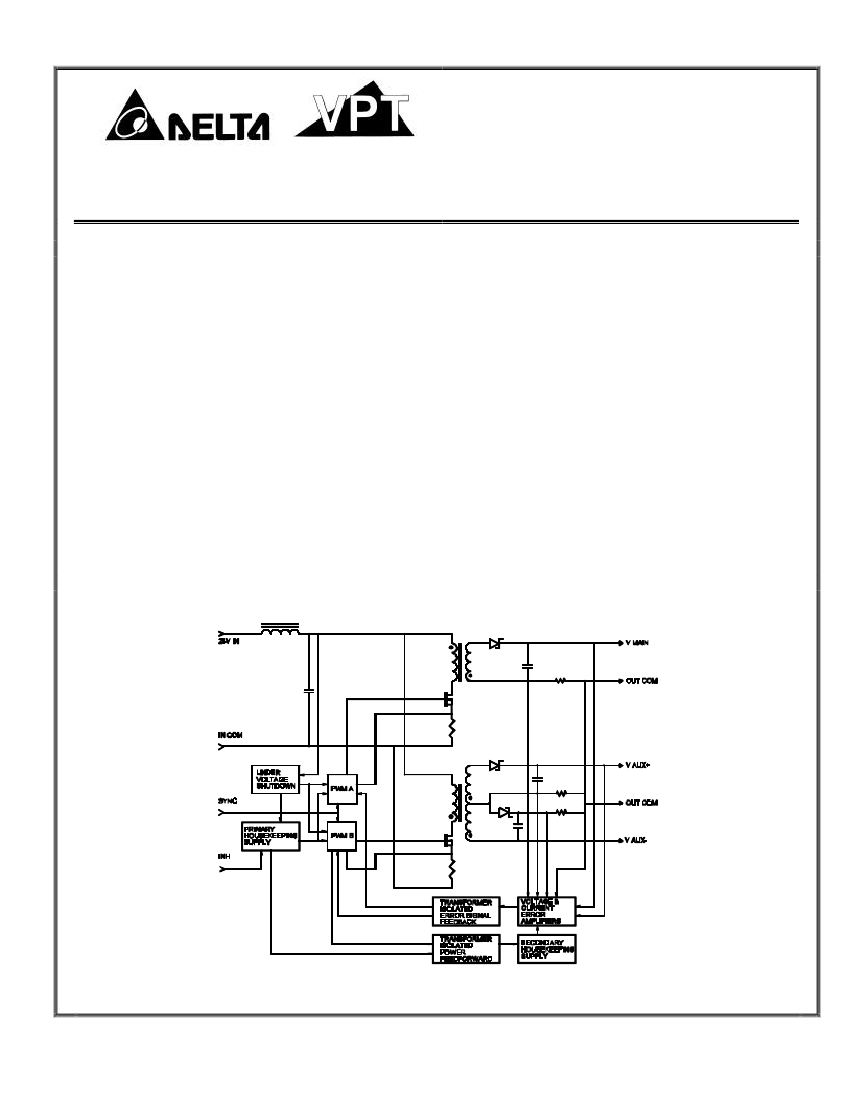

Block Diagram

DVTR28512T Related Products

	DVTR28512T	DVTR28515T
Description	DC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid, SEAM SEAL PACKAGE-10	DC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid, SEAM SEAL PACKAGE-10
Maker	VPT Inc	VPT Inc
Parts packaging code	MODULE	MODULE
Contacts	10	10
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	+/-12 V ADDITIONAL OUTPUT AVAILABLE	+/-15 V ADDITIONAL OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	50 V	50 V
Minimum input voltage	15 V	15 V
Nominal input voltage	28 V	28 V
JESD-30 code	R-XDMA-P10	R-XDMA-P10
Number of functions	1	1
Output times	3	3
Number of terminals	10	10
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Maximum output voltage	5.15 V	5.15 V
Minimum output voltage	4.85 V	4.85 V
Nominal output voltage	5 V	5 V
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified
Filter level	MIL-PRF-38534	MIL-PRF-38534
Maximum seat height	10.54 mm	10.54 mm
surface mount	NO	NO
technology	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY
Terminal form	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL
Maximum total power output	30 W	30 W
Fine-tuning/adjustable output	NO	NO
Base Number Matches	1	1
