3910-2151

Description
Board Connector, 15 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size170KB,1 Pages
ManufacturerConexcon Group
Environmental Compliance
Download Datasheet Parametric View All

3910-2151 Overview

Board Connector, 15 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle

3910-2151 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerConexcon Group
Reach Compliance Codeunknown
body width0.307 inch
subject depth0.484 inch
body length2.339 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1500VAC V
Durability25 Cycles
Insulation resistance1000000000 Ω
insulator materialGLASS FILLED POLYESTER
Manufacturer's serial number3910
Plug contact pitch0.156 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
polarization keyPOLARIZED HOUSING
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.169 inch
Terminal pitch3.9624 mm
Termination typeSOLDER
Total number of contacts15
Base Number Matches1
FRICTION LOCK BREAKAWAY
3910 SERIES.
3.96 mm. (0.156”). Square Pin Header. For PCB Solder
Features
Available in 2 through 24 circuits
Insulation: Glass Filled Polyester 6/6 UL 94V-0
1.14 mm (.045”) tin plated square pin in copper alloy
Mate most of 3.96mm. pitch connector in the market
Available with flan back wall for polarization

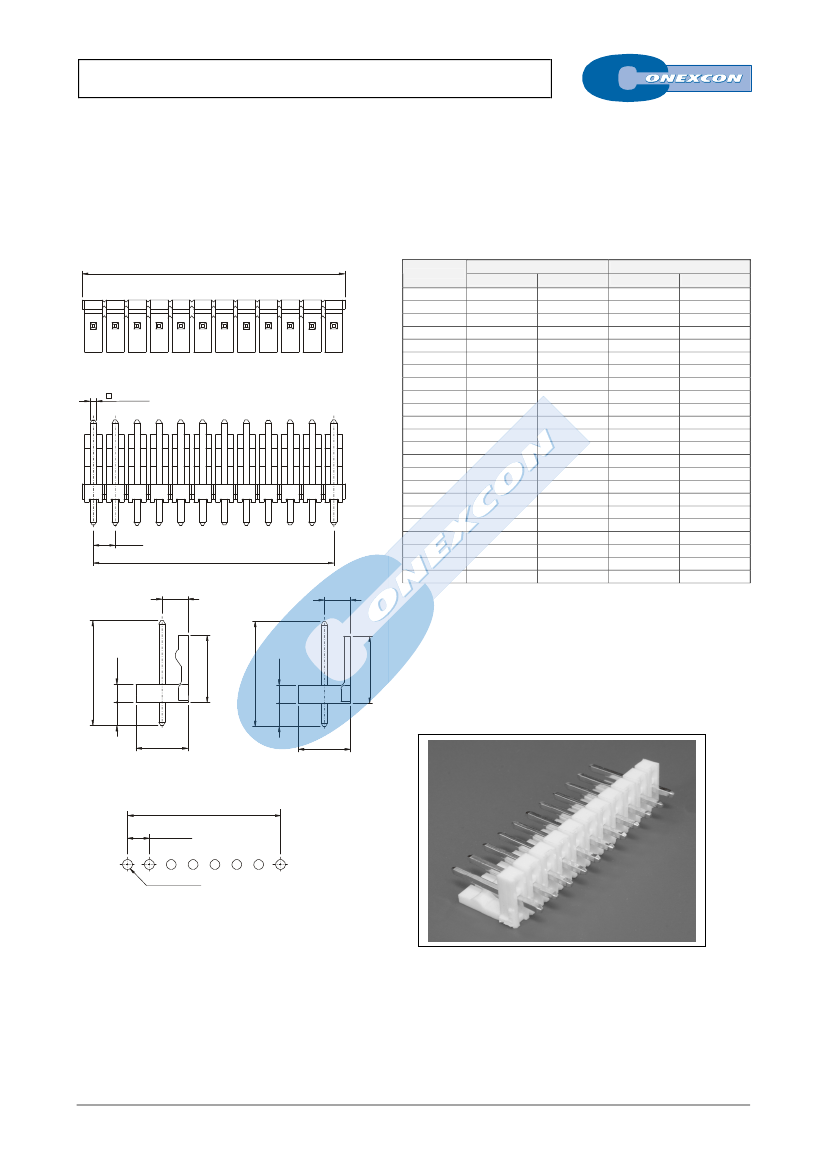

Dimensional Information
Ordering and Dimensional Information
Part Number
With locking
3910- 2021
3910- 2031
3910- 2041
3910- 2051
3910- 2061
3910- 2071
3910- 2081
3910- 2091
3910- 2101
3910- 2111
3910- 2121
3910- 2131
3910- 2141
3910- 2151
3910- 2161
3910- 2171
3910- 2181
3910- 2191
3910-2201
3910-2211
3910-2221
3910-2231
3910-2241
W/O Locking
3910- 2022
3910- 2032
3910- 2042
3910- 2052
3910- 2062
3910- 2072
3910- 2082
3910- 2092
3910- 2102
3910- 2112
3910- 2122
3910- 2132
3910- 2142
3910- 2152
3910- 2162
3910- 2172
3910- 2182
3910- 2192
3910-2202
3910-2212
3910-2222
3910-2232
3910-2242
A
3,96(0,156)
7,90(0,311)
11,90(0,469)
15,80(0,622)
19,80(0,780)
23,80(0,937)
27,70(1,091)
31,70(1,248)
35,60(1,402)
39,60(1,559)
43,60(1,717)
47,50(1,870)
51,50(2,028)
55,40(2,181)
59,40(2,339)
63,40(2,496)
67,30(2,650)
71,30(2,807)
75,24(2,962)
79,20(3,118)
83,16(3,274)
87,12(3,430)
91,08(3,586)
Dimensions
B
7,90(0,311)
11,90(0,469)
15,80(0,622)
19,80(0,780)
23,80(0,937)
27,70(1,091)
31,70(1,248)
35,60(1,402)
39,60(1,559)
43,60(1,717)
47,50(1,870)
51,50(2,028)
55,40(2,181)
59,40(2,339)
63,40(2,496)
67,30(2,650)
71,30(2,807)
75,20(2,961)
79,20(3,118)
83,16(3,274)
87,12(3,430)
91,08(3,586)
95,04(3,742)
B±0.38
Circuit Size
02
A
03
04
05
06
07
08
09
1.14±0.02
.045±.001
TYP.
10
11
12
13
14
15
16
17
18
19
20
3.960
.156
TYP.
A±0.25
21
22
23
24
4.70
.185
4.70
.185
12.30
.484
19.10
.752
4.30
.169
19.10
.752
9.4
.307
4.30
.169
9.4
.307
W/O Locking
With Locking
A±0.1
3.96±0.05
.156±.002
ø1.80±0.05
.071±.002
Recommended P.C. Board Layout
F-10
12.30
.484
3.30
.130
3.30
.130
