D308N1KZ
308 Series Industrial Potentiometer, Conductive Plastic
Element, Solder Hook Terminals, 0.5 W Power Rating, 1
kOhm Resistance Value

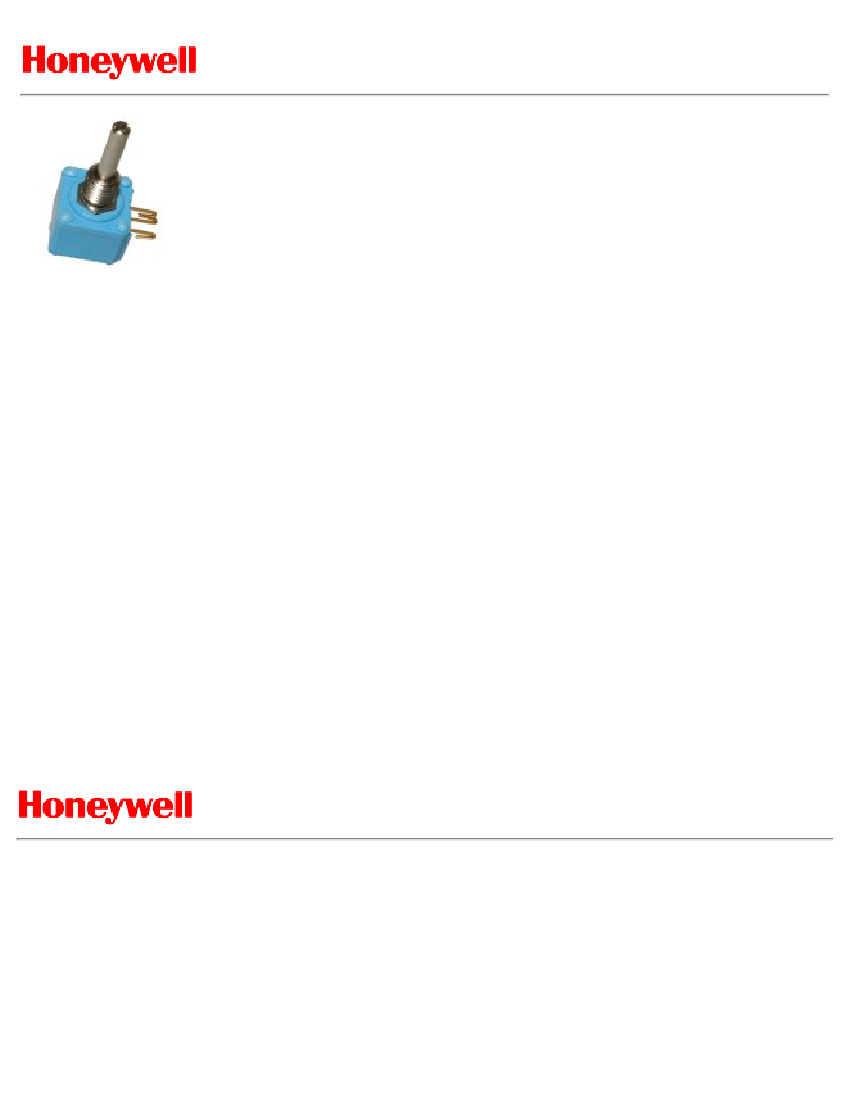

Representative
photograph, actual
product appearance
may vary.
Due to regional
agency approval
requirements, some
products may not be
available in your area.
Please contact your
regional Honeywell
office regarding your
product of choice.
Features
q
q
q
q
q
q
Compact - 12,7 mm [0.5 in] modular size
Robust nickel-plated brass shaft and bushings
Conductive plastic element
CW audio taper
Dual section controlled by one shaft
Solder hook terminals
Typical Applications
q
q
q
Manual controls
Medical equipment
Telecommunications
Description
The 308 Series is a low cost, conductive plastic, potentiometer. It
offers a 1/2 watt power rating and a metal shaft and bushing. PC
and solder hook style terminals available.
D308N1KZ
308 Series Industrial Potentiometer, Conductive Plastic Element, Solder Hook
Terminals, 0.5 W Power Rating, 1 kOhm Resistance Value
Product Specifications
Potentiometer Type
Element Type
Terminal Type
Power Rating
Resistance Value
Resistance Tolerance
Linearity
Bushing Thread
Bushing length
Bushing Type
Shaft Diameter
Shaft length
Shaft Ending
Body
Electrical Taper
Operating Temperature
Working Voltage (Max.)
Rotational Life
Mechanical Rotation
Availability
Series Name
UNSPSC Code
UNSPSC Commodity
Industrial
Conductive Plastic
Solder Hook
0.5 W
1 kOhm
± 10 %
±5%
6,35 mm [0.25 in] x 32 NEF-2A
6,35 mm [0.25 in]
Standard
3,18 mm [0.125 in]
19,05 mm [0.75 in]
Slotted
12.7 mm [0.5 in] square, ± 0.79 mm [0.031 in]
CW Audio
-40 °C to 120 °C [-40 °F to 248 °F]
350 V
50000 cycles
295°
Global
308 Series
4111363300
4111363300 Potentiometers
D308N1KZ
308 Series Industrial Potentiometer, Conductive Plastic Element, Solder Hook
Terminals, 0.5 W Power Rating, 1 kOhm Resistance Value
[Dimensions]
D308N1KZ
308 Series Industrial Potentiometer, Conductive Plastic Element, Solder Hook
Terminals, 0.5 W Power Rating, 1 kOhm Resistance Value
PERSONAL INJURY
DO NOT USE these products as safety or emergency stop devices, or in any other
application where failure of the product could result in personal injury.
Failure to comply with these instructions could result in death or serious injury.
MISUSE OF DOCUMENTATION
q
q
The information presented in this product sheet (or catalog) is for reference only.
DO NOT USE this document as product installation information.
Complete installation, operation and maintenance information is provided in the
instructions supplied with each product.
Failure to comply with these instructions could result in death or serious injury.
