8996-0-31-01-13-80-04-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 8996-0-31-01-13-80-04-0

8996-0-31-01-13-80-04-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size168KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

8996-0-31-01-13-80-04-0 Overview

PCB Terminal

8996-0-31-01-13-80-04-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	8996
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

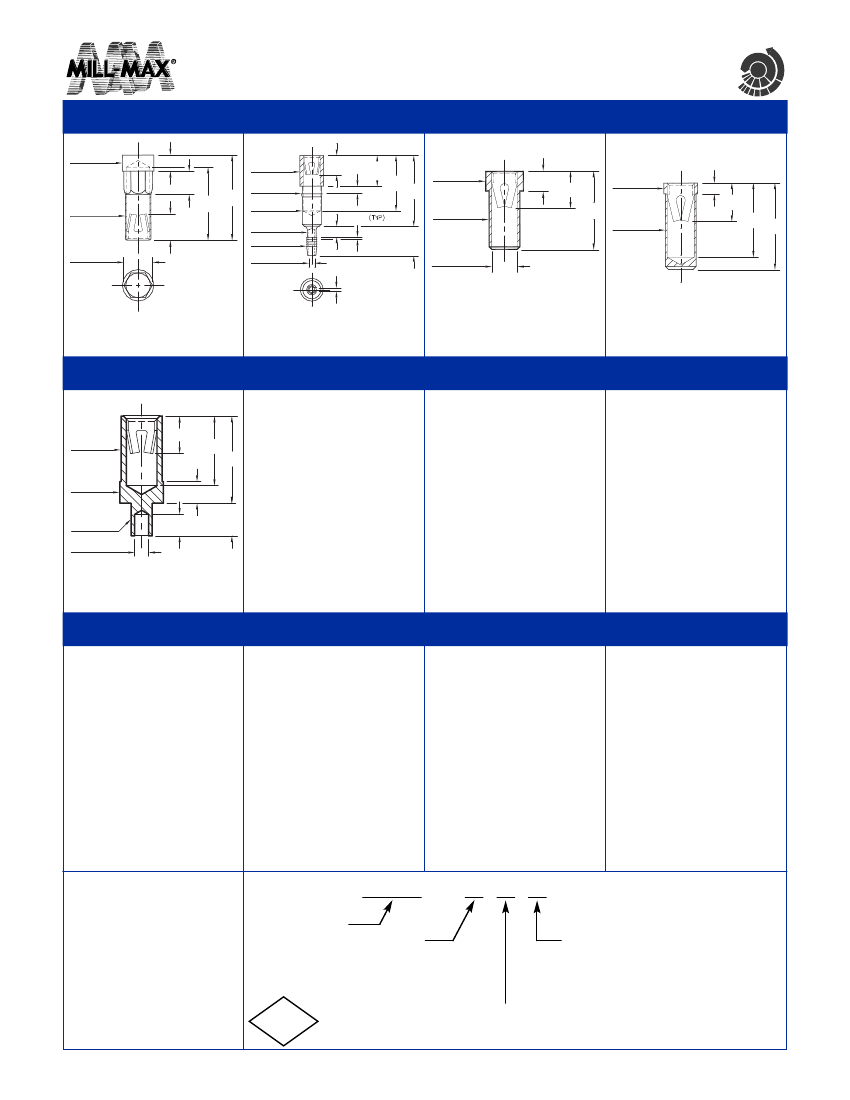

PIN RECEPTACLES

for 1,22 - 1,63 diameter pins (#13 contact)

for 1,14 - 1,65 diameter pins (#23 contact)

CHI

PINS

8365

3,05 DIA.

1,55

2,26

2,49 DIA.

2,54

7,24

8,26

8996

3,18 DIA.

2,77 DIA.

2,54 DIA.

0,97 DIA.

1,14 DIA.

0,25

1,02

3,05

2,54 0,76

4,06

6,86

8,64

9064

3,05 DIA.

1,78

3,23

5,59

9280

2,79 DIA.

0,89

3,23

2,54 DIA.

6,1

7,11

2,54 DIA.

2,77 DIA.

0,66 DIA.

HOLE

0,46

SLOT

2,24 DIA.

HOLE

9064-0-15-XX-13-XX-10-0

Solder mount in 2,59 min. mounting hole

Also available on 16mm wide carrier

tape: 1,300 parts per 330mm reel.

Order as: 9064-0-57-XX-13-XX-10-0

8365-0-15-XX-13-XX-10-0

Hex-pressfit in 2,69 plated

thru hole.

8996-0-31-XX-13-XX-04-0

Compliant press-fit in 1,02±0,08 plated

hole. For 1,52→2,54 thick board.

9280-0-15-XX-13-XX-10-0

Solder mount in 2,59 min.

mounting hole.

4900

3,0 DIA.

2,74

5,08

6,35

3,18 DIA.

1,57

2,39

1,65 DIA.

1,02 DIA.

HOLE

1,57

4900-0-19-XX-23-XX-10-0

Swage mount in 1,70 hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±0,13

DIAMETERS: ±0,05

ANGLES:

± 2°

ORDER CODE: XXXX - X - 1X - XX - XX - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

5,08μm TIN/LEAD OVER NICKEL



5,08μmTIN OVER NICKEL (RoHS)



0,25μm GOLD OVER NICKEL (RoHS)

2002/95/EC

SPECIFY CONTACT FINISH:

5,08μm TIN/LEAD OVER NICKEL



5,08μm TIN OVER NICKEL (RoHS)



0,76μm GOLD OVER NICKEL (RoHS)

RoHS

SELECT CONTACT

#13 or #23

CONTACT (DATA ON PAGE 226)

w w w. m i l l - m a x . c o m

160



516-922-6000
