FFSD-19-S-01.00-01-N-RN1: DescriptionBoard Connector, 38 Contact(s), 2 Row(s), Female, IDC Terminal, LEAD FREE; CategoryThe connector The connector; File Size253KB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FFSD-19-S-01.00-01-N-RN1 Overview

Board Connector, 38 Contact(s), 2 Row(s), Female, IDC Terminal, LEAD FREE

FFSD-19-S-01.00-01-N-RN1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1422613072
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	FFSD
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	38

Preview

Download Datasheet

View All

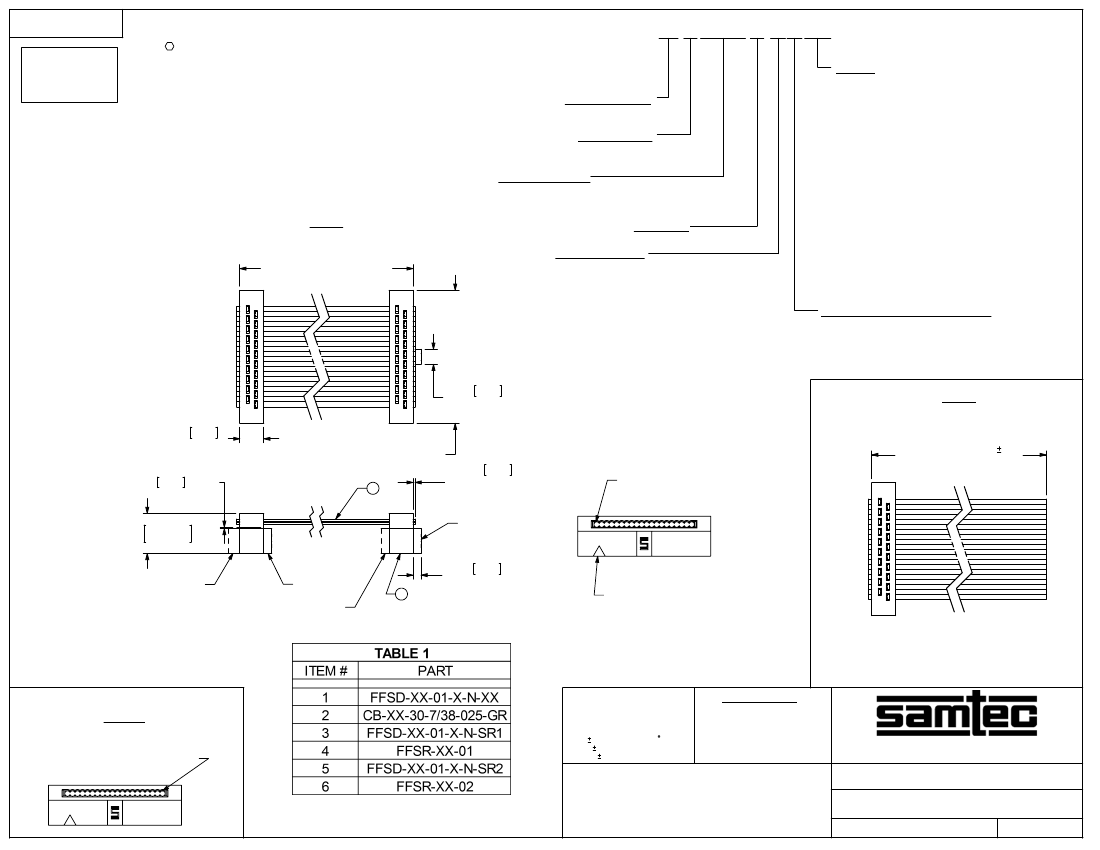

REVISION AJ

DO NOT

SCALE FROM

THIS PRINT

NOTES:

1. HIDDEN LINES ARE USED TO SHOW POLARIZATION

WHEN USING -N OPTION.

REPRESENTS A CRITICAL DIMENSION.

3. FFSD CABLE ASSEMBLIES ARE LEAD FREE.

4. ALL ASSEMBLIES TO BE 100% ELECTRICALLY TESTED

FOR SHORTS AND OPENS.

5. ALL ASSEMBLIES TO BE 100% HI-POT TESTED AT 630V.

6. STRAIN RELIEF TO WITHSTAND 5LB[22N] STRAIGHT PULL.

7. NOTE DELETED.

FFSD-XX-X-XX.XX-01-X-X-XXX

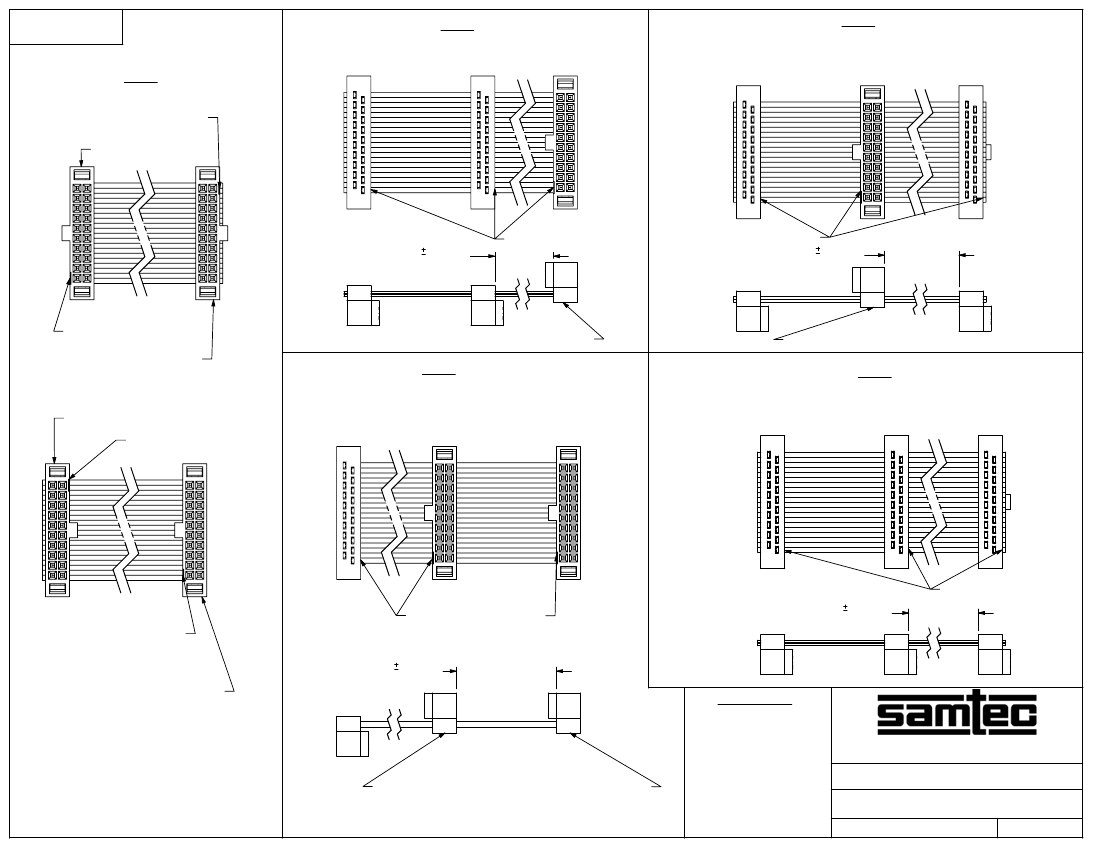

OPTION

-RW: REVERSE WIRING

(NOT AVAILABLE WITH -RN1 OR -RN2)

-D"XX": DAISY CHAIN (MINIMUM 2.00[50.8],

1.00[25.4] INCREMENTS)

-R: REVERSED

(NOT AVAILABLE WITH -M OR -O)

(MINIMUM 2.00[50.8], 1.00[25.4] INCREMENTS)

-RN1: REVERSE POLARIZATION NOTCH

(NOT AVAILABLE WITH -RW OR -RN2)

-RN2: REVERSE POLARIZATION NOTCH

(NOT AVAILABLE WITH -RW OR -RN1)

-M: MIDDLE REVERSE

(NOT AVAILABLE WITH -R OR -O)

(MINIMUM 2.00[50.8], 1.00[25.4] INCREMENTS)

-O: OUTSIDE REVERSE

(NOT AVAILABLE WITH -R OR -M)

(MINIMUM 2.00[50.8], 1.00[25.4] INCREMENTS)

-SR: STRAIN RELIEF

(NOT AVAILABLE WITH -O, -M,

-R, OR -DXX)

(SOLD AS ASSEMBLIES ONLY)

STANDARD POLARIZATION NOTCH

-N: POLARIZATION NOTCH

(NOT AVAILABLE IN -02 THRU -04)

(LEAVE BLANK FOR -02, -03, -04)

8. WHEN CUTTING CABLE TO LENGTH, CONDUCTORS SHOULD NOT EXTEND

PAST THE CABLE INSULATION, EXTENDING LESS THAN 25% OF CABLE

END ASSEMBLY

THICKNESS ON CONSECUTIVE AND LESS THAN 50% OF CABLE THICKNESS

ON NON-CONSECUTIVE STRANDS IS CONSIDERED A PROCESS INDICATOR.

-S: SINGLE END

9. REFERENCE FFSD-XX-XX-X-N-XXX FOR CONNECTOR ASSEMBLY

-D: DOUBLE END

DIMENSIONS AND ITS REQUIREMENTS.

10. COLORED WIRE MUST MATCH FIRST POSITION INDICATOR ON THE

ASSEMBLY LENGTH

FIRST CONNECTOR FOR ALL OPTIONS WITH THE EXCEPTION OF -RW.

-D"XX", -R, -M & -O OPTION: 2.00[50.8] MINIMUM

11. FOR LENGTHS LESS THAN 12.5", TOLERANCE SHALL BE +/-.125,

ALL OTHER OPTION: 1.00[25.4] MINIMUM

ALL OTHER LENGTHS SHALL BE +/-1%.

No OF POSITIONS

-02 THRU -25

(PER ROW)

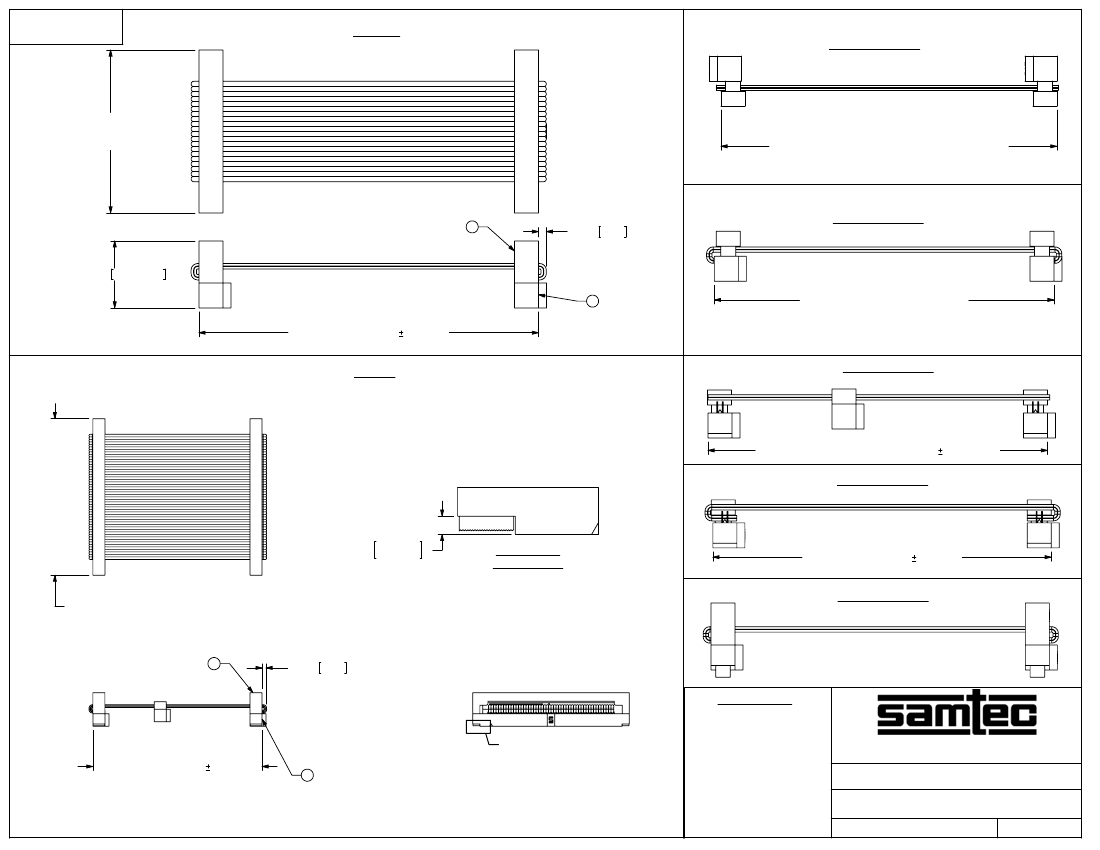

(FFSD-10-D-XX.XX-01-X-N SHOWN)

XX.XX[XX.X x 25.4] ±.1%

(SEE NOTE 8 & 11)

FIG 1

LEAD STYLE

PLATING OPTIONS

- LEAVE BLANK FOR STANDARD, USE C-67-L

-S: USE C-67-S

-F: USE C-67-F

.075 1.91

REF

.120 3.05

REF

(FFSD-10-S-XX.XX-01-X-N SHOWN)

(SAME AS FIG 1, DIFFERENT AS SHOWN)

XX.XX[XX.X x 25.4] 1%

(SEE NOTE 8 & 11)

RED WIRE TO SIDE

OF FIRST POS INDICATOR

FIG 2

(No OF POS x .050[1.27])

+ .165[4.19] REF

.006 0.15 MAX

.010 0.25 MAX

CABLE OVERHANG

(SEE NOTE 8)

-N OPTION

.200

- .003

5.08

- 0.08

+.006

+0.15

-RN1 OPTION

-N OPTION

-RN2 OPTION

.040 1.02

REF

NOTCH DENOTES

FIRST POSITION

(FFSD-10-X-XX.XX-01-X-N-RW SHOWN)

RED WIRE TO OPPOSITE

SIDE OF FIRST POS. INDICATOR

FIG 11

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

C:\EnterpriseVault\DWG\MISC\MKTG\FFSD-XX-X-XX.XX-01-X-X-XXX-MKT.SLDDRW

INSULATORS: PBT, COLOR: BLACK

CONTACT: BeCu

WIRE: 30 AWG, 7/38, TINNED, STRANDED WITH

GRAY PVC INSULATOR

PLATING: .000010 GOLD OVER .000050 NICKEL

REMAINDER: .000200 REF TIN OVER .000050 NICKEL

.050 x .050 DOUBLE ROW FEMALE IDC ASSEMBLY

DWG. NO.

FFSD-XX-X-XX.XX-01-X-X-XXX

T NEWTON

02/15/2008

SHEET

BY:
