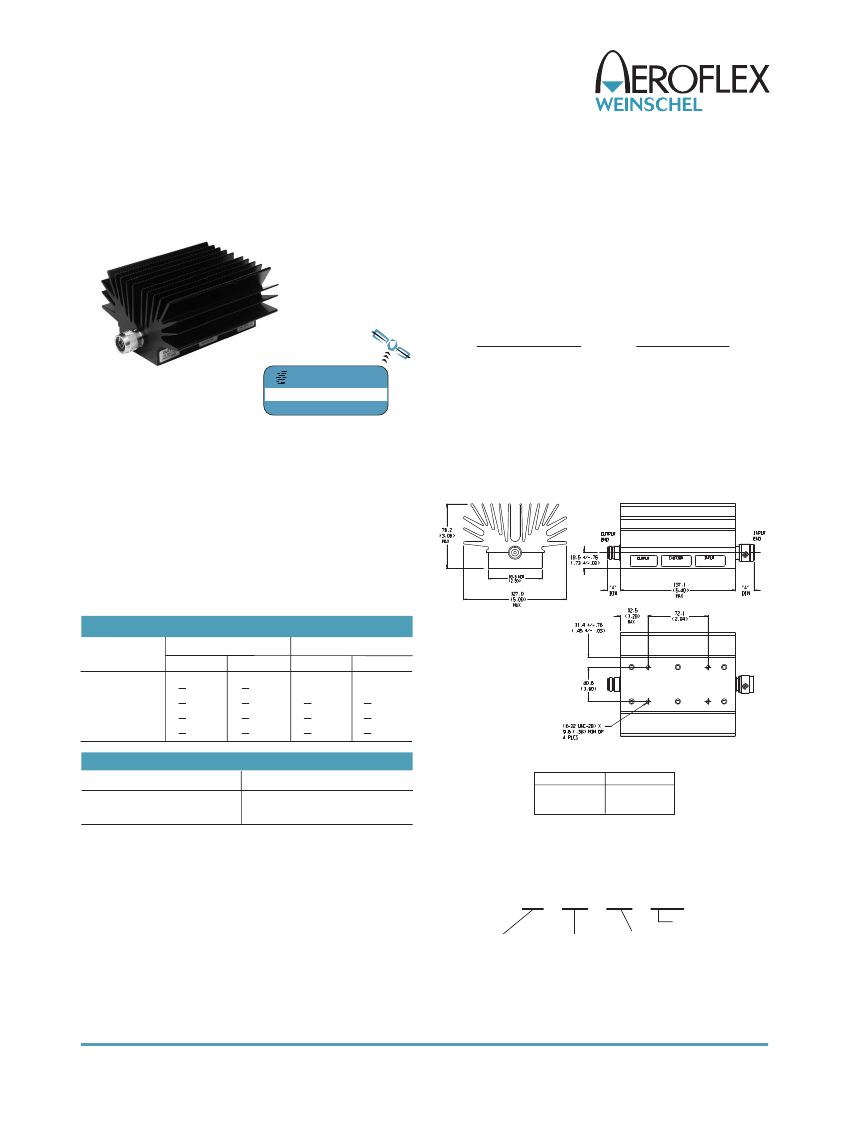

Fixed Coaxial Attenuators
Model 49
High Power, N Connectors
Conduction/Convection Cooled
dc to 8.5 GHz
150 Watts
RoHS
TEST DATA:
Swept data plots of attenuation and SWR
from 50 MHz to 8.5 GHz.
CONNECTORS:
Type N connectors per MIL-STD-348
interface dimensions - mate nondestructively with MIL-C-
39012 connectors.
Connector Options
Type/Description
Type N, Female
Type N, Male
3
4
www.argosysales.com
800-542-4457
EXPRESS
Features
o
o
o
Quality connectors with special high temperature
support beads.
Designed to meet environmental requirements of
MIL-DTL-3933.
Flexible Mounting Position -
The units may be
mounted in horizontal (fins up) or vertical position.
CONSTRUCTION:
Aluminum alloy body, stainless steel
connectors; gold plated beryllium copper female contacts or
stainless steel male contacts. (-LIM option uses
different connector and contact materials)
WEIGHT:
1,450 g (3 lbs, 3 oz.) maximum
PHYSICAL DIMENSIONS:
Specifications
NOMINAL IMPEDANCE:
50
Ω
FREQUENCY RANGE:
dc to 8.5 GHz
MAXIMUM DEVIATION OVER FREQUENCY (dB):
Nominal
ATTN (dB)
3, 6
10, 20
30
40
49
+
+
+
+
0.50
0.40
0.40
0.50
+
+
+
+
1.00
0.75
0.75
1.00
49-LIM
---
+ 0.70
+ 0.70
+ 0.70
---
+ 1.25
+ 1.75
+ 1.75
dc - 4 GHz 4 -8.5 GHz dc - 4 GHz 4 -8.5 GHz
MAXIMUM SWR:
Frequency (GHz)
dc - 4
4 - 8.5
SWR
1.25
1.35
Connector
N Male
N Female
DIM A
22.9 (0.90)
15.0 (0.59)
3rd ORDER INTERMODULATION (49-XX-XX-LIM ONLY):
Reflected Levels (IM3), -100 & Through Levels (IM3), -110
dBc with two input signals @ 869 MHz and 891 MHz with
average carrier power levels of +43 dBm each.
POWER RATING
(mounted horizontally or
vertically):
150 watts
average (unidirectional)
to 25°C
ambient temperature, derated linearly to 15 watts @ 125°C.
5 kilowatt
peak
(5
μsec
pulse width; 1.5% duty cycle).
Maximum power rating into output port is 25 watts average.
POWER COEFFICIENT:
<0.0001 dB/dB/watt
TEMPERATURE COEFFICIENT:
<0.0004 dB/dB/°C
TEMPERATURE RANGE:
-55°C to 125°C
NOTE: All dimensions are given in mm (inches) and are maximum,
unless otherwise specified.
MODEL NUMBER DESCRIPTION:
Example:
49 - XX - XX
-
LIM
IM Option*
Basic Model
Number
Attenuation
Value (dB)
Connector Options
1st digit is input side
2nd digit is output side
*Add -LIM for Low Intermodulation option. Option only available in 10, 20,
30, and 40 dB and is not available through Express.
65
5305 Spectrum Drive, Frederick, MD 21703-7362
s
TEL: 301-846-9222, 800-638-2048
s
Fax: 301-846-9116
web: www.aeroflex.com/weinschel
s
email: weinschel-sales@aeroflex.com
Revision Date: 12/4/2012
