POWER
SMPS TRANSFORMERS
• The ability to re-configure during the evaluation process allows the design engineer
to test several configurations to determine the best application performance based
upon anticipated use conditions, efficiency expectations and output requirements
• Offers the versatility of multiple identical coils, which can be placed in series or
parallel configurations to meet the specific electrical parameters in the application
• Once testing has shown the best configuration for the application, the form factor
of the magnetics is known, so that PCB layout directly follows
• Built from standard off the shelf materials to be low cost solutions to general
application requirements

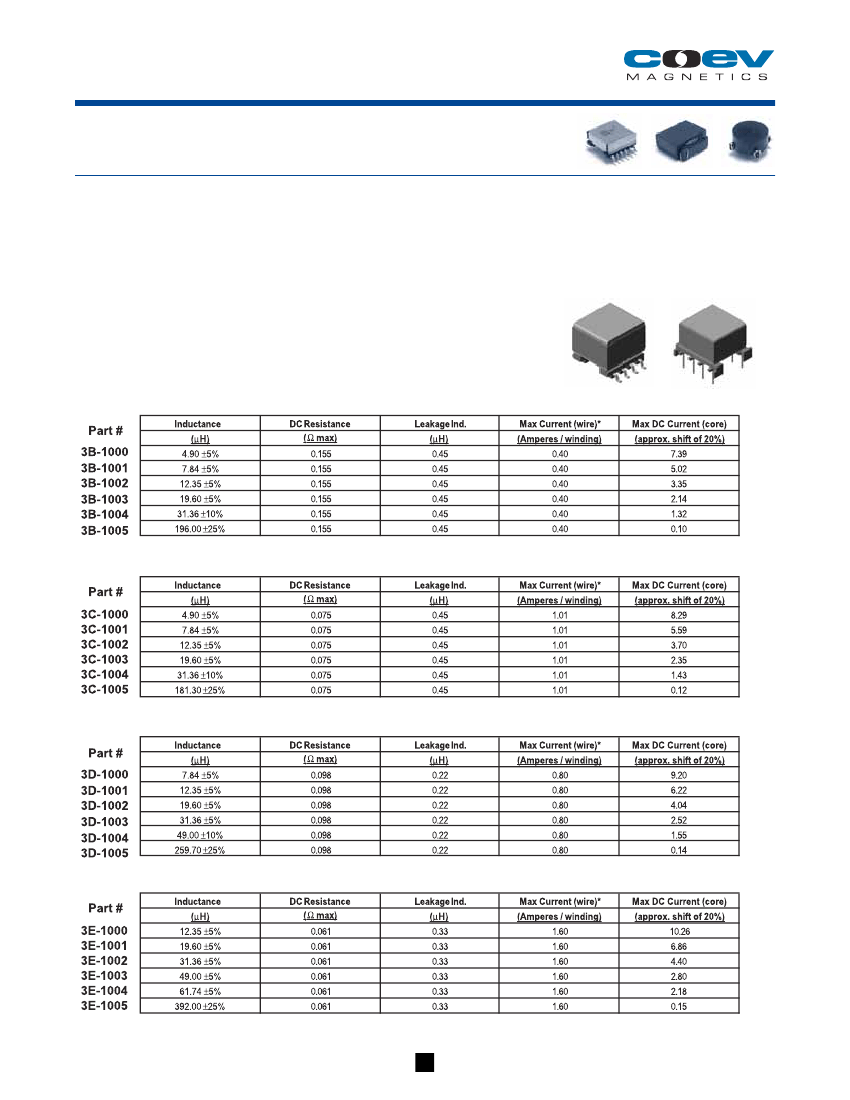

Configurable Magnetics—
EP Series
EP 7
EP 10
EP 13
EP 17
* using a current density of 200 circular mils per Amp (cm/A)
45
