M83536/22-014L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> M83536/22-014L

M83536/22-014L: DescriptionPower/Signal Relay, 3PDT, Momentary, 0.167A (Coil), 12VDC (Coil), 2004mW (Coil), 10A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount,; CategoryMechanical and electronic products relay; File Size189KB，5 Pages; ManufacturerSTPI Siege Social

Download Datasheet Parametric View All

M83536/22-014L Overview

Power/Signal Relay, 3PDT, Momentary, 0.167A (Coil), 12VDC (Coil), 2004mW (Coil), 10A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount,

M83536/22-014L Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PANEL MOUNTABLE
body width	20.57 mm
body height	16.26 mm
Body length or diameter	20.57 mm
Maximum coil current (DC)	0.167 A
Coil operating voltage (DC)	9 V
Coil power	2004 mW
Coil release voltage (DC)	0.5 V
Coil resistance	72 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	10A@200VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@28VDC
Maximum contact voltage (AC)	200 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	50000 Cycle(s)
JESD-609 code	e4

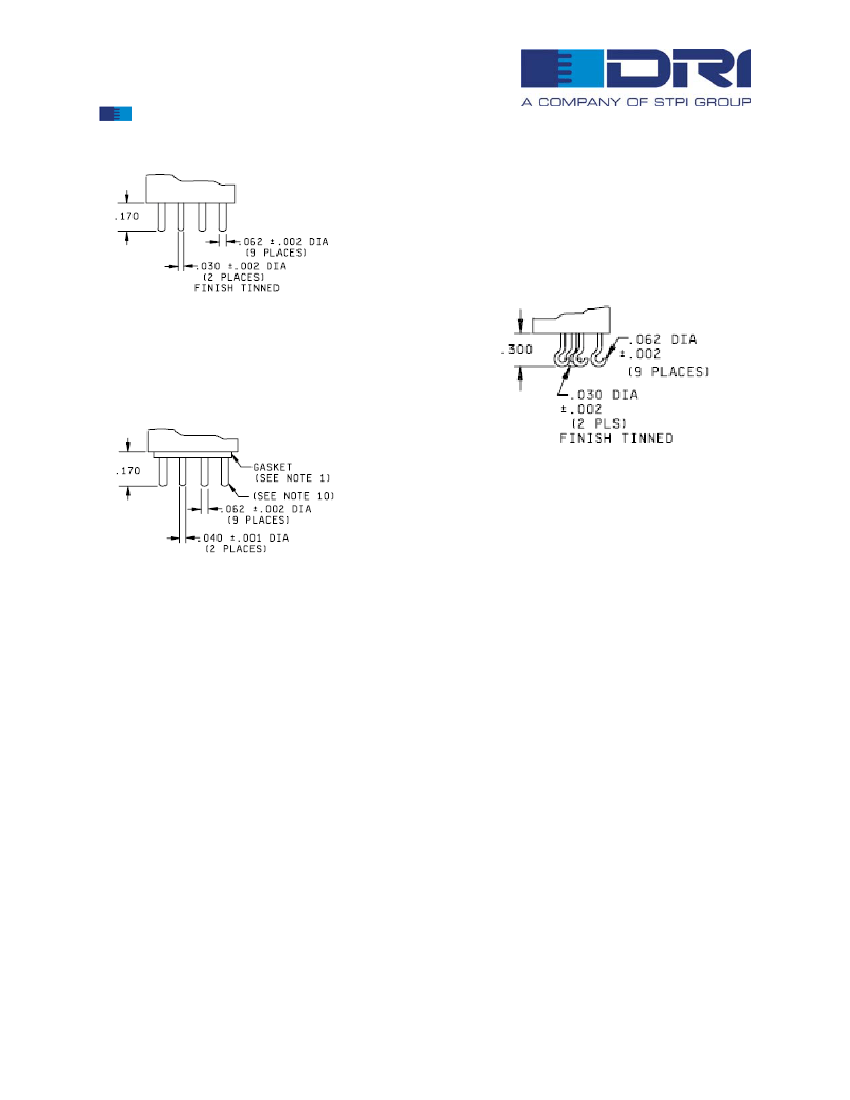

Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	7 ms
Maximum operating temperature	125 °C
Minimum operating temperature	-70 °C
physical size	20.57mm x 20.57mm x 16.26mm
Guideline	MIL-PRF-83536
Relay action	MOMENTARY
Relay function	3PDT
Relay type	POWER/SIGNAL RELAY
release time	7 ms
seal	HERMETICALLY SEALED
surface mount	NO
Terminal surface	GOLD
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

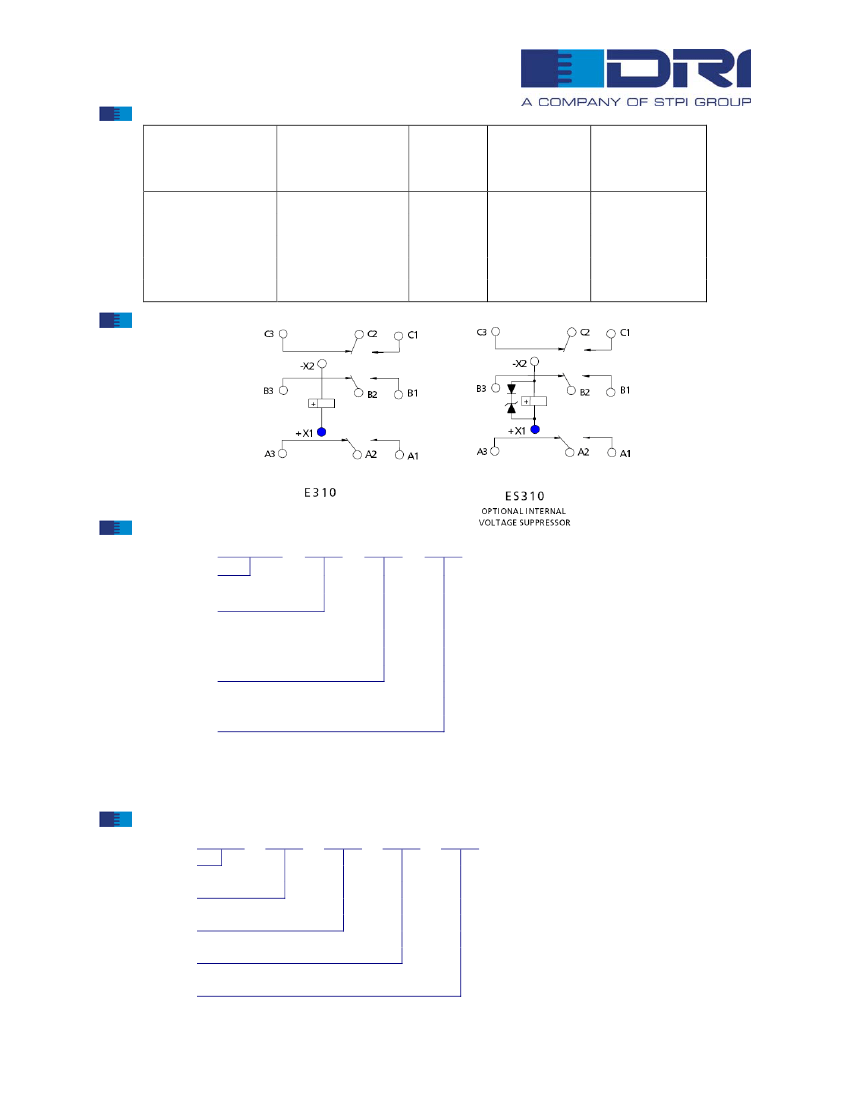

E310 & ES310

Military Specified

Meets MIL-PRF-83536

General Characteristics

Number of Poles:

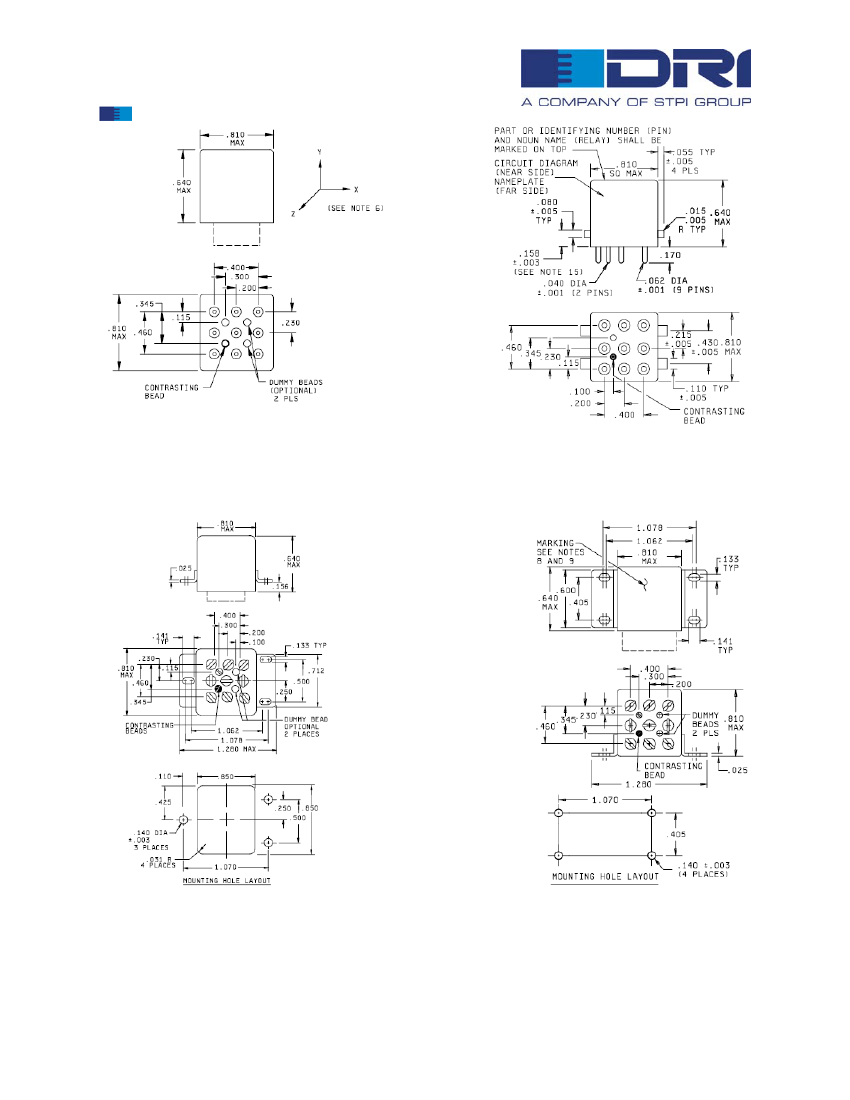

Dimensions:

Weight:

3 Form C (3PDT)

0.810” x 0.810” x 0.640”

(20.6mm x 20.6mm x 16.3mm)

0.062 lb. (28.2 grams)

Switching Characteristics

Operate Time @ 25 C:

Release Time @ 25 C:

Bounce Time:

Mechanical Life:

6 ms Max.

1 ms Max.

400,000 Cycles

Environmental Characteristics

Temperature Range:

Vibration (Sinusoidal):

-Mounting Code 03:

-Mounting Code 04:

Shock (any axis):

-Mounting Code 03:

-Mounting Code 04:

Seal:

-70 C to +125 C

30g 10-3,000 Hz

20g 57-3,000 Hz

.06” Double Amplitude 10-55 Hz,

10g 55-500 Hz, 20g 500-3,000 Hz

200g, 6 ms

100g, 6 ms

50g, 11 ms

-8

Hermetic (1x10 atm cm /s)

Electrical Characteristics

Contact Voltage Drop (at rated resistive load)

-Initial:

-After Guaranteed Life:

Dielectric Strength

Coil to Case @ Sea Level

-Initial @ 60 Hz:

-After Life Test @ 60 Hz:

All Other Points @ Sea Level

-Initial @ 60 Hz:

-After Life Test @ 60 Hz:

Insulation Resistance

-Initial:

-After Life Tests:

Back EMF (Transient Voltage):

150 mV Max.

175 mV Max.

1,000 Vrms

750 Vrms

1,250 Vrms

1,000 Vrms

100 MΩ Min, @ 500 Vdc

50 MΩ Min, @ 500 Vdc

42 Vdc Max. (ES310 Only)

55 Engineers Road

Hauppauge, NY 11788

www.drirelays.net

(631) 342-1700

Mil Spec E310

Page 1/5
