8-2057688-5 datasheet, PDF - EEWORLD Datasheet

8-2057688-5: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,72 CONTACTS,SKT,0.075 PITCH,COMPLIANT FIT TERMINAL,LOCKING,BLACK; CategoryThe connector The connector; File Size225KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

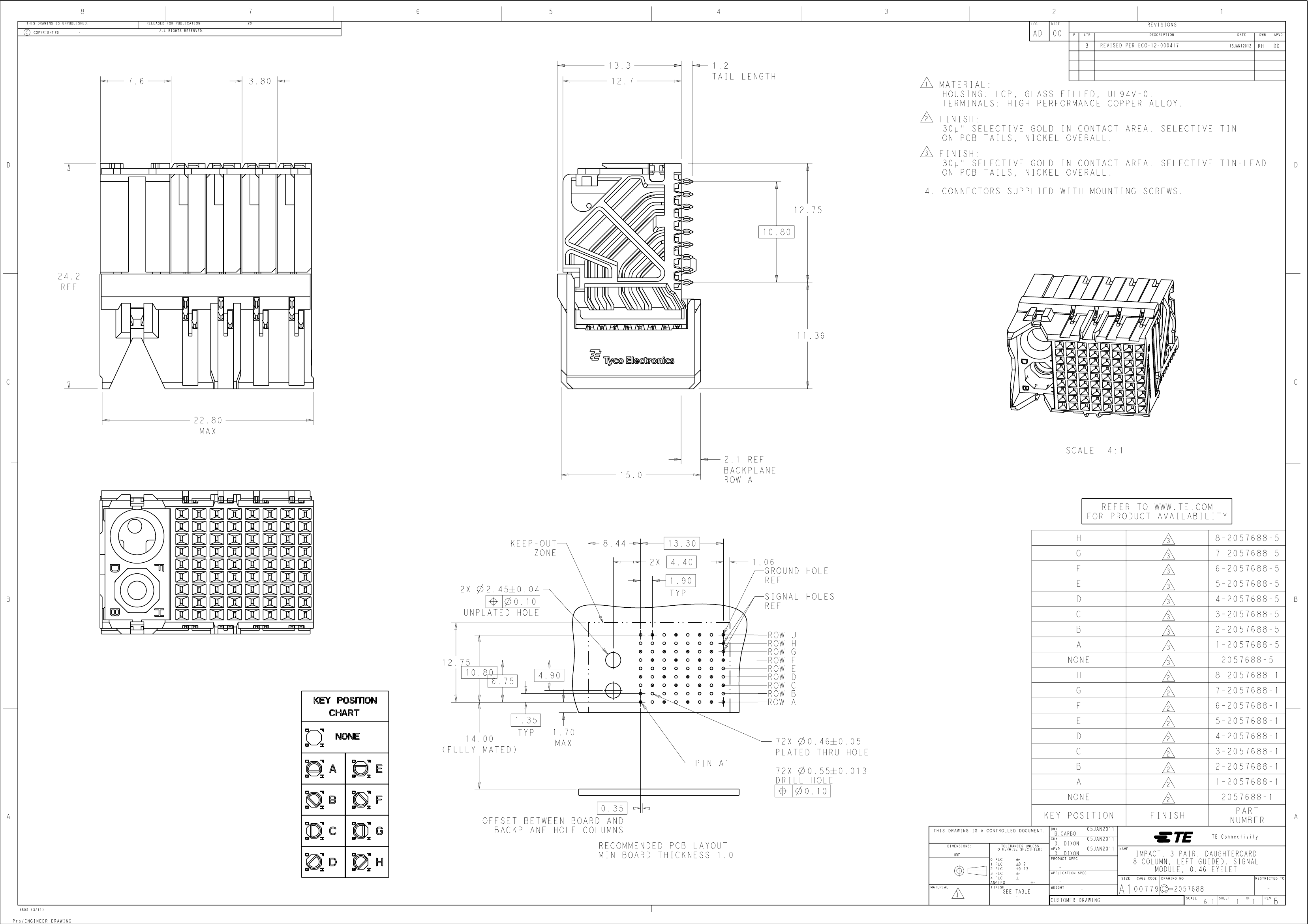

8-2057688-5 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,72 CONTACTS,SKT,0.075 PITCH,COMPLIANT FIT TERMINAL,LOCKING,BLACK

Parameter Name	Attribute value
Objectid	306997217
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	7.9
body width	0.59 inch
subject depth	0.953 inch
body length	0.897 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	2057688
Plug contact pitch	0.075 inch
Match contact row spacing	0.053 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	9
Number of rows loaded	9
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.3462 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.047 inch
Terminal pitch	1.905 mm
Termination type	PRESS FIT
Total number of contacts	72
