5962-8687302YC: DescriptionMultiplier, 16-Bit, CMOS, CQCC68, 0.950 X 0.950 INCH, CERAMIC, LCC-68; CategoryThe embedded processor and controller Microcontrollers and processors; File Size228KB，7 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric Compare View All

5962-8687302YC Overview

Multiplier, 16-Bit, CMOS, CQCC68, 0.950 X 0.950 INCH, CERAMIC, LCC-68

5962-8687302YC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	LCC
package instruction	QCCN, LCC68,.95SQ
Contacts	68
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	2 X 16 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ
boundary scan	NO
maximum clock frequency	18.2 MHz
External data bus width	16
JESD-30 code	S-CQCC-N68
JESD-609 code	e4
length	24.1935 mm
low power mode	NO
Humidity sensitivity level	3
Number of terminals	68
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output data bus width	32
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC68,.95SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	3.048 mm
Maximum slew rate	25 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	24.1935 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, MULTIPLIER
Base Number Matches	1

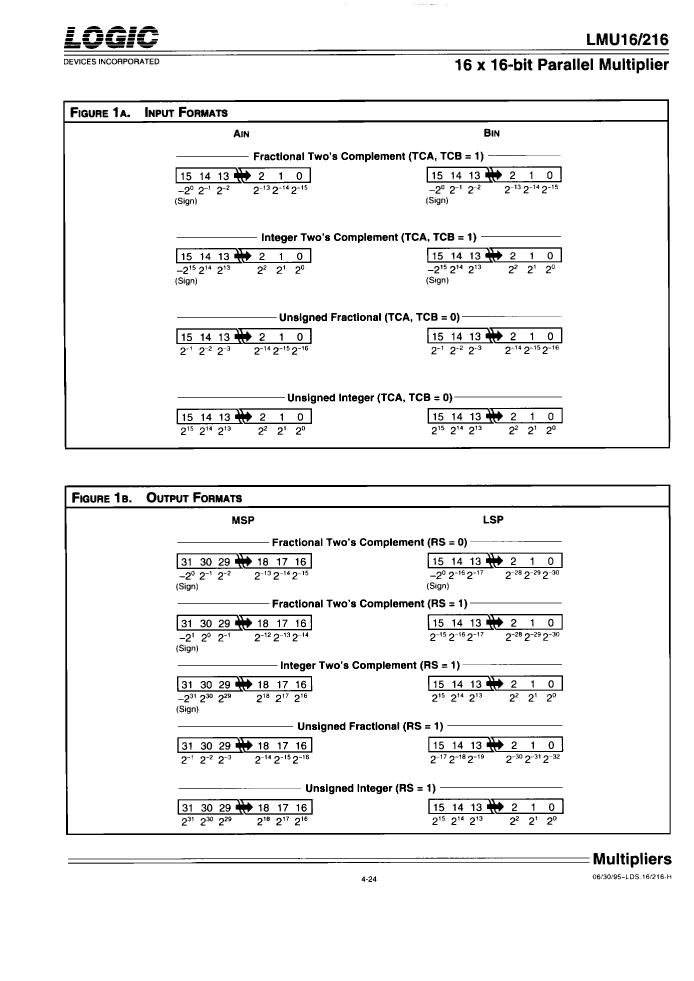

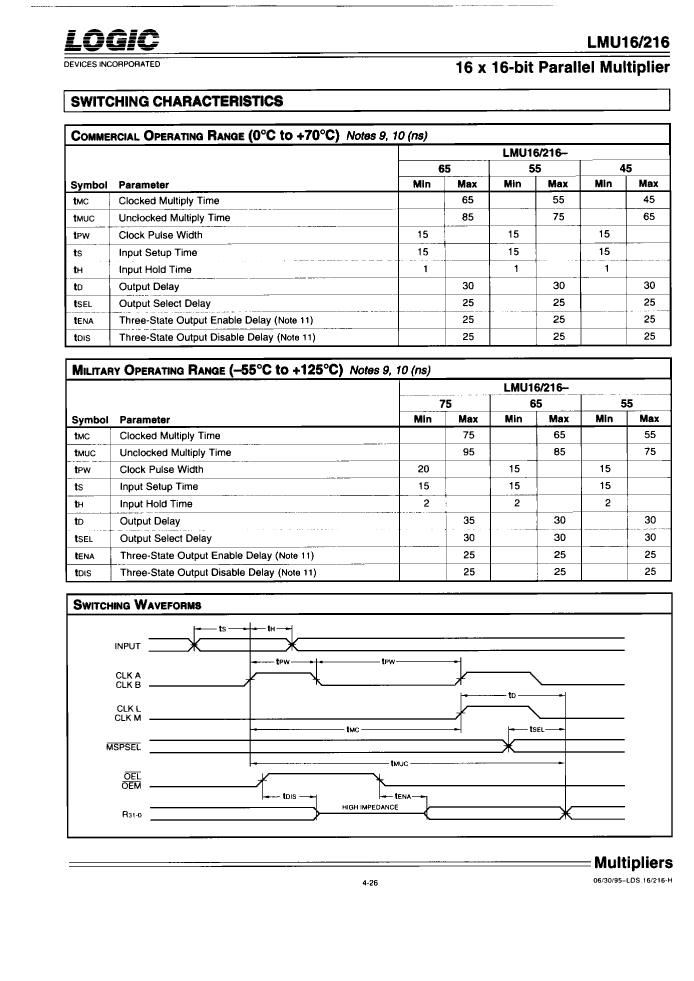

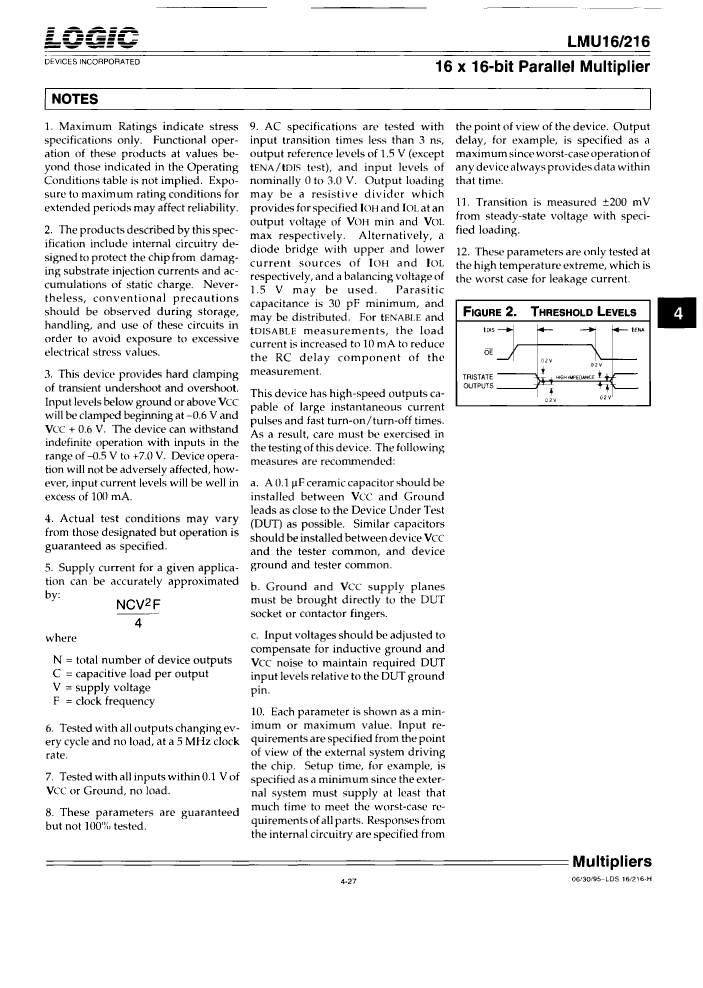

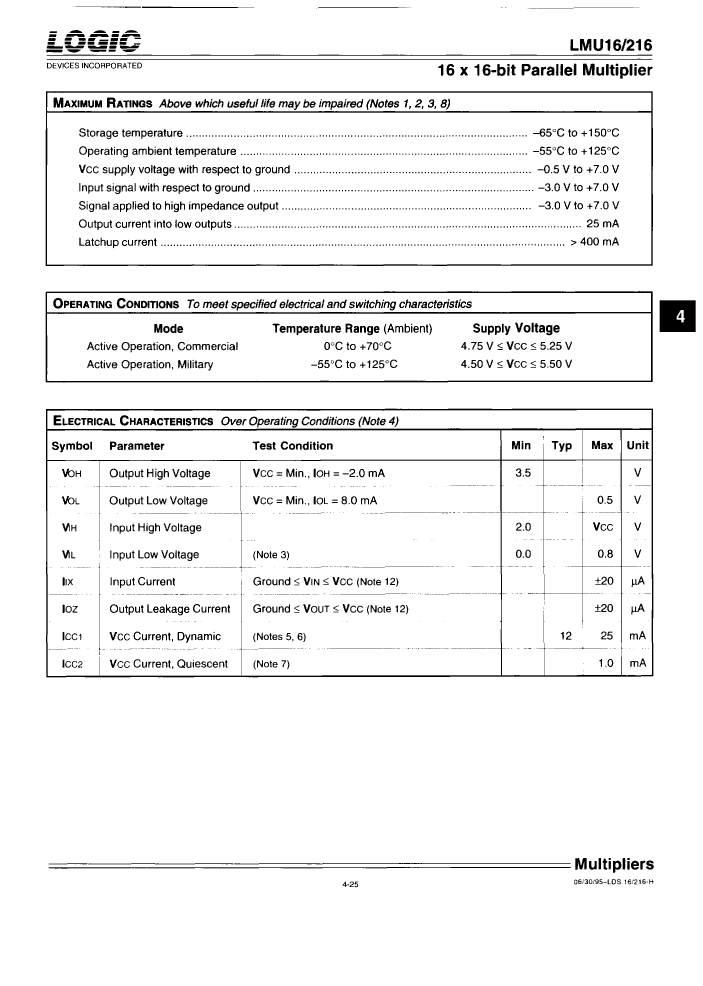

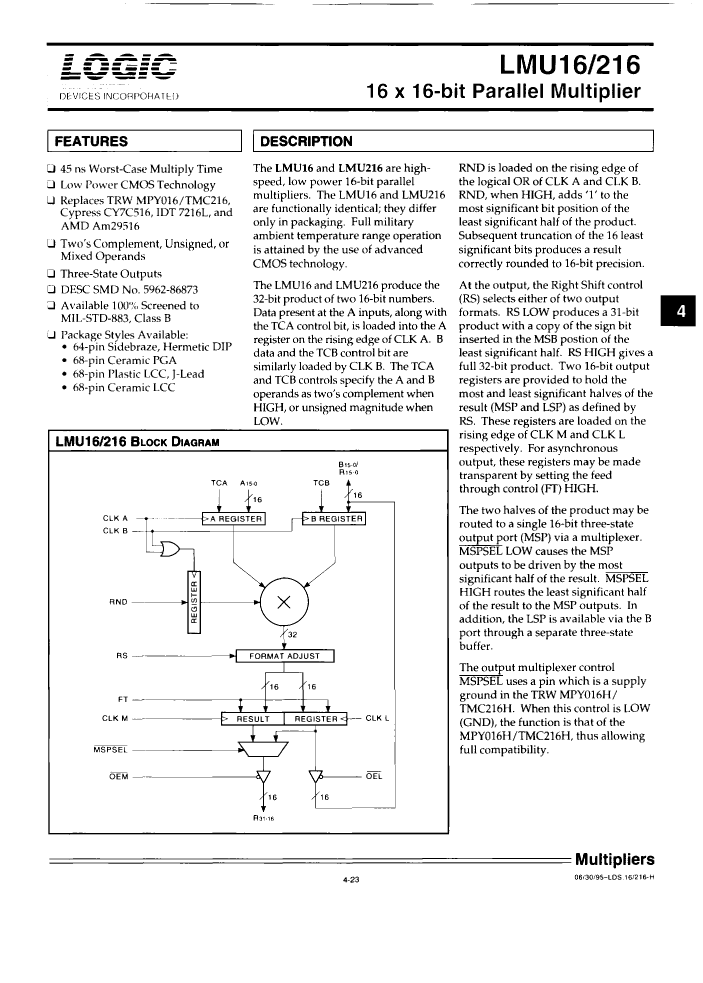

Preview

Download Datasheet

View All

5962-8687302YC Related Products

	5962-8687302YC	5962-8687303XC	5962-8687303VC	5962-8687302VC	5962-8687302XC	5962-8687303YC
Description	Multiplier, 16-Bit, CMOS, CQCC68, 0.950 X 0.950 INCH, CERAMIC, LCC-68	Multiplier, 16-Bit, CMOS, CDIP64, 0.900 INCH, CAVITY DOWN, HERMETIC SEALED, SIDE BRAZED, DIP-64	Multiplier, 16-Bit, CMOS, CPGA68, CAVITY-DOWN, CERAMIC, PGA-68	Multiplier, 16-Bit, CMOS, CPGA68, CAVITY-DOWN, CERAMIC, PGA-68	Multiplier, 16-Bit, CMOS, CDIP64, 0.900 INCH, CAVITY DOWN, HERMETIC SEALED, SIDE BRAZED, DIP-64	Multiplier, 16-Bit, CMOS, CQCC68, 0.950 X 0.950 INCH, CERAMIC, LCC-68
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	LCC	DIP	PGA	PGA	DIP	LCC
package instruction	QCCN, LCC68,.95SQ	DIP, DIP64,.9	PGA, PGA68,11X11	PGA, PGA68,11X11	DIP, DIP64,.9	QCCN, LCC68,.95SQ
Contacts	68	64	68	68	64	68
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Other features	2 X 16 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 16 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 16 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 16 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 16 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 16 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ
boundary scan	NO	NO	NO	NO	NO	NO
maximum clock frequency	18.2 MHz	13.3 MHz	13.3 MHz	18.2 MHz	18.2 MHz	13.3 MHz
External data bus width	16	16	16	16	16	16
JESD-30 code	S-CQCC-N68	R-CDIP-T64	S-CPGA-P68	S-CPGA-P68	R-CDIP-T64	S-CQCC-N68
JESD-609 code	e4	e4	e4	e4	e4	e4
length	24.1935 mm	81.28 mm	29.4386 mm	29.4386 mm	81.28 mm	24.1935 mm
low power mode	NO	NO	NO	NO	NO	NO
Humidity sensitivity level	3	3	3	3	3	3
Number of terminals	68	64	68	68	64	68
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output data bus width	32	32	32	32	32	32
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	DIP	PGA	PGA	DIP	QCCN
Encapsulate equivalent code	LCC68,.95SQ	DIP64,.9	PGA68,11X11	PGA68,11X11	DIP64,.9	LCC68,.95SQ
Package shape	SQUARE	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	IN-LINE	GRID ARRAY	GRID ARRAY	IN-LINE	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	3.048 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.048 mm
Maximum slew rate	25 mA	25 mA	25 mA	25 mA	25 mA	25 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Terminal form	NO LEAD	THROUGH-HOLE	PIN/PEG	PIN/PEG	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	PERPENDICULAR	PERPENDICULAR	DUAL	QUAD
width	24.1935 mm	22.86 mm	29.4386 mm	29.4386 mm	22.86 mm	24.1935 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, MULTIPLIER	DSP PERIPHERAL, MULTIPLIER	DSP PERIPHERAL, MULTIPLIER	DSP PERIPHERAL, MULTIPLIER	DSP PERIPHERAL, MULTIPLIER	DSP PERIPHERAL, MULTIPLIER
Base Number Matches	1	1	1	1	1	-
Maker	-	LOGIC Devices	LOGIC Devices	LOGIC Devices	LOGIC Devices	LOGIC Devices
