5962-9321201MPA datasheet, PDF

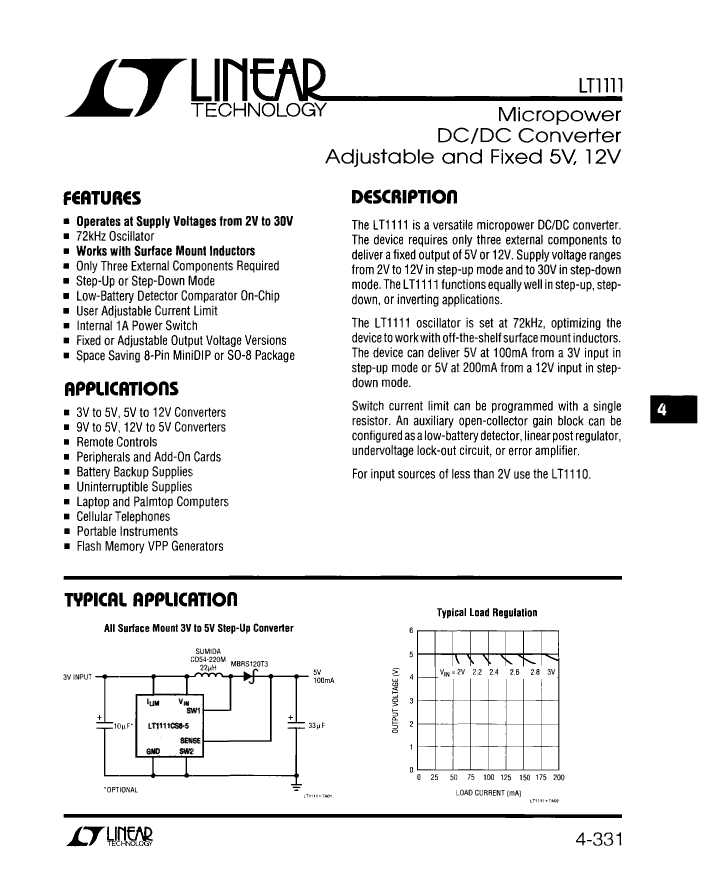

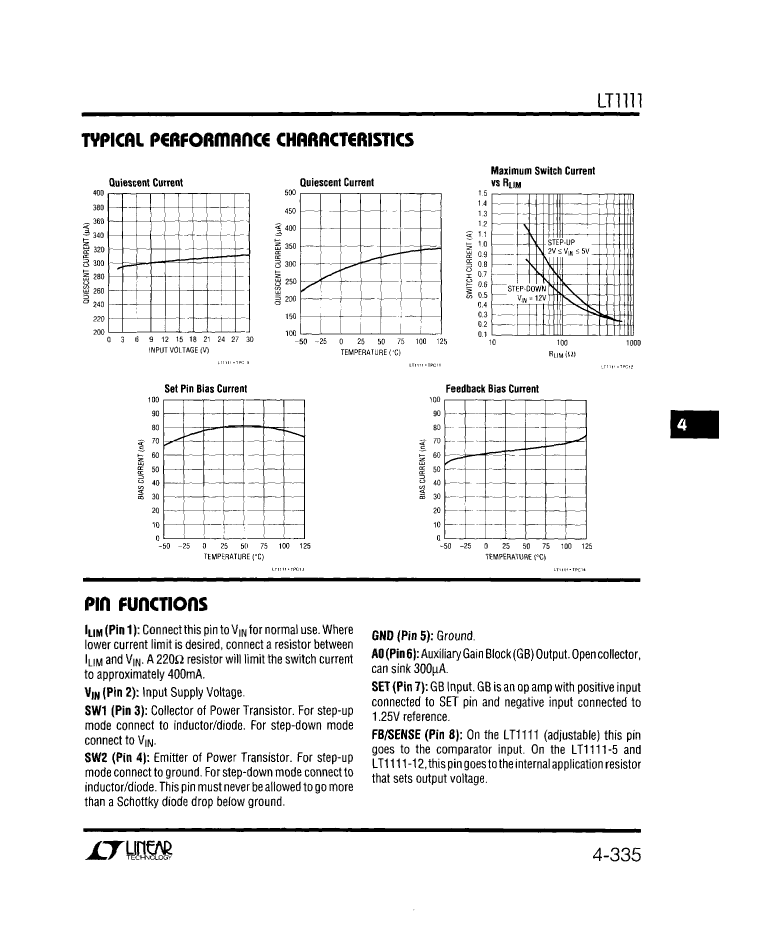

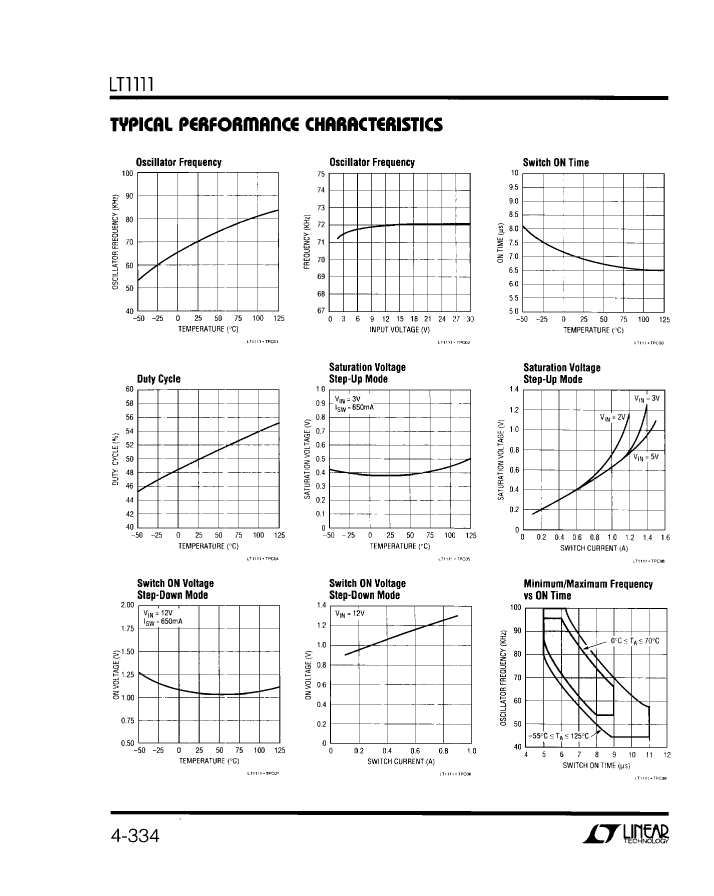

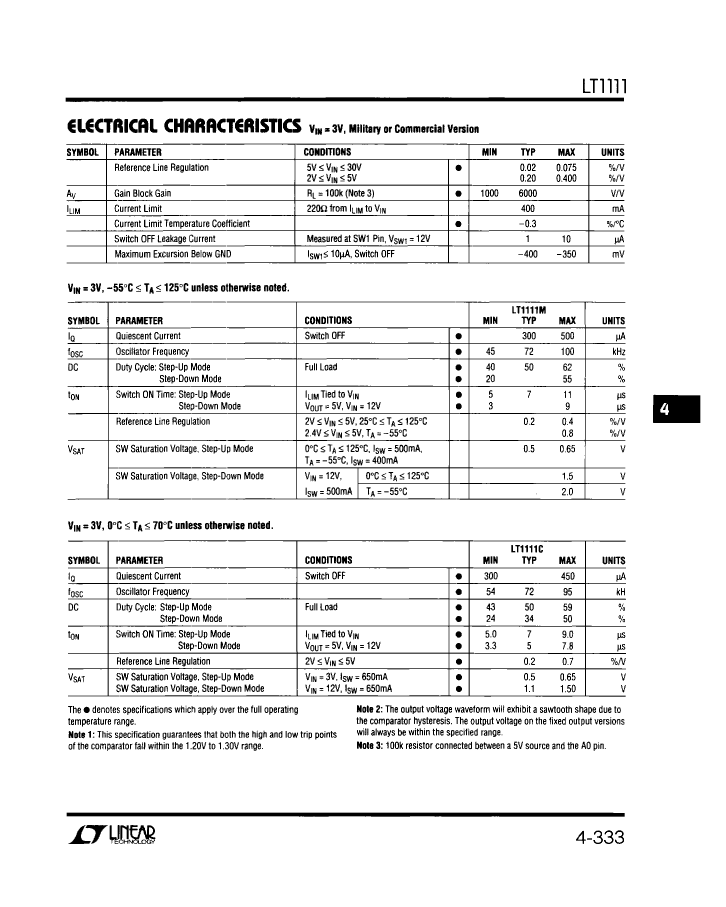

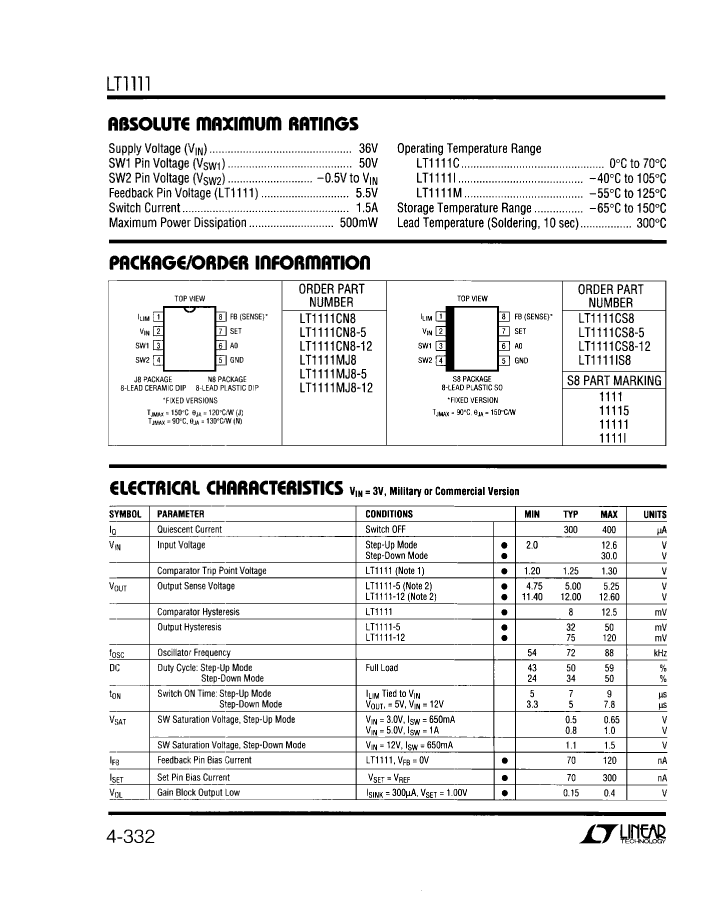

5962-9321201MPA: DescriptionIC 1.5 A SWITCHING REGULATOR, 72 kHz SWITCHING FREQ-MAX, CDIP8, MINI, CERDIP-8, Switching Regulator or Controller; CategoryPower/power management The power supply circuit; File Size582KB，15 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

5962-9321201MPA Overview

IC 1.5 A SWITCHING REGULATOR, 72 kHz SWITCHING FREQ-MAX, CDIP8, MINI, CERDIP-8, Switching Regulator or Controller

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	VOLTAGE-MODE
Control Technology	PULSE FREQUENCY MODULATION
Maximum input voltage	30 V
Minimum input voltage	2 V
JESD-30 code	R-GDIP-T8
Humidity sensitivity level	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	1.5 A
Nominal output voltage	1.25 V
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	5.08 mm
surface mount	NO
Switch configuration	SINGLE
Maximum switching frequency	72 kHz
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

	5962-9321201MPA	5962-9321201MPX
Description	IC 1.5 A SWITCHING REGULATOR, 72 kHz SWITCHING FREQ-MAX, CDIP8, MINI, CERDIP-8, Switching Regulator or Controller	IC 1.5 A SWITCHING REGULATOR, 72 kHz SWITCHING FREQ-MAX, CDIP8, MINI, CERDIP-8, Switching Regulator or Controller
Parts packaging code	DIP	DIP
package instruction	DIP, DIP8,.3	DIP,
Contacts	8	8
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR	SWITCHING REGULATOR
control mode	VOLTAGE-MODE	VOLTAGE-MODE
Control Technology	PULSE FREQUENCY MODULATION	PULSE FREQUENCY MODULATION
Maximum input voltage	30 V	30 V
Minimum input voltage	2 V	2 V
JESD-30 code	R-GDIP-T8	R-GDIP-T8
Number of functions	1	1
Number of terminals	8	8
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Maximum output current	1.5 A	1.5 A
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883
Maximum seat height	5.08 mm	5.08 mm
surface mount	NO	NO
Switch configuration	SINGLE	SINGLE
Maximum switching frequency	72 kHz	72 kHz
technology	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.62 mm	7.62 mm
Base Number Matches	1	1
