DVMD28F/K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> DVMD28F/K

DVMD28F/K: DescriptionData Line Filter, 1 Function(s), 28V, 7A, HERMATIC PACKAGE-5; CategoryAnalog mixed-signal IC filter; File Size339KB，11 Pages; ManufacturerVPT Inc

Download Datasheet Parametric Compare View All

DVMD28F/K Overview

Data Line Filter, 1 Function(s), 28V, 7A, HERMATIC PACKAGE-5

DVMD28F/K Parametric

Parameter Name	Attribute value
Maker	VPT Inc
package instruction	HERMATIC PACKAGE-5
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum attenuation frequency	0.5 MHz
Attenuation at maximum frequency	40 dB
Maximum DC resistance	0.12 Ω
filter type	DATA LINE FILTER
high	10.54 mm
JESD-609 code	e4
length	69.09 mm
Installation type	PANEL MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
physical size	L69.09XB34.29XH10.54 (mm)/L2.72XB1.35XH0.415 (inch)
Rated current	7 A
Rated voltage	28 V
Terminal surface	GOLD
width	34.29 mm
Base Number Matches	1

Preview

Download Datasheet

View All

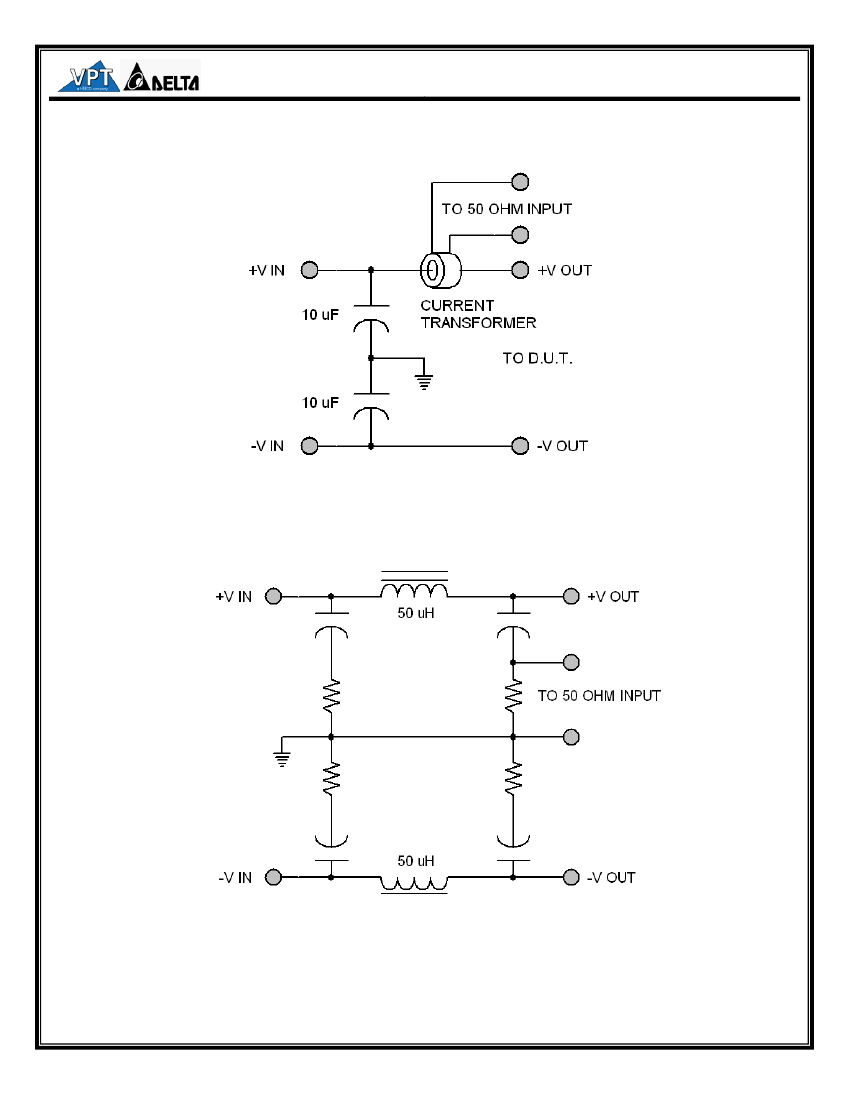

DVMD28 Series

HIGH RELIABILITY HYBRID

EMI FILTERS

DESCRIPTION

The DVMD series of hybrid EMI filters is operable

over the full military (-55 °C to +125 °C) temperature

range with no power derating. The DVMD EMI filter

is designed to filter conducted emissions of two

DVTR or one DVFL series DC-DC converters.

These filters are designed and manufactured in a

facility qualified to ISO9001 and certified to MIL-

PRF-38534 and MIL-STD-883.

This product may incorporate one or more of the

following U.S. patents:

5,784,266

5,790,389

5,963,438

5,999,433

6,005,780

6,084,792

6,118,673

FEATURES

•

High Reliability

Wide Input Voltage Range: 0 to 50 Volts per

MIL-STD-704

Up to 7.0 Amp Maximum Current

40 dB Minimum Attenuation at 500 kHz

Industry Standard Pinout

High Input Transient Voltage: 80 Volts for 1 sec

per MIL-STD-704A

Precision Seam Welded Hermetic Package

Custom Versions Available

Additional Environmental Screening Available

Meets MIL-STD-461C and MIL-STD-461D EMC

Requirements

Protects Against Conducted Susceptibility

Specified in MIL-STD-461C, CS01 and CS02

MIL-PRF-38534 Element Evaluated

Components

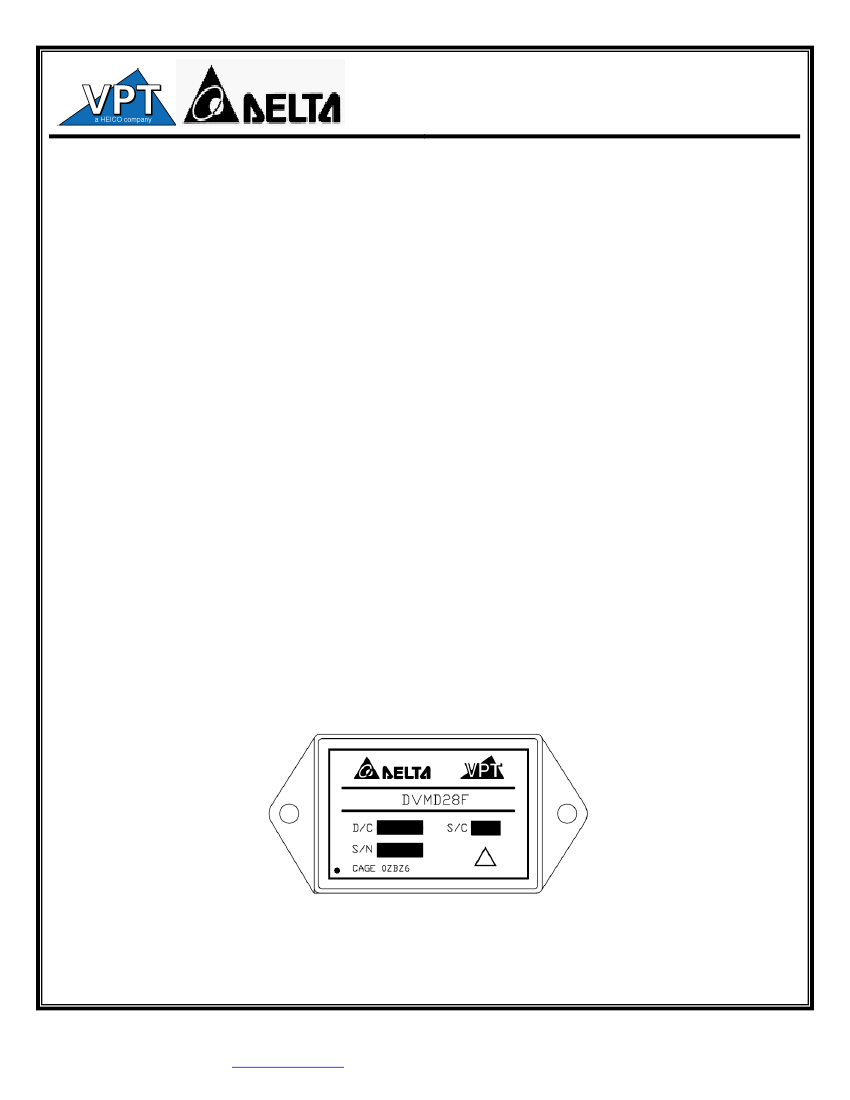

Figure 1

– DVMD28F EMI Filter

(Exact

marking may differ from that shown)

DS1X024H

11314 4th Avenue

West, Suite 206

Everett, WA 98204

http://www.vpt-inc.com

Sales Information:

Phone: (425) 353-3010

Fax: (425) 353-4030

E-mail: vptsales@vpt-inc.com

DVMD28F/K Related Products

	DVMD28F/K	DVMD28F/H	DVMD28F/H-G	DVMD28F/ES	DVMD28F	DVMD28F/HB
Description	Data Line Filter, 1 Function(s), 28V, 7A, HERMATIC PACKAGE-5	Data Line Filter, 1 Function(s), 28V, 7A, HERMATIC PACKAGE-5	Data Line Filter, 1 Function(s), 28V, 7A,	Data Line Filter, 1 Function(s), 28V, 7A, HERMATIC PACKAGE-5	Data Line Filter, 1 Function(s), 28V, 7A, HERMATIC PACKAGE-5	Data Line Filter, 1 Function(s), 28V, 7A, HERMATIC PACKAGE-5
Maker	VPT Inc	VPT Inc	VPT Inc	VPT Inc	VPT Inc	VPT Inc
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum DC resistance	0.12 Ω	0.12 Ω	0.12 Ω	0.12 Ω	0.12 Ω	0.12 Ω
filter type	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
high	10.54 mm	10.54 mm	10.54 mm	10.54 mm	10.54 mm	10.54 mm
length	69.09 mm	69.09 mm	59.94 mm	69.09 mm	69.09 mm	69.09 mm
Installation type	PANEL MOUNT	PANEL MOUNT	THROUGH HOLE MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Number of functions	1	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
physical size	L69.09XB34.29XH10.54 (mm)/L2.72XB1.35XH0.415 (inch)	L69.09XB34.29XH10.54 (mm)/L2.72XB1.35XH0.415 (inch)	L59.94XB34.29XH10.54 (mm)/L2.36XB1.35XH0.415 (inch)	L69.09XB34.29XH10.54 (mm)/L2.72XB1.35XH0.415 (inch)	L69.09XB34.29XH10.54 (mm)/L2.72XB1.35XH0.415 (inch)	L69.09XB34.29XH10.54 (mm)/L2.72XB1.35XH0.415 (inch)
Rated current	7 A	7 A	7 A	7 A	7 A	7 A
Rated voltage	28 V	28 V	28 V	28 V	28 V	28 V
width	34.29 mm	34.29 mm	34.29 mm	34.29 mm	34.29 mm	34.29 mm
Base Number Matches	1	1	1	1	1	1
package instruction	HERMATIC PACKAGE-5	HERMATIC PACKAGE-5	-	HERMATIC PACKAGE-5	HERMATIC PACKAGE-5	HERMATIC PACKAGE-5
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99
Maximum attenuation frequency	0.5 MHz	0.5 MHz	-	0.5 MHz	0.5 MHz	0.5 MHz
Attenuation at maximum frequency	40 dB	40 dB	-	40 dB	40 dB	40 dB
JESD-609 code	e4	e4	-	e4	e4	e4
Terminal surface	GOLD	GOLD	-	GOLD	GOLD	GOLD
