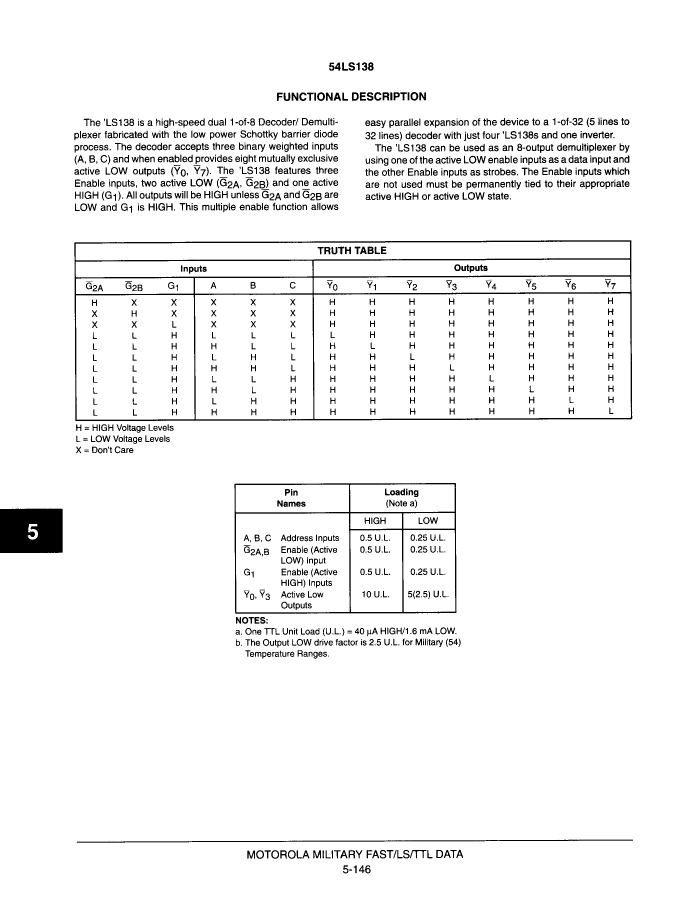

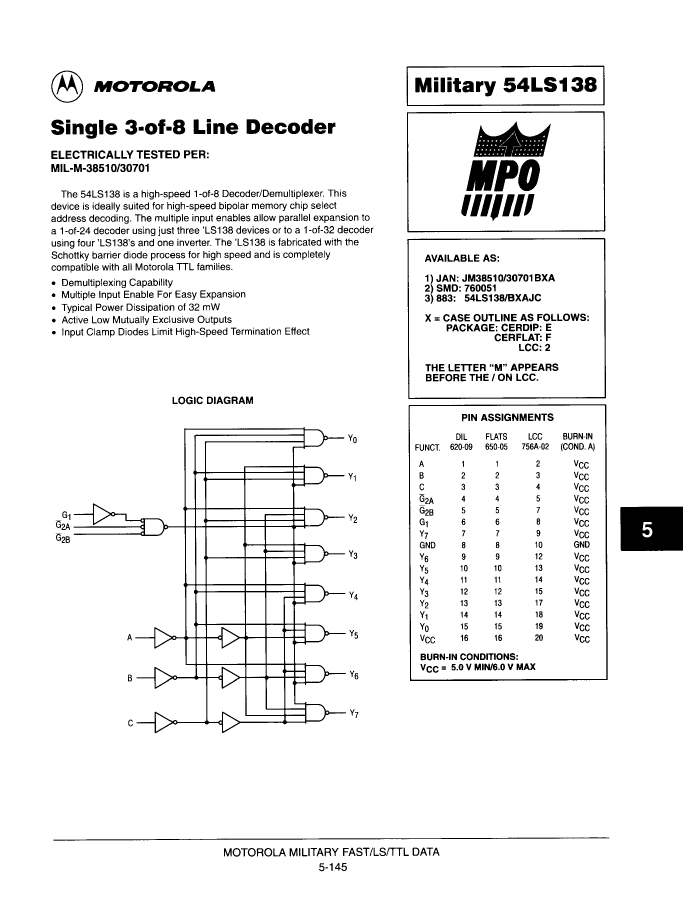

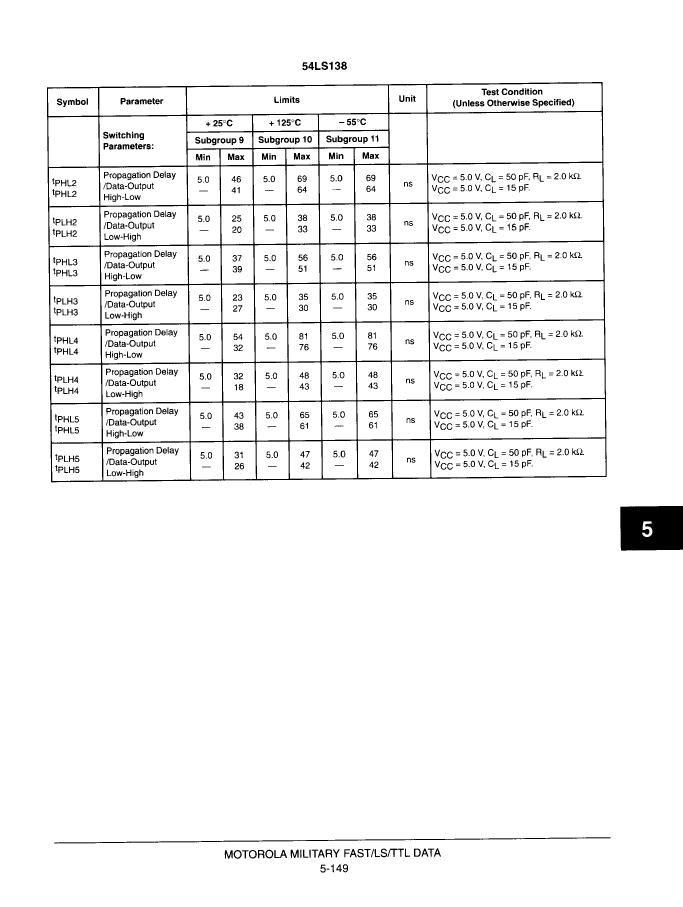

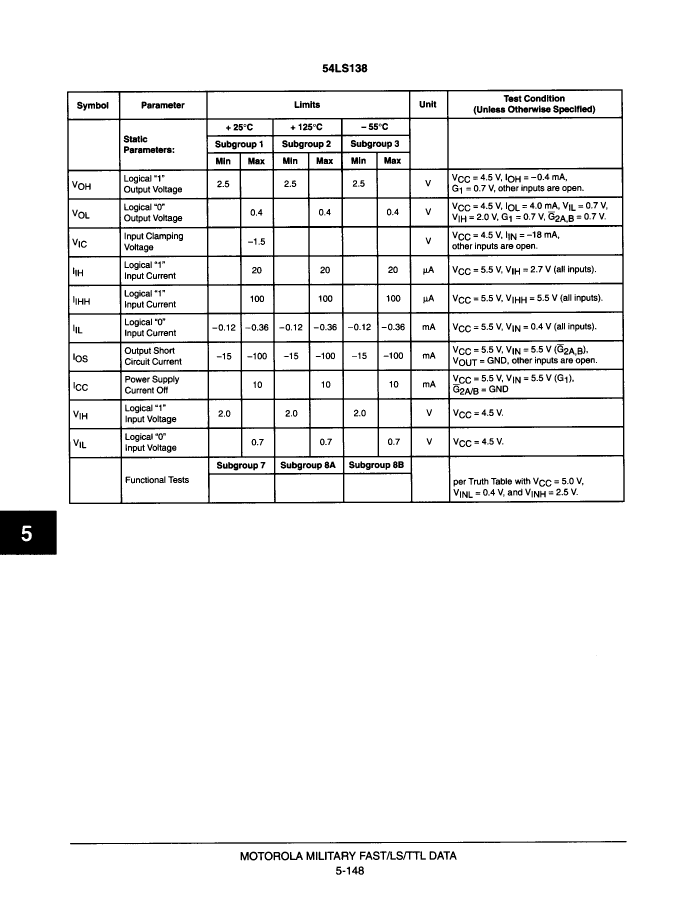

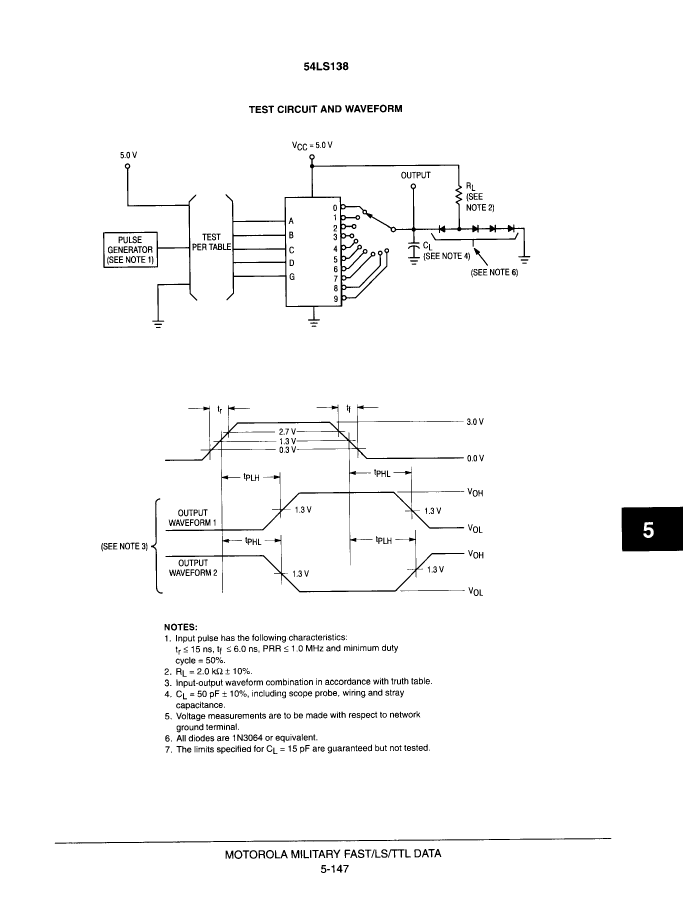

54LS138/BEAJC: DescriptionIC,DECODER/DEMUX,3-TO-8-LINE,LS-TTL,DIP,16PIN,CERAMIC; Categorylogic logic; File Size194KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric View All

54LS138/BEAJC Overview

IC,DECODER/DEMUX,3-TO-8-LINE,LS-TTL,DIP,16PIN,CERAMIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Logic integrated circuit type	OTHER DECODER/DRIVER
MaximumI(ol)	0.004 A
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	10 mA
Prop。Delay @ Nom-Sup	81 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1
