AZ-30.000MANI-T datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> AZ-30.000MANI-T

AZ-30.000MANI-T: DescriptionParallel - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size943KB，1 Pages; ManufacturerTXC Corporation; Websitehttp://www.txccrystal.com/; Environmental Compliance

Download Datasheet Parametric View All

AZ-30.000MANI-T Overview

Parallel - Fundamental Quartz Crystal,

AZ-30.000MANI-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7012765589
package instruction	SMD, 4 PIN
Reach Compliance Code	unknown
YTEOL	7.35
Other features	TR
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	30 ppm
load capacitance	16 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	30 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
physical size	L2.5XB2.0XH0.55 (mm)/L0.098XB0.079XH0.022 (inch)
Series resistance	80 Ω
surface mount	YES

Preview

Download Datasheet

View All

Automotive

Application Series

Remark : Speciﬁcation subject to change without prior notice. Please conﬁrm with our sales. http://www.txccorp.com

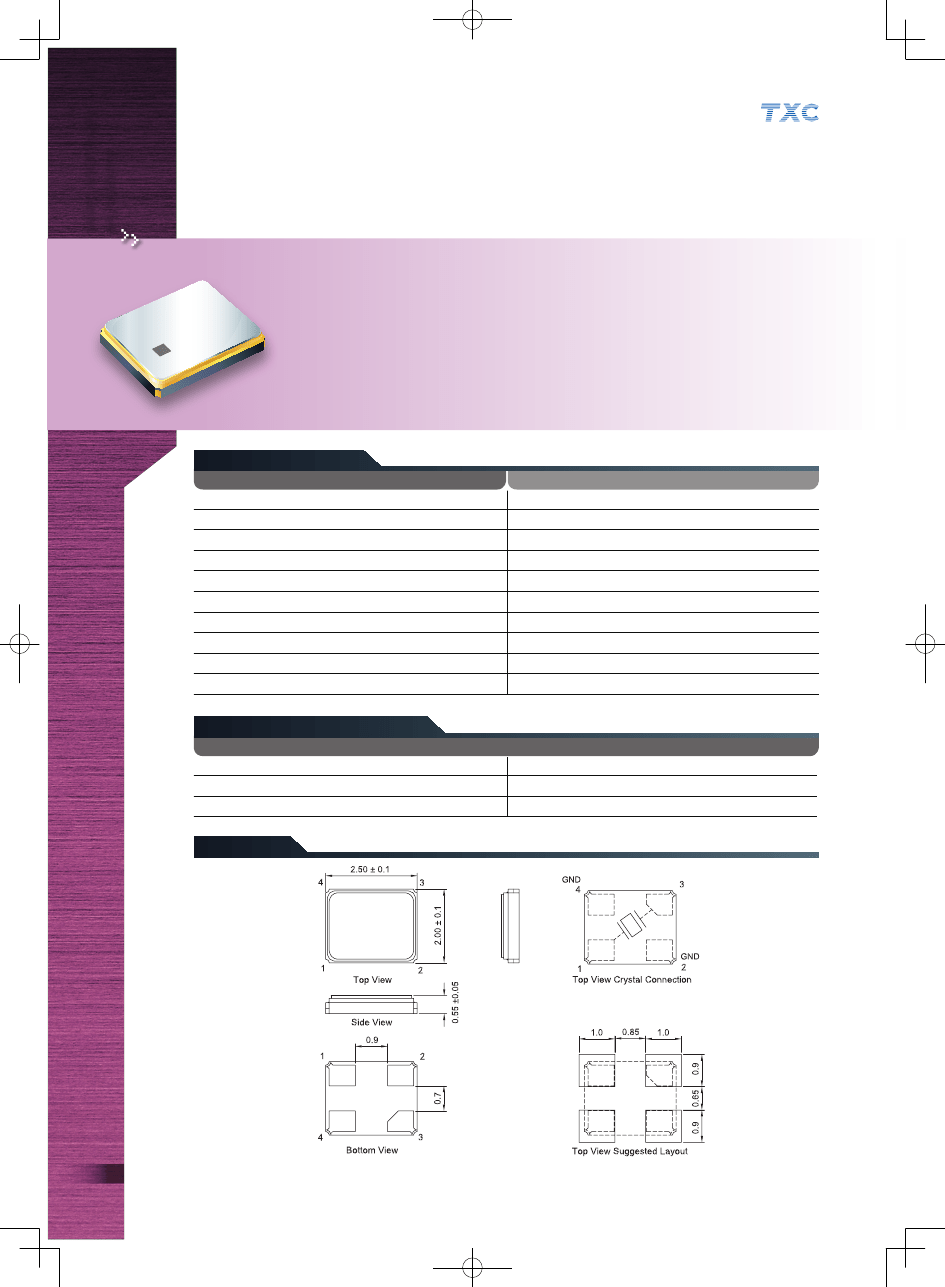

SMD Seam

Sealing Crystals

2.5 x 2.0 x 0.55 mm AZ Series

Features

．

eliable seam sealed ceramic package.

Think of Frequency Think of

come visit our site http://www.txccorp.com

48 01

．

Wide operating temperature range.

．

Superior performance and stringent reliability in harsh environment.

．

Application: TPMS, ECM, ABS and sensor modules.

．

Compact size.

．

RoHS Compliant / Pb Free.

Electrical Specifications

Item / Type

Frequency Range

Frequency Tolerance (at 25

℃

)

Frequency Stability Over Operating Temperature Range

Operating Temperature Range

Shunt Capacitance (C0)

Drive Level

Load Capacitance

Aging (at 25

℃

)

Storage Temperature Range

Reliability Standard

16 ~ 74.1 MHz

10 ppm,

30 ppm, or specify

50 ppm, or specify

-40 ~ +125

℃

3 pF Max.

1 ~200

W Max. (100uW typical)

8 pF, 10 pF, 12 pF, or specify

3 ppm / year Max.

- 40 ~ + 125

℃

AEC-Q200

Equivalent Series Resistance(ESR)

Fundamental

16 ~ 30 MHz 100

Max.

30 ~ 54 MHz

54 ~ 74.1 MHz

Max.

Dimensions

Units: mm
