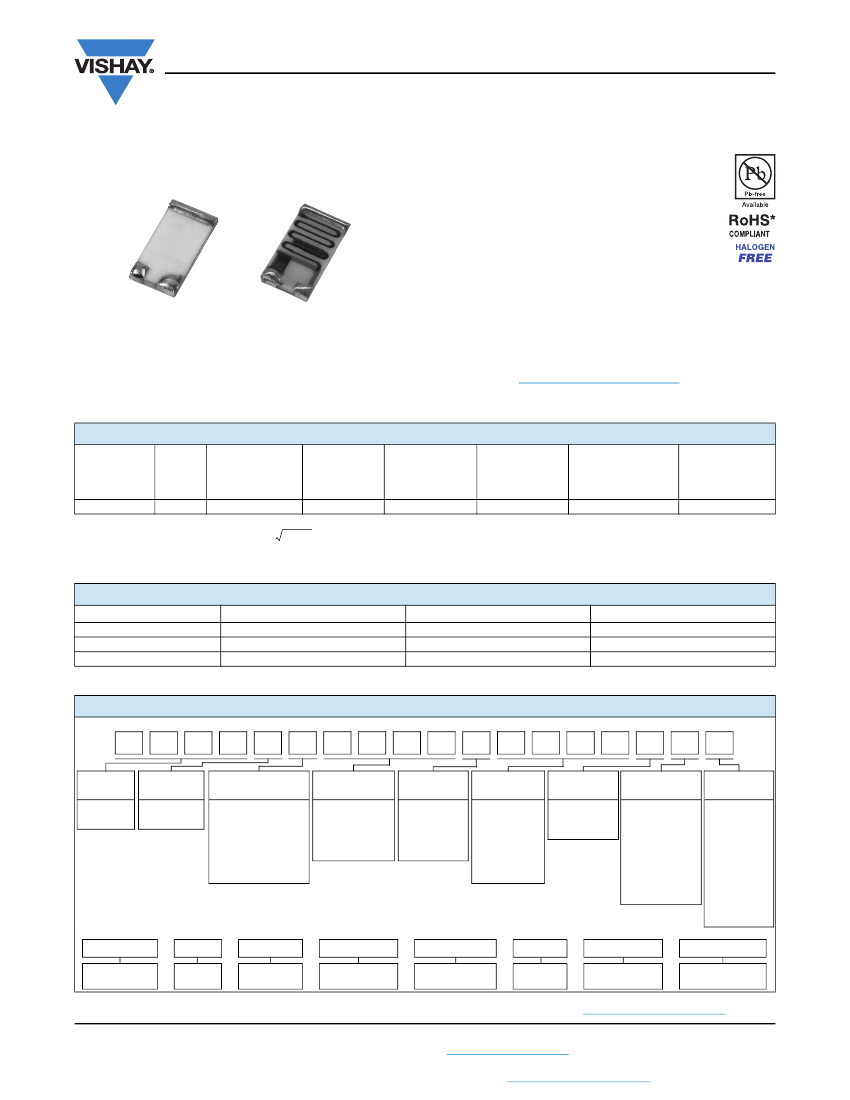

Thick Film Chip Dividers, High Voltage
FEATURES
•
•
•
•
•
•
•
•
•
•
High voltage up to 3000 V
Typical resistance ratios of 250:1, 500:1, etc.
Flow solderable
Tape and reel packaging available
Termination
style:
3-sided
wraparound
termination or single termination flip chip
available
Suitable for solderable, epoxy bondable, or
wire bondable applications
Termination material: Solder-coated nickel barrier
standard; gold, palladium silver, platinum gold, platinum
silver or platinum palladium gold terminations available
Multiple styles, termination materials and configurations,
allow wide design flexibility
Non-magnetic terminations available
Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
Lead (Pb)-containing terminations are not RoHS-compliant.
Exemptions may apply.
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL
CASE
SIZE
POWER RATING
P
70 °C
W
MAXIMUM
WORKING
VOLTAGE
(1)
V
3000
RESISTANCE
RANGE
(2)
TEMPERATURE
COEFFICIENT
(4)
TCR TRACKING
TOLERANCE
(3)
±%
(- 55 °C to + 150 °C)
± ppm/°C
± ppm/°C
1, 2, 5, 10, 20
100
50 (typical)
CDHV 2512
2512
Contact factory
20M to 20G
Notes
(1)
Continuous working voltage shall be
P
x
R
or maximum working voltage, whichever is less.
(2)
Resistance values are calibrated at 100 V . Calibration at other voltages available upon request. Contact factory for lower values.
DC
(3)
Contact factory for tighter tolerances.
(4)
Reference only: Not for all values specified. Consult factory for your value.
VOLTAGE AND TEMPERATURE COEFFICIENTS OF RESISTANCE CHART TYPICAL
RESISTANCE ()
20M
150M
800M
Note
• Contact factory for other ratios.
RATIO (TYPICAL)
250:1
300:1
500:1
VCR (ppm/V)
10
10
10
TCR (ppm/°C) - 55 °C to + 150 °C
100
150
200
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: CDHVAF20M0J2500GFB (preferred part number format)
C
GLOBAL
MODEL
D
TERM
STYLE
H
V
A
F
2
0
M
0
J
2
RATIO
R1/R2
5
0
0
G
F
B
TERM MATERIAL
RESISTANCE
VALUE (R1)
TOLERANCE
F
=±1%
G
=±2%
J
=±5%
K
= ± 10 %
M
= ± 20 %
RATIO
TOLERANCE
G
=±2%
H
=±3%
J
=±5%
SOLDER
TERMINATION
PACKAGING
CDHV
=
A
= 3-sided
CDHV2512
B
= Top only
F
= Nickel barrier
M = M
A
= Palladium silver
G = G
B
= Platinum gold
20M0
= 20 M
800M
= 800 M
C
= Gold
D
= Platinum silver
1G00
= 1 G
E
= Platinum
palladium gold
3 digit
significant
figure, followed
by a multiplier
2500
= 250:1
3000
= 300:1
5000
= 500:1
D
= Sn95/Ag5,
B
= Bulk
HSD
F
= T/R
E
= Sn100
(full reel)
1
= T/R
F
= Sn95/Ag5
(1000 pcs)
N
= No solder
5
= T/R
S
=
Sn62/Pb36/Ag2, (500 pcs)
T
= T/R
HSD
T
= Sn90/Pb10 (250 pcs min.)
W
= Waffle
tray
G
e2
Historical Part Numbering: CDHV2512AF2005J2500Ge2 (will continue to be accepted)
CDHV2512
A
F
2005
J
2500
HISTORICAL
TERM
TERM
RESISTANCE
RATIO
RATIO
SOLDER
TOLERANCE
MODEL
STYLE
MATERIAL
VALUE (R1)
R1/R2
TOLERANCE
TERMINATION
Note
• For additional information on packaging, refer to the Surface Mount Resistor Packaging document (www.vishay.com/doc?31543).
Revision: 13-Jul-12
Document Number: 68020
1
For technical questions, contact:
te1resistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
CDHV
www.vishay.com
Vishay Techno
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature:
- 55 °C to + 150 °C
Life:
Less than 0.5 % change when tested at full rated
power
(Reference only: Not for all values specified. Consult factory
for your size and value.)
MECHANICAL SPECIFICATIONS
Resistive element
Encapsulation
Substrate
Ruthenium oxide
Glass
96 % alumina
Solder-coated nickel barrier standard.
Gold, palladium silver, platinum gold,
platinum silver, platinum palladium gold
terminations available.
Pure tin or tin/lead solder alloys standard.
Tin/silver or tin/lead/silver solder
alloys available.
Termination
Solder finish

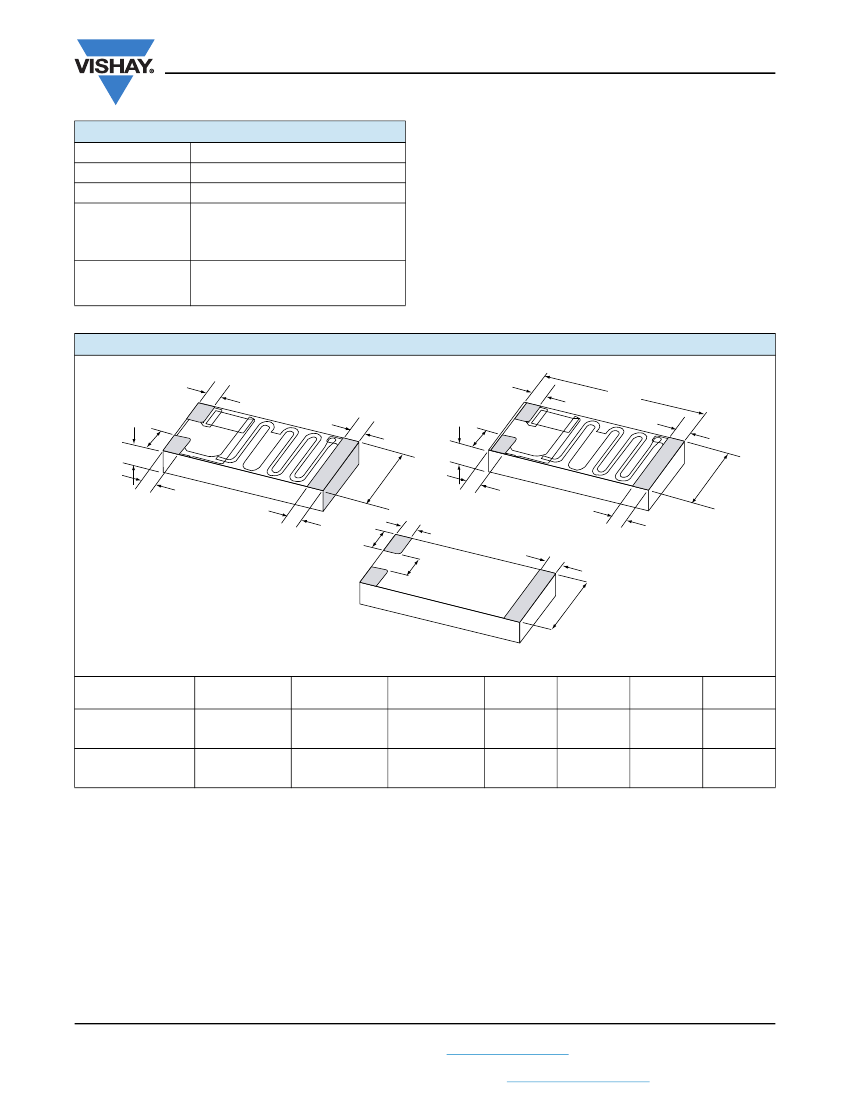

DIMENSIONS
in inches (millimeters)
B
B
L
A
C
T
B
W
T
B
C
A
W
Style A
A
C
B
Style B
A
E
A
W
Style A Bottom
(3-sided wraparound)
TERMINATION
STYLE A
(3-sided wraparound)
STYLE B
(top only)
LENGTH (L)
± 0.006 (0.152)
0.250
WIDTH (W)
± 0.006 (0.152)
0.126
THICKNESS (T)
± 0.005 (0.127)
0.025
A ± 0.005
0.025
B ± 0.005
0.025
C ± 0.005
0.040
E ± 0.005
0.046
0.240
0.126
0.025
0.025
0.025
0.040
-
Revision: 13-Jul-12
Document Number: 68020
2
For technical questions, contact:
te1resistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
CDHV
www.vishay.com
Vishay Techno
DERATING CURVE
120
% OF RATED POWER
100
80
60
40
20
0
20
50
70
100
150
AMBIENT TEMPERATURE IN °C
Note
• (Reference only: Not for all values specified. Consult factory for your specific value.)
TYPE
Solderable
Epoxy bondable/
solderable
Wire bondable/
epoxy bondable
TERMINATION
MATERIAL
Nickel barrier
Platinum palladium gold
Gold
Palladium silver
(2)
TERMINATION
STYLE
3-sided (wraparound)
Top only (flip chip)
Top only (flip chip)
Top only (flip chip)
TERMINATION STYLE/
MATERIAL CODE
AF
BF
BE
BC
BA
SOLDER TERMINATION
CODE
E or T (standard);
D, F or S (optional)
(3)
N (standard);
D or S (optional)
(1)
N
Epoxy bondable
Platinum gold
Platinum silver
Top only (flip chip)
BB
BD
N
Notes
(1)
Use solder termination N for applications requiring epoxy bondable mounting, and solder terminations D or S for applications requiring
solderable mounting.
(2)
While not recommended, palladium silver terminations could be used for solderable applications when using a solder alloy containing silver.
If the solder paste being used to solder the palladium silver terminated parts to the boards does not have a silver-based composition, then
the silver in the terminations could begin to leach when it is exposed to liquidus non-silver-based solders, causing the potential for
solderability and/or solder joint issues.
(3)
Standard solder plating for the nickel barrier parts are solder terminations E or T. Plated termination F and hot solder dipped terminations D
or S are also available.
Revision: 13-Jul-12
Document Number: 68020
3
For technical questions, contact:
te1resistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
