JANS4N23AU datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> JANS4N23AU

JANS4N23AU: DescriptionTransistor Output Optocoupler, 1-Element, 1000V Isolation, SURFACE MOUNT PACKAGE-6; CategoryLED optoelectronic/LED photoelectric; File Size81KB，17 Pages; ManufacturerMicropac; Websitehttp://www.micropac.com

Download Datasheet Parametric View All

JANS4N23AU Overview

Transistor Output Optocoupler, 1-Element, 1000V Isolation, SURFACE MOUNT PACKAGE-6

JANS4N23AU Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	SURFACE MOUNT PACKAGE-6
Reach Compliance Code	unknown
Coll-Emtr Bkdn Voltage-Min	35 V
Configuration	SINGLE
Current transmission ratio - minimum value	80%
Nominal current transfer ratio	60%
Maximum forward current	0.04 A
Maximum forward voltage	1.3 V
Maximum insulation voltage	1000 V
JESD-609 code	e0
Installation features	THROUGH HOLE MOUNT
Number of components	1
Maximum on-state current	0.05 A
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER
Maximum power dissipation	0.3 W
Maximum response time	0.000015 s
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

The documentation and process conversion

measures necessary to comply with this

revision shall be completed by 10 September 1997

INCH-POUND

MIL-PRF-19500/486E

10 June 1997

SUPERSEDING

MIL-S-19500/486D

27 June 1995

PERFORMANCE SPECIFICATION

SEMICONDUCTOR DEVICE, COUPLER, OPTOELECTRIC, SOLID STATE;

TYPES 4N22, 4N22A, 4N23, 4N23A, 4N24, 4N24A, 4N22U, 4N22AU,

4N23U, 4N23AU, 4N24U, 4N24AU; JAN, JANTX, JANTXV, AND JANS

This specification is approved for use by all Depart-

ments and Agencies of the Department of Defense.

1. SCOPE

1.1 Scope. This specification covers the performance requirements for solid state optically coupled isolators in which a gallium

arsenide or gallium aluminum arsenide diode light source is optically coupled to a silicon NPN phototransistor. Four levels of product

assurance are provided for each device type as specified in MIL-PRF-19500.

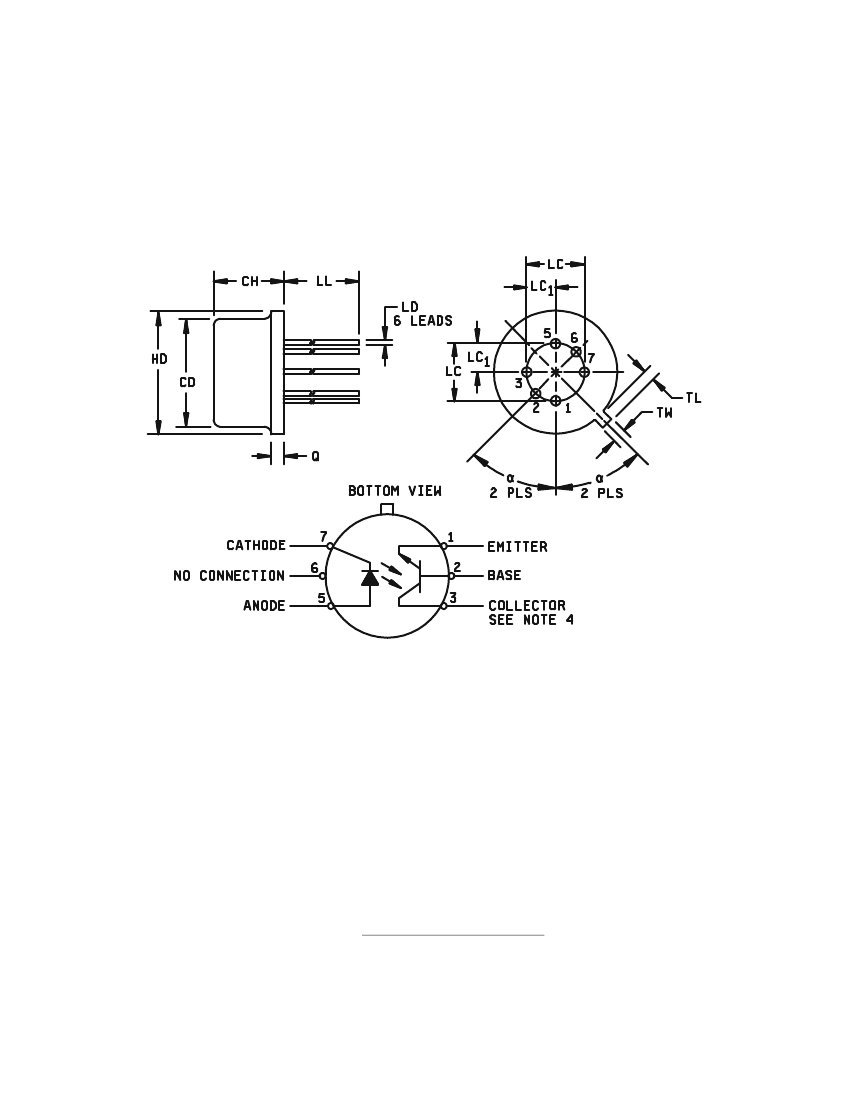

1.2 Physical dimensions. See figures 1 and 2.

1.3 Maximum ratings. Unless otherwise specified, maximum ratings apply to all case outlines and TA = +25°C.

1.3.1 Infrared-emitting diode maximum ratings.

IF 1/

IP 2/

V dc

mA dc

A (pk)

1/ Derate linearly to +125°C at 0.67 mA/°C above +65°C.

2/ 1.0

µs

pulse width, 300 pps.

1.3.2 Phototransistor maximum ratings.

VCEO

VCBO

VEBO

PT 1/

V dc

mA dc

300

1/ Derate linearly to +125°C at 3 mA/°C above +25°C.

1.3.1 Total device ratings.

TJ and TSTG

°C

-65 to +125

VIO

V dc

1,000 max

Beneficial comments (recommendations, additions, deletions) and any pertinent data which may be of use in improving this document

should be addressed to: Commander, Defense Supply Center Columbus, ATTN: DSCC-VAT, 3990 East Broad Street, Columbus, OH

43216-5000, by using the Standardization Document Improvement Proposal (DD Form 1426) appearing at the end of this document or

by letter.

AMSC N/A

DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.

FSC 5980
