5C1-520802A

Description
RF Relay,
CategoryMechanical and electronic products    relay
File Size773KB,2 Pages
ManufacturerDow-Key Microwave Corporation
Download Datasheet Parametric Compare View All

5C1-520802A Overview

RF Relay,

5C1-520802A Parametric

Parameter NameAttribute value
MakerDow-Key Microwave Corporation
Reach Compliance Codeunknown
ECCN codeEAR99
Relay typeRF RELAY
Base Number Matches1
5C1 Series SP12T Normally Open
SMA
C M A
Commercial
Military
Avionics
S
Space
RF Characteristics
Frequency
GHz
DC-4
4-8
8-12.4
12.4-18
VSWR
(max)
1.20
1.40
1.50
1.80
Isolation
dB (min)
70
65
60
60
Ins. Loss
dB (max)
0.20
0.40
0.60
0.80
5C1 Series Normally
Open, SMA
Specifications
Operating Voltage:
(across temperature range)
12 Vdc (11-14 Vdc)
28 Vdc (24-32 Vdc)
Coil Current (max @ nom.Vdc & 20°C):
12 Vdc 310 mA
28 Vdc 130 mA
Switching Time:
15 mS maximum
Operating Temperature:
-25ºC to +65ºC (Standard)
-55ºC to +85ºC (Extended “T” Option)
Mechanical Life, Cycles:
1,000,000 minimum
Vibration, Operating:
10 G RMS, 20-2000 Hz
Mechanical Shock, Non-Operating:
50 G, 1/2 Sine, 11 mS
Nominal Weight:
7.0 oz., (200g.)
Mechanical

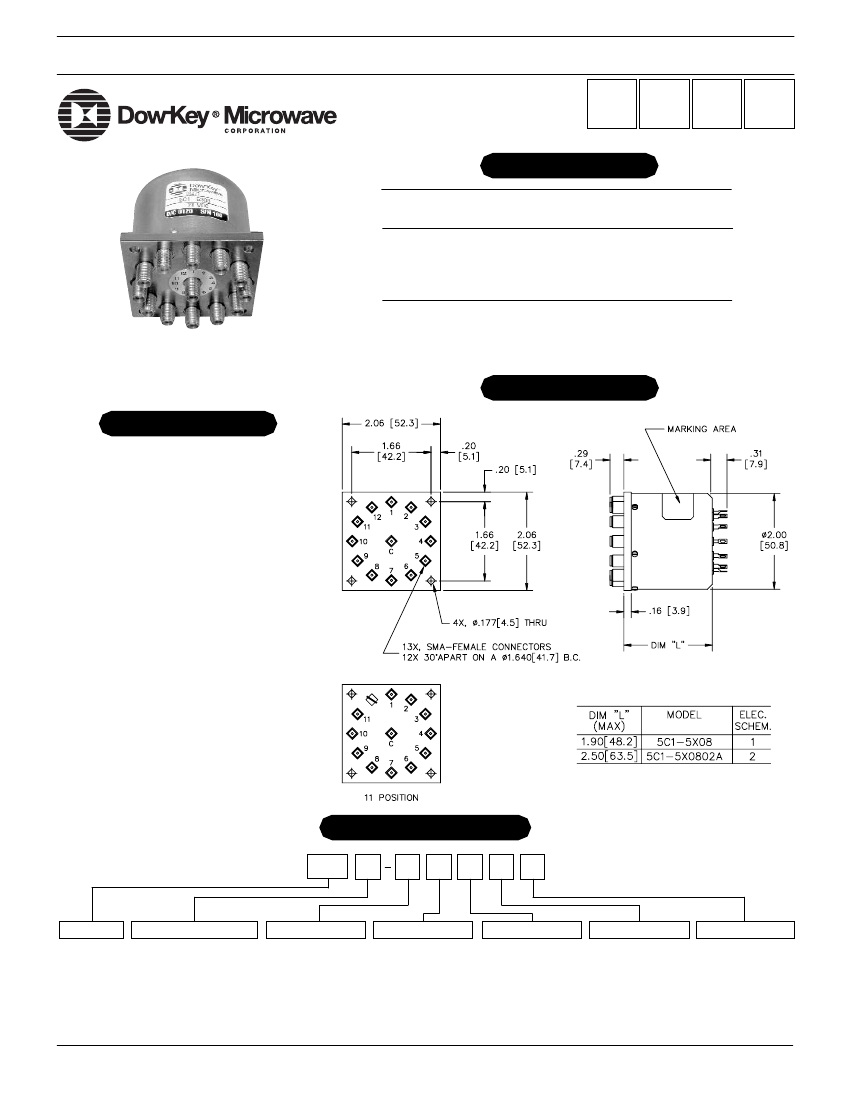

5C1-5X0822 Shown

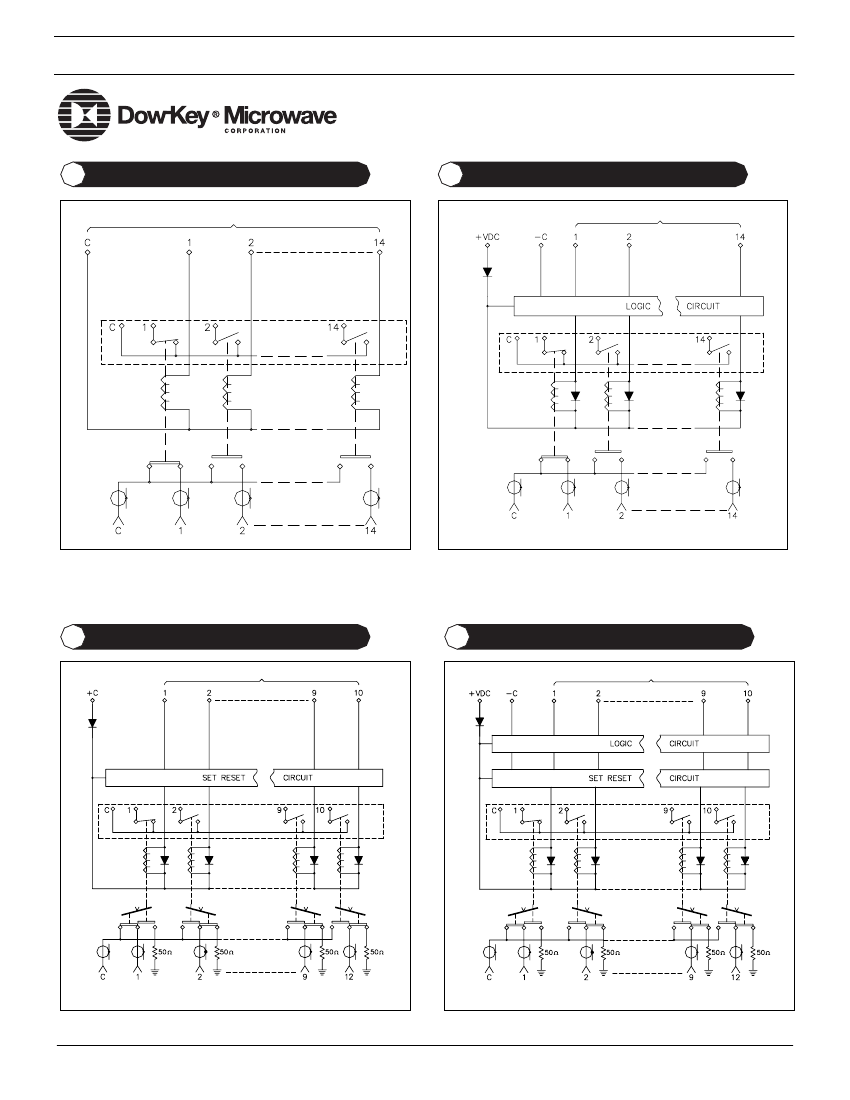

For Electrical Schematic
see page # 3-21
Part Number Selection
5C1
J
5
2
08
02
A
Family
Special Options
Actuator
Coil Voltage
Connectors
Indicators
Circuit Option
5B1
= SP11T
5C1
= SP12T
J
= 15 or 26* Pin ‘D’ Connector
5
= Normally Open
S
= Epoxy Seal
T
= -55
O
C to +85
O
C
2
= 12 Vdc
3
= 28 Vdc
8
= 24 Vdc
9
= 15 Vdc
08
= SMA Female
02
= No Indicators
22
= SPST Indictors
A
= TTL High
E
= BCD Decoding
N
= CANBus
T
= Ethernet
*26-Pin ‘D’ Connector is 3 row high density
ISO 9001 Certified
3-18
www.dowkey.com
