410-13-226-41-001 datasheet, PDF

Datasheet> All Categories > The connector> socket> 410-13-226-41-001

410-13-226-41-001: DescriptionIC Socket, 26 Contact(s); CategoryThe connector socket; File Size151KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

410-13-226-41-001 Overview

IC Socket, 26 Contact(s)

410-13-226-41-001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SIP SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (10) OVER NICKEL
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
JESD-609 code	e4
Manufacturer's serial number	410
Number of contacts	26
Base Number Matches	1

Preview

Download Datasheet

View All

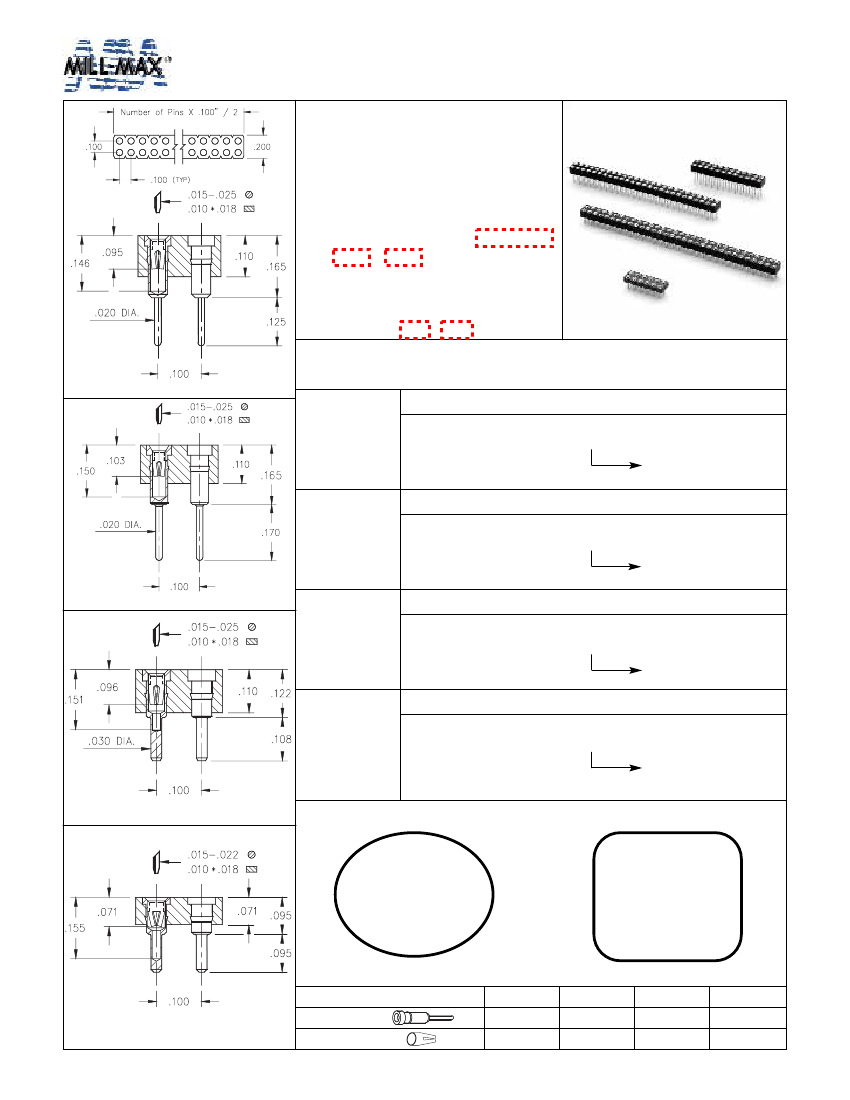

SINGLE-IN-LINE SOCKETS

Solder Tail

Double Row

•

Series 41X double row strip

sockets are on .100” grid.

•

Various solder pins available

(standard, long for multi-layer

boards, very low and ultra low).

Using Mill-Max pin #’s 1001, 0134,

0501 & 0703.

Hi-Rel, 4-finger BeCu #30 & #12

clips are rated at 3 amps.

See pages 207 & 208 for details.

Series 410, 411, 415

•

Ordering Information

Fig. 1

Series 410...001

Standard Solder Tail

Fig. 1

410-XX-2_ _-41-001

Specify # of pins

Series 411...001

02-64

Long Solder Tail

Fig. 2

411-XX-2_ _-41-001

Specify # of pins

Series 415...001

02-64

Very Low Profile

Fig. 3

415-XX-2_ _-41-001

Specify # of pins

Series 415...003

02-64

Ultra Low Profile

Fig. 4

415-XX-2_ _-41-003000

Specify # of pins

02-72

(Standard Insulator is High Temperature)

Fig. 3

XX= Plating Code

See Below

For High

Temperature

Insulators Add

‘100’

To End Of

Part Numbers

10µ” Au

30µ” Au

200µ” Sn/Pb

30µ” Au

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Fig. 4

Contact (Clip)

Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253
