D AP, CRCW-AP
Vishay Draloric
Thick Film, Rectangular Chip Resistors
for Conductive Gluing
FEATURES
•
•
•
•
•
AgPd-Terminations for conductive gluing
Stability
ΔR/R
= 1 % for 1000 h at 70 °C
Metal glaze on high quality ceramic
Compliant to RoHS directive 2002/95/EC
Halogen-free according to IEC 61249-2-21
definition
STANDARD ELECTRICAL SPECIFICATIONS
SIZE
MODEL
INCH
METRIC
RATED
DISSIPATION
P
70
W
0.063
LIMITING
ELEMENT
VOLTAGE
U
max.
AC/DC
50
TEMPERATURE
COEFFICIENT
ppm/K
TOLERANCE
%
±1
±5
±1
±5
±1
±5
±1
±5
±1
±5
±1
±5
±1
±5
±1
±5
RESISTANCE
RANGE
Ω
100R to 10M
10R to 10M
18R to 10M
3R6 to 10M
18R to 10M
3R6 to 10M
18R to 10M
3R6 to 10M
18R to 10M
3R6 to 10M
18R to 2M2
3R6 to 2M2
18R to 10M
3R6 to 10M
18R to 10M
3R6 to 10M
SERIES
E24; E96
E24
E24; E96
E24
E24; E96
E24
E24; E96
E24
E24; E96
E24
E24; E96
E24
E24; E96
E24
E24; E96
E24
D10 AP
0402
RR 1005M
D11 AP
0603
RR 1608M
D12 AP
0805
RR 2012M
D25 AP
1206
RR 3216M
CRCW1210-AP
1210
RR 3225M
CRCW1218-AP
1218
RR 3246M
CRCW2010-AP
2010
RR 5025M
CRCW2512-AP
2512
RR 6332M
± 100
± 200
Zero-Ohm-Resistor:
R
max.
< 200 mΩ,
I
max.
= 0.5 A
± 100
0.10
75
± 200
Zero-Ohm-Resistor:
R
max.
< 200 mΩ,
I
max.
= 0.7 A
± 100
0.125
150
± 200
Zero-Ohm-Resistor:
R
max.
< 200 mΩ,
I
max.
= 0.8 A
± 100
0.25
200
± 200
Zero-Ohm-Resistor:
R
max.
< 200 mΩ,
I
max.
= 1.0 A
± 100
0.50
200
± 200
Zero-Ohm-Resistor:
R
max.
< 200 mΩ,
I
max.
= 1.5 A
± 100
1.0
200
± 200
Zero-Ohm-Resistor:
R
max.
< 200 mΩ,
I
max.
= 2.0 A
± 100
0.75
400
± 200
Zero-Ohm-Resistor:
R
max.
< 200 mΩ,
I
max.
= 1.8 A
± 100
1.0
500
± 200
Zero-Ohm-Resistor:
R
max.
< 200 mΩ,
I
max.
= 2.0 A
Notes
•
These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift increasing over
operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a functional time.
•
Marking and packaging: See datasheet "Surface Mount Resistor Marking" (document number 20020)
•
Power rating depends on the max. temperature at the joint point, the component placement density and the substrate material.
TECHNICAL SPECIFICATIONS
PARAMETER
Rated dissipation
P
70 (1)
Limiting element voltage
U
max.
AC/DC
Insulation voltage
U
ins.
(1 min)
Insulation resistance
Category temperature
range
Failure rate
Weight
(1)
UNIT D10 AP D11 AP D12 AP D25 AP CRCW1210-AP CRCW1218-AP CRCW2010-AP CRCW2512-AP
W
0.063
0.1
0.125
0.25
0.5
1.0
0.75
1.0
V
V
Ω
°C
h
-1
mg
0.65
2
5.5
10
16
50
> 75
75
> 100
150
> 200
200
> 300
200
> 300
> 10
9
- 55 to + 155
< 0.1 x 10
- 9
29.5
25.5
40.5
200
> 300
400
> 300
500
> 300
Note
The power dissipation on the resistors generates a temperature rise against the local ambient, depending on the heat flow support of the
printed-circuit board (thermal resistance). The rated dissipation applies only if the permitted film temperature of 155 °C is not exceed.
Document Number: 20038
Revision: 29-Oct-10
For technical questions, contact:
thickfilmchip@vishay.com
www.vishay.com
227
D AP, CRCW-AP
Vishay Draloric
Thick Film, Rectangular Chip Resistors
for Conductive Gluing
PART NUMBER AND PRODUCT DESCRIPTION
(Equal to or smaller than 1206 case size)
Part Numbering: D1208058B5620FP5
(1)
D
1
2
0
8
0
5
TCR
8
B
5
VALUE
6
2
0
F
P
5
SPECIAL
Up to 2 digits
MODEL/SIZE
D100402
D110603
D120805
D251206
SPECIAL CHARACTER
8
= AgPd terminations
for conductive glueing
TOLERANCE
F
=±1%
J
=±5%
0
= Jumper
PACKAGING
P0
P5
PN
PZ
B5
BN
B =
± 100 ppm/K
A =
± 200 ppm/K
0
= Jumper
3 digit value
1 digit multiplier
MULTIPLIER
7
= *10
-3
8
= *10
-2
9
= *10
-1
0
= *10
0
1
= *10
1
2
= *10
2
3
= *10
3
4
= *10
4
5
= *10
5
6
= *10
6
0000
= Jumper
Product Description: D12 AP 100 562R 1 % P5
D12 AP
MODEL
D10 AP
D11 AP
D12 AP
D25 AP
100
TCR
±
100
ppm/K
±
200
ppm/K
562R
RESISTANCE VALUE
49K9
= 49.9
Ω
5R1
= 5.1 kΩ
0R0
= Jumper
1%
TOLERANCE
±
1%
±
5%
P5
PACKAGING
P0
P5
PN
PZ
B2
B4
B5
BN
BVxxxxx
SPECIAL
(2)
Customized
part number is
available on
request
PART NUMBER AND PRODUCT DESCRIPTION
(Equal to or larger than 1210 case size)
Part Numbering: CRCW2010562RFKB4AP
(1)
C
R
C
W
2
0
1
0
5
6
2
TCR
R
F
K
B
4
A
P
MODEL/SIZE
CRCW1210
CRCW1218
CRCW2010
CRCW2512
SPECIAL CHARACTER
R
= Decimal
K
= Thousand
M
= Million
0000
= Jumper
TOLERANCE
F
= ± 1.0 %
J
= ± 5.0 %
Z
= Jumper
PACKAGING
B2
B4
SPECIAL
Up to 2 digits
AP
= Conductive gluing
K
= ± 100 ppm/K
N
= ± 200 ppm/K
0
= Jumper
Product Description: CRCW2010-AP 100 562R 1 % B4
CRCW2010-AP
MODEL
CRCW1210-AP
CRCW1218-AP
CRCW2010-AP
CRCW2512-AP
200
TCR
±
100
ppm/K
±
200
ppm/K
562R
RESISTANCE VALUE
10R
= 10
Ω
562R
= 562
Ω
10K
= 10 kΩ
1M
= 1 MΩ
0R0
= Jumper
5%
TOLERANCE
±
1
%
±
5
%
B4
PACKAGING
B2
B4
BVxxxxx
SPECIAL
(2)
Customized
part number is
available on
request
Notes
(1)
Preferred way for ordering products is by use of the PART NUMBER.
(2)
Detailed BV number will appear on the packaging label.
www.vishay.com
228
For technical questions, contact:
thickfilmchip@vishay.com
Document Number: 20038
Revision: 29-Oct-10
D AP, CRCW-AP
Thick Film, Rectangular Chip Resistors
for Conductive Gluing
PACKAGING
MODEL
UNIT
180 mm/7"
330 mm/13"
180 mm/7"
285 mm/11.25"
330 mm/13"
180 mm/7"
285 mm/11.25"
330 mm/13"
180 mm/7"
285 mm/11.25"
330 mm/13"
180 mm/7"
285 mm/11.25"
330 mm/13"
180 mm/7"
180 mm/7"
180 mm/7"
PAPER TAPE
ACC. IEC 60286-3, TYPE I
(4)
QUANTITY
10 000
50 000
5000
10 000
20 000
5000
10 000
20 000
5000
10 000
20 000
5000
10 000
20 000
CODE
P0
PZ
P5
P0
PN
P5
P0
PN
P5
P0
PN
P5
P0
PN
BLISTER TAPE
ACC. IEC 60286-3, TYPE II
QUANTITY
CODE
Vishay Draloric
D10 AP
D11 AP
5000
20 000
5000
20 000
5000
15 000
B5
BN
B5
BN
B5
BN
D12 AP
D25 AP
CRCW1210-AP
CRCW1218-AP
CRCW2010-AP
CRCW2512-AP
4000
4000
2000
4000
B4
B4
B2
B4
Note
(4)
Flame treated paper for sizes D10 and D11. Regular paper for sizes D12 and D25.
DIMENSIONS
SIZE
INCH
0402
0603
0805
1206
1210
1218
2010
2512
METRIC
1005
1608
2012
3216
3225
3246
5025
6332
L
1.0 ± 0.05
1.55
2.0
3.2
+ 0.10
- 0.05
+ 0.20
- 0.10
+ 0.10
- 0.20
DIMENSIONS
in millimeters
W
0.5 ± 0.05
0.85 ± 0.1
1.25 ± 0.15
1.6 ± 0.15
2.5 ± 0.2
4.6 ± 0.15
2.5 ± 0.15
3.15 ± 0.15
H
T1
T2
0.2
+ 0.10
- 0.15
GLUING PADS DIMENSIONS
in millimeters
a
0.4
0.9
0.9
1.1
0.9
1.05
1.0
1.0
b
0.6
0.9
1.3
1.7
2.5
4.9
2.5
3.2
l
0.5
1.0
1.3
2.3
2.0
1.9
3.9
5.2
0.35 ± 0.05 0.25 ± 0.05
0.45 ± 0.05
0.45 ± 0.05
0.55 ± 0.05
0.55 ± 0.05
0.55 ± 0.05
0.6 ± 0.1
0.6 ± 0.1
0.3 ± 0.2
0.3
+ 0.20
- 0.10
0.3 ± 0.2
0.3 ± 0.2
0.4 ± 0.2
0.4 ± 0.2
0.4 ± 0.2
0.6 ± 0.2
0.6 ± 0.2
0.45 ± 0.2
0.45 ± 0.2
0.45 ± 0.2
0.6 ± 0.2
0.6 ± 0.2
3.2 ± 0.2
3.2
+ 0.10
- 0.20
5.0 ± 0.15
6.3 ± 0.2
Document Number: 20038
Revision: 29-Oct-10
For technical questions, contact:
thickfilmchip@vishay.com
www.vishay.com
229
D AP, CRCW-AP
Vishay Draloric
Thick Film, Rectangular Chip Resistors
for Conductive Gluing

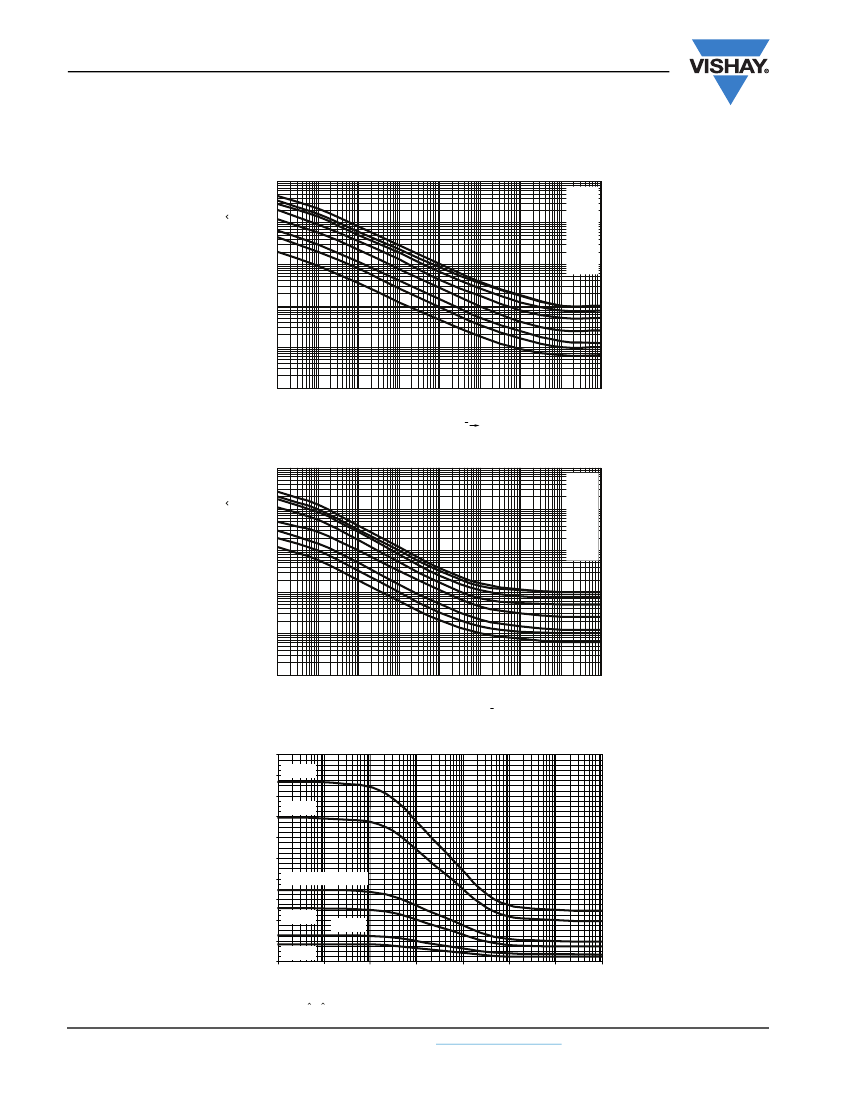

FUNCTIONAL PERFORMANCE
Single Pulse
Pulse Load
P
max.
(W)
1000
2512
1218
2010
1210
1206
0805
0603
0402
100
10
1
0.1
0.01
10
-6
10
-5
10
-4
10
-3
10
-2
10
-1
1
10
100
Pulse Duration
t
i
(s)
Maximum pulse load, single pulse; applicable if
P
0 and n < 1000 and
Û
≤
Û
max.
;
for permissible resistance change equivalent to
8000
h operation
Continuous Pulse
Continuous Pulse Load
P
max.
(W)
1000
2512
1218
2010
1210
1206
0805
0603
0402
100
10
1
0.1
0.01
10
-6
10
-5
10
-4
10
-3
10
-2
10
-1
1
10
100
Pulse Duration
t
i
(s)
Maximum pulse load, continuous pulses; applicable if
P
≤
P
(ϑ
amb
) and
Û
≤
Û
max.
;
for permissible resistance change equivalent to
8000
h operation
Pulse Voltage
Pulse Voltage
Û
max.
(V)
2000
1800
1600
1400
1200
1000
800
600
400
200
0402
0
-6
10
- 5
10
10
- 4
10
- 3
10
- 2
10
- 1
1
10
0805
0603
1206/1210/1218
2010
2512
Pulse Duration
t
i
(s)
Maximum pulse
voltage,
single and continuous pulses; applicable if
P
≤
P
max.
; for permissible resistance change equivalent to
8000
h operation
www.vishay.com
230
For technical questions, contact:
thickfilmchip@vishay.com
Document Number: 20038
Revision: 29-Oct-10
D AP, CRCW-AP
Thick Film, Rectangular Chip Resistors
for Conductive Gluing
Derating
Fraction of Rated Dissipation in
%
120
100
Vishay Draloric
80
60
40
20
0
- 55
- 25
0
25
50
75
70
100
125
155 175
Ambient Temperature in °C
Non-Linearity
Attenuation of 3rd Harmonic A
3
in dB
120
100
80
1206, 2010
0805
60
40
20
0
10
0603
0402
100
1K
10K
100K
1M
10M
Resistance Value
R
in
Ω
Current Noise
Current Noise
A
1
in µV/V
100
10
2
040
03
06
5
0
8
0 6
20
1
0
201
1
0.1
0.01
100
1K
10K
100K
1M
10M
Resistance Value
R
in
Ω
Document Number: 20038
Revision: 29-Oct-10
For technical questions, contact:
thickfilmchip@vishay.com
www.vishay.com
