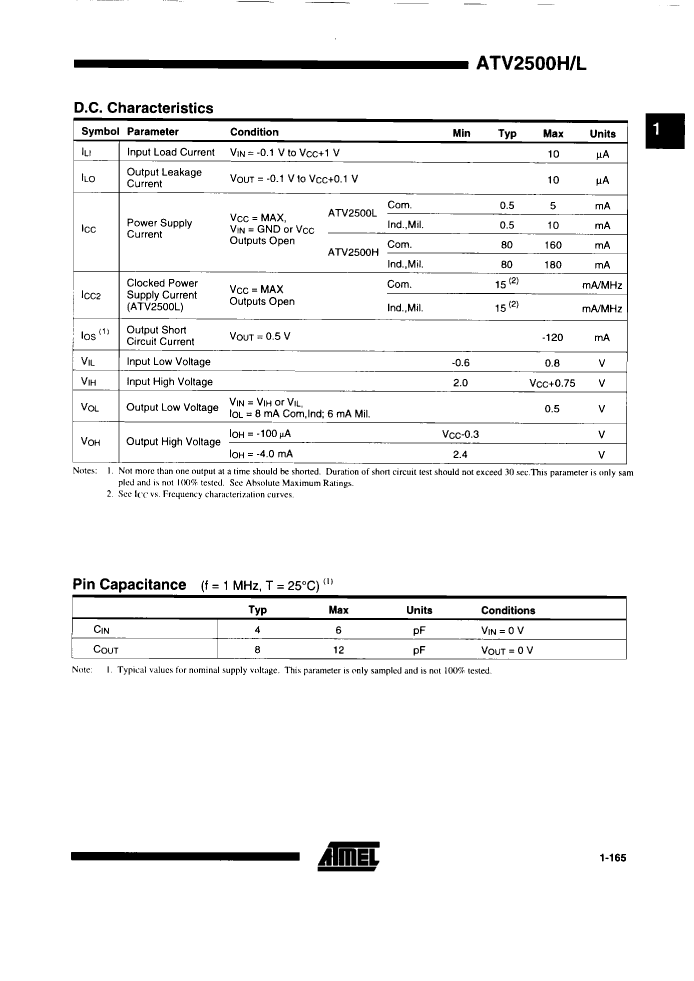

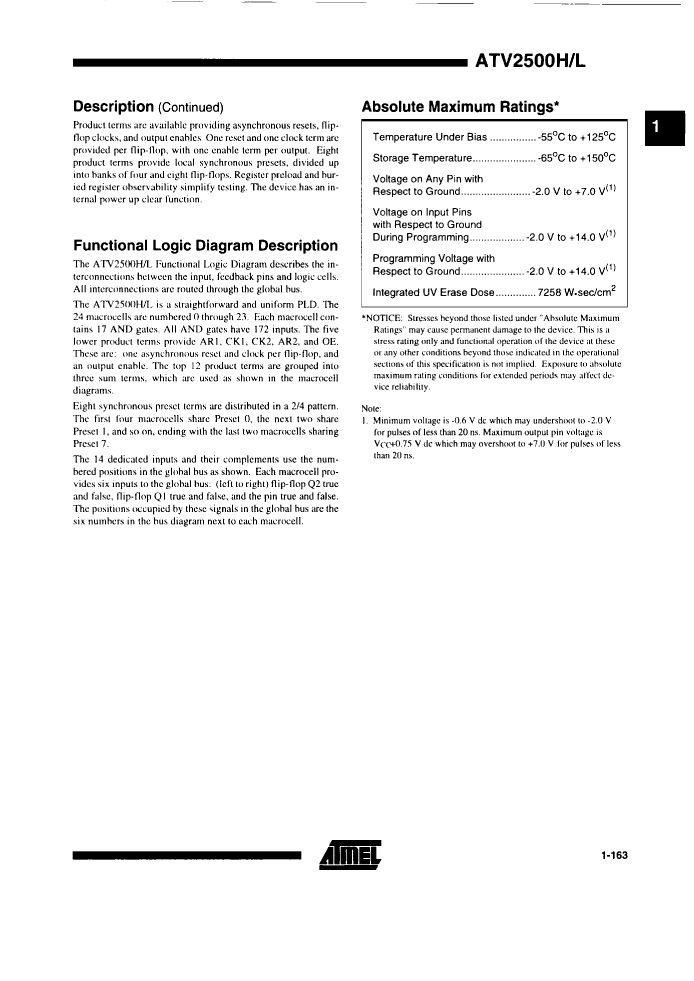

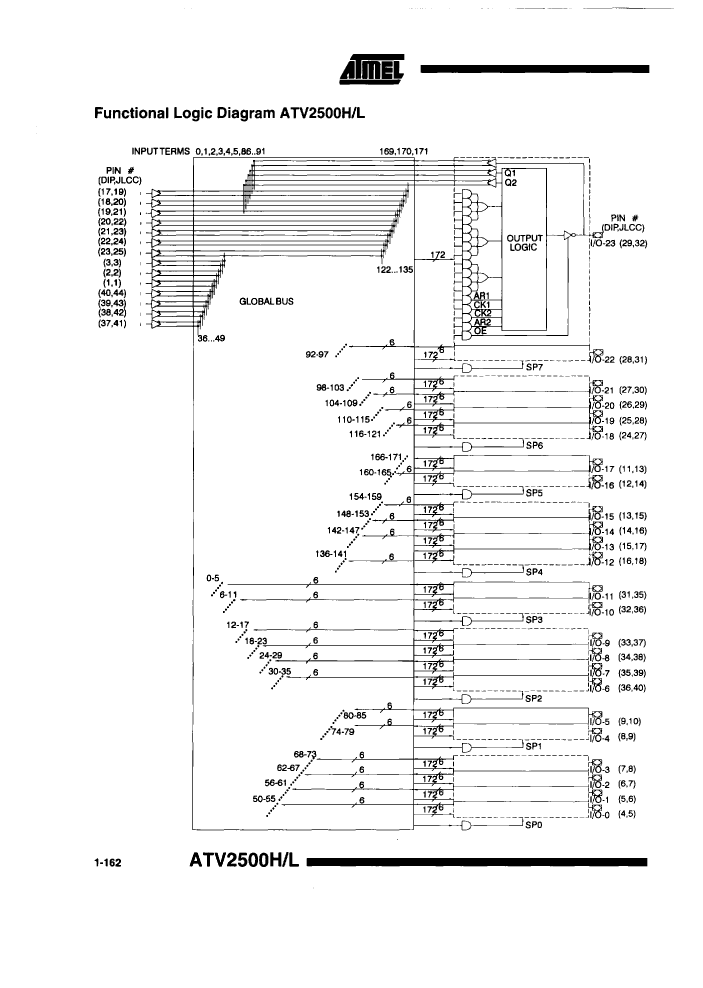

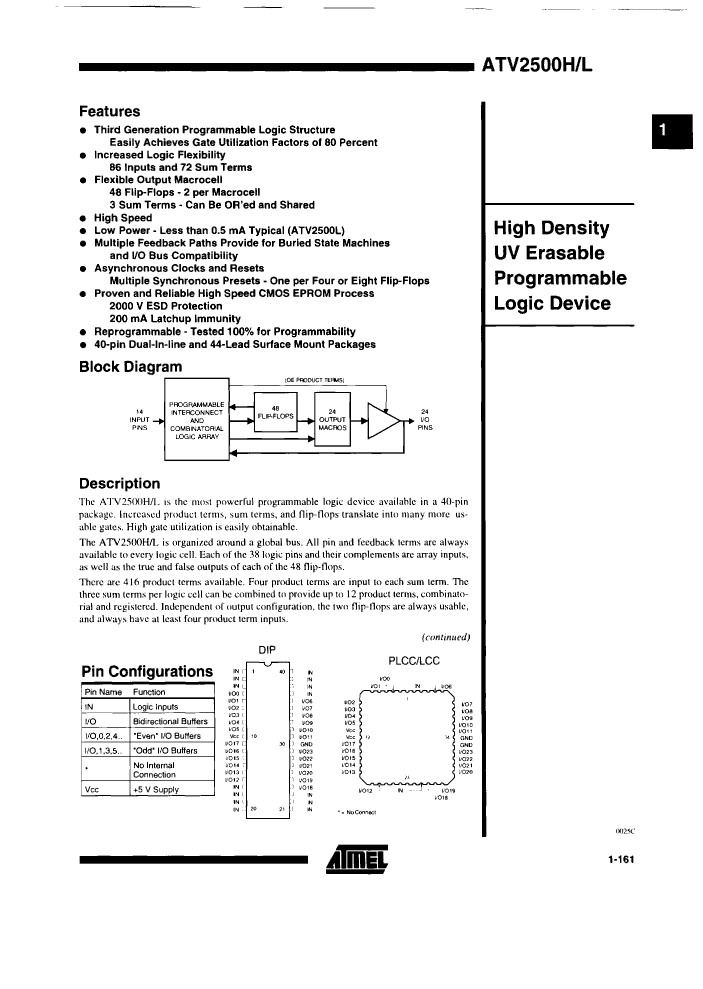

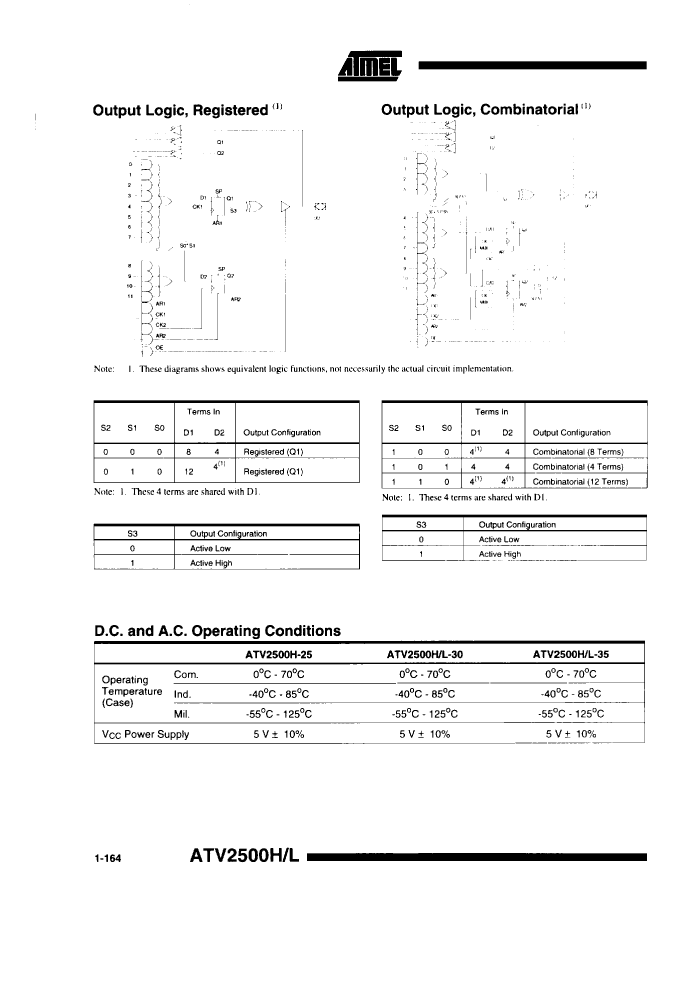

Preview

5962-9154502MYA: DescriptionUV PLD, 25ns, CMOS, CQCC44, WINDOWED, CERAMIC, JLCC-44; CategoryProgrammable logic devices Programmable logic; File Size365KB，14 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

5962-9154502MYA Overview

UV PLD, 25ns, CMOS, CQCC44, WINDOWED, CERAMIC, JLCC-44

5962-9154502MYA Parametric

Parameter Name	Attribute value
Parts packaging code	LCC
package instruction	WQCCJ,
Contacts	44
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	24 MACROCELLS
maximum clock frequency	40 MHz
JESD-30 code	S-CQCC-J44
JESD-609 code	e0
length	16.65 mm
Dedicated input times	14
Number of I/O lines	24
Number of terminals	44
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	14 DEDICATED INPUTS, 24 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQCCJ
Package shape	SQUARE
Package form	CHIP CARRIER, WINDOW
Programmable logic type	UV PLD
propagation delay	25 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	4.57 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.65 mm
Base Number Matches	1

Preview

Download Datasheet

View All

5962-9154502MYA Related Products

	5962-9154502MYA	5962-9154502MXA	5962-9154503MYA	5962-9154503MXA
Description	UV PLD, 25ns, CMOS, CQCC44, WINDOWED, CERAMIC, JLCC-44	UV PLD, 25ns, CMOS, CQCC44, WINDOWED, CERAMIC, LCC-44	UV PLD, 30ns, CMOS, CQCC44, WINDOWED, CERAMIC, JLCC-44	UV PLD, 30ns, CMOS, CQCC44, WINDOWED, CERAMIC, LCC-44
Parts packaging code	LCC	LCC	LCC	LCC
package instruction	WQCCJ,	WQCCN,	WQCCJ,	WQCCN,
Contacts	44	44	44	44
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Other features	24 MACROCELLS	24 MACROCELLS	24 MACROCELLS	24 MACROCELLS
maximum clock frequency	40 MHz	40 MHz	33 MHz	33 MHz
JESD-30 code	S-CQCC-J44	S-CQCC-N44	S-CQCC-J44	S-CQCC-N44
JESD-609 code	e0	e0	e0	e0
length	16.65 mm	16.55 mm	16.65 mm	16.55 mm
Dedicated input times	14	14	14	14
Number of I/O lines	24	24	24	24
Number of terminals	44	44	44	44
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
organize	14 DEDICATED INPUTS, 24 I/O	14 DEDICATED INPUTS, 24 I/O	14 DEDICATED INPUTS, 24 I/O	14 DEDICATED INPUTS, 24 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQCCJ	WQCCN	WQCCJ	WQCCN
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER, WINDOW	CHIP CARRIER, WINDOW	CHIP CARRIER, WINDOW	CHIP CARRIER, WINDOW
Programmable logic type	UV PLD	UV PLD	UV PLD	UV PLD
propagation delay	25 ns	25 ns	30 ns	30 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum seat height	4.57 mm	3.05 mm	4.57 mm	3.05 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	J BEND	NO LEAD	J BEND	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD
width	16.65 mm	16.55 mm	16.65 mm	16.55 mm
Base Number Matches	1	1	1	1
Maker	-	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)
