CF97-50AF-6TB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> CF97-50AF-6TB

CF97-50AF-6TB: DescriptionRectangular Connector Adapter, 50 Contacts(Side1), 50 Contacts(Side2), Panel Mount, Male-Female,; CategoryThe connector The connector; File Size93KB，3 Pages; ManufacturerCinch Connectivity Solutions

Download Datasheet Parametric View All

CF97-50AF-6TB Overview

Rectangular Connector Adapter, 50 Contacts(Side1), 50 Contacts(Side2), Panel Mount, Male-Female,

CF97-50AF-6TB Parametric

Parameter Name	Attribute value
Maker	Cinch Connectivity Solutions
Reach Compliance Code	compliant
Other features	LATCHED
Body/casing type	PLUG-SOCKET
Connector type	RECTANGULAR CONNECTOR ADAPTER
Contact completed and terminated	TIN LEAD
Contact point gender	MALE-FEMALE
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	CF97
Mixed contacts	NO
Installation type	PANEL
触点数量:侧 1	50
触点数量:侧 2	50
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYESTER
direct connection	YES
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

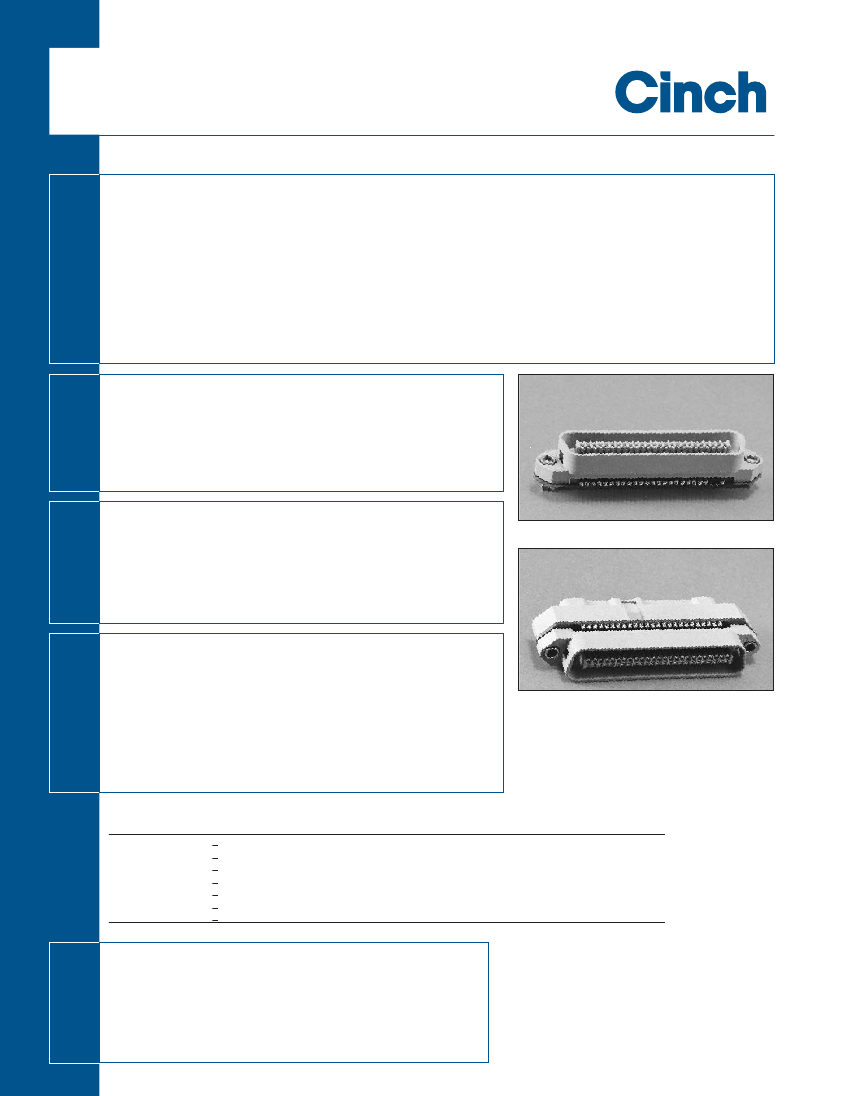

.085 in. (2.16mm)

Density

Miniature Ribbon

Filtered

Vertical-Mount Solder Tail

and Male/Female Adapter

■

EATURES

NVIRONMENTAL

ATERIALS

■

Low-pass (single-pole, capacitive) filtered contacts reduce inbound and outbound conducted

EMI standard capacitance values of 50pF through 1,200pF.

Saves space by incorporating required filter functions directly into footprint of I/O connector.

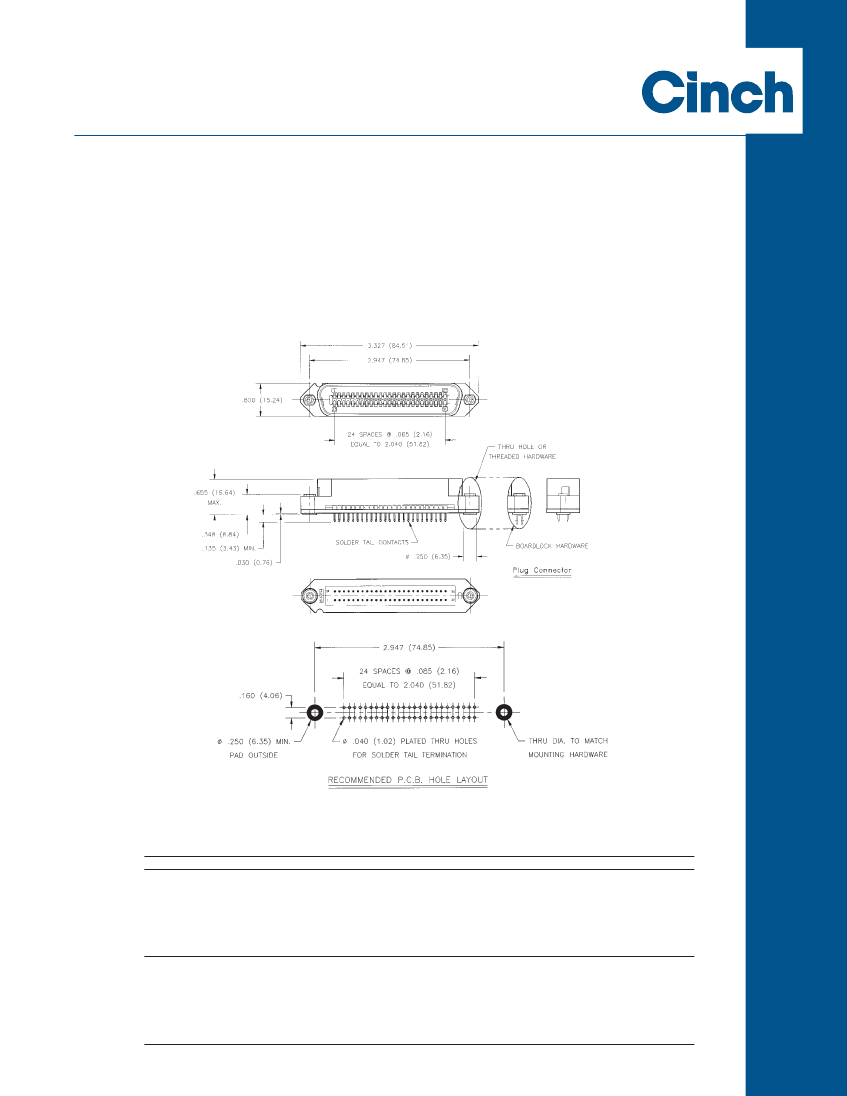

Available as straight Solder Tail plug for solder termination to printed circuit board

(nominal thickness through .093") and as plug/socket adapter, in 50-position size.

All-plastic design reduces cost.

All plugs lock with InstaLatch passive latch feature for automatic latching.

Adapters available with InstaLatches, with Bail Latches, or with no latches on socket side.

Available with through holes, #4-40 holes, #6-32 holes, or M3 holes for mounting/latching.

Insulator:

Gray UL94V-0 rated glass-filled polyester

Contact:

Copper alloy

Contact Plating:

30µin. select gold over 50µin. select nickel

standard; tin-lead on solder tails

Mounting Hardware Plating:

Tin-lead

Operating Temperature:

-50°C to +105°C

Shock:

50G Peak, per EIA Std. RS364, TP27, Condition A

Vibration:

3 cycles @ 10-55Hz in each of 3 axes per EIA Std.

364, TP28, Condition A

Moisture Resistance:

Per EIA Std. RS364, TP31, Condition B,

with Step 7B excluded

LECTRICAL

Voltage Rating:

Contact Rating:

RF Current Rating:

Leakage Current:

Voltage Surge:

Contact Resistance:

Insulation Resistance:

Dissipation Factor:

500VDC @ sea level

3 Amps

0.3 Amps

10mA maximum per contact when subjected to

1000 VAC test voltage, applied over 30 seconds

and held for 60 seconds per FCC Part 68.5

Withstands 1,500V peak longitudinal voltage

surge with 10µsec. risetime, 160µsec. decay

6 milliohms maximum, per EIA Std. RS364, TP6

5000 Megohms minimum

5% maximum @ 25°C, 1kHz and

1 VAC RMS maximum

Insertion Loss, min. (dB, @ 25°C, @ 50 ohm, no load, per MIL-STD-220)

10MHz

30MHz

50MHz

70MHz

100MHz 500MHz 1GHz

Insertion Loss:

Capacitance

@ 25°C, 1kHz, 1 VAC RMS max.

50pF+15%

100pF+15%

220pF+15%

470pF+15%

820pF+15%

1,000pF+15%

1,200pF+15%

ECHANICAL

Durability: 200 mating/unmating cycles

Mating / Unmating Forces:

Mating Force (max.)

with InstaLatches

Size

Lb.

14.52

Unmating Force (min.)

without InstaLatches

Lb.

3.18

Call Toll Free: 1 (800) 323-9612

6-48
