851553: DescriptionSAW Filter, 1 Function(s), 70MHz; CategoryAnalog mixed-signal IC filter; File Size26KB，1 Pages; ManufacturerQorvo; Websitehttps://www.qorvo.com

Download Datasheet Parametric View All

851553 Overview

SAW Filter, 1 Function(s), 70MHz

851553 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Qorvo
Reach Compliance Code	unknown
Maximum attenuation frequency (+/- delta f)	3850 kHz
Attenuation at maximum frequency	40 dB
Center frequency or cutoff frequency (fo/fc)	70 MHz
filter type	SAW FILTER
high	5.145 mm
input resistance	50 OHM
Maximum insertion loss	25 dB
JESD-609 code	e0
length	21.315 mm
Manufacturer's serial number	851553
Installation type	THROUGH HOLE MOUNT
Number of functions	1
Output impedance	50 OHM Ω
physical size	L0.87XB0.498XH0.21 (inch)
Terminal surface	Tin/Lead (Sn/Pb)
width	12.201 mm
Base Number Matches	1

Preview

Download Datasheet

View All

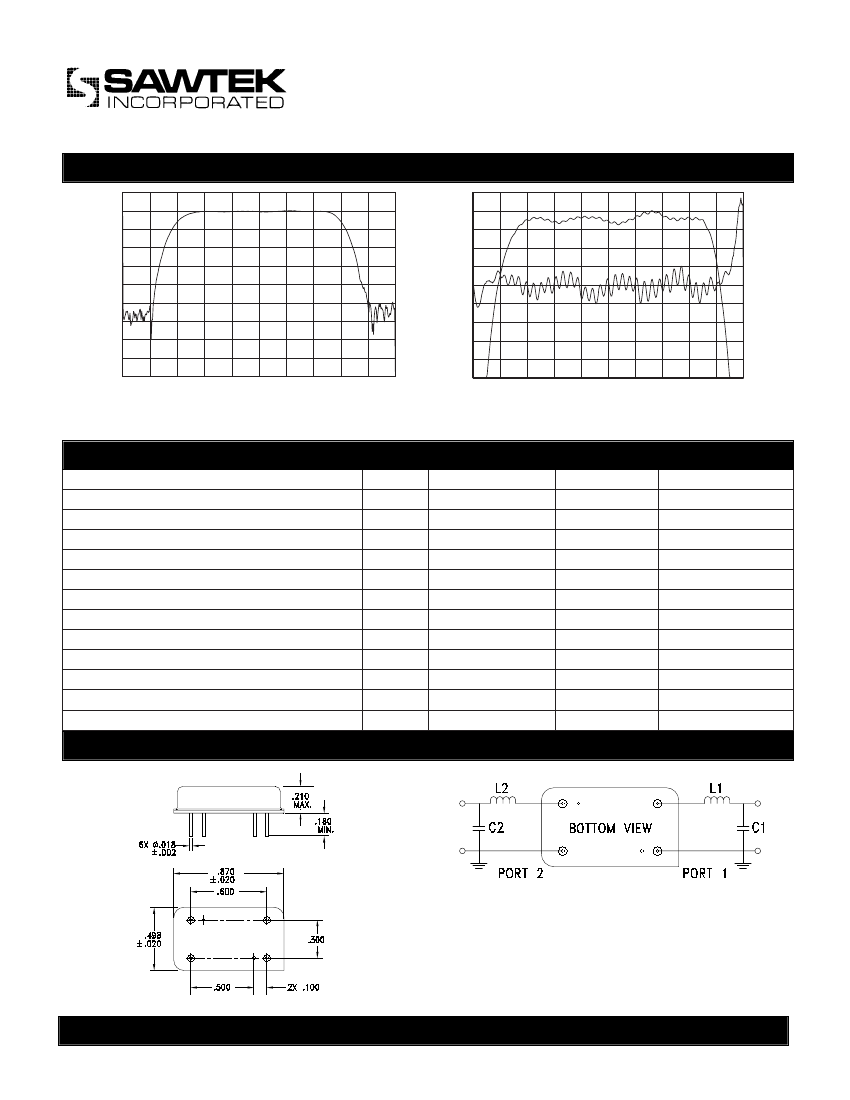

70 MHz Bandpass Filter

Data Sheet

Typical Performance

10

0

-10

-20

-30

-40

-50

-60

-70

-80

-90

Horizontal:

71 72

65 66 67 68 69 70

1 MHz/Div

73 74 75

Vertical: 10 dB/Div

1

250

0

200

-1

150

-2

100

-3

50

-4

0

-5

-50

-6

-100

-7

-150

-8

-200

-9

-250

Horizontal: 700 kHz/Div

66.5 67.267.968.6 69.3 70 70.7 71.472.1 72.8 73.5

Vertical: 1 dB/Div

Vertical: 50 nsec/Div

5.5 MHz Bandwidth

Part Number 851553

Parameter

Center Frequency

Insertion Loss at f

o

1 dB Bandwidth

3 dB Bandwidth

40 dB Bandwidth

Passband Variation

Phase Linearity

Group Delay Variation

Absolute Delay

Ultimate Rejection

Substrate Material

Ambient Temperature

Specifications

Unit

Minimum

MHz

dB

MHz

dB

deg

nsec

µsec

dB

-

°C

69.91

-

5

5.5

-

50

-

Typical

70

23

5.16

5.68

7.51

0.52

6

120

2.6

60

LiTaO

25

Maximum

70.09

25

-

7.7

0.8

9

140

-

Package Outline

Matching Configuration

L1 = 225nH , L2 = 222nH

C1 = 85 pf , C2 = 85 pf

Nominal Values Measured at 70 MHz

Nominal Source/Load Impedance = 50Ω

Package Style I

11/17/99

Sawtek Inc.

Telephone: (407) 886-8860

Fax: (407) 886-7061
