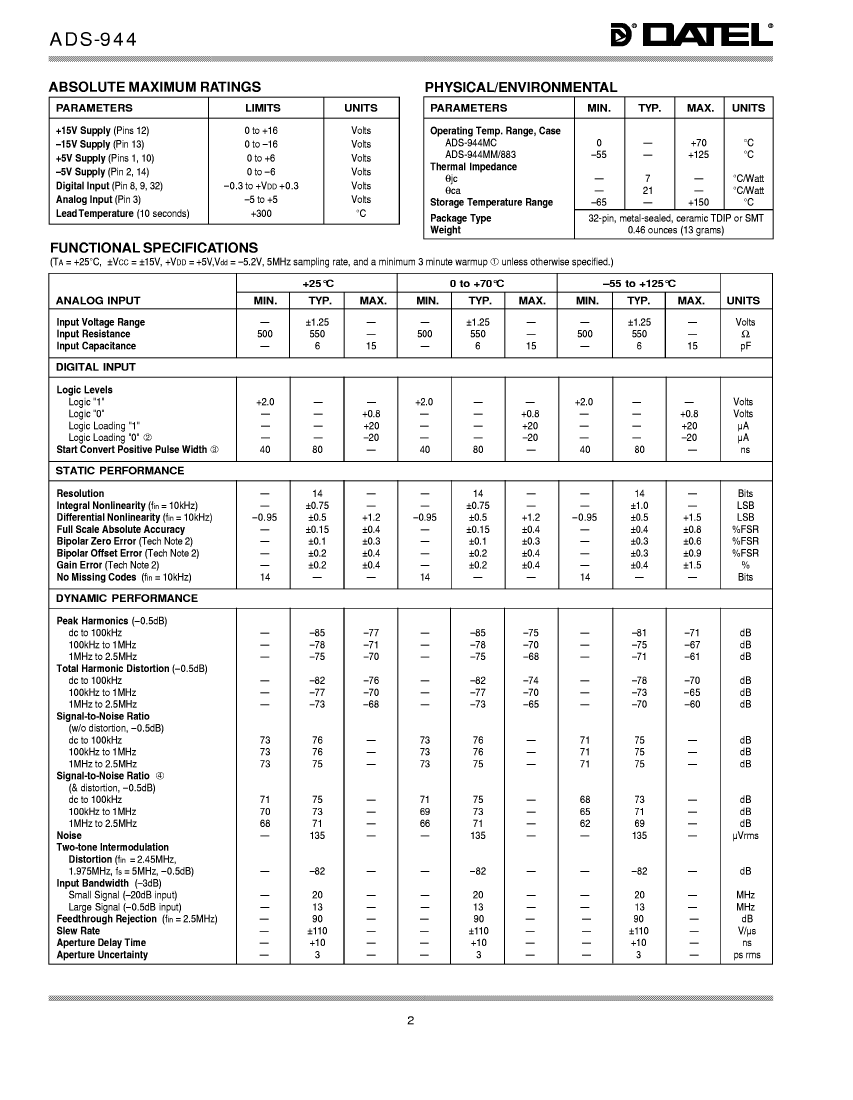

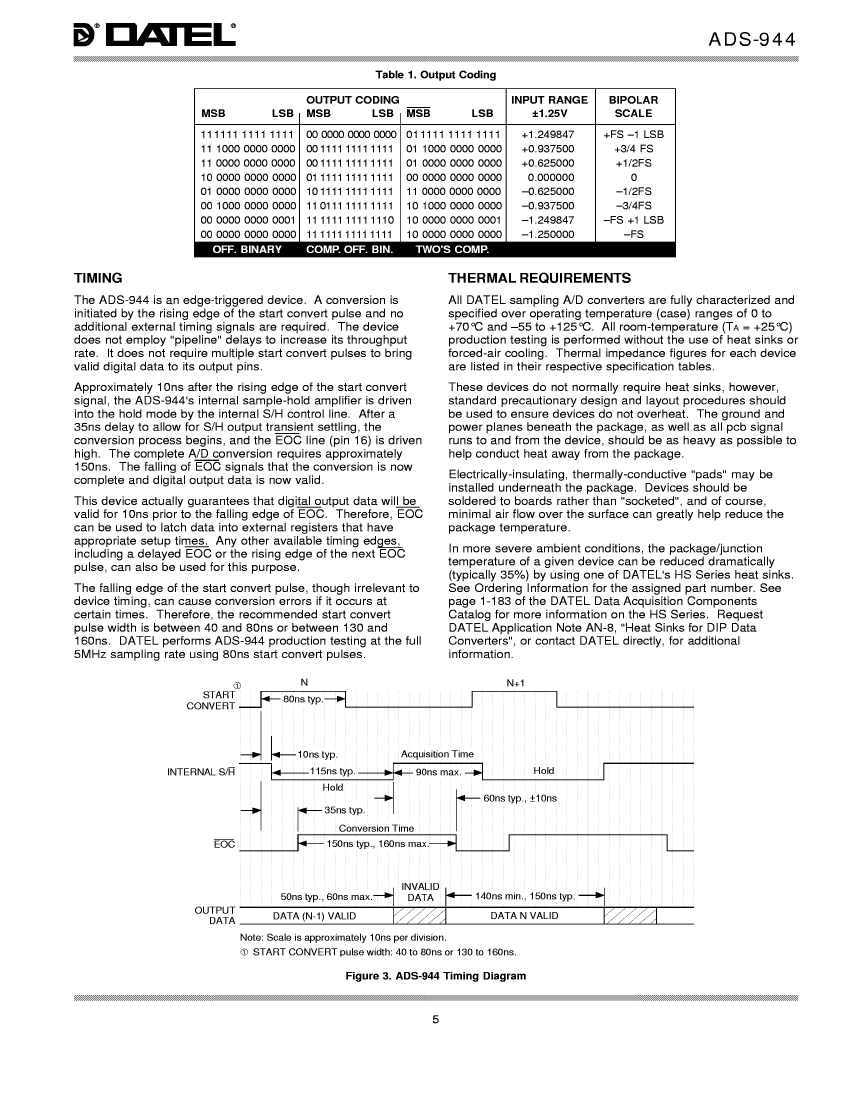

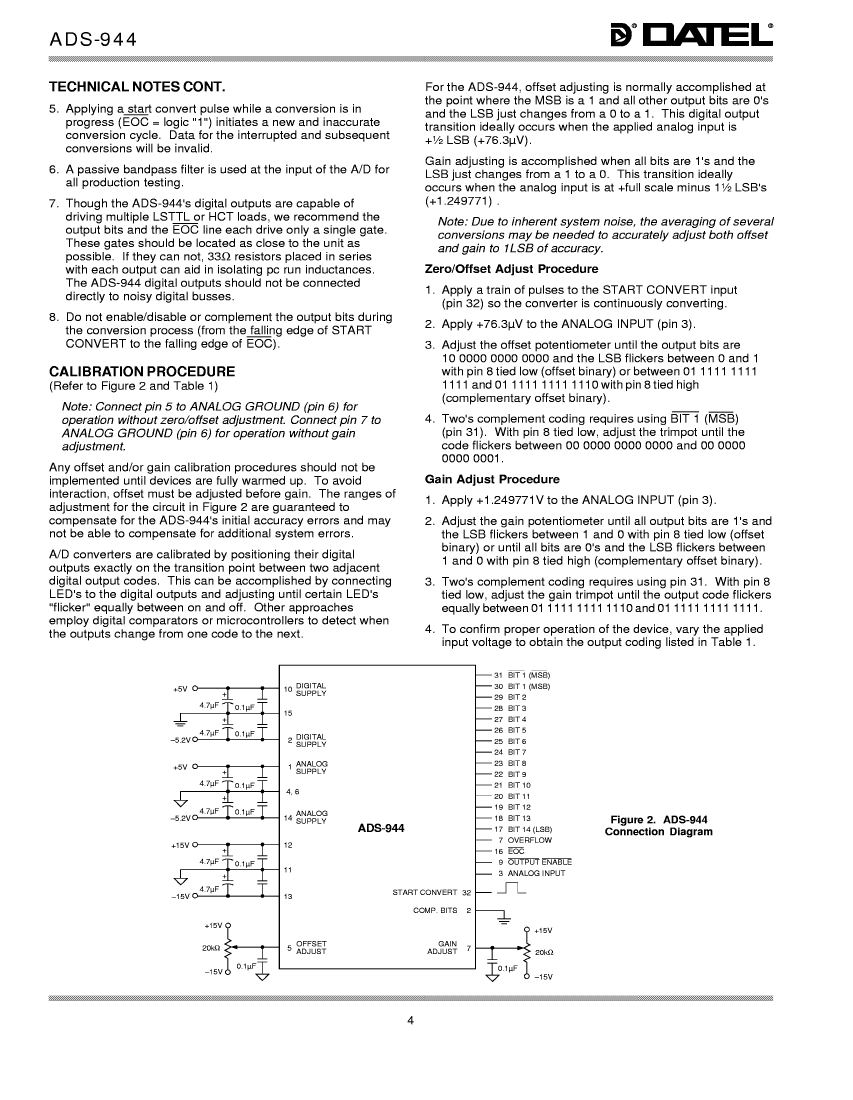

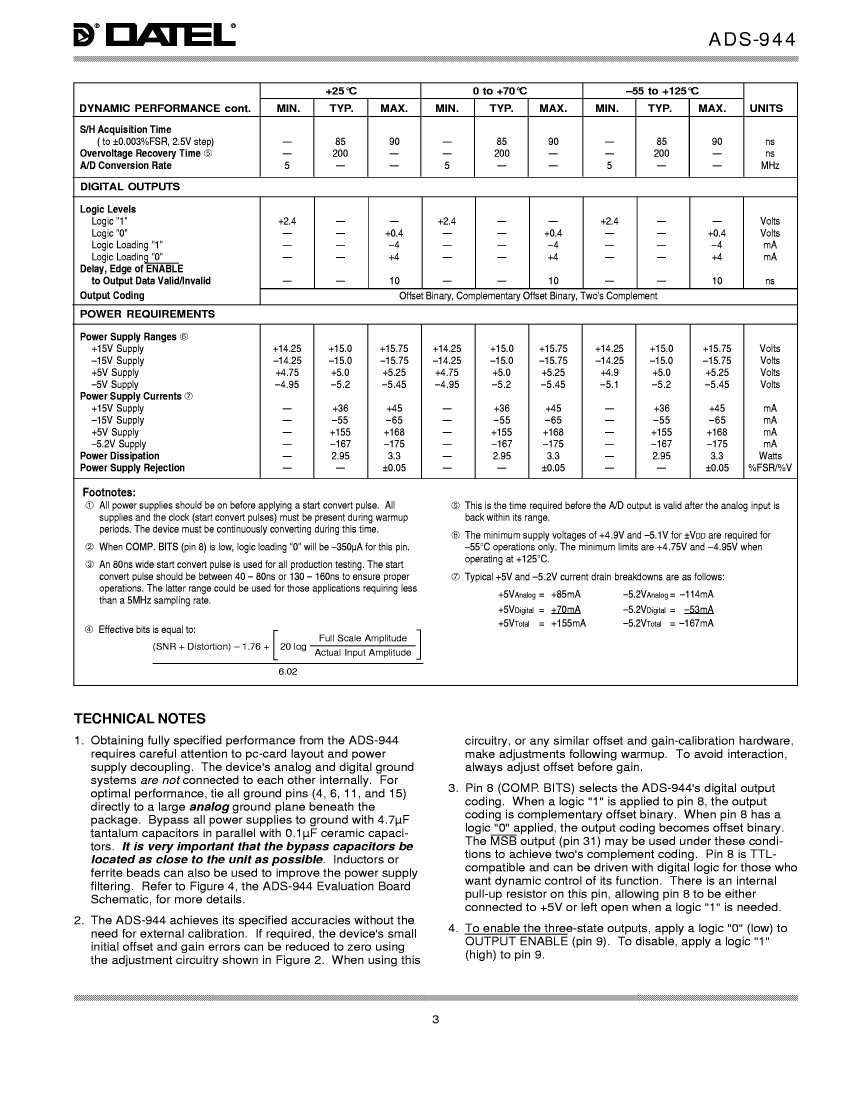

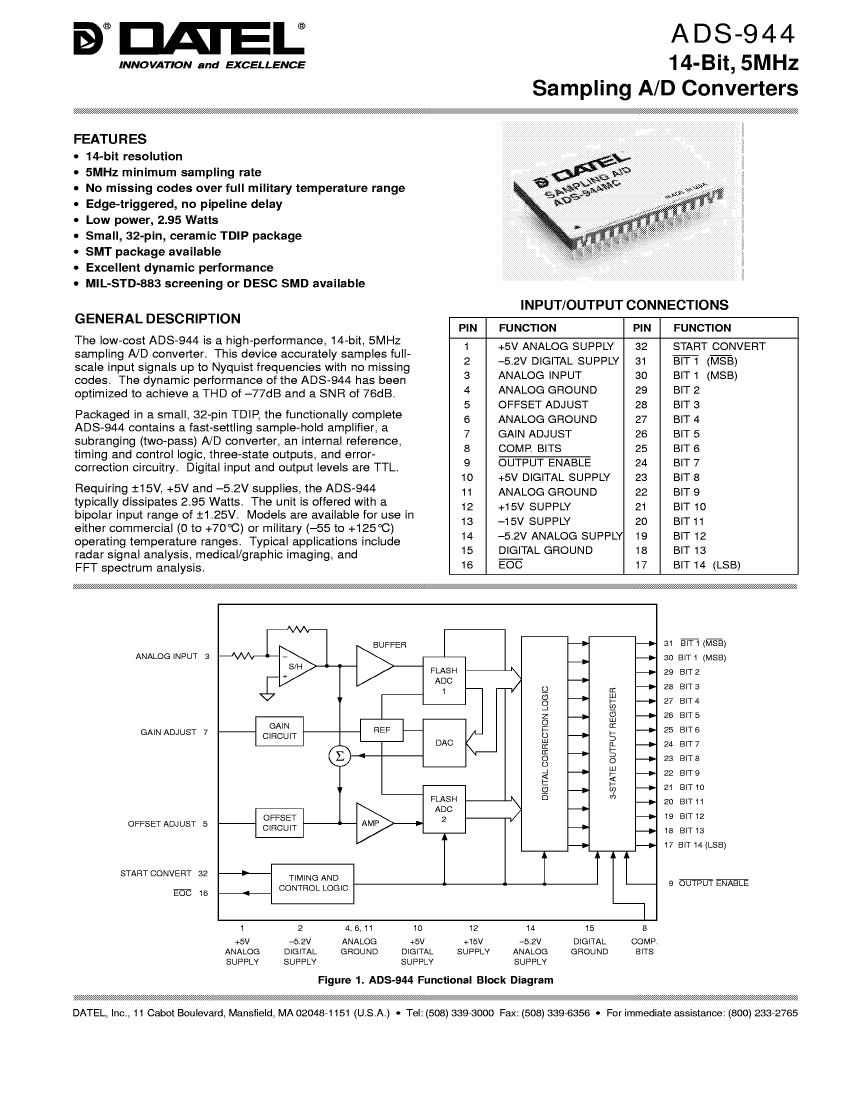

Preview

ADS-944MM: DescriptionADC, Flash Method, 14-Bit, 1 Func, 1 Channel, Parallel, Word Access, Hybrid, CDIP32, METAL SEALED, CERAMIC, TDIP-32; CategoryAnalog mixed-signal IC converter; File Size515KB，8 Pages; ManufacturerDATEL Inc.

Download Datasheet Parametric Compare View All

ADS-944MM Overview

ADC, Flash Method, 14-Bit, 1 Func, 1 Channel, Parallel, Word Access, Hybrid, CDIP32, METAL SEALED, CERAMIC, TDIP-32

ADS-944MM Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP32,.9
Contacts	32
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum analog input voltage	1.25 V
Minimum analog input voltage	-1.25 V
Maximum conversion time	0.16 µs
Converter type	ADC, FLASH METHOD
JESD-30 code	R-CDIP-T32
JESD-609 code	e0
length	43.69 mm
Maximum linear error (EL)	0.0061%
Nominal negative supply voltage	-15 V
Number of analog input channels	1
Number of digits	14
Number of functions	1
Number of terminals	32
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	OFFSET BINARY, 2\'S COMPLEMENT BINARY, COMPLEMENTARY OFFSET BINARY
Output format	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP32,.9
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,-5.2,+-15 V
Certification status	Not Qualified
Sampling rate	5 MHz
Sample and hold/Track and hold	SAMPLE
Maximum seat height	5.97 mm
Maximum slew rate	200 mA
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	22.86 mm
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

ADS-944MM Related Products

	ADS-944MM	ADS-944/883
Description	ADC, Flash Method, 14-Bit, 1 Func, 1 Channel, Parallel, Word Access, Hybrid, CDIP32, METAL SEALED, CERAMIC, TDIP-32	ADC, Flash Method, 14-Bit, 1 Func, 1 Channel, Parallel, Word Access, Hybrid, CDIP32, METAL SEALED, CERAMIC, TDIP-32
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	DIP	DIP
package instruction	DIP, DIP32,.9	DIP, DIP32,.9
Contacts	32	32
Reach Compliance Code	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C
Maximum analog input voltage	1.25 V	1.25 V
Minimum analog input voltage	-1.25 V	-1.25 V
Maximum conversion time	0.16 µs	0.16 µs
Converter type	ADC, FLASH METHOD	ADC, FLASH METHOD
JESD-30 code	R-CDIP-T32	R-CDIP-T32
JESD-609 code	e0	e0
length	43.69 mm	43.69 mm
Maximum linear error (EL)	0.0061%	0.0061%
Nominal negative supply voltage	-15 V	-15 V
Number of analog input channels	1	1
Number of digits	14	14
Number of functions	1	1
Number of terminals	32	32
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output bit code	OFFSET BINARY, 2\'S COMPLEMENT BINARY, COMPLEMENTARY OFFSET BINARY	OFFSET BINARY, 2\'S COMPLEMENT BINARY, COMPLEMENTARY OFFSET BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP32,.9	DIP32,.9
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5,-5.2,+-15 V	5,-5.2,+-15 V
Certification status	Not Qualified	Not Qualified
Sampling rate	5 MHz	5 MHz
Sample and hold/Track and hold	SAMPLE	SAMPLE
Maximum seat height	5.97 mm	5.97 mm
Maximum slew rate	200 mA	200 mA
Nominal supply voltage	15 V	15 V
surface mount	NO	NO
technology	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	22.86 mm	22.86 mm
