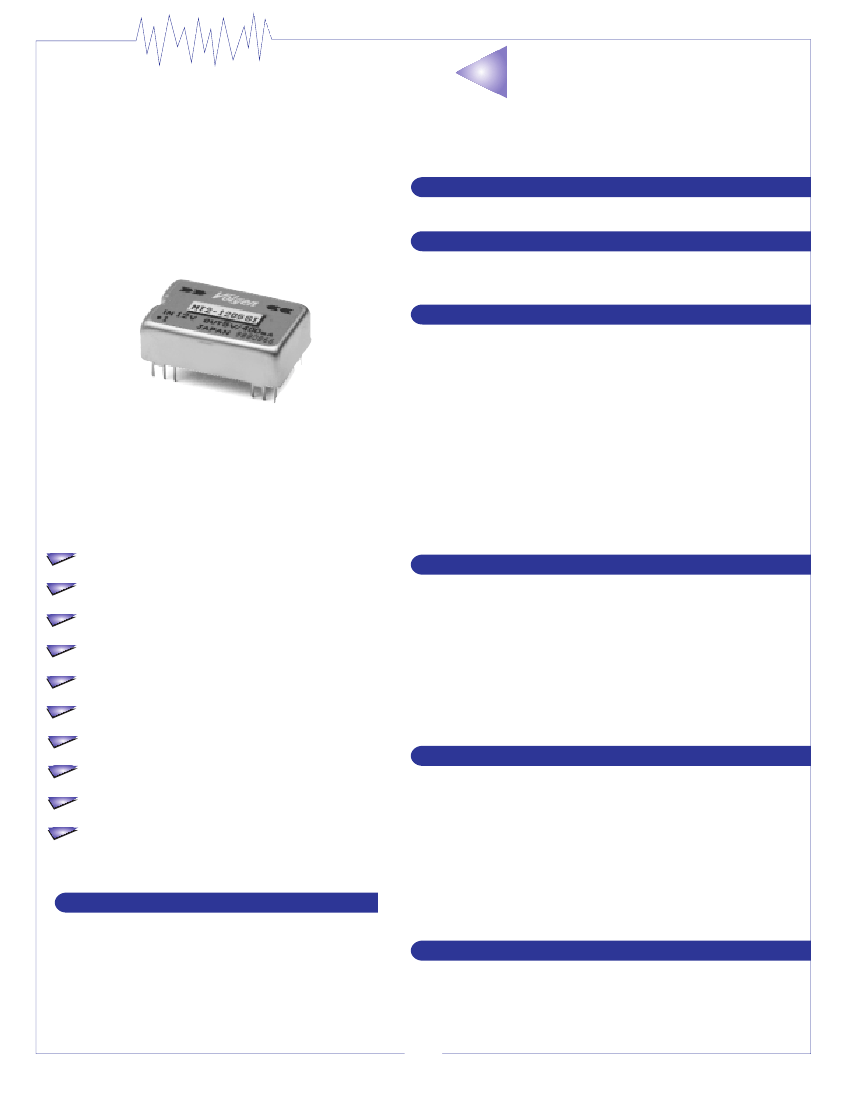

MT2
2 WATT DC/DC CONVER TER,
SINGLE & MULTIPLE OUTPUTS
ELECTRICAL SPECIFICATIONS
All specifications are typical at nominal input, full load
INPUT SPECIFICATIONS
Input Voltage.................................... ± 5%
Input Filter........................................ PI-Network
OUTPUT SPECIFICATIONS
Output Voltage Accuracy................. ±5%
Efficiency.......................................... 60% typ.
Over-Current Protection...................Built-in
(Automatic Recovery)
Ripple ..............................................120 mVp-p (DC to 100MHZ)
Line Regulation................................ ±0.5%
Line Filter......................................... Built-in
Load Regulation...............................±1.0% max. (Load Rate 0% ~ 100%)
Spike Noise
(DC to 100 MHZ)
.....................Input 150 mVp-p max.
Output 70 mVp-p max.
FEATURES
FULL SMD DESIGN WITH CERAMIC CAPACITORS
5 SIDED METAL CASE
EXTREMELY RELIABLE
INTERNAL EMI FILTER
LOW OUTPUT RIPPLE AND NOISE
SHORT CIRCUIT PROTECTION
DIRECT PCB-SOLDERING
INDUSTRY STANDARD PINOUT (IC-24P)
LOW PROFILE, 10mm (0.39”) HEIGHT
FIVE YEAR WARRANTY
GENERAL SPECIFICATIONS
Isolation Voltage
Primary to Secondary............... DC 500V/ 1min. 5mA
Primary to Case........................ DC 500V/ 1min. 5mA
Secondary to Case.................... DC 500V/ 1min. 5mA
MTBF.............................................. >1,000,000 hours
Isolation Resistance........................ INPUT-OUTPUT-CASE 50M-ohms min.
(Measured at 500 VDC)
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature ................... -25 ~ +75˚C
Temperature Coefficient...................±0.05%/ ˚C
Humidity........................................... 30%~95% RH
Storage Temperature....................... -25°C ~ +85°C
EMI
Complys with:
CISPR CLASS A
PHYSICAL SPECIFICATIONS
Case Material.....................................Nickel-Plated Steel

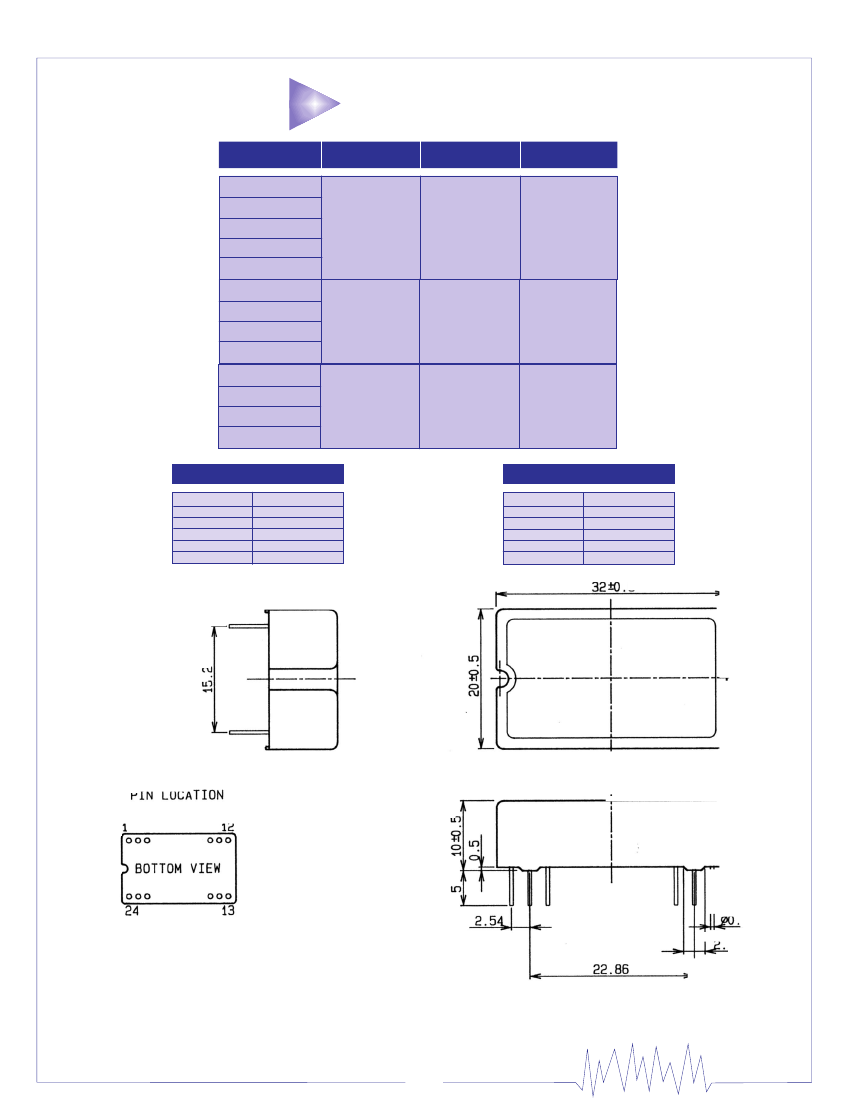

Dual In-Line Pin Configuration
